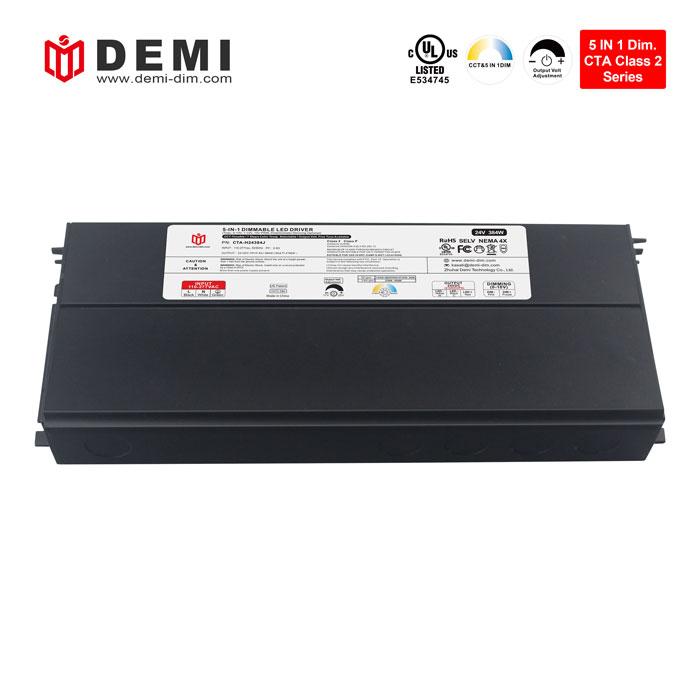

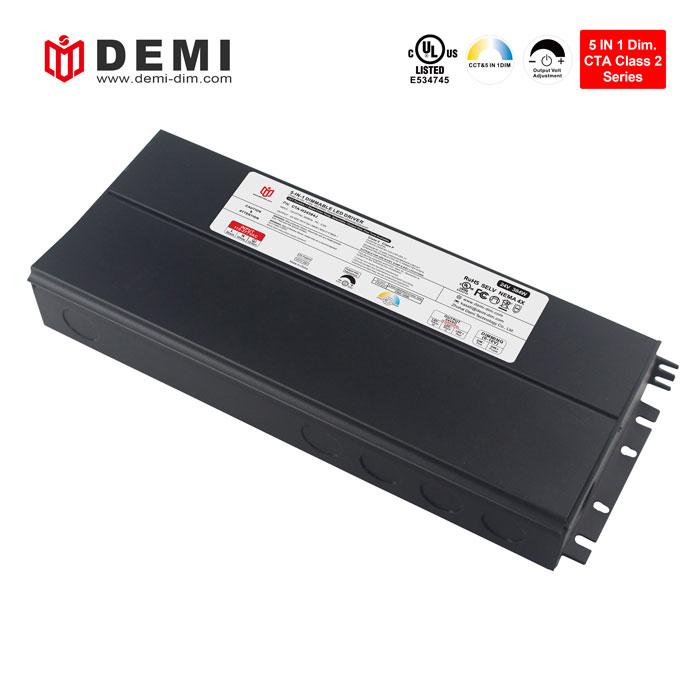

CTA series high power 384W 24v CCT & TRIAC/0 10v dimmable led driver is a Class 2 standard multi-output dimmable led driver, constant voltage operating mode. Strong compatibility, dimming performance is as good as Magnitude Lighting’s dimmable led driver
Brand:
DEMIItem no.:
CTA-H24384JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
384WOutput Voltage:
24/48VdcShape & Size:
J-box DriverSize:
316x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years

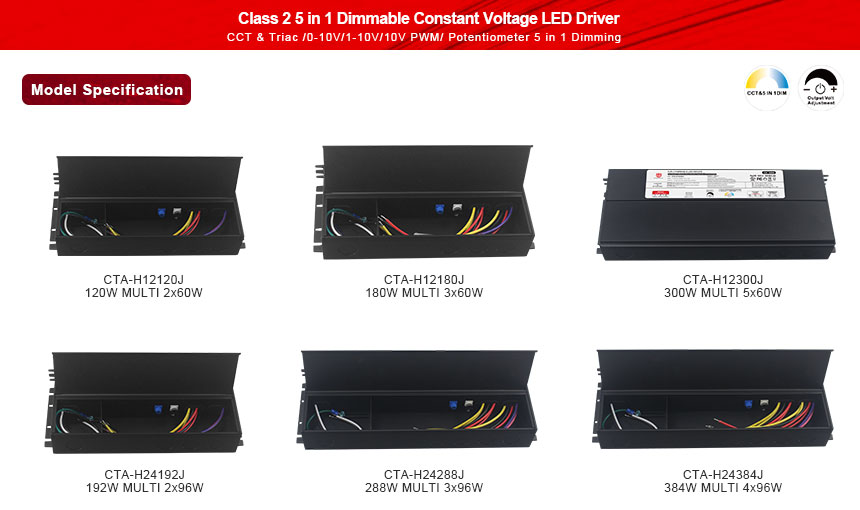

384w 24v CCT & triac/0 10v dimmable class 2 led driver strip lighting power supply
110-277vac universal input voltage mode 384W dimmable led driver has a built-in fine-tuning voltage function knob, and the dimming range is between 0.1~100%. Aluminum shell design, good heat dissipation, short circuit/overload/overtemperature protection, 5-year warranty
| Model Number | CTA-H24384J |
| Output Type | |
| Reted Power | 384W(MULTI 4*96W) |
| Reted Voltage | 24V |
| Reted Current | 4CH*4A |
| Voltage Tolerance | ±0.5V |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±1% |
| Input Type | |
| Voltage Range | 110-277V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC |
| Total Harmonic Distortion | THD< 15%(@100% load) |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC |
| AC Current(Typ.) | 3.8A |
| Inrush Current(Typ.) | 38A |
| Leakage Current | <0.5mA |
| PROTECTION | |
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 |
| Withstand voltage | I/P-O/P:1.88KVAC |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH |
| EMC Emission | Compliance to FCC part 15 Subpart B |
| OTHERS | |

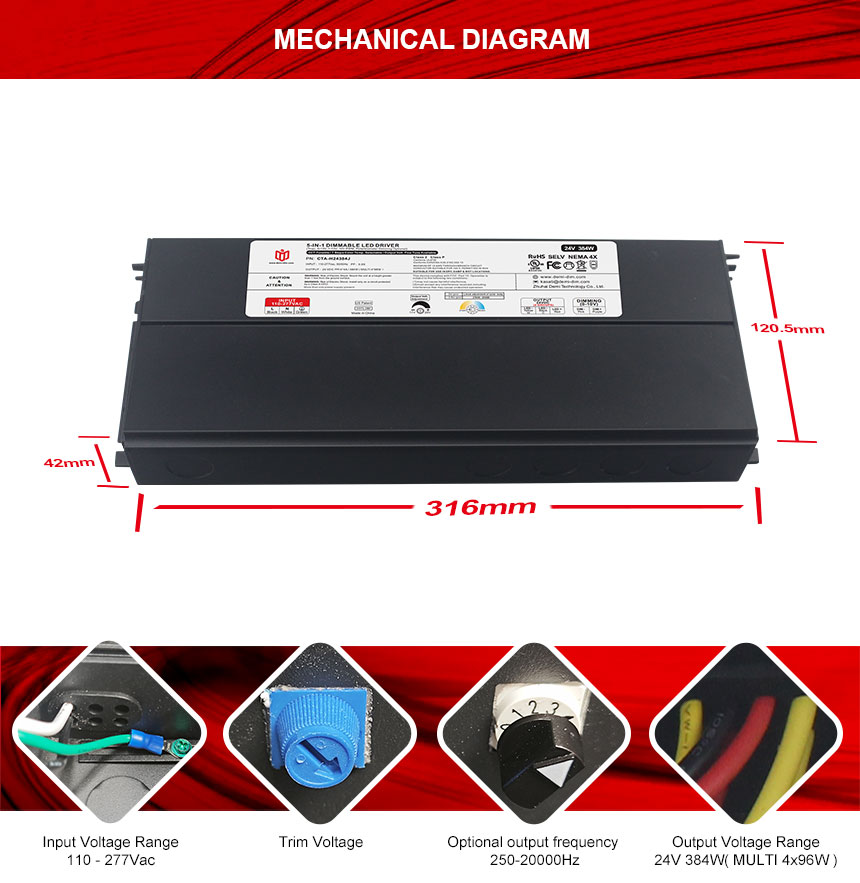

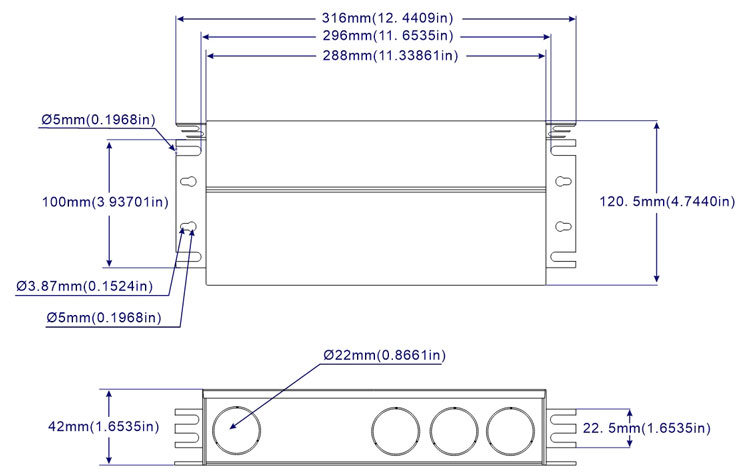

| Dimension | 316x120.5x42mm (L*W*H) |
| Packing | - |
|

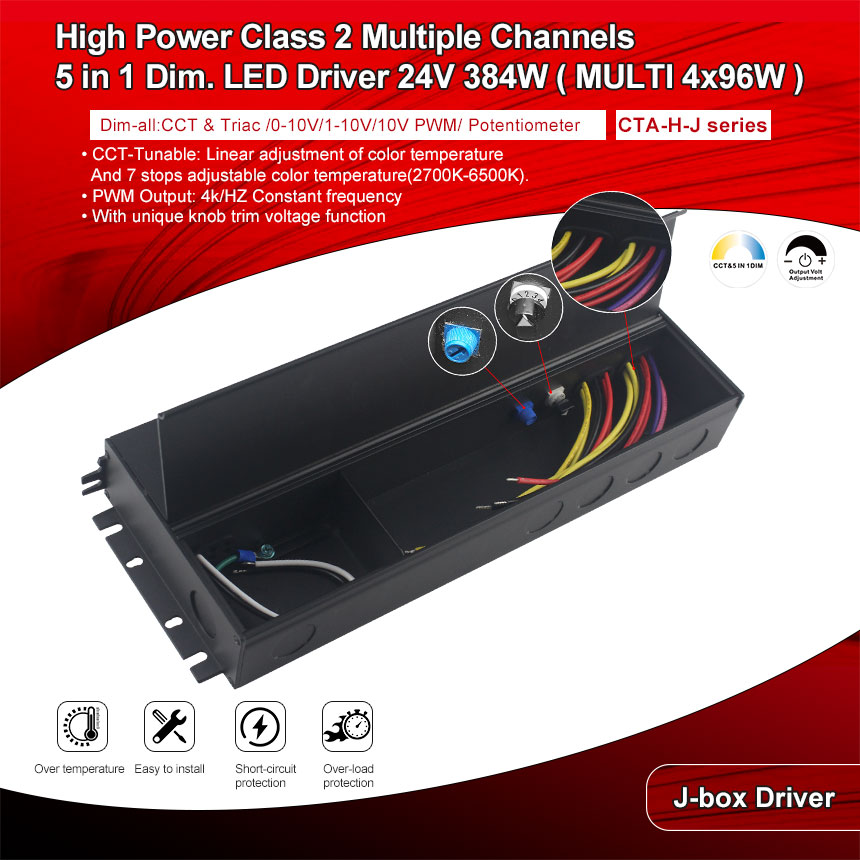

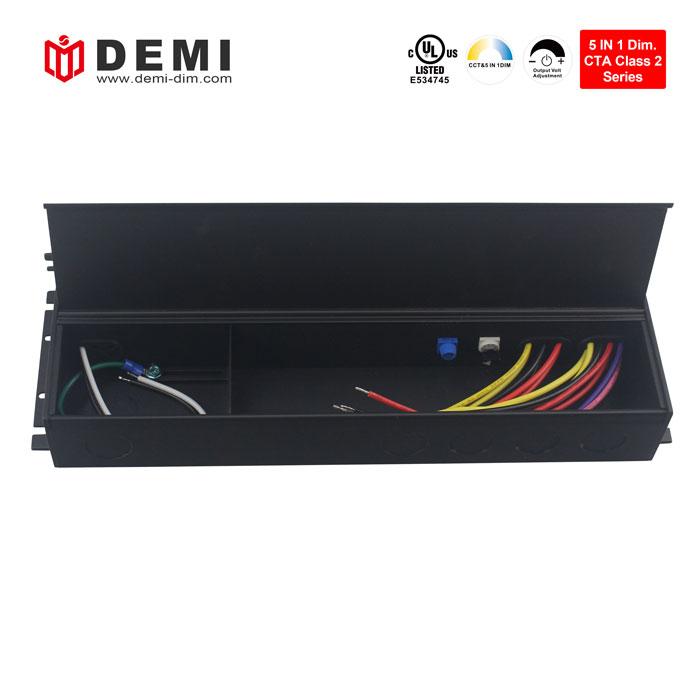

•Exclusive patent design of “Clamshell” junction box •Super low loading request, works perfect at 10-100% load |
•PWM Output: 4k/HZ Constant frequency •Short-circuit, over-temperature, over-load protection
|

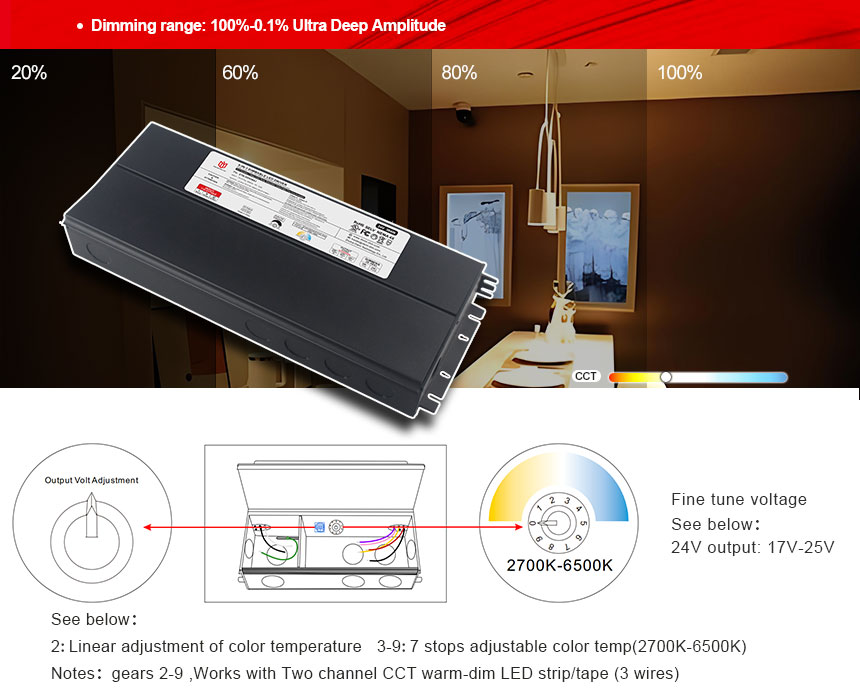

This 384W dimmable led driver has a built-in multi-level switching mode function. Level 2 is linear dimming and color adjustment. Levels 3 to 9 can be switched between 2700k-6500k to meet the needs of customers with higher color temperature requirements. Mainly suitable for LED advertising lighting modules and soft light strips or hard light strips. It has good dimming performance and has a 5-year warranty.
| CTA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
384W (MULTI 4*96W) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*4 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*4 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG*4 | / | / | / | |

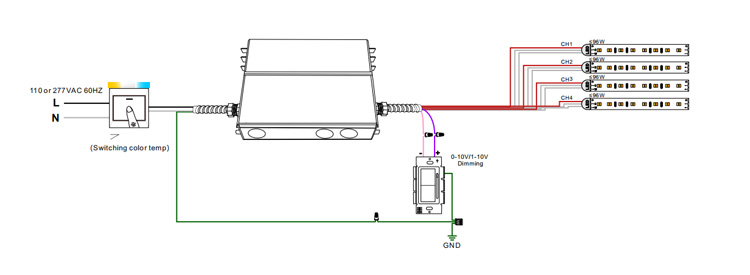

Wiring Diagram

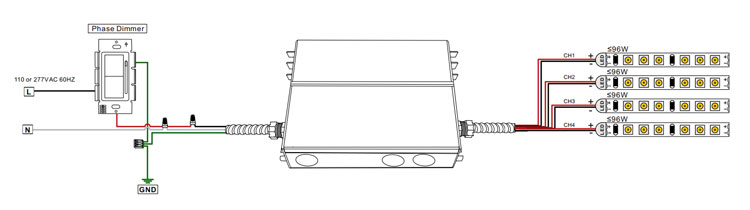

· Using Triac MLV wiring diagram

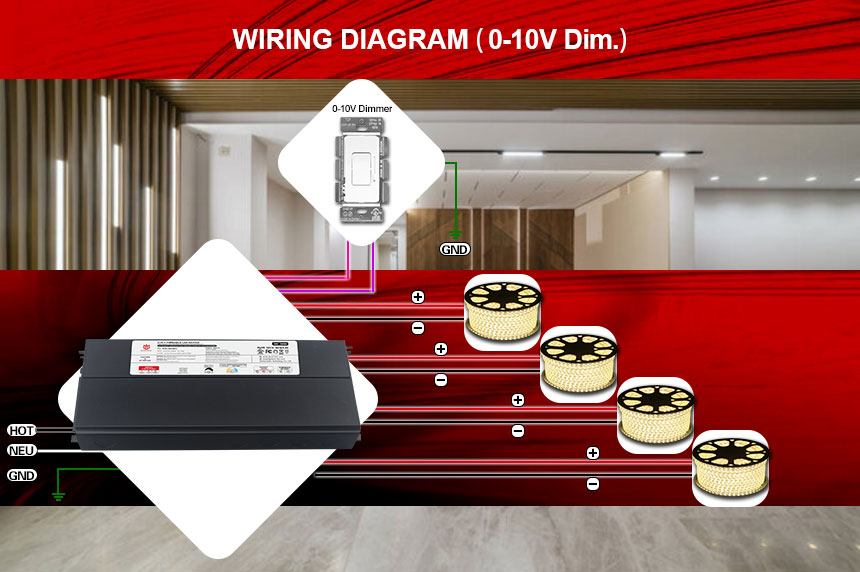

· Using 0-10/1-10V dimming
Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
