The high power 384W CCT & 5 in 1 dimmable led driver has built-in active PFC function, ultra-low load requirements, and can work perfectly under 10-100% load. Compatible with almost all popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems on the market, such as BESTTEN dimmer
Brand:
DEMIItem no.:
DSD-H24384JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
384WOutput Voltage:
24/48VdcShape & Size:
J-box DriverSize:
316x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 yearshigh power 384W 24V triac & 0 10v dimmable constant voltage led driver strip lights power supply

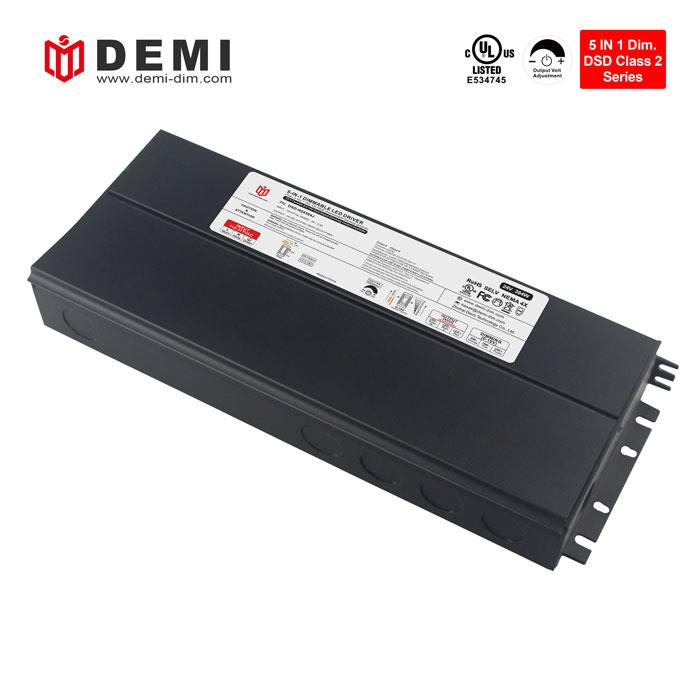

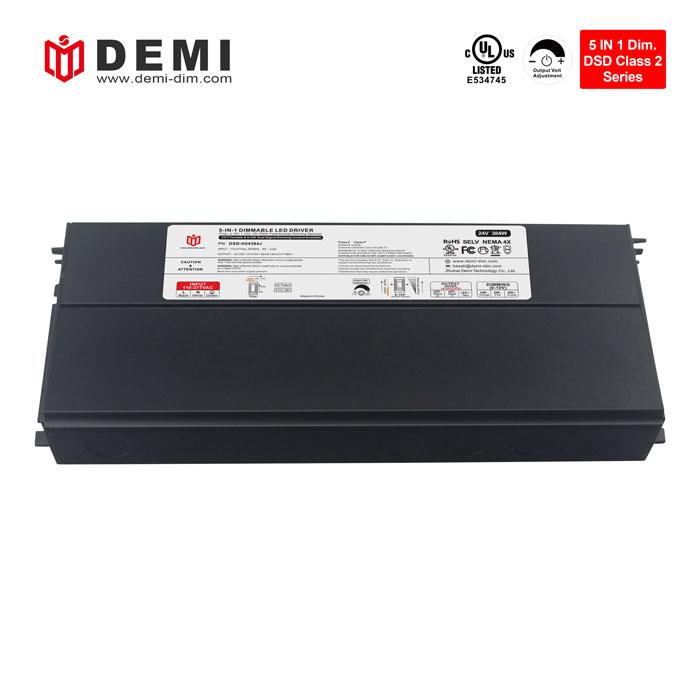

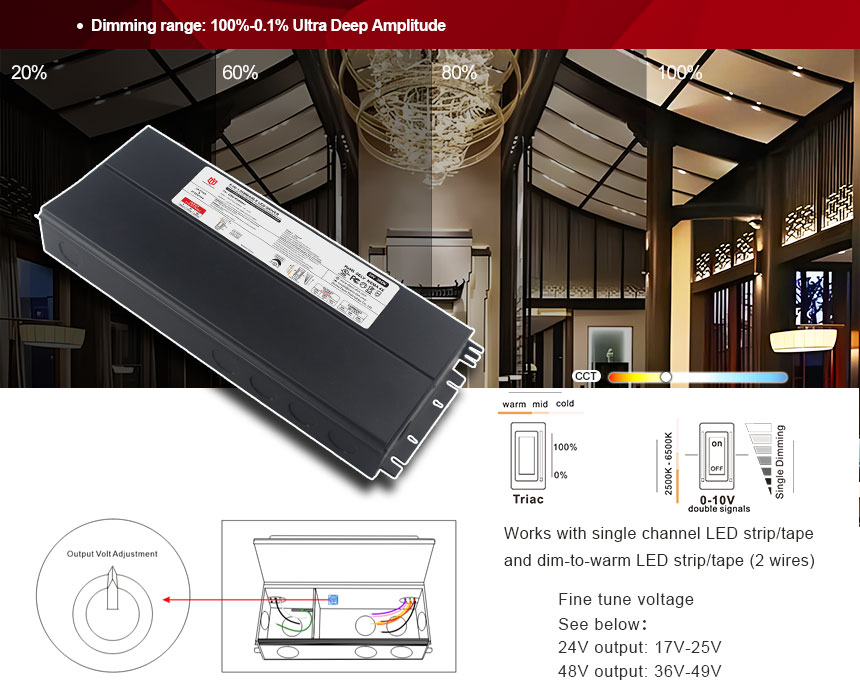

DSD series Class 2 standard 384W dimmable led power supply has a built-in unique fine-tuning voltage function knob, which can adjust a certain brightness even when a dimmer is not connected. This LED driver has 4-channel output function, short circuit/over-temperature/overload protection function, and 5-year warranty
Model Number | DSD-H24384J | DSD-H48384J |
Output Type | ||
Reted Power | 384W(MULTI 4*96W) | |
Reted Voltage | 24V | |
Reted Current | 4CH * 4A | 4CH * 2A |
Voltage Tolerance | ±0.5V | |
Voltage Regulation | ±0.5% | |
Load Regulation | ±1% | |
Input Type | ||
Voltage Range | 110-277V | |
Frequency Range | 47-63HZ | |
Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
Total Harmonic Distortion | THD< 15%(@100% load) | |
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
AC Current(Typ.) | 3.8A | |
Inrush Current(Typ.) | 38A | |
Leakage Current | <0.5mA | |
PROTECTION | ||
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. | |
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
ENVIRONMENT | ||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
Working humidity | 20 ~ 95% RH non-condensing | |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
Temp .coefficient | ±0.03%/℃(0~50℃) | |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
SAFETY & EMC | ||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
Withstand voltage | I/P-O/P:1.88KVAC | |
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
EMC Emission | Compliance to FCC part 15 Subpart B | |
OTHERS | ||

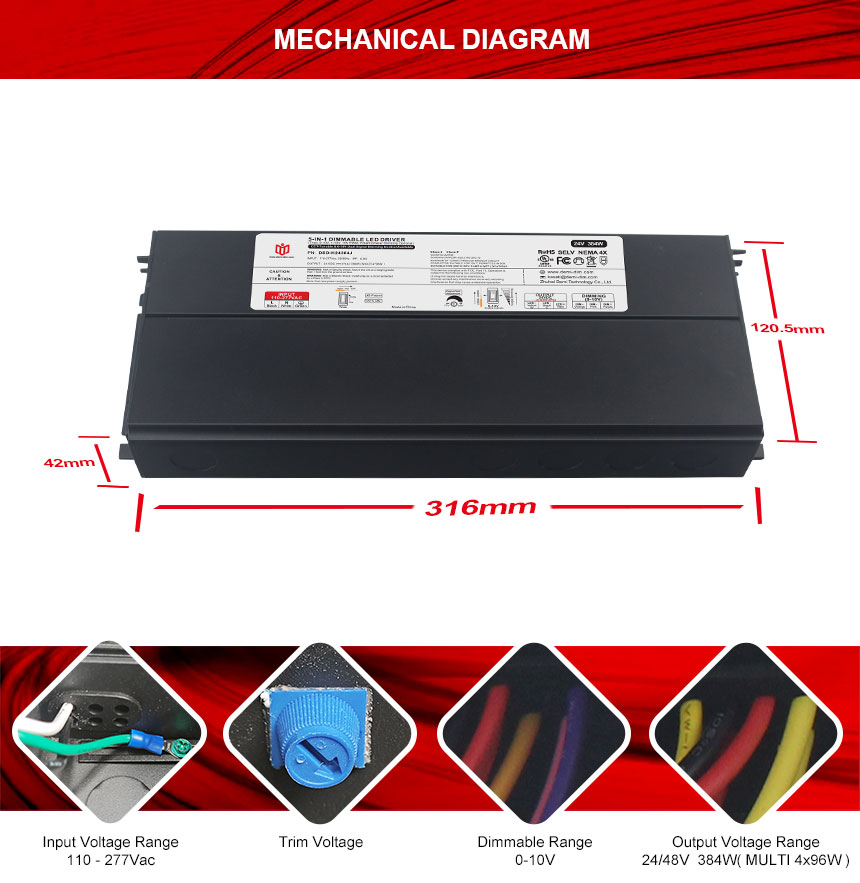

Dimension | 316x120.5x42mm (L*W*H) | |
Packing | - |

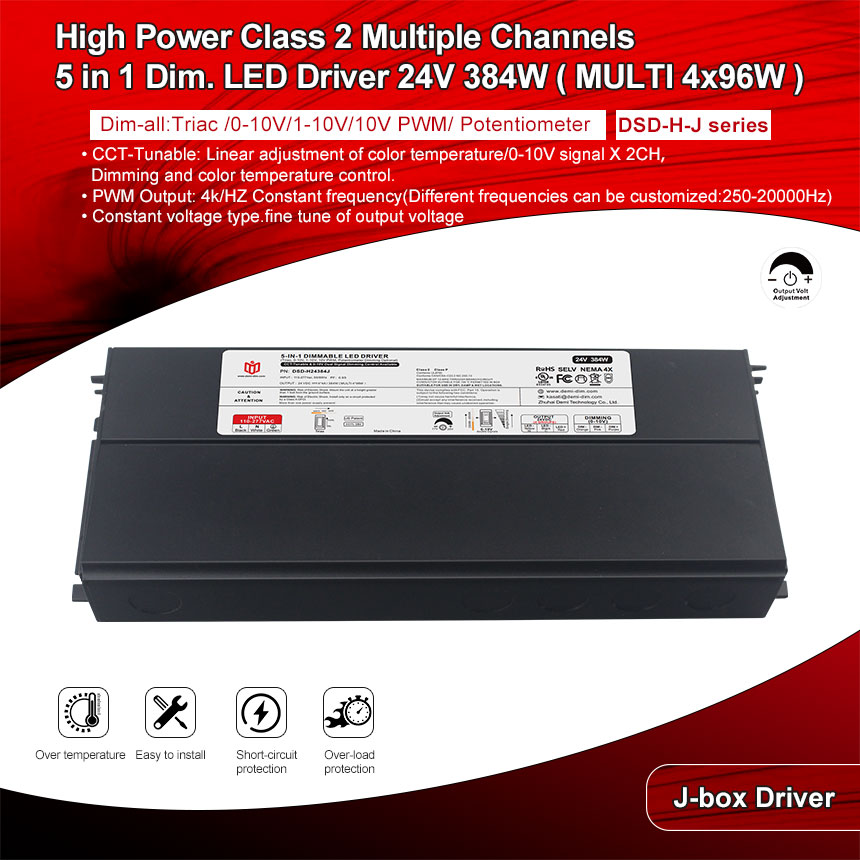

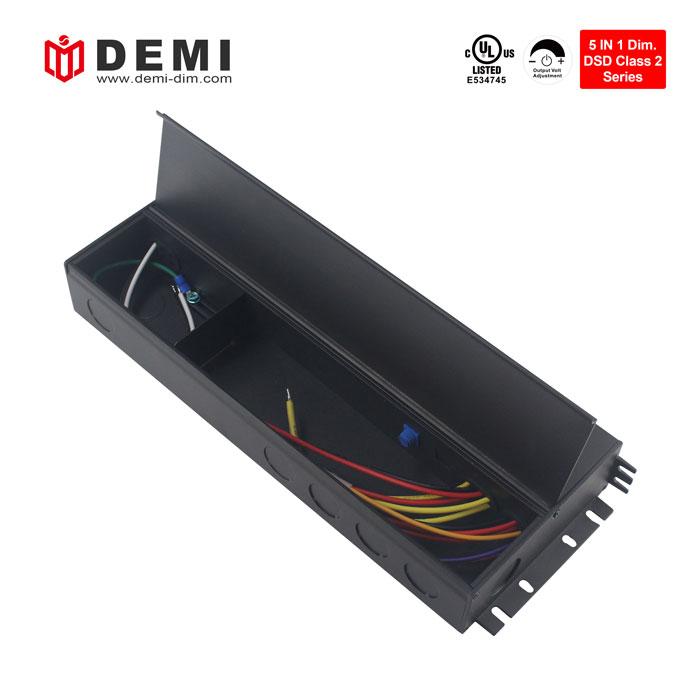

•Exclusive patent design of “Clamshell” junction box •Super low loading request, works perfect at 10-100% load |
•PWM Output: 4k/HZ Constant frequency •Short-circuit, over-temperature, over-load protection
|
DSD-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
384W (MULTI 4*96W) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*4 | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG*4 | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG*4 | Dim- | Orange | 18AWG |

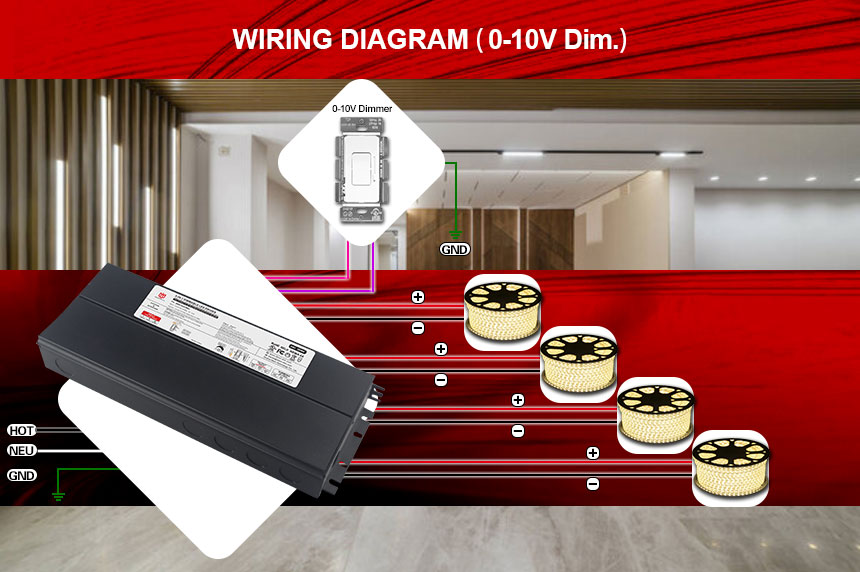

Wiring Diagram
· Using Triac MLV wiring diagram
· Using 0-10/1-10V dimming

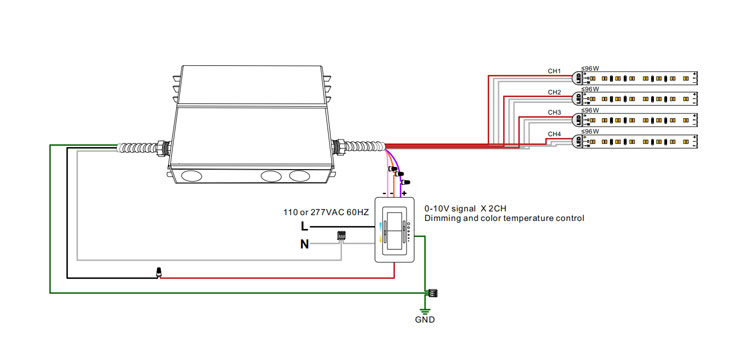

Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
