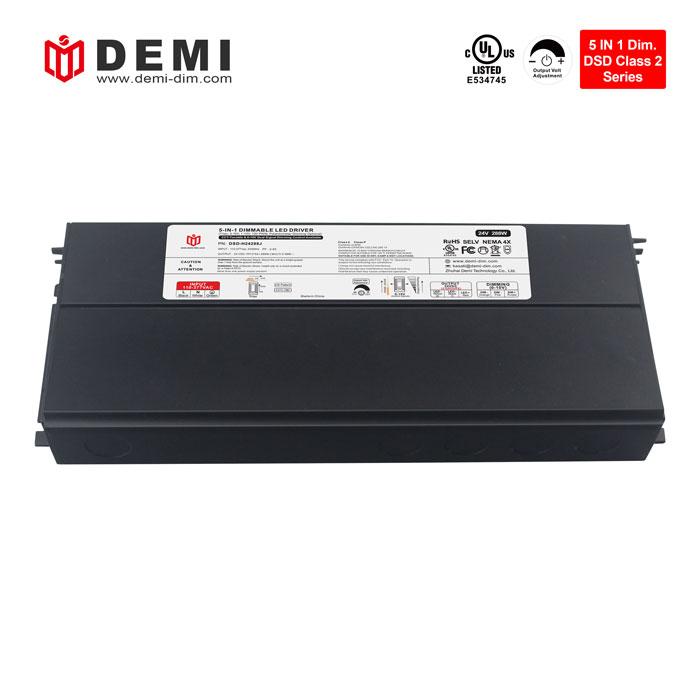

288W CCT & 5 in 1 dimmable led driver constant voltage working mode, power factor >0.95, with ultra-low load requirements, able to work perfectly under 10-100% load, dimming range from 0.1% to 100% ultra-deep dimming. The dimming effect is as good as Inventronics' dimmable led driver and comes with a 5-year warranty
Brand:
DEMIItem no.:
DSD-H24288JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
288WOutput Voltage:
24/48VdcShape & Size:
J-box DriverSize:
316x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 yearsclass 2 high power triac & 0 10v dimmable 288W 24v led driver light strip

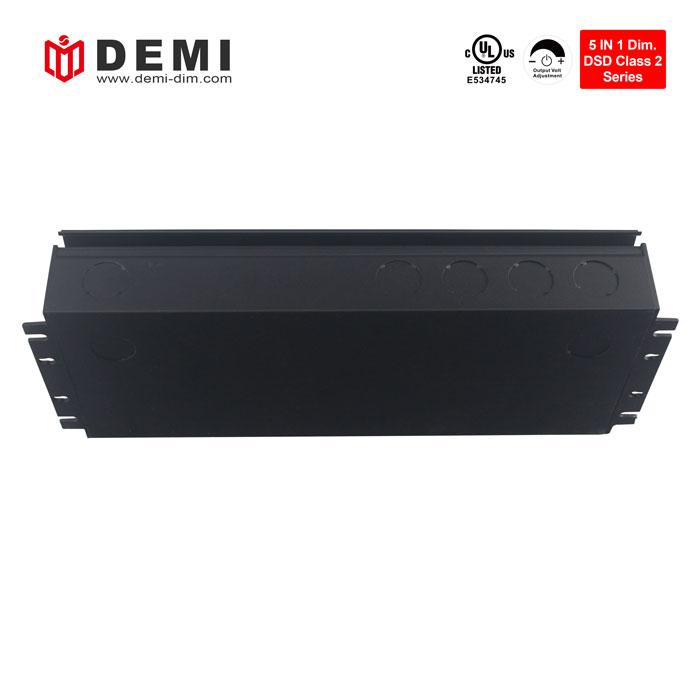

This DSD series 288W dimmable led driver has built-in active PFC function and constant voltage operating mode. UL certified, in line with global safety lighting regulations, good heat dissipation, suitable for commercial or home lighting projects

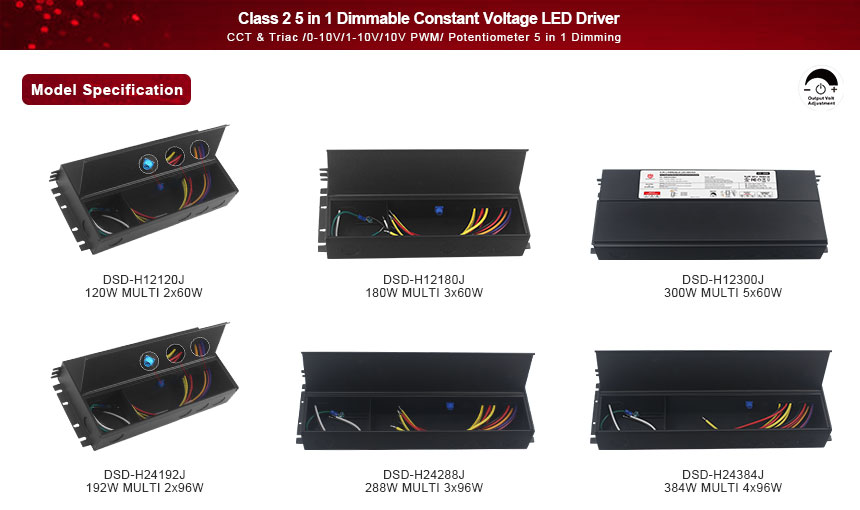

Model Number | DSD-H24288J | DSD-H48288J |
Output Type | ||
Reted Power | 288W(MULTI 3*96W) | |
Reted Voltage | 24V | |
Reted Current | 3CH * 4A | 3CH * 2A |
Voltage Tolerance | ±0.5V | |
Voltage Regulation | ±0.5% | |
Load Regulation | ±1% | |
Input Type | ||
Voltage Range | 110-277V | |
Frequency Range | 47-63HZ | |
Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
Total Harmonic Distortion | THD< 15%(@100% load) | |
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
AC Current(Typ.) | 2.97A | |
Inrush Current(Typ.) | 35A | |
Leakage Current | <0.5mA | |
PROTECTION | ||
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. | |
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
ENVIRONMENT | ||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
Working humidity | 20 ~ 95% RH non-condensing | |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
Temp .coefficient | ±0.03%/℃(0~50℃) | |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
SAFETY & EMC | ||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
Withstand voltage | I/P-O/P:1.88KVAC | |
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
EMC Emission | Compliance to FCC part 15 Subpart B | |
OTHERS | ||

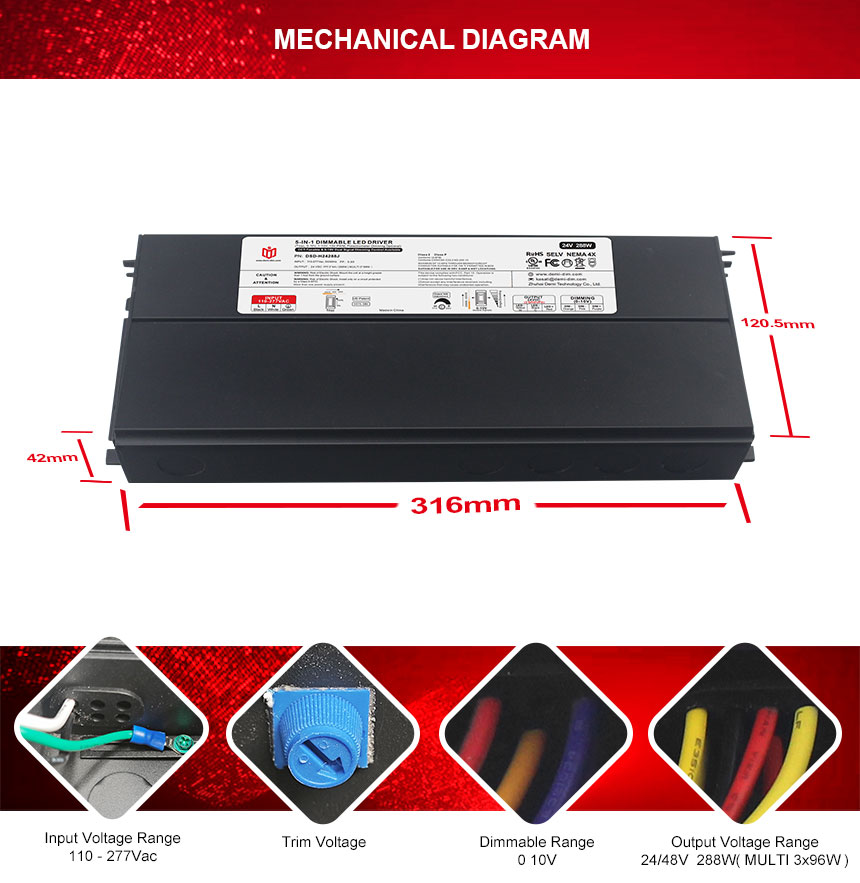

Dimension | 316x120.5x42mm (L*W*H) | |
Packing | - |

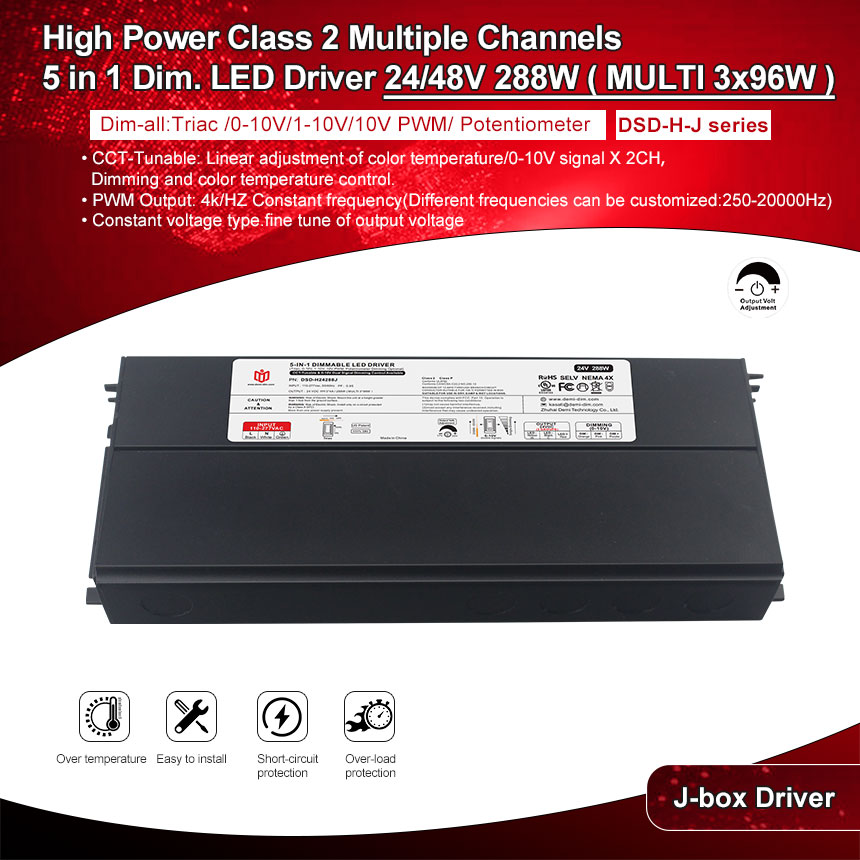

•Constant voltage type.fine tune of output voltage •Super low loading request, works perfect at 10-100% load. |
•With unique knob trim voltage function •PWM Output: 4k/HZ Constant frequency
|
DSD series 288W dimmable LED driver is Class 2 standard, dimmable mode is CCT & triac/0 10v dimmable. This LED driver has three outputs and can be used for dimming multiple lamp groups at the same time to meet different lighting needs. Suitable for commercial and office environments, used with constant voltage input spotlights, lamp cups, magnetic track lights, etc.

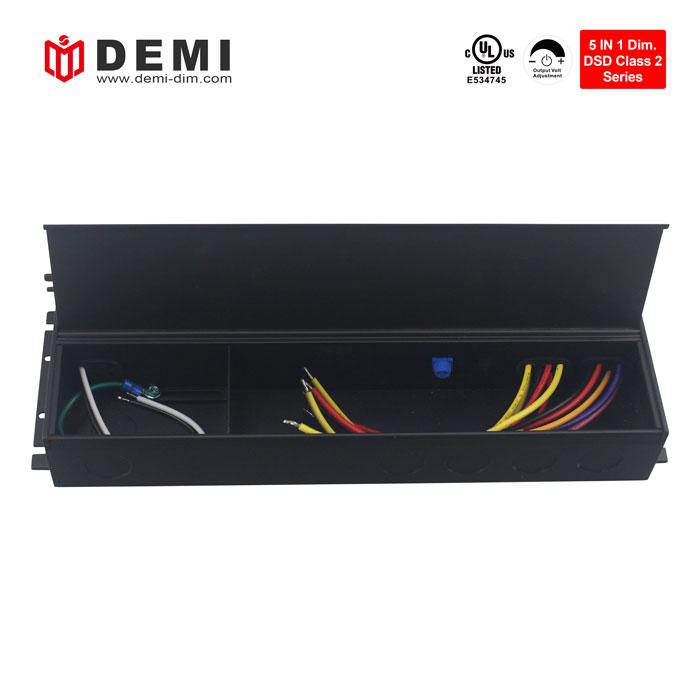

DSD-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
288W (MULTI 3*96W) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*3 | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG*3 | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG*3 | Dim- | Orange | 18AWG |
Wiring Diagram

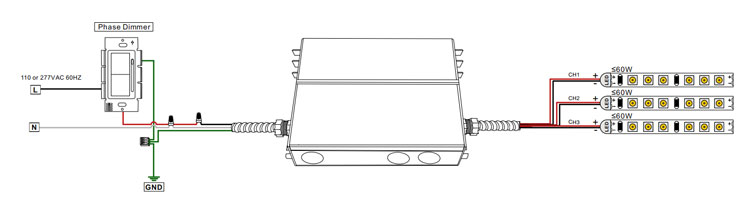

· Using Triac MLV wiring diagram

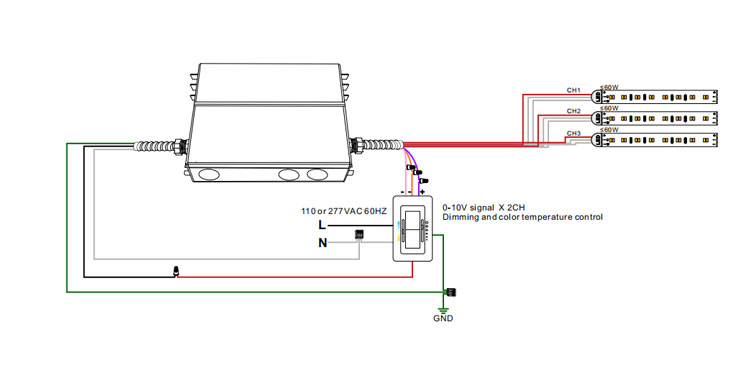

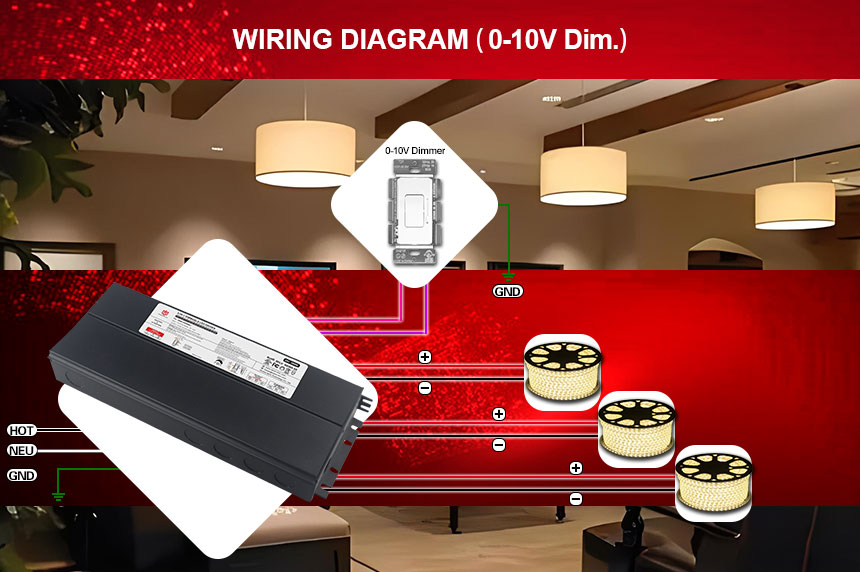

· Using 0-10/1-10V dimming
Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
