Constant voltage 150W 5 in 1 dimmable led driver 110-277vac input voltage mode UL certification, in line with global safety lighting regulations, strong compatibility, and can be used with casambi
The dimmer is well connected and used, 5 year warranty
Brand:
DEMIItem no.:
HZA-12150JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
150WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
258*120.5*42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years
12v/24v/48v triac & 0 10v constant voltage dimming 150W led strip light driver

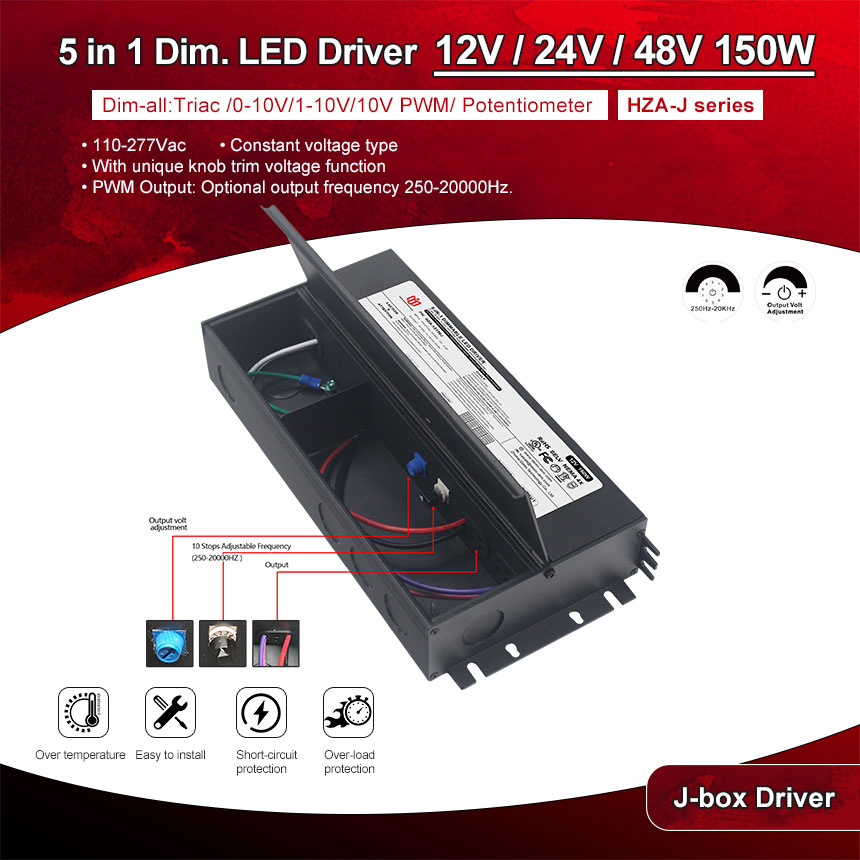

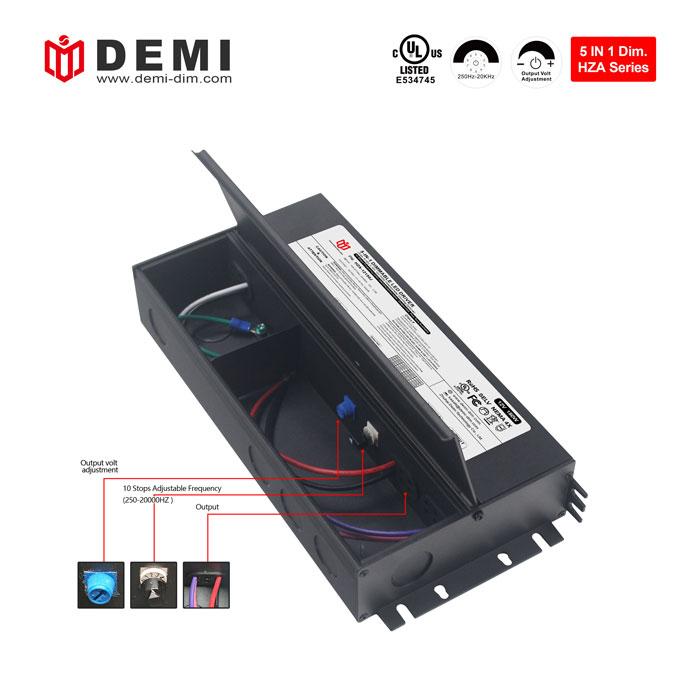

HZA series 150W TRIAC & 0 10V dimmable led driver constant voltage working mode, built-in 9-level output frequency function knob, selectable in the range of 250-20kHz, to meet the frequency needs of users for different lamps
| Model Number | HZA-12150J | HZA-24150J | HZA-48150J |
| Output Type | |||
| Reted Power | 150W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 12.5A | 6.25A | 3.13A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 1.55A | ||
| Inrush Current(Typ.) | 28A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

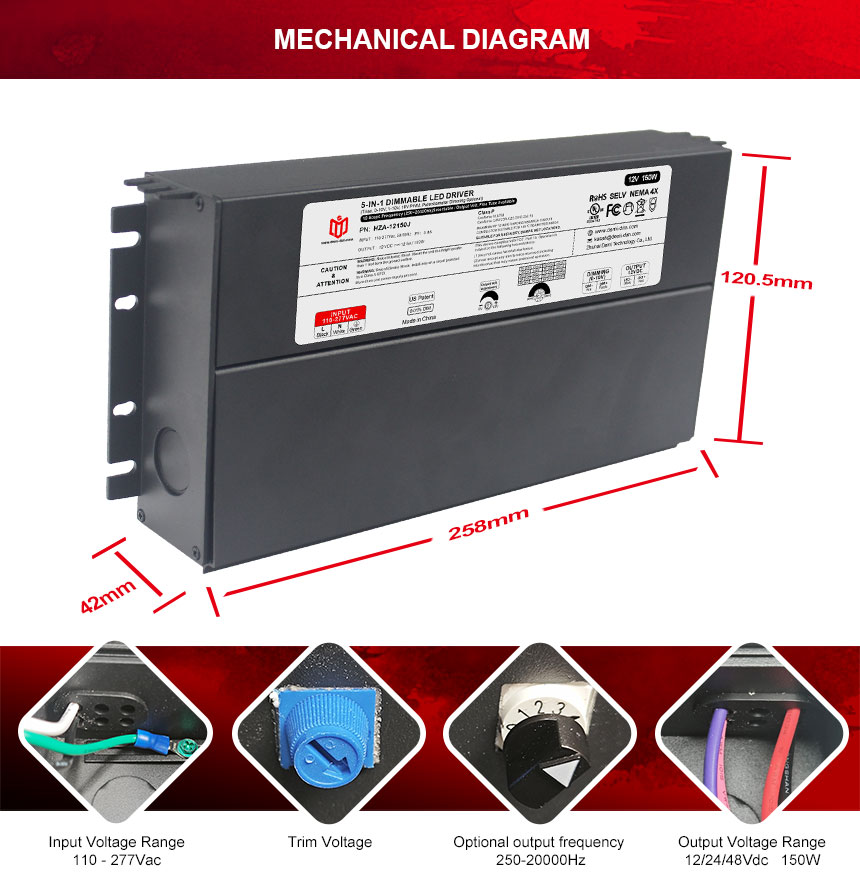

| Dimension | 258x120.5x42mm (L*W*H) | ||
| Packing | - | ||

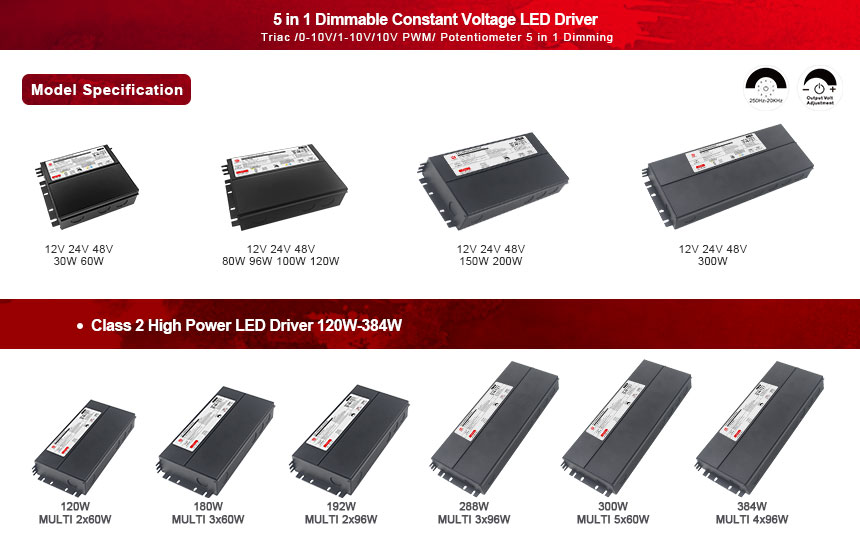

HZA series 5 in 1 dimmable led driver has high-power Class 2 version products, the power range is from 120W to 384W, and the size is from 258x120.5x42mm to 316x120.5x42mm. Users can choose according to different dimmable places. In addition, they need to ensure during installation. Install correctly according to the product manual process to achieve perfect dimming performance
|
•PWM Output: Optional output frequency 250-20000Hz •Short-circuit, over-temperature, over-load protection. |
•Works with single channel LED strip/tape and dim-to-warm LED strip/tape (2 wires) •Constant voltage type.fine tune of output voltage
|
| HZA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 150W | AC L | Black | 18AWG | DC+ | Red |
24V/18AWG 24V/18AWG 48V/18AWG |
Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram
· Using Triac ELV wiring diagram
·Using 0-10/1-10V dimming(This driver is independently connected to the input)
Tags :
HZA series new product 30W 5 in 1 dimmable led driver constant voltage output mode, almost compatible with popular thyristor dimmers and systems, 0-10V dimmers and systems on the market, such as Lutron dimmers
110-277vac output voltage HZA series dimmable led driver 60W constant voltage working mode, strong compatibility, can be used well with Insteon's triac/0 10v dimmer to achieve smooth flicker-free dimming
PWM output type 80W dimmable led driver, dimming range between 100%-0.1%, constant voltage output, built-in 9-level output voltage function knob, compatible with ELEGRP dimmer to achieve perfect dimming effect
110-277vac input voltage range HZA series triac & 0 10v dimmable led driver UL certified, strong compatibility, compatible with popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems, and BESTTEN's 96W dimmer is very compatible with use
110-277vac input voltage 5 in 1dimmable led driver and junction box integrated design, strong compatibility, dimming performance as good as Magnitude Lighting's 100W LED driver
120W triac & 0 10v dimmable led driver adopts PWM output type, the dimming range is 0.1%~100% ultra-deep amplitude, strong compatibility, and the dimming performance is as good as zhenhuan electronics 120W LED driver
UL certification, 110-277vac input voltage dimmable led driver 200W, built-in fine-tuning voltage function knob, strong compatibility, dimming performance is as good as Inventronics' 200W led power supply
110-277VAC input voltage 300W PWM output type dimmable led power supply 12v, dimming range between 0.1~100% ultra-deep amplitude dimming, strong compatibility, almost compatible with the popular front and rear thyristor dimmers and systems on the market, and 0-10V dimming devices and systems. For example INSTEON dimmer
