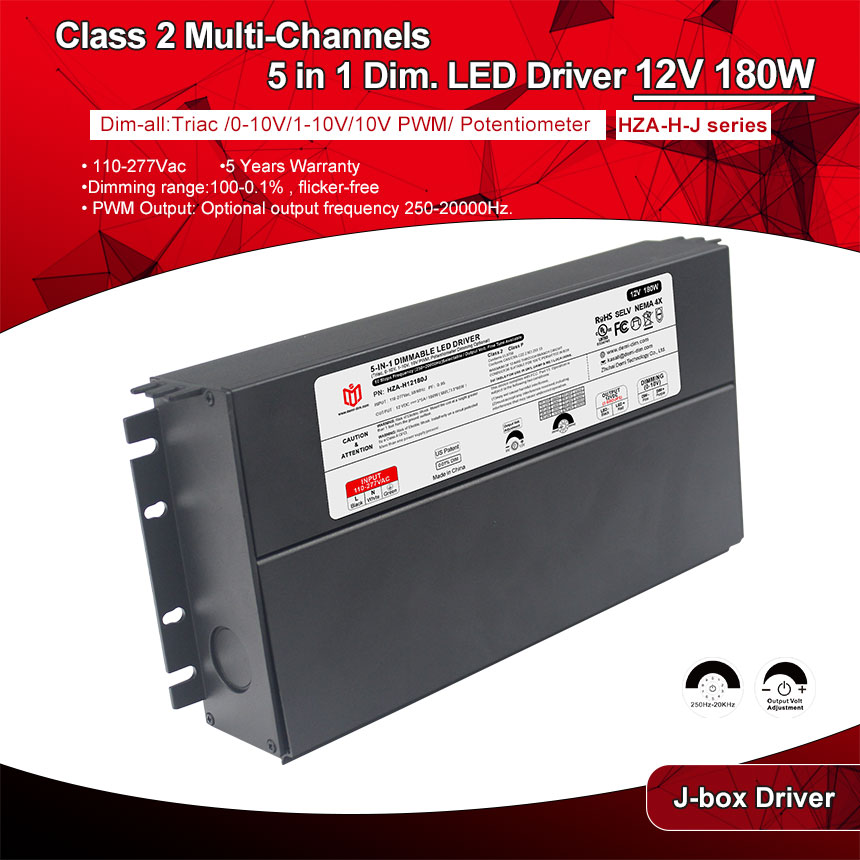

Class 2 certified HZA series 180W 5 in 1 dimmable led driver PWM output mode, output frequency can be selected in the range of 250-20000HZ, strong compatibility, compatible with popular front and rear thyristor dimmers and systems on the market, 0-10V dimmable Optical devices and systems. For example LUTRON dimmer
Brand:
DEMIItem no.:
HZA-H12180JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
180WOutput Voltage:
12VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years
5 in 1 dimmable class 2 180w 12V constant voltage led driver power supply junction box
triac & 0 10v dimmable led driver 180W operating mode is constant voltage, built-in active PFC function, ultra-low load requirements, able to work perfectly under 10-100% load, 110-277vac universal input voltage mode. Passed UL certification, complies with global safety lighting regulations, 5-year warranty
| Model Number | HZA-H12180J |
| Output Type | |
| Reted Power | 180W(3CH*60W) |
| Reted Voltage | 12V |
| Reted Current | 3CH*5A |
| Voltage Tolerance | ±0.5V |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±1% |
| Input Type | |
| Voltage Range | 110-277V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC |
| Total Harmonic Distortion | THD< 15%(@100% load) |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC |
| AC Current(Typ.) | 1.88A |
| Inrush Current(Typ.) | 28A |
| Leakage Current | <0.5mA |
| PROTECTION | |
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 |
| Withstand voltage | I/P-O/P:1.88KVAC |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH |
| EMC Emission | Compliance to FCC part 15 Subpart B |
| OTHERS | |

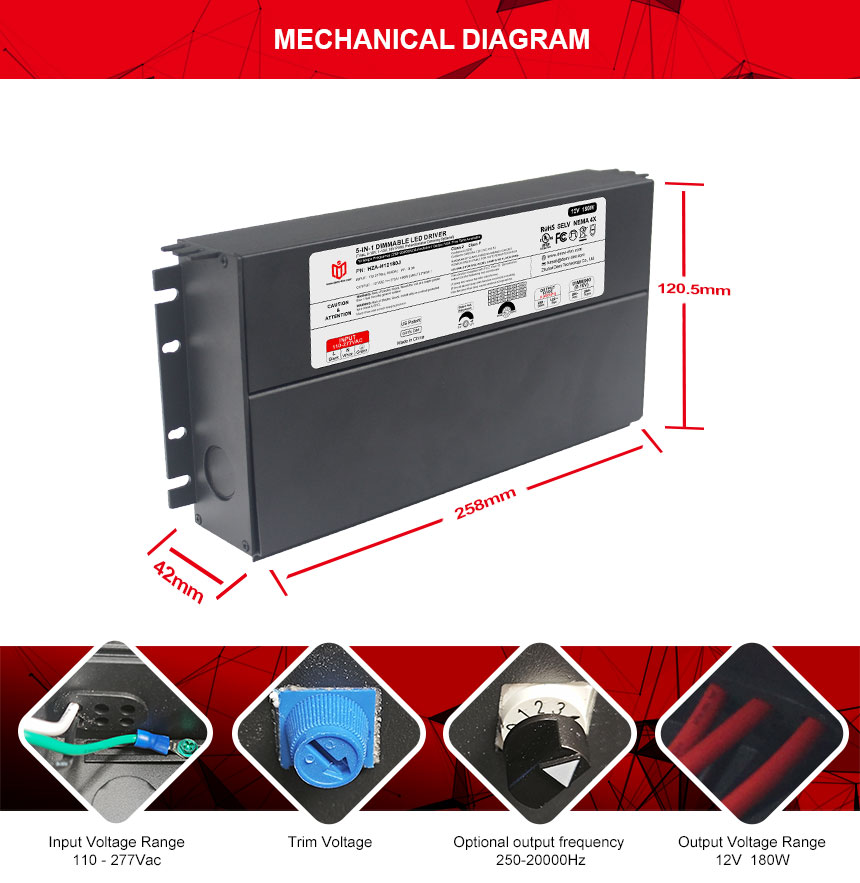

| Dimension | 258x120.5x42mm (L*W*H) |
| Packing | - |

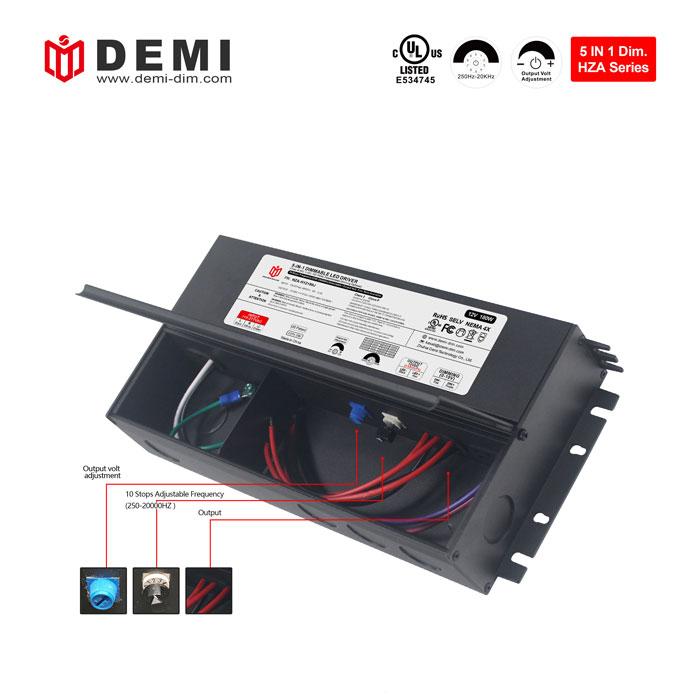

When installing the HZA 180W dimmable constant voltage LED driver, you need to pay attention to installing it in a well-ventilated place. Air circulation is crucial to the heat dissipation of the LED driver. Use the installation tabs on both sides of the driver for installation to ensure stable installation.
|
•Super low loading request, works perfect at 10-100% load. •Short-circuit, over-temperature, over-load protection. |
•Dimming range:100-0.1% , flicker-free. •Triac dim mode: Forward phase & reverse phase, MLV, ELV
|
| HZA-H-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
180W (MULTI 60W * 3) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*2 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*2 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram
· Using Triac MLV wiring diagram

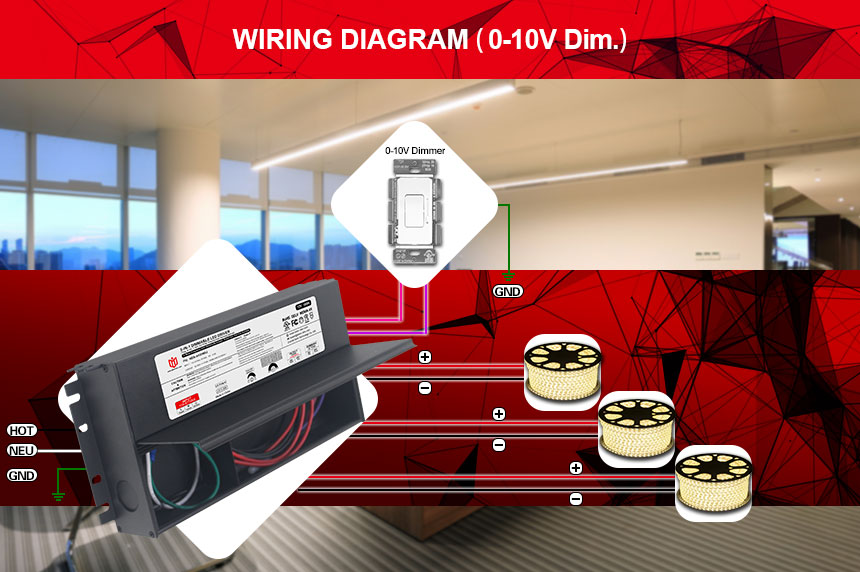

· Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
