HZA series triac & 0 10v dimmable led driver This 110-277vac input voltage mode, constant voltage operating mode, Class 2 has built-in active PFC function, integrated design with the junction box, and the dimming performance is as good as Magnitude Lighting's 120W
Brand:
DEMIItem no.:
HZA-H12120JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
120WOutput Voltage:
12VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years

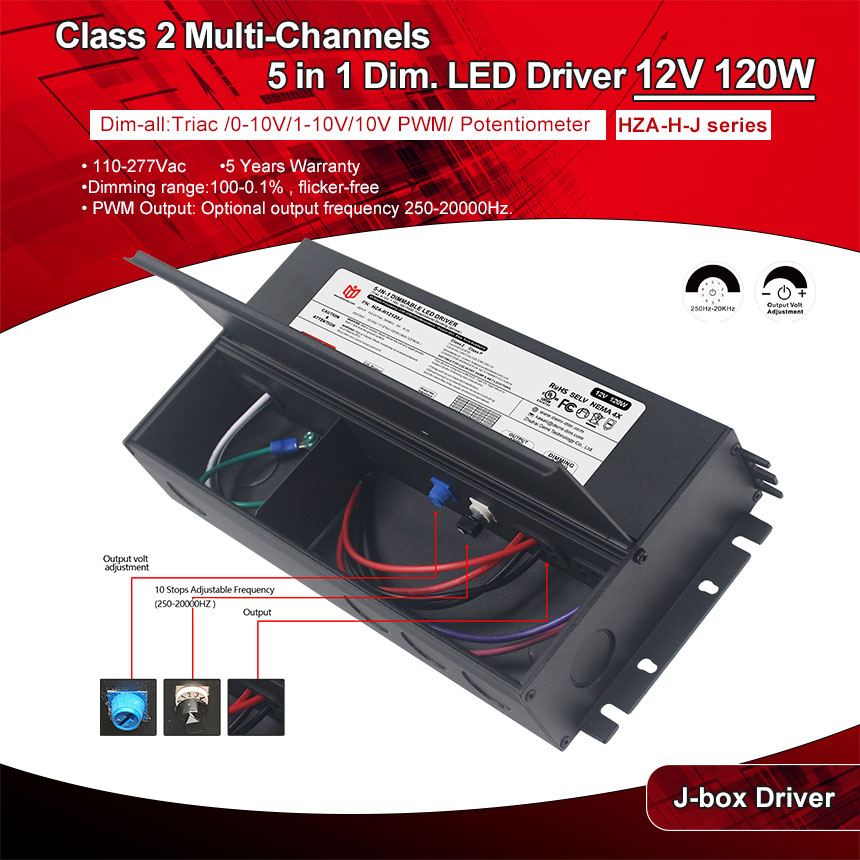

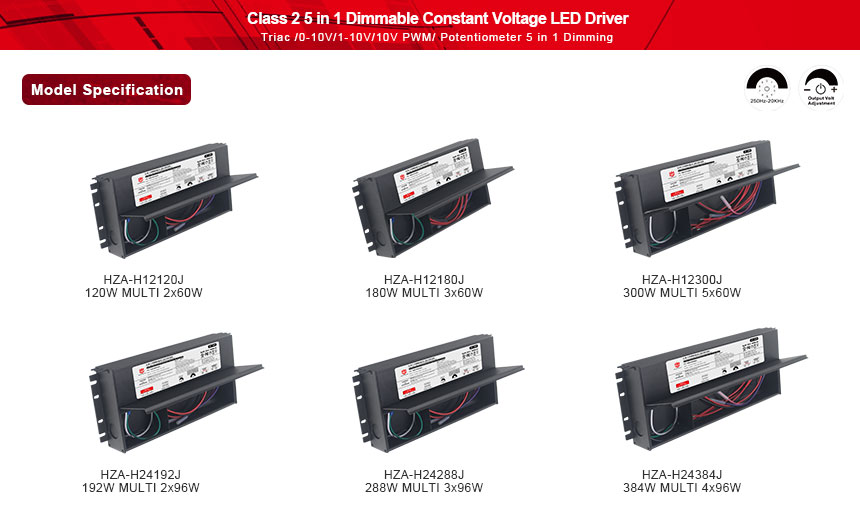

120W 12V & 5 in 1 dimmable constant voltage led strip light driver junction box

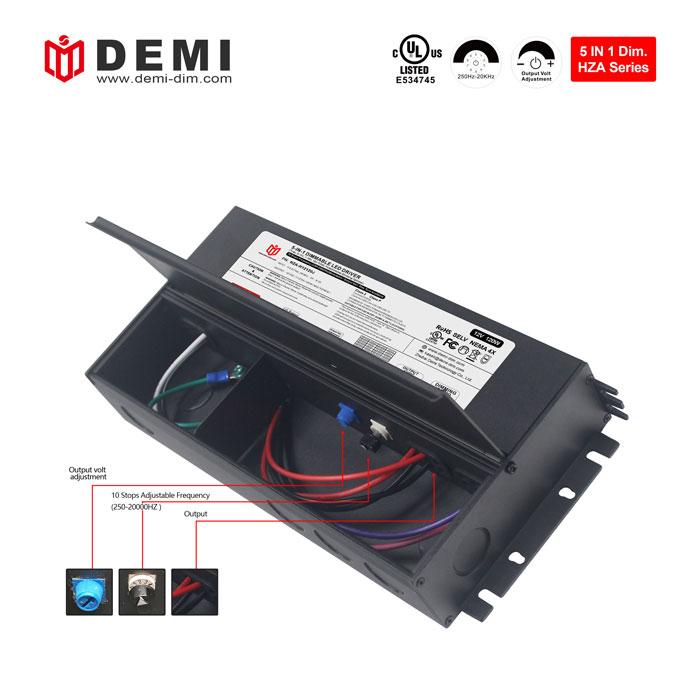

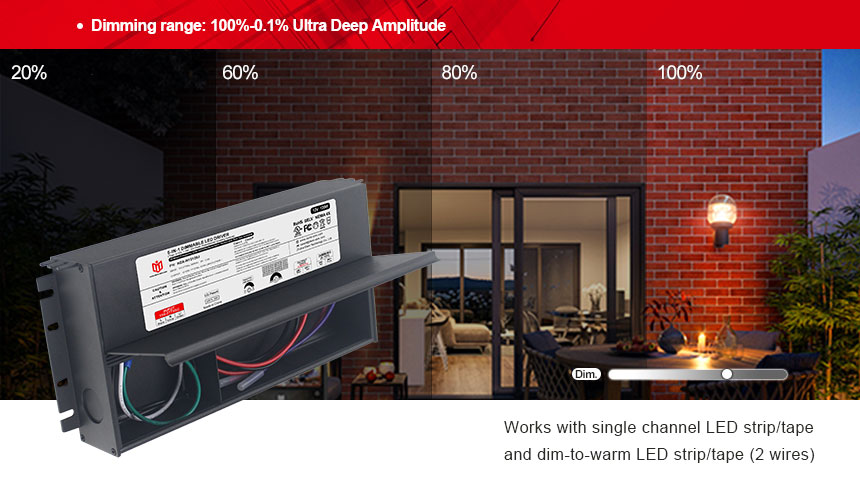

120W TRIAC & 0 10V dimmable led driver has a built-in fine-tuning voltage function knob, which can compensate for the light attenuation of the lamp and solve the voltage drop problem caused by installation and wiring. The dimmable range is between 0.1%~100% and has strong compatibility. , compatible with popular front and rear thyristor dimmers and systems, and 0-10V dimmers and systems on the market. 5 years warranty
| Model Number | HZA-H12120J |
| Output Type | |
| Reted Power | 120W(2CH*60W) |
| Reted Voltage | 12V |
| Reted Current | 2CH*5A |
| Voltage Tolerance | ±0.5V |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±1% |
| Input Type | |
| Voltage Range | 110-277V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC |
| Total Harmonic Distortion | THD< 15%(@100% load) |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC |
| AC Current(Typ.) | 1.26A |
| Inrush Current(Typ.) | 27A |
| Leakage Current | <0.5mA |
| PROTECTION | |
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 |
| Withstand voltage | I/P-O/P:1.88KVAC |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH |
| EMC Emission | Compliance to FCC part 15 Subpart B |
| OTHERS | |

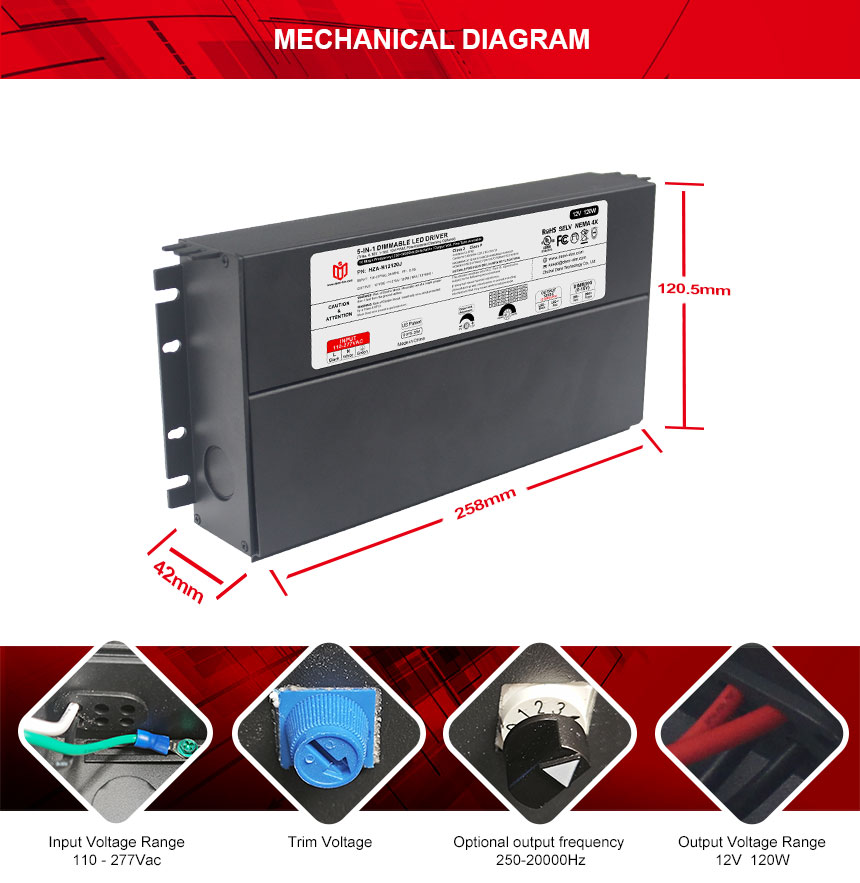

| Dimension | 258x120.5x42mm (L*W*H) |
| Packing | - |
|
•PWM Output: Optional output frequency 250-20000Hz •Short-circuit, over-temperature, over-load protection. |
•Works with single channel LED strip/tape and dim-to-warm LED strip/tape (2 wires) •Constant voltage type.fine tune of output voltage
|
Before installing the Class2 HZA series 120W LED driver, you need to disconnect the power supply to avoid safety issues such as electric shock and short circuit during installation. Also, ensure that the selected LED driver is adapted to the input voltage of the user's region. Follow the installation instructions and precautions to install the correct Install the driver to avoid damaging the LED driver and lamps
| HZA-H-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
120W (MULTI 60W * 2) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*2 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*2 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |

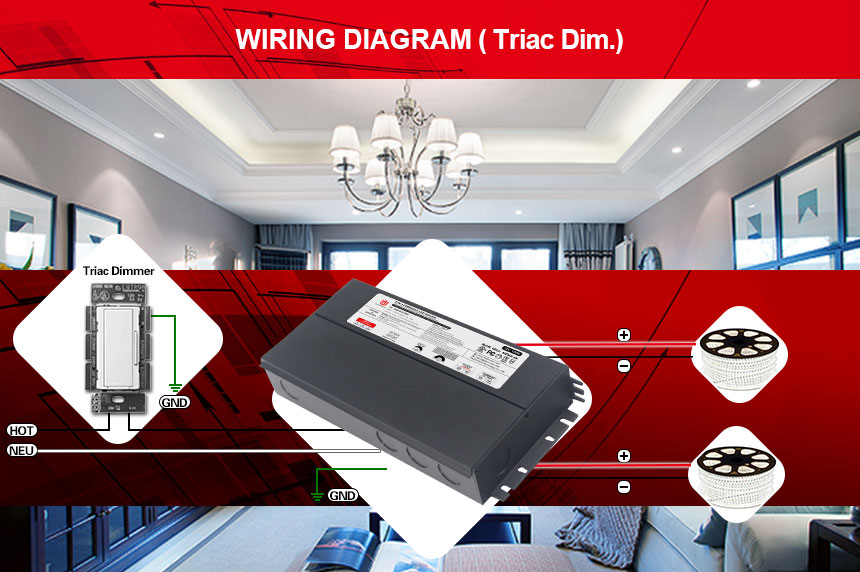

Wiring Diagram

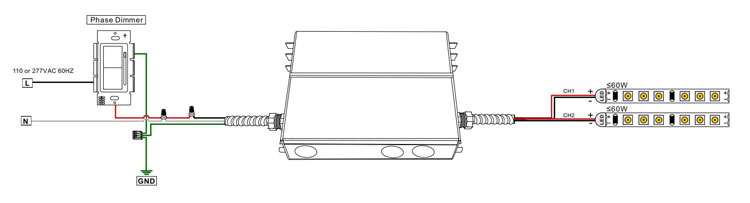

· Using Triac MLV wiring diagram

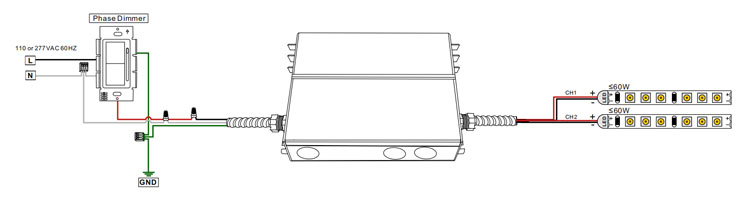

· Using Triac ELV wiring diagram
