This HZA series dimmable led driver 192W 24V, two outputs, Class 2 certified, suitable for high-end hotels and villas, used with LED light strips, has strong compatibility and is compatible with most dimmers on the market, such as casambi dimmer
Brand:
DEMIItem no.:
HZA-H24192JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
192WOutput Voltage:
24VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years

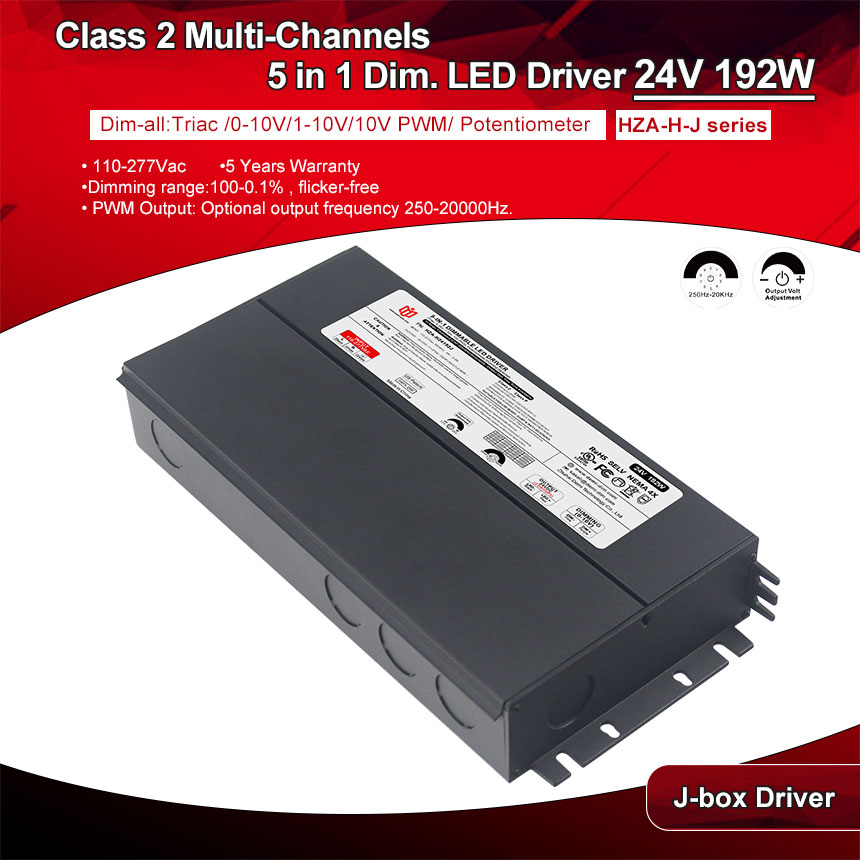

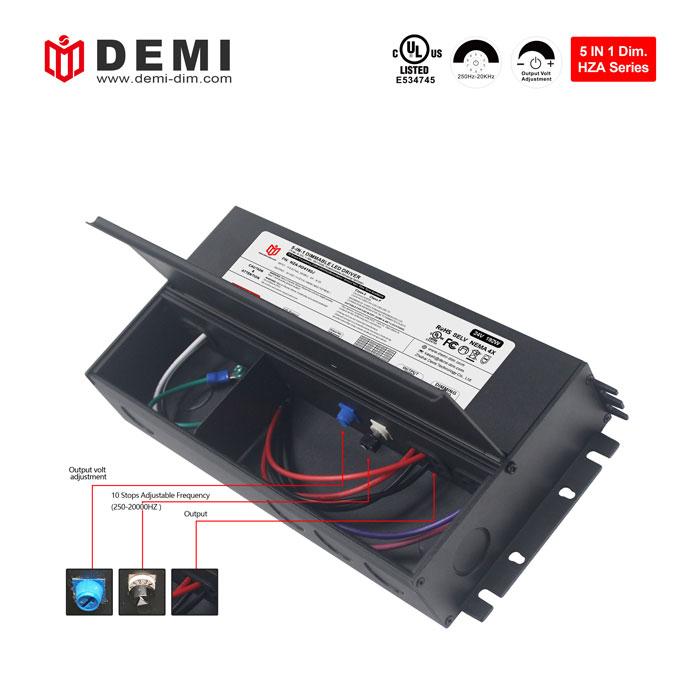

100-277vac Class 2 multi-channels 5 in 1 dimmable 192W 24V led power supply for indoor
PWM output mode 24v 192w dimmable led driver has ultra-low load requirements and can work perfectly under 10-100% load. Aluminum shell design, passed NEMA 4X, good heat dissipation performance, 5-year warranty

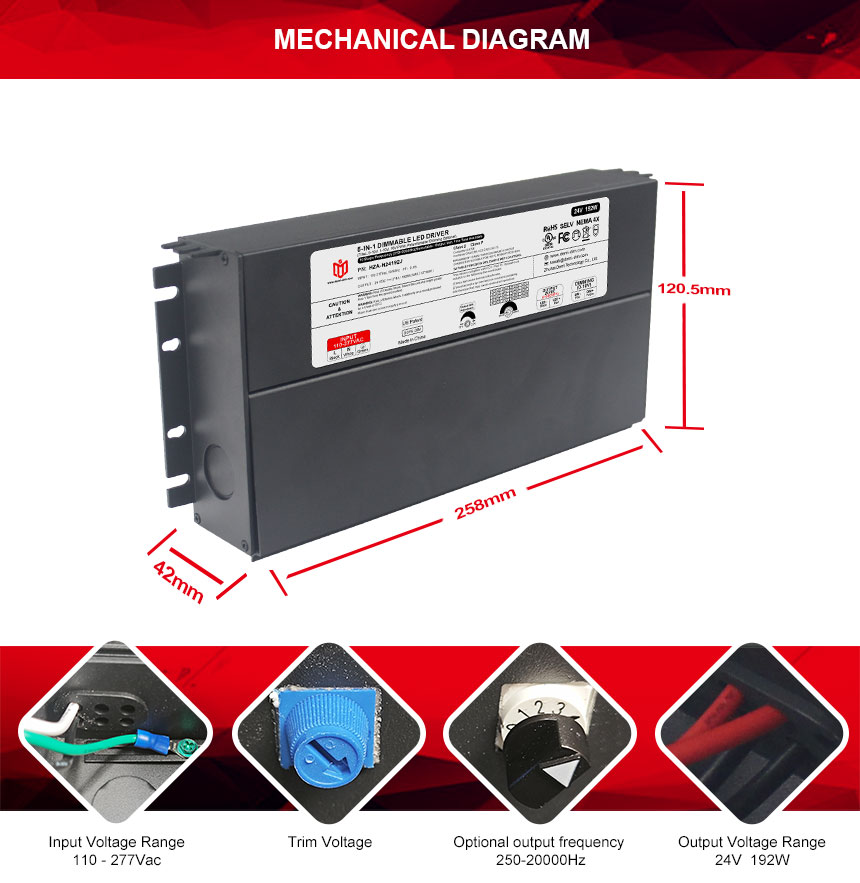

| Model Number | HZA-H24192J |
| Output Type | |
| Reted Power | 192W(2CH*96W) |
| Reted Voltage | 24V |
| Reted Current | 2CH*4A |
| Voltage Tolerance | ±0.5V |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±1% |
| Input Type | |
| Voltage Range | 110-277V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC |
| Total Harmonic Distortion | THD< 15%(@100% load) |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC |
| AC Current(Typ.) | 2.2A |
| Inrush Current(Typ.) | 30A |
| Leakage Current | <0.5mA |
| PROTECTION | |
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 |
| Withstand voltage | I/P-O/P:1.88KVAC |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH |
| EMC Emission | Compliance to FCC part 15 Subpart B |
| OTHERS | |
| Dimension | 258x120.5x42mm (L*W*H) |
| Packing | - |
|
•Super low loading request, works perfect at 10-100% load. •Short-circuit, over-temperature, over-load protection. |

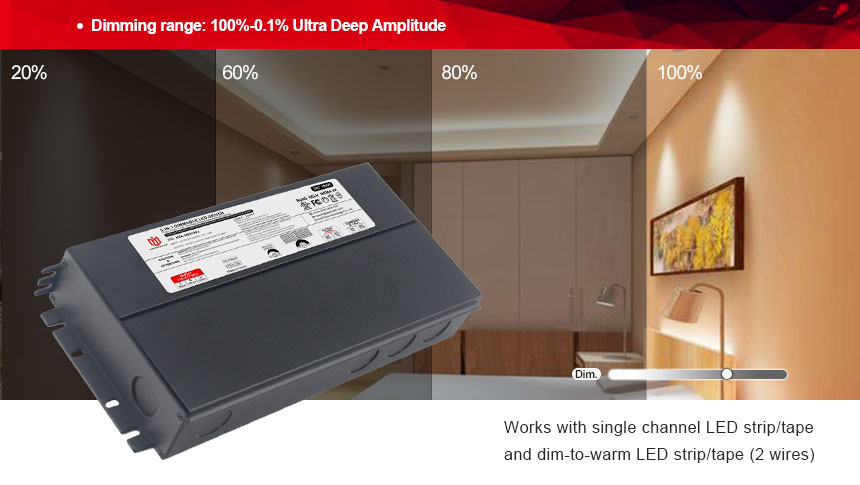

•Dimming range:100-0.1% , flicker-free. •Triac dim mode: Forward phase & reverse phase, MLV, ELV
|
110-277VAC Universal input PWM output type 192W 5 in 1 dimmable led power supply Built-in active PFC function, power factor >0.95. With short circuit/over temperature/overload protection function. Suitable for entertainment venues and squares, used with 24V underground lights
| HZA-H-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
192W (MULTI 96W * 2) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*2 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*2 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram

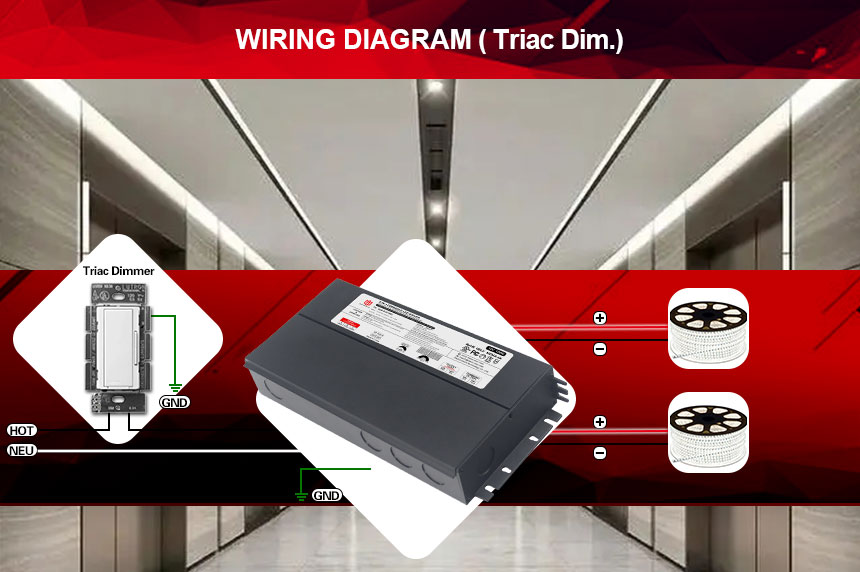

· Using Triac MLV wiring diagram
· Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
