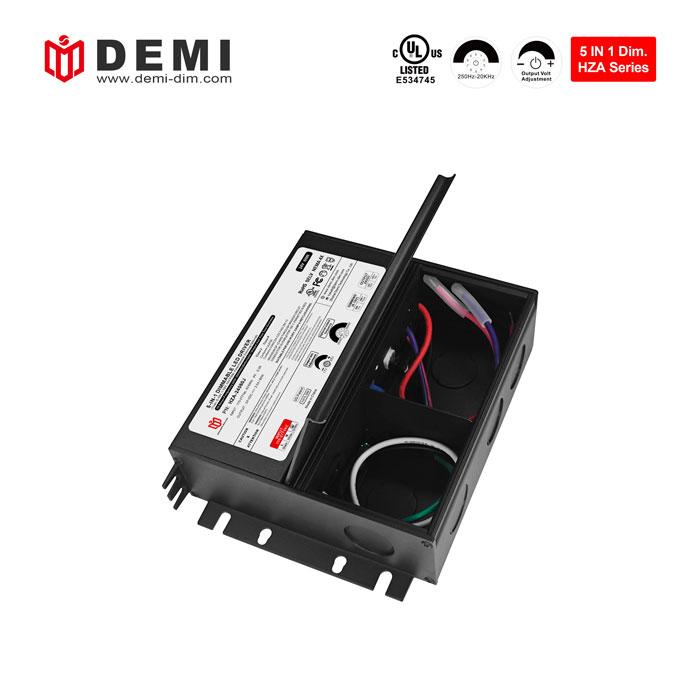

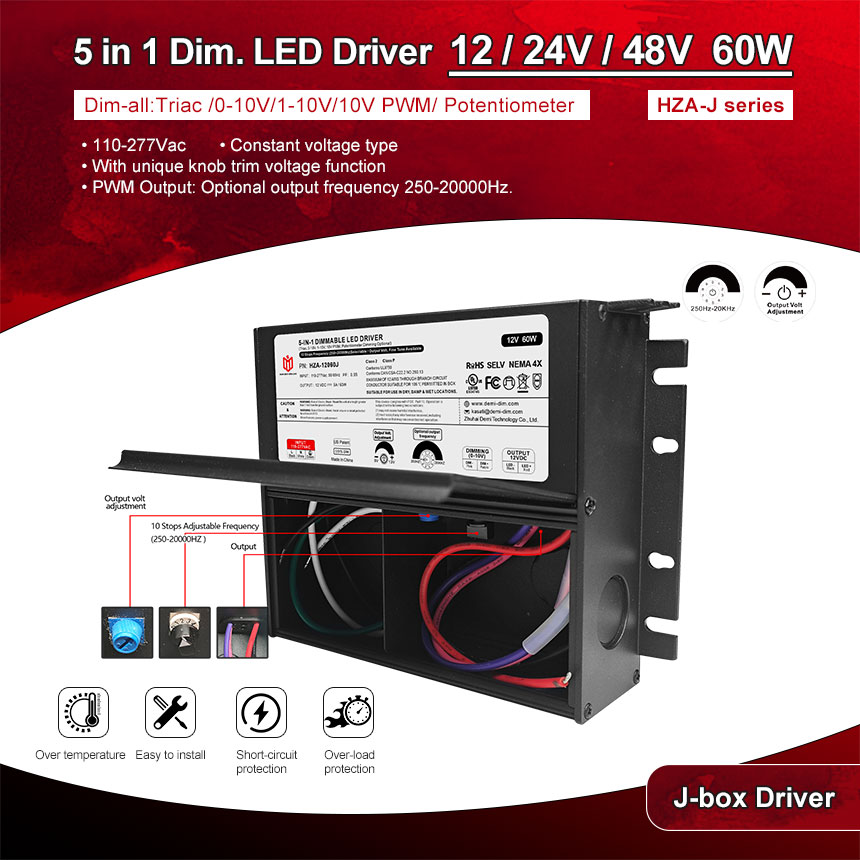

This 60W 24V 5 in 1 dimmable led driver has a constant voltage operation mode. It has a fine-tuning voltage function knob that can compensate for the light decay of the lamp at +1v. The dimming performance is as good as the Magnitude Lighting 60W dimmable led driver.
Brand:
DEMIItem no.:
HZA-24060JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
60WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
158*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years

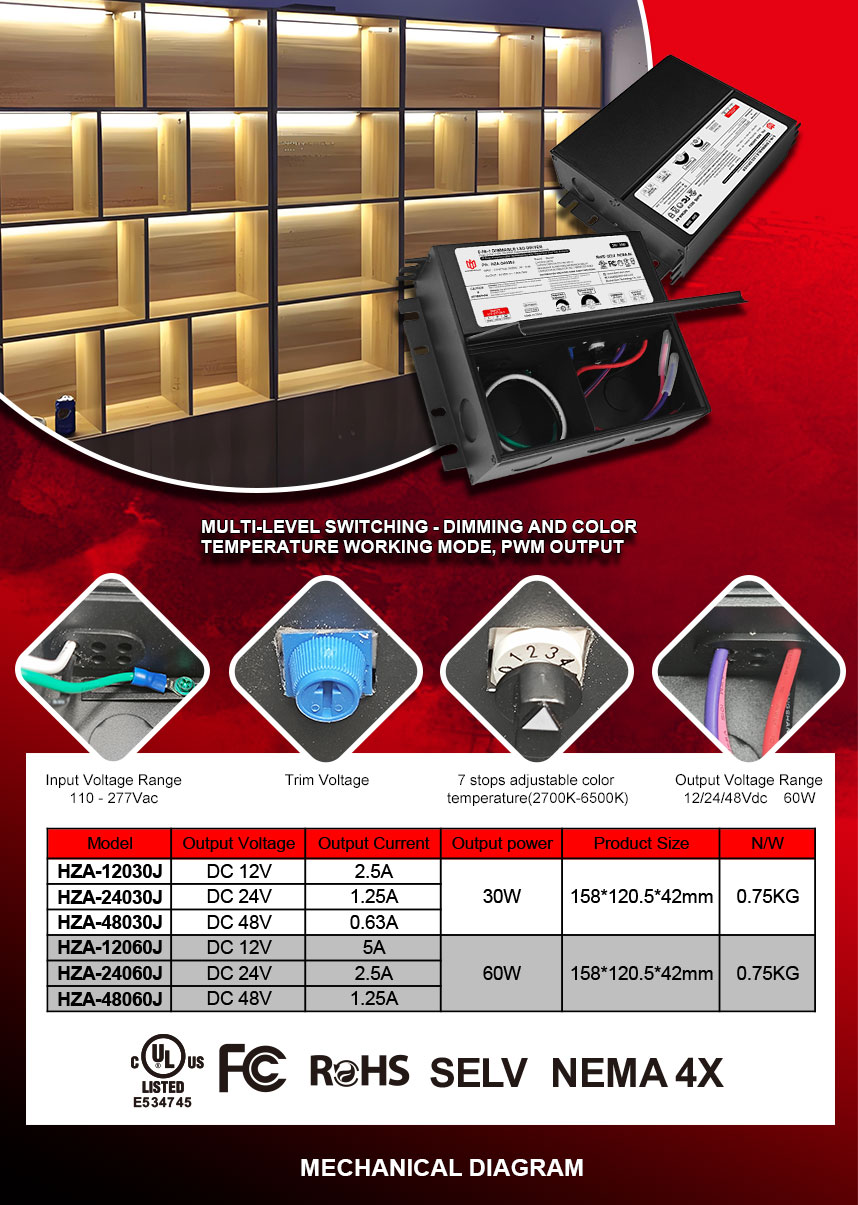

24v 60w 2.5a 5 in 1 dimmable constant voltage led driver strip light power supply for led strip
UL certified 110-277vac universal input voltage range triac & 0 10v dimmable 60W led driver Built in active PFC function with ultra low load requirement, able to work perfectly at 10-100% load. With 5 year warranty
| Model Number | HZA-12060J | HZA-24060J | HZA-48060J |
| Output Type | |||
| Reted Power | 60W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 5A | 2.5A | 1.25A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 87%@120VAC 88%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 0.65A | ||
| Inrush Current(Typ.) | 20A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

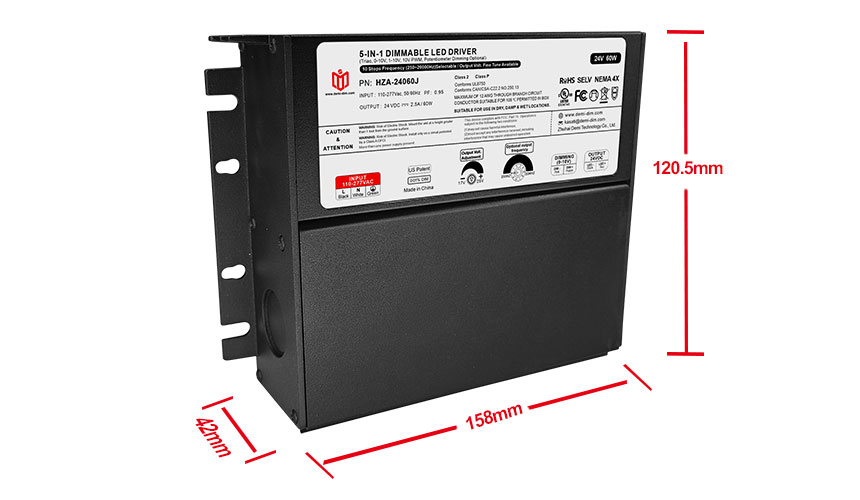

| Dimension | 158x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|

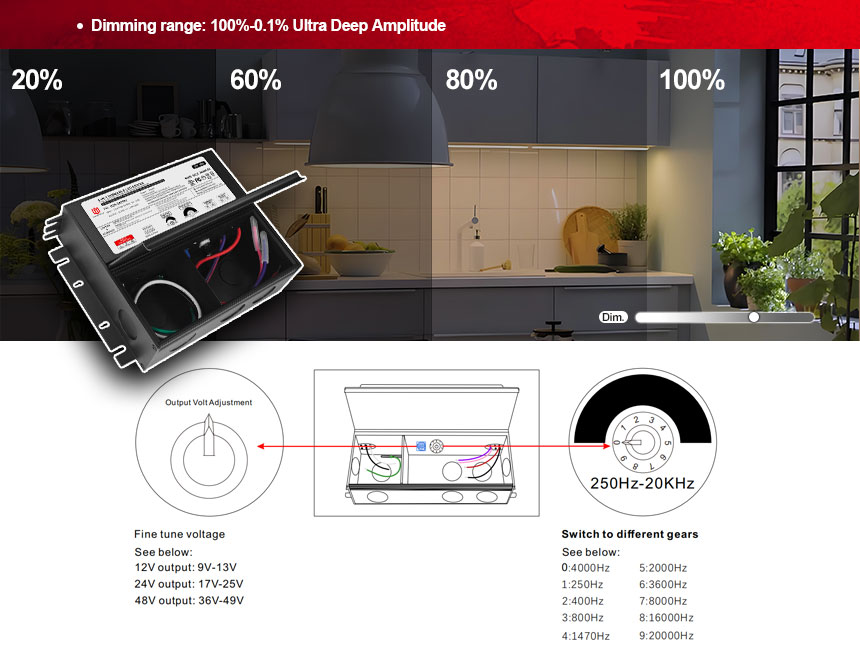

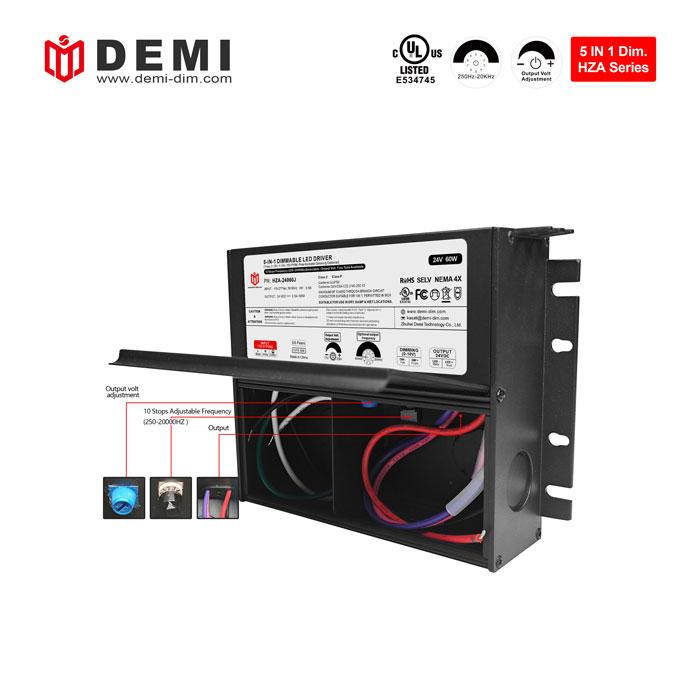

•Dimming range:100-0.1% , flicker-free. •Short-circuit, over-temperature, over-load protection. |
•PWM Output: Optional output frequency 250-20000Hz •damp,dry and wet location. 5 years warranty
|
HZA series 24v 60W dimmable led power supply When installing, you need to ensure that the purchased led driver matches the connected lamp. Before installation, you need to ensure that the power supply is disconnected, and comply with safety rules. Install according to the specific installation guide and instructions provided by the manufacturer to avoid accidents due to improper connection.
| HZA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 60W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram
· Using Triac ELV wiring diagram
·Using 0-10/1-10V dimming(This driver is independently connected to the input)
