Brand:
DEMIItem no.:
CSA-24120JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
120WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years

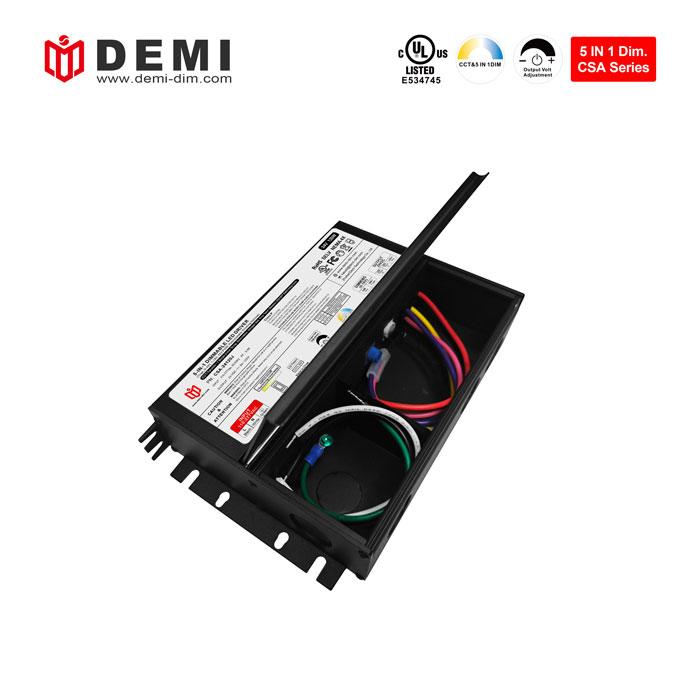

24volt 120W triac & 0 10v constant voltage led driver led driver strip lights power supply
CSA series 120W 24V CCT & 5 in 1 dimmable led power supply constant voltage working mode, the frequency remains unchanged throughout the dimming and coloring process, and the voltage does not drop. It remains stable from the highest brightness to the lowest brightness. Comes with 5 year warranty
| Model Number | CSA-12120J | CSA-24120J | CSA-48120J |
| Output Type | |||
| Reted Power | 120W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 8.33A | 4.16A | 2.08A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 87%@120VAC 88%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 1.25A | ||
| Inrush Current(Typ.) | 27A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||
| Dimension | 188x120.5x42mm (L*W*H) | ||
| Packing | - | ||
To know more product details, please leave message or e-mail us !
UL certified 120W 24V dimmable led driver has ultra-low load requirements and can work perfectly at 10-100% load. The input voltage range is between 110-277vac. It also has short circuit/overload/over temperature protection functions. Suitable for use on advertising light boards and used with LED advertising lighting modules
|

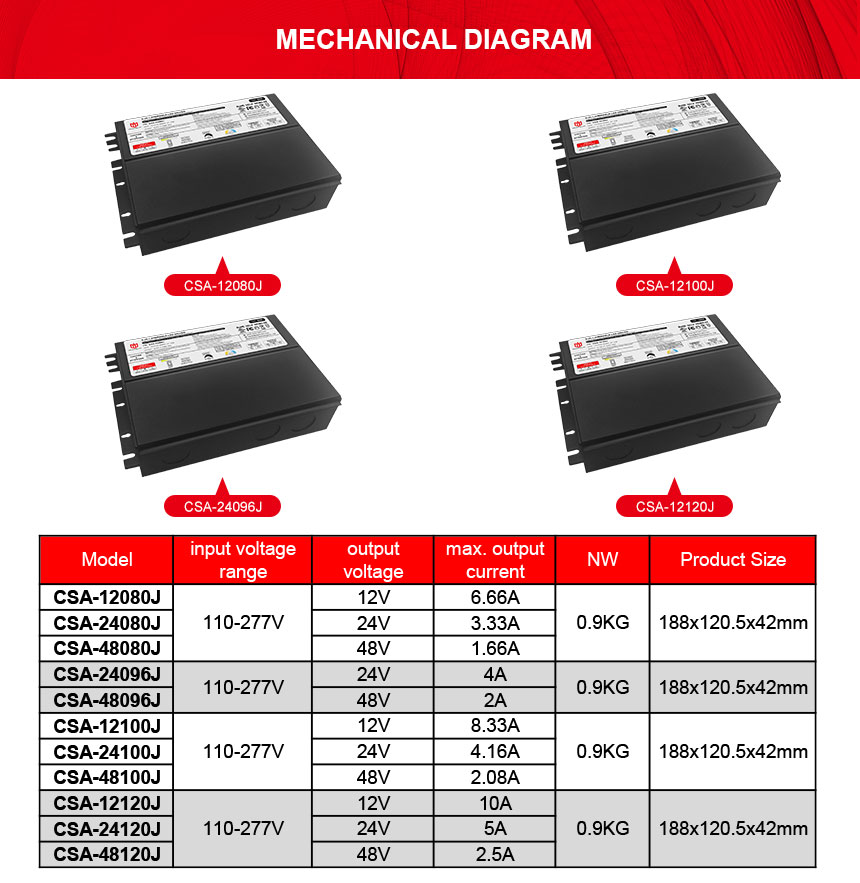

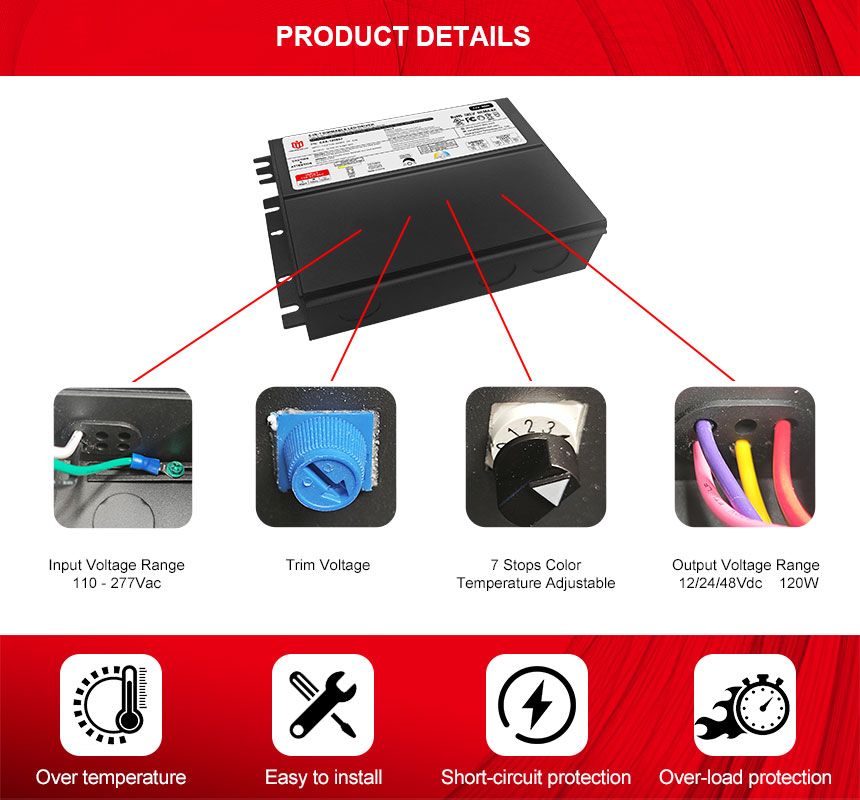

Fine tune voltage
See below：
12V output: 9V-13V
24V output: 17V-25V
48V output: 36V-49V
|
Switch to different gears See below：0：Single dimming{single channel LED strip/tape (2 wires)} 1：Switch on/off (Switching color temp) 2：Linear adjustment of color temperature 3-9：7 stops adjustable color temp(2700K-6500K)
Notes：gears 1-9 ,Works with Two channel CCT warm-dim
LED strip/tape (3 wires)
|
| CSA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 120W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / | |
Wiring Diagram
· Using Triac/ELV wiring diagram
· Using 0-10/1-10V dimming(The driver is independently connected to the input)
·dual channel CW color temperature LED strip/tape (3wires)
Tags :
CCT & triac/0 10v dimmable 30W 12V Constant voltage led driver has active PFC function, power factor>0.95, input voltage is between 100-277vac, has strong compatibility, can be compatible with CreeLighting's 30W LED floodlight
277VAC 60w constant voltage dimmable led driver works in constant voltage mode, has ultra-low load requirements, can work perfectly under 10-100% load, and is compatible with most dimmers on the market, such as Lutron triac /0 10v dimmer
UL listed CCT & 5 in 1 dimmable constant voltage 80w led power supply, the dimming mode is PWM, 0.1%~100% ultra-deep amplitude dimming range, which can match Lithonia Lighting's 80w LED downlight is well compatible to achieve smooth and flicker-free dimming
The triac & 0 10V constant voltage dimming 100W led driver is a pwm output mode, with a built-in fine-tuning voltage function knob, the input voltage is 110-277vac, passed UL certification, high working efficiency, and can be well connected with amplighting's 100W LED spotlight to achieve smooth dimming
This 96w triac & 0 10v dimmable led driver has a dimming range of 0.1~100% ultra-deep dimming, and is compatible with popular leading and trailing-edge thyristor dimmers and systems, 0-10V dimmers and systems, such as Lutron 96W dimmer
