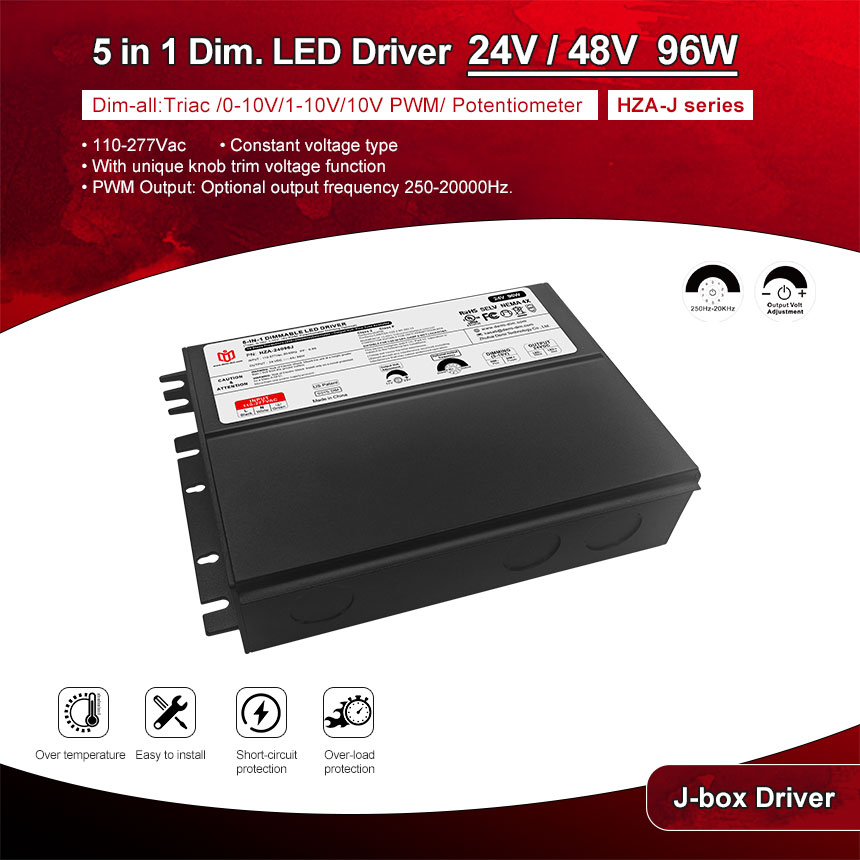

48v 96W dimmable led power supply dimming mode is Triac/0-10V/1-10V/10VPWM/Potentiometer. Built-in fine-tuning voltage function knob, can compensate the light decay of the lamp at +1v, so that the lamp can restore the best brightness. Dimming performance is as good as inventronics 96W dimmable led driver
Brand:
DEMIItem no.:
HZA-48096JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
96WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years
constant voltage triac & 0 10v 96W dimmable 48v led driver strip lights power supply junction box

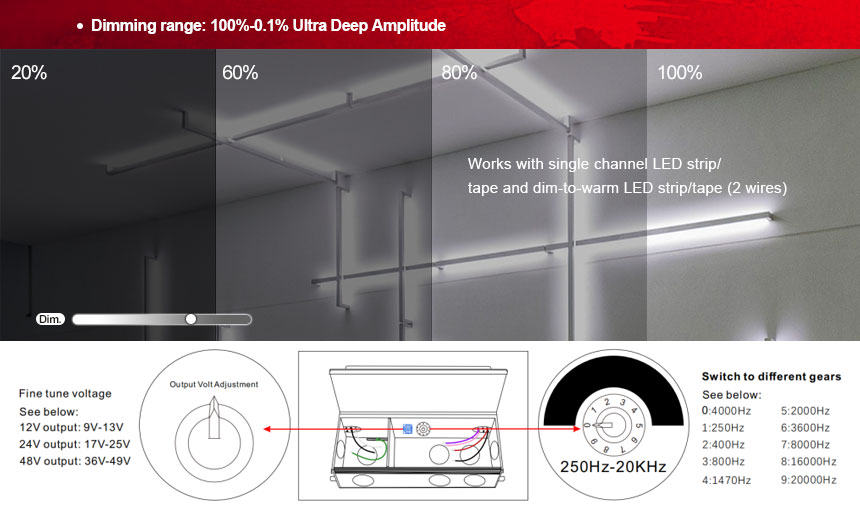

HZA series triac & 0-10v dimmable 96W led driver Built-in 9-speed switchable output frequency button, range from 250-20KHZ optional. Dimming range is 100%-0.1% ultra-deep dimming. UL listed in accordance with global safety lighting regulations. 5-year warranty
| Model Number | HZA-24096J | HZA-48096J |
| Output Type | ||
| Reted Power | 96W | |
| Reted Voltage | 24V | 48V |
| Reted Current | 4A | 2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 89%@120VAC 90%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 1.02A | |
| Inrush Current(Typ.) | 25A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

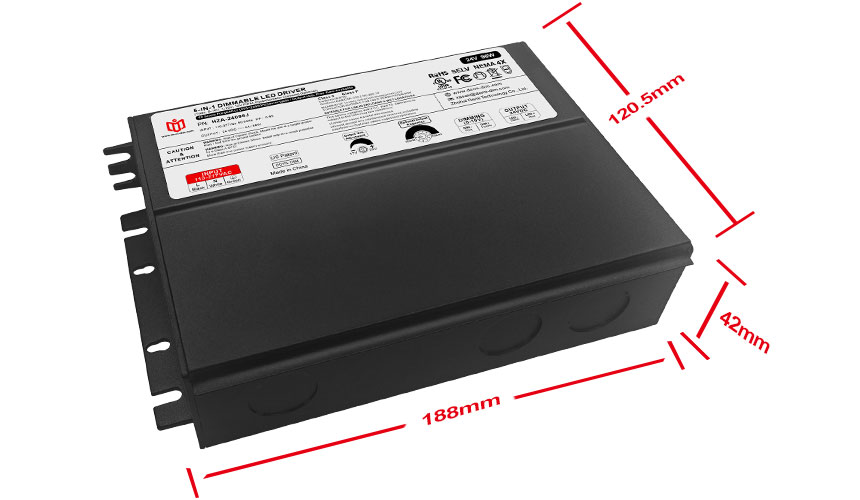

| Dimension | 188x120.5x42mm (L*W*H) | |
| Packing | - | |
|
•PWM Output: Optional output frequency 250-20000Hz •Short-circuit, over-temperature, over-load protection. •Exclusive patent design of “Clamshell” junction box |
•Works with single channel LED strip/tape and dim-to-warm LED strip/tape (2 wires) •Constant voltage type.fine tune of output voltage
|

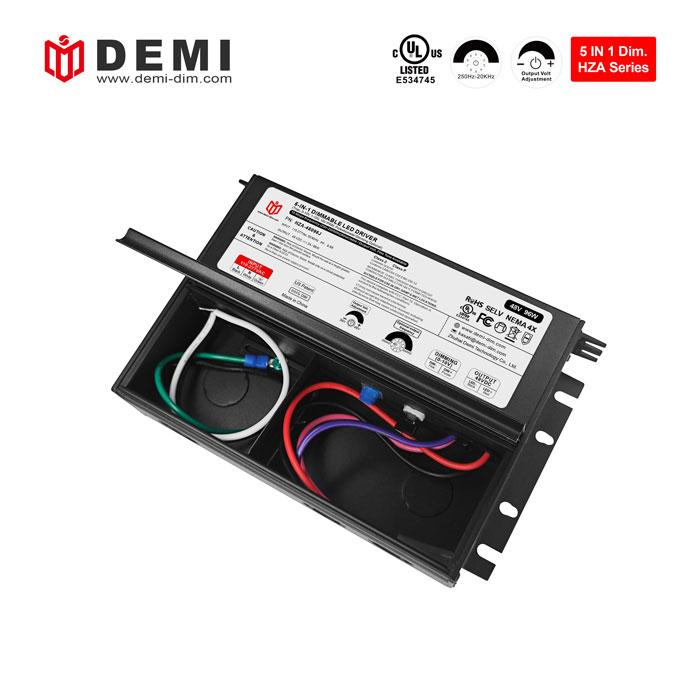

This PWM output HZA series 96W 48v dimmable LED driver is integrated with the junction box, with built-in PFC function and power factor>0.95. It has multiple mounting feet to meet the user's installation needs in different scenarios. It is mainly used in commercial and office environments and can be used with constant voltage input spotlights, magnetic track lights, etc.
| HZA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 96W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram
· Using Triac ELV wiring diagram

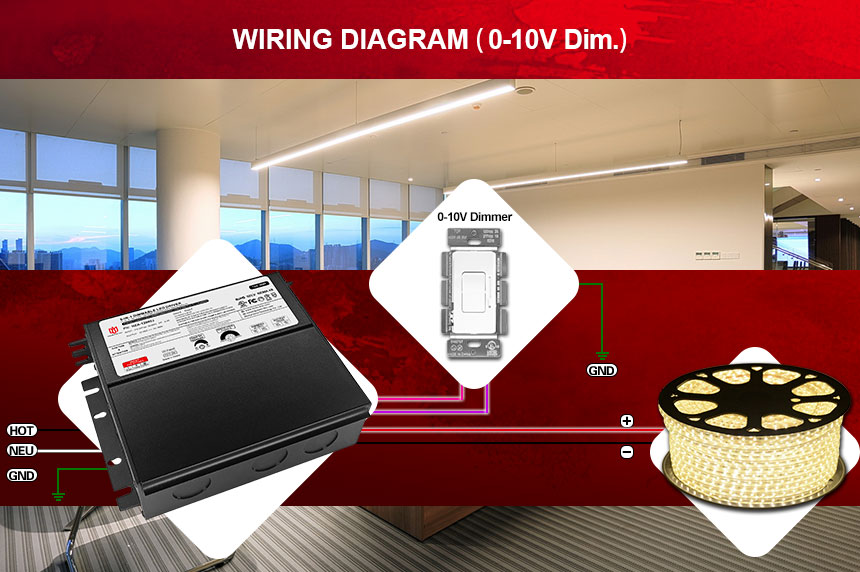

·Using 0-10/1-10V dimming(This driver is independently connected to the input)
