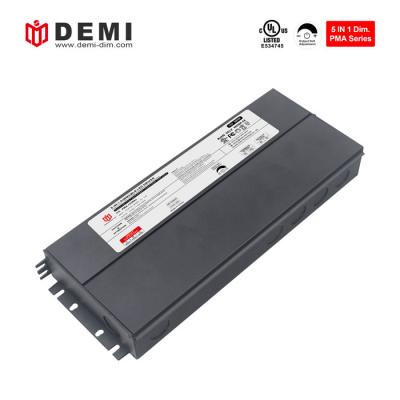

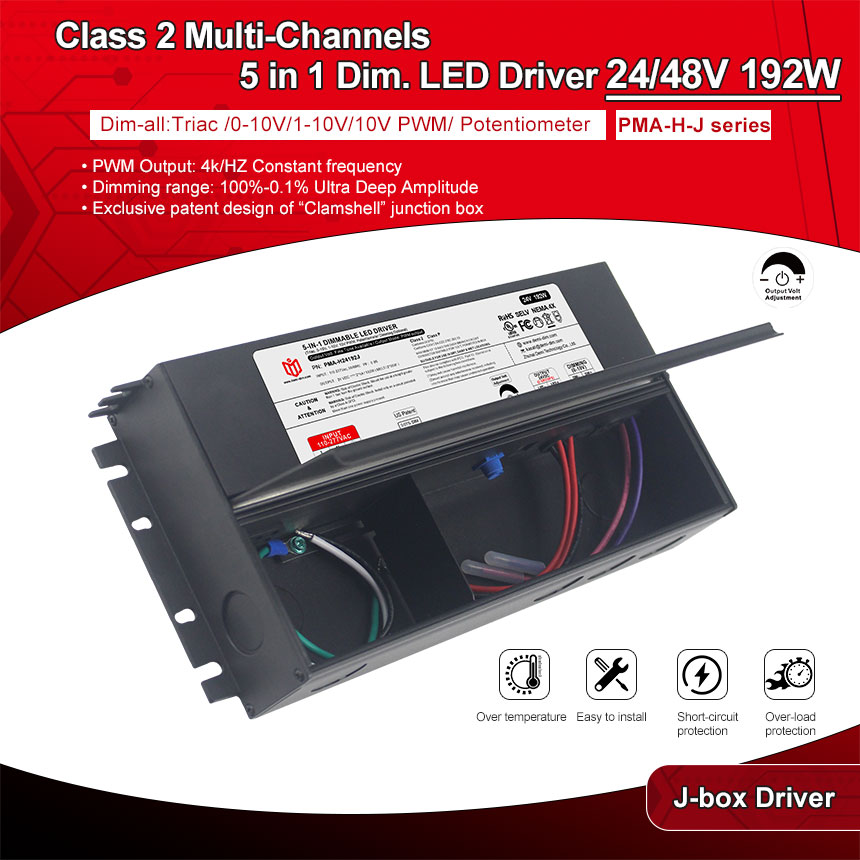

5 in 1 dimmable 24/48V 192W led power supply has built-in fine-tuning voltage function knob, and PWM output mode has 4K/HZ constant frequency to choose from. Strong compatibility, compatible with most triacs and 0 10v dimmers on the market, such as Lutron dimmers
Brand:
DEMIItem no.:
PMA-H24192JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
192WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years

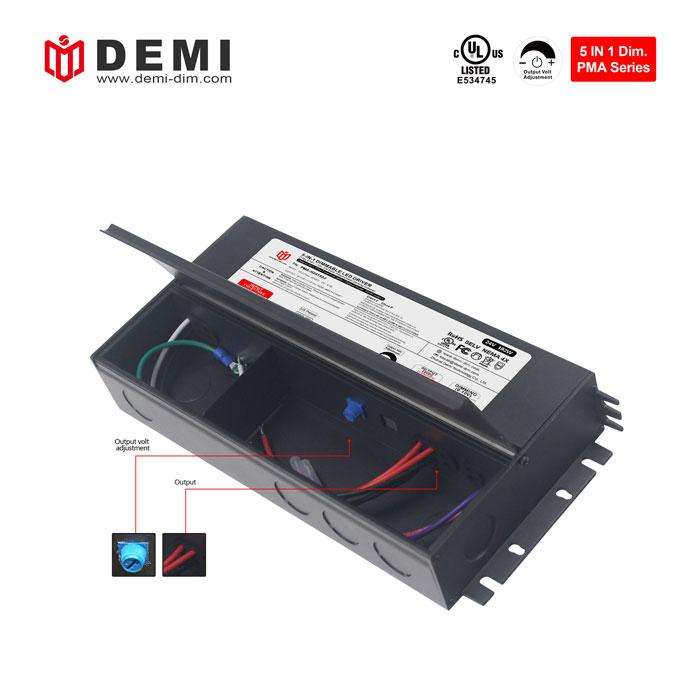

class 2 constant voltage triac & 0 10v dimmable led driver led power supply junction box for led lighting
PMA series class 2 192W triac & 0 10v dimmable led driver 100-277vac universal input voltage. It has short-circuit/overload/over-temperature protection function, UL certification, and complies with global safety lighting regulations.

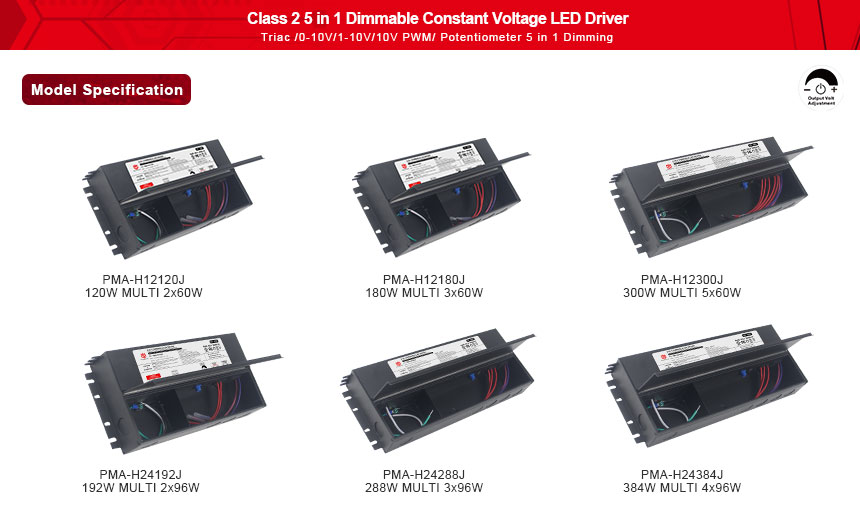

| Model Number | PMA-H24192J | PMA-H48192J |
| Output Type | ||
| Reted Power | 192W(2CH*96W) | |
| Reted Voltage | 24V | 48V |
| Reted Current | 2CH*4A | 2CH*2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 2.2A | |
| Inrush Current(Typ.) | 30A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

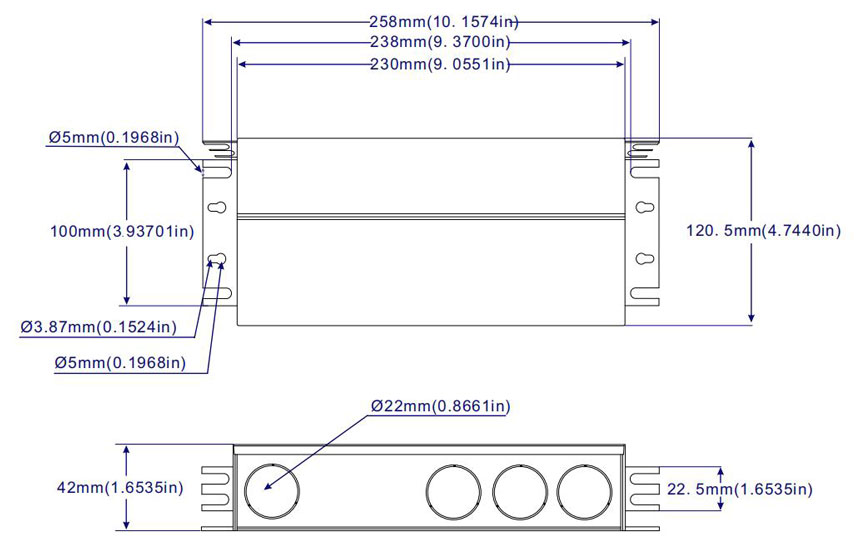

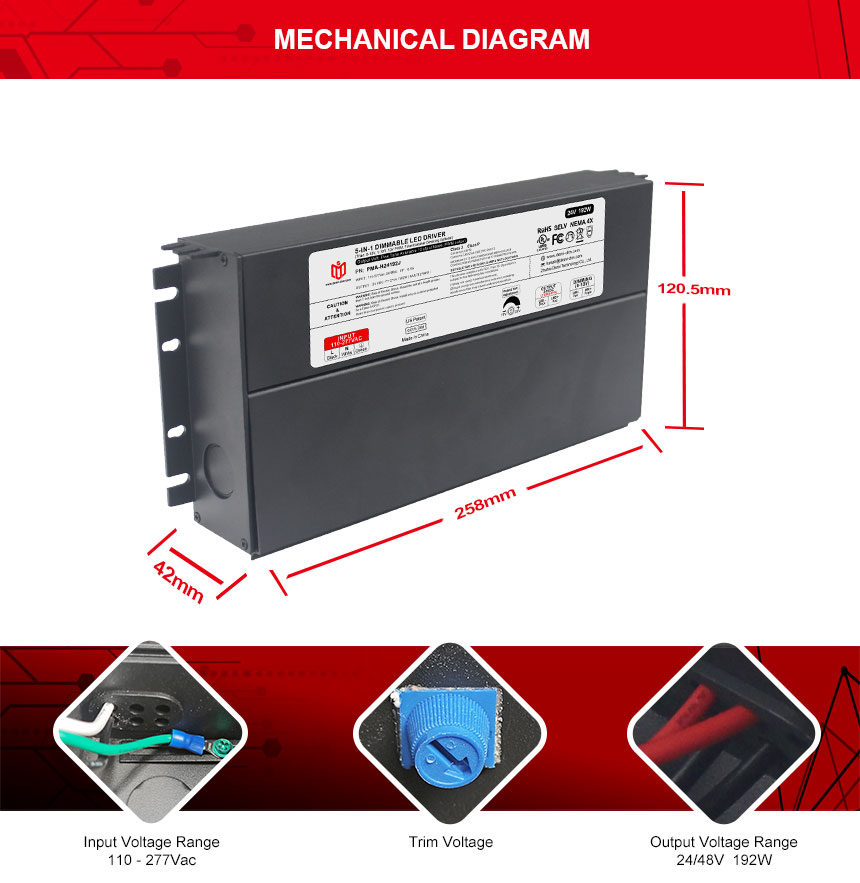

| Dimension | 258x120.5x42mm (L*W*H) | |
| Packing | - | |
|
•Super low loading request, works perfect at 10-100% load. •Short-circuit, over-temperature, over-load protection. |

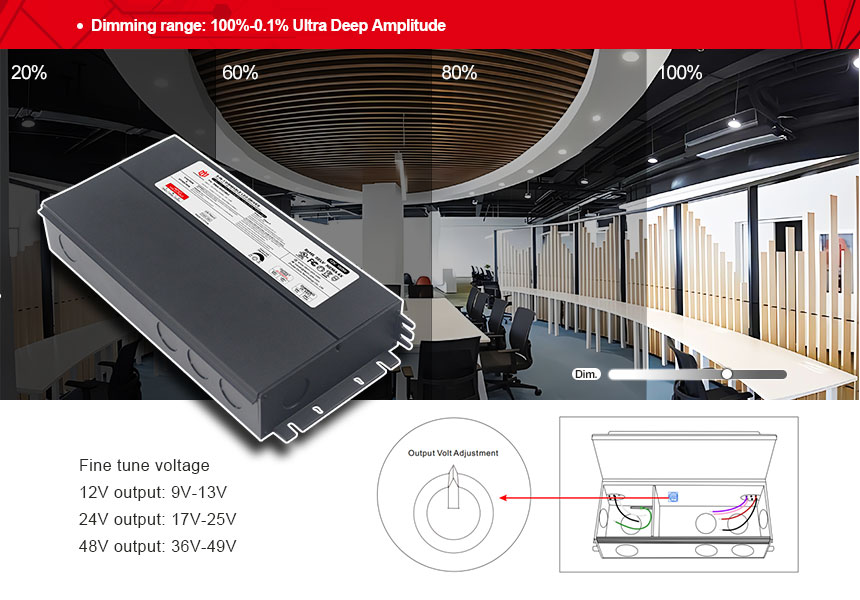

•Dimming range:100-0.1% , flicker-free. •Triac dim mode: Forward phase & reverse phase, MLV, ELV
|
This PMA series 192W dimmable led driver has two outputs, each outputting 96W power. The LED driver complies with Class 2 safety standards and uses high-quality electronic components and design. It can provide stable and reliable voltage output for lamps and ensure LED lights. normal work
| PMA-H-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
192W (MULTI 96W * 2) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*2 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*2 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram

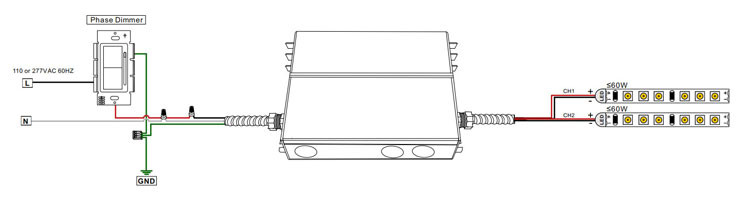

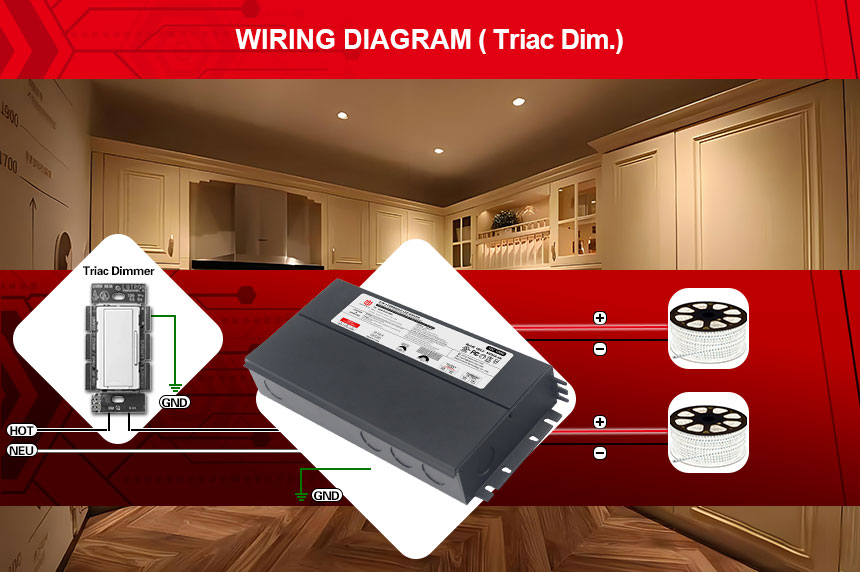

· Using Triac MLV wiring diagram

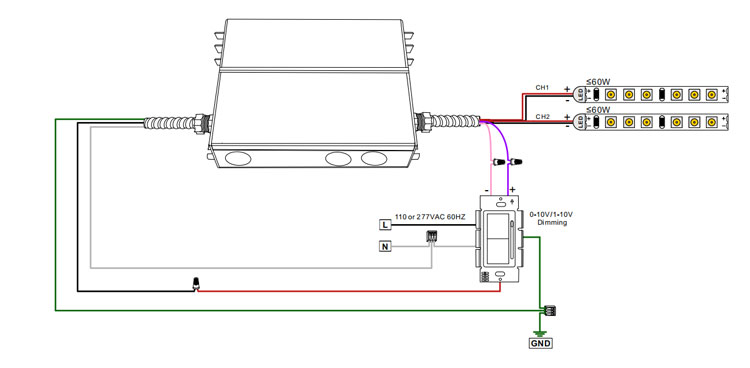

· Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
Tags :
The CCT & triac/0 10v dimmable led driver 30W 12V has a built-in fine-tuning voltage function knob, which can compensate for the light attenuation of the lamp and adjust the brightness. It is compatible with popular front and rear triac dimmers and systems, and 0-10V dimmers and systems on the market. Such as Lutron dimmer
triac & 0 10v dimmable 12v 60W led power supply easy and quick to install, built-in active PFC function, power factor >0.95, very compatible with CreeLighting's 60W LED floodlight, achieving smooth flicker-free dimming, 5 years Warranty
110-277vac 5 in 1 dimmable 80W 12v led driver has short circuit/over temperature/overload protection function, suitable for use in wet and dry lighting projects, compatible with popular front and rear edge thyristor dimmers and systems, 0-10V dimmers and systems, Such as Lutron dimmer
CCT& 5 in 1 dimmable led power supply input voltage range 110vac-277vac, aluminum housing design, good heat dissipation, easy and fast installation, well compatible with AQ Lighting's 96W LED strip/light strip, achieving smooth flicker-free dimming
PMA output triac & 0 10v dimmable led driver 100W 12V constant voltage output mode, able to provide stable protection for LED lamps, with short circuit/overload/overtemperature functions, 5-year warranty
triac & 0 10v dimmable 120W 12V LED power supply, PWM output, built-in fine-tuning voltage function knob for light attenuation compensation, dimming range between 0.01~100%, high working efficiency, constant voltage working mode, can be used for billboards on, used with LED advertising lighting modules
