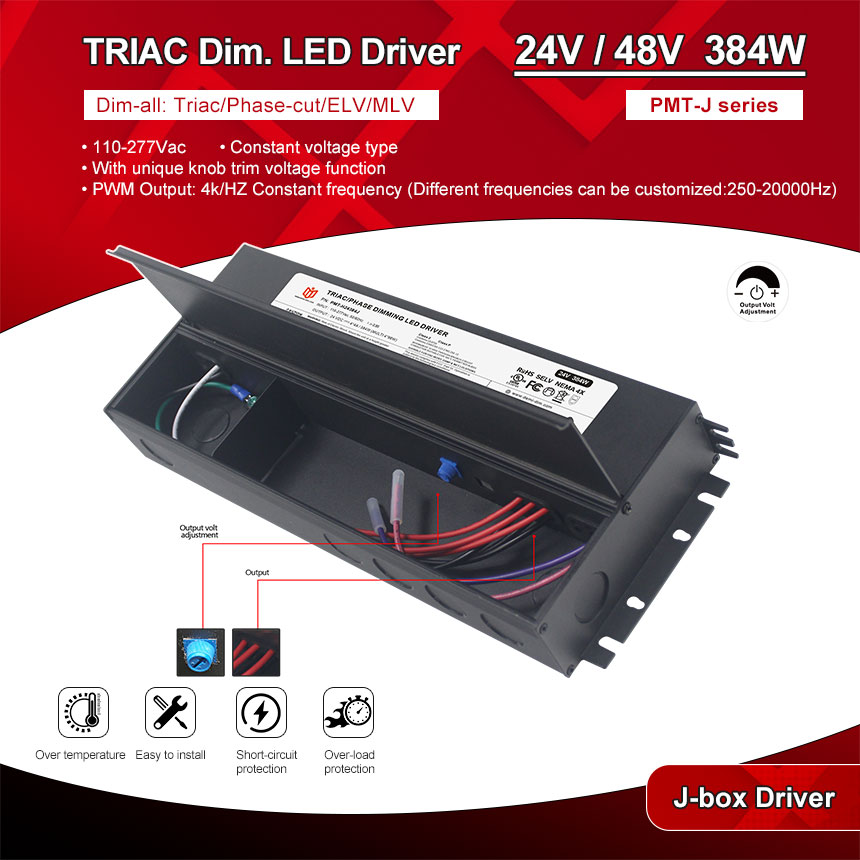

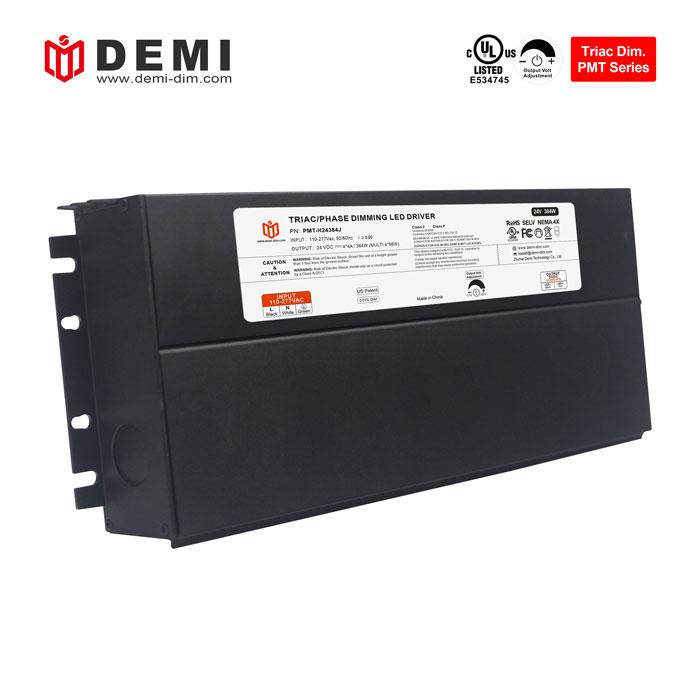

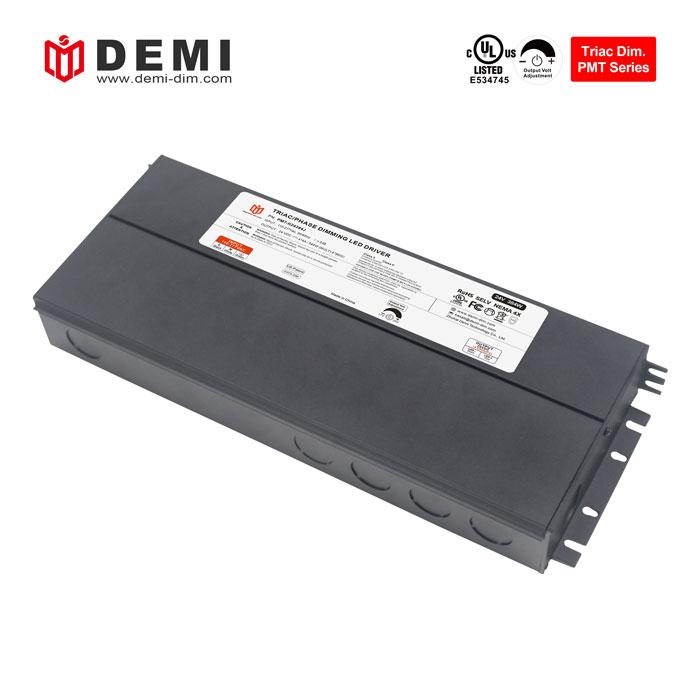

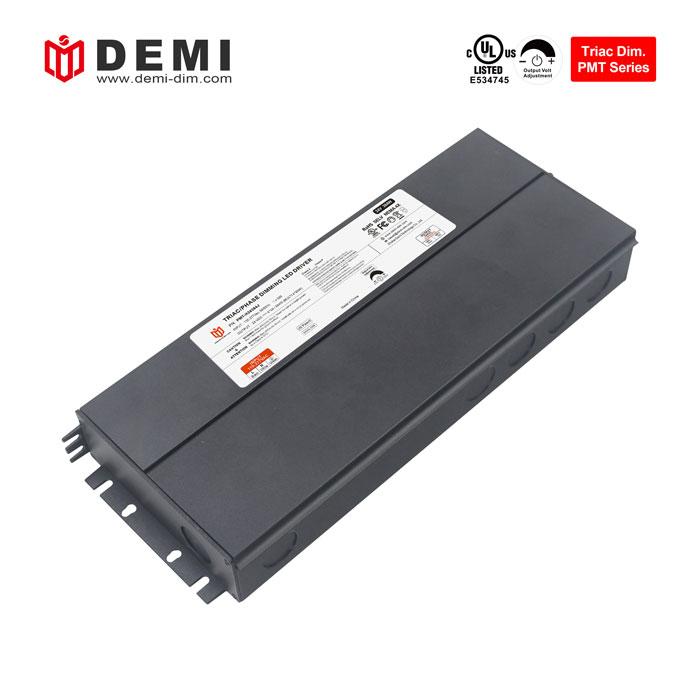

UL cUL Class 2 multi-channels Triac dimming ac to dc LED driver 384W 12Vdc 24Vdc

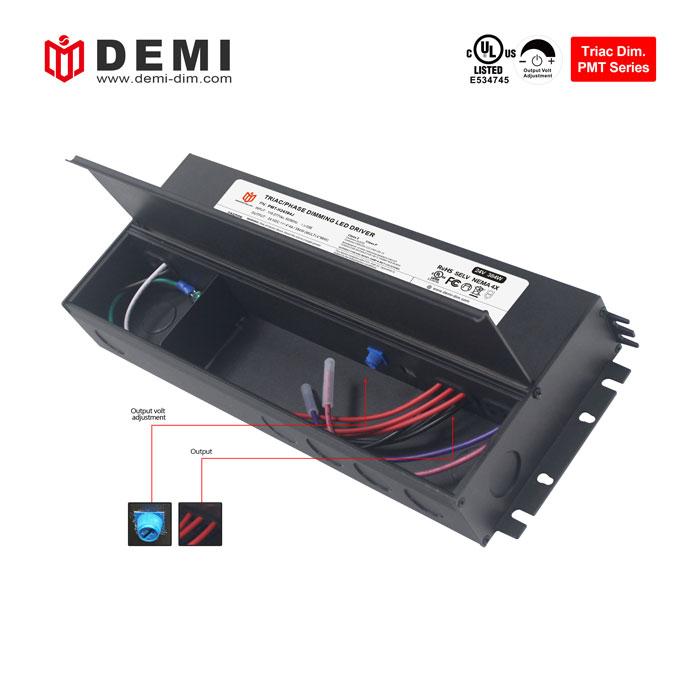

High power This triac dimmable Class 2 led driver 24v 384W constant voltage working mode has a built-in fine-tuning voltage pot function knob, which can compensate for the light decay of the lamp at +1v and solve the voltage drop problem caused by installation and wiring.
|
Model Number |
PMT-H48384J |
|
|
Output Type |
||
|
Reted Power |
384W(4CH*96W) |
|
|
Reted Voltage |
48V |
|
|
Reted Current |
4CH*4A |
4CH*2A |
|
Voltage Tolerance |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
|
|
Load Regulation |
±1% |
|
|
Input Type |
||
|
Voltage Range |
110-277V |
|
|
Frequency Range |
47-63HZ |
|
|
Efficiency(Typ.) |
92%@120VAC 93%@277VAC |
|
|
Total Harmonic Distortion |
THD< 15%(@100% load) |
|
|
Power Factor(typ.) |
0.99@120VAC 0.98@277VAC |
|
|
AC Current(Typ.) |
3.8A |
|
|
Inrush Current(Typ.) |
38A |
|
|
Leakage Current |
<0.5mA |
|
|
PROTECTION |
||
|
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
|
|
Over Load |
Intelligently reduce the output voltage, auto-recovery or re-power on to recovery |
|
|
Over Temperate |
100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed |
|
|
ENVIRONMENT |
||
|
Working Temp. |
Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
|
|
Working humidity |
20 ~ 95% RH non-condensing |
|
|
Storage temp., Humidity |
-40 ~ +90, 10 ~ 95% RH |
|
|
Temp .coefficient |
±0.03%/℃(0~50℃) |
|
|
Vibration |
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|
|
SAFETY & EMC |
||
|
Safety standards |
UL8750, CSAC22.2 No. 250.0-08 |
|
|
Withstand voltage |
I/P-O/P:1.88KVAC |
|
|
Isolation resistance |
I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH |
|
|
EMC Emission |
Compliance to FCC part 15 Subpart B |
|
|
OTHERS |
||
|

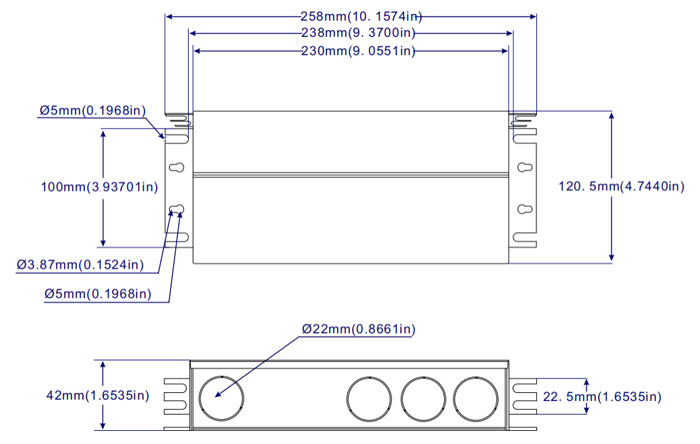

Dimension |
258x120.5x42mm (L*W*H) |
|
|
Packing |
- |
|
|
•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •Dimming range:100-0.1% , flicker-free. |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •With unique knob trim voltage function |
| PMT-J | Input | Output | |||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | / | / | / |
| 80W | AC L | Black | 18AWG | DC+ | Red | 18AWG | / | / | / |
| AC N | White | 18AWG | DC- | Black | 18AWG | / | / | / | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram

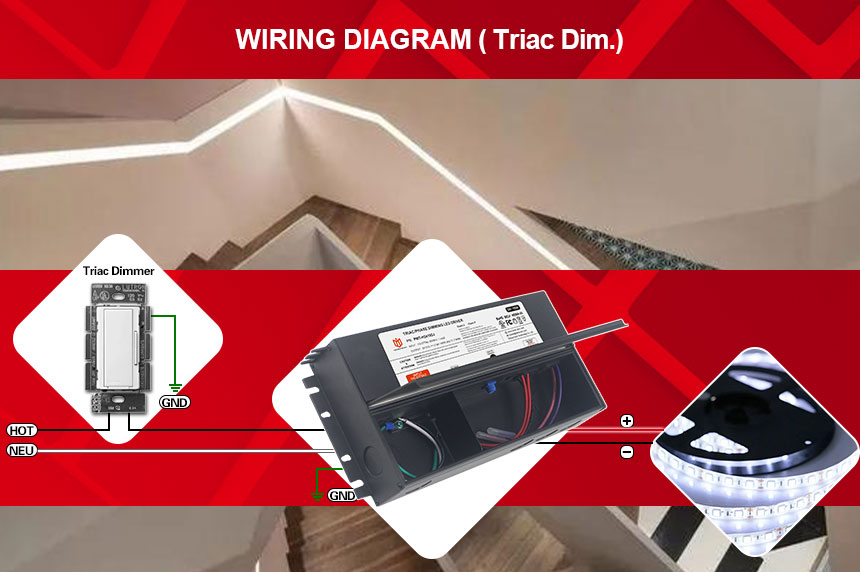

· Using Triac/MLV wiring diagram
· Using Triac ELV wiring diagram
