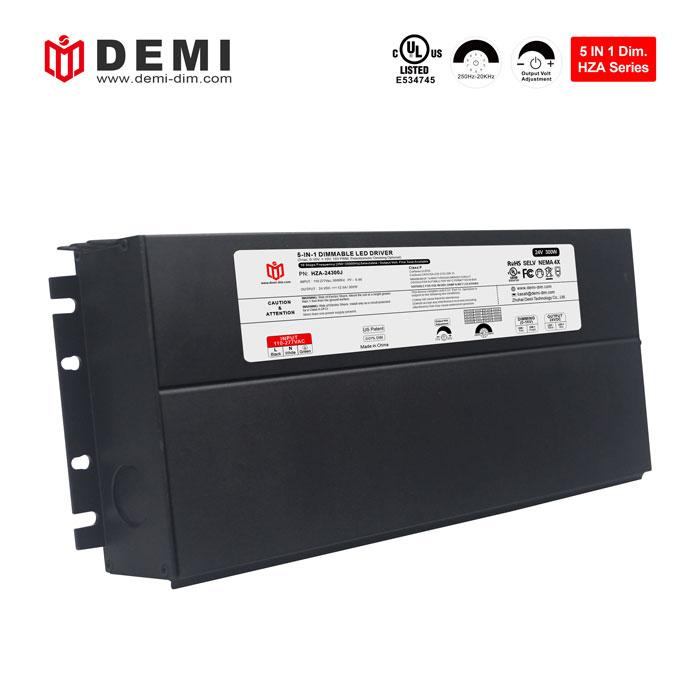

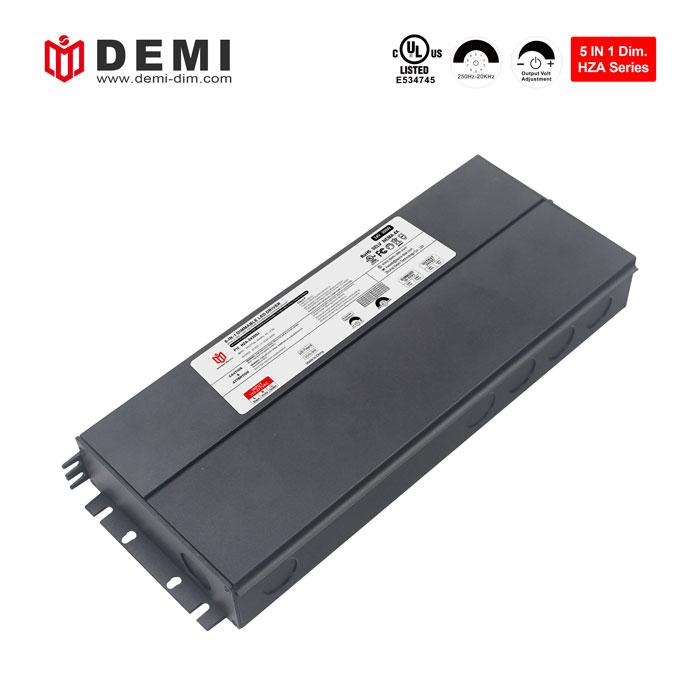

High power 300w constant voltage dimmable led driver 24v built-in 9-speed switchable output frequency knob. Different output frequencies can be selected according to different user needs. Strong compatibility, almost compatible with the popular front and rear edge thyristor dimmers and systems, 0-10V dimmers and systems on the market. For example, Leviton dimmer
Brand:
DEMIItem no.:
HZA-24300JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
300WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
316*120.5*42mmWeight:
1.9KGCertification:
UL, ROHS, FCCWarranty:
5 years

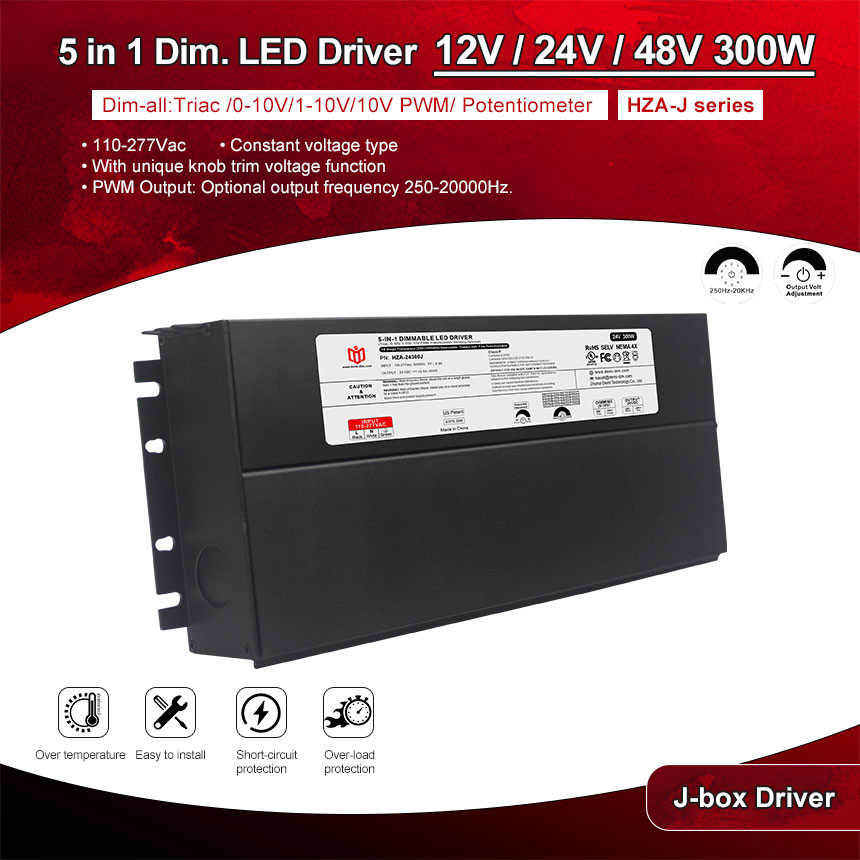

high efficiency 300W 24V triac & 0 10v dimmable led power supply strip lights driver manufacturer

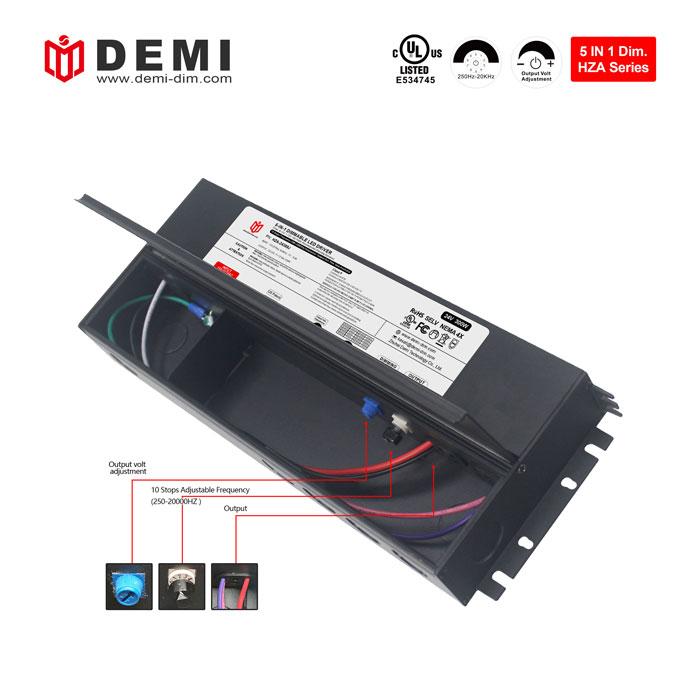

110-277vac universal input voltage range 300W 24V dimmable LED driver Built-in fine-tuning voltage function knob, can well solve the voltage drop problem during wiring. It can also adjust a certain brightness when not connected to the dimmer. With short circuit/overload/overtemperature protection function

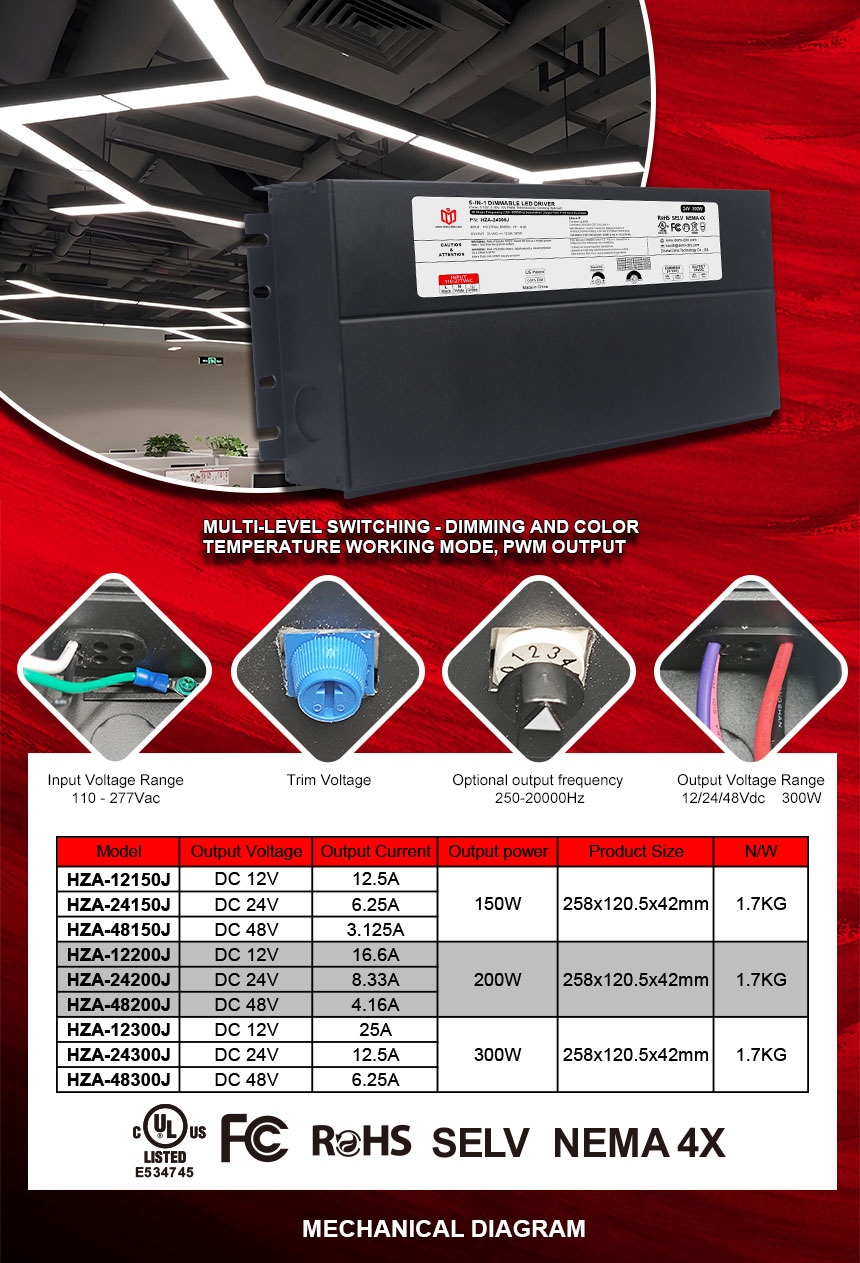

| Model Number | HZA-12300J | HZA-24300J | HZA-48300J |
| Output Type | |||
| Reted Power | 300W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 25A | 12.5A | 6.25A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 91%@120VAC 92%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 3.02A | ||
| Inrush Current(Typ.) | 35A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

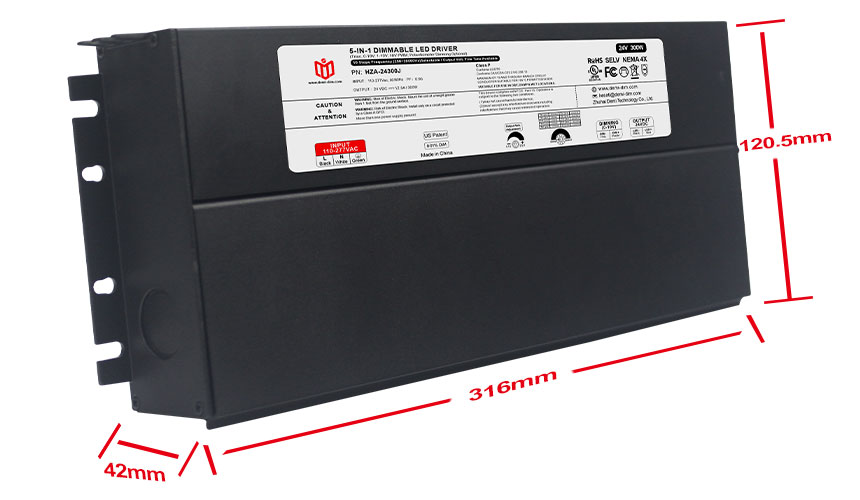

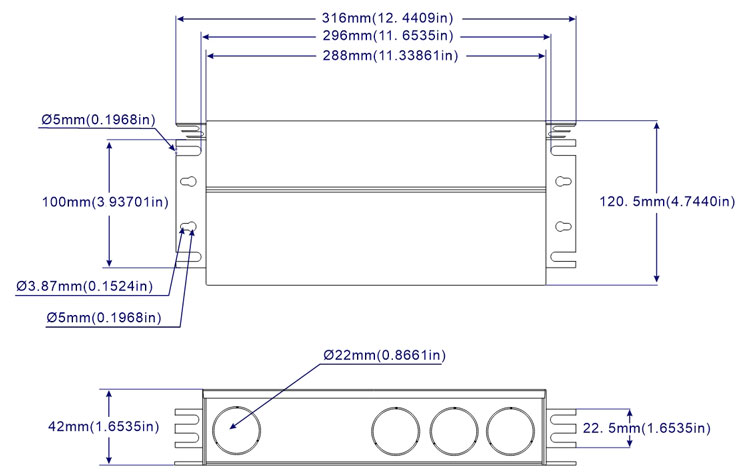

| Dimension | 316x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|

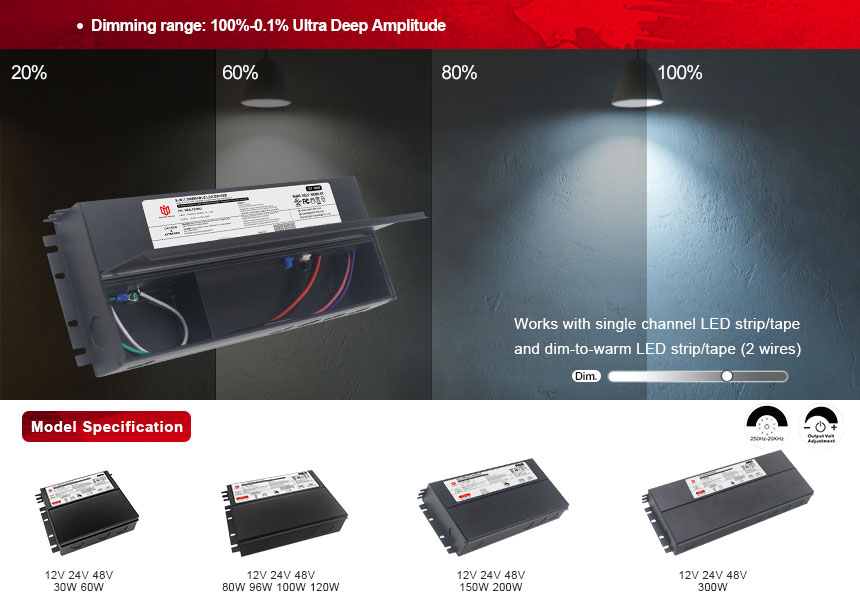

•PWM Output: Optional output frequency 250-20000Hz •Dimming range: 100%-0.1% Ultra Deep Amplitude •Short-circuit, over-temperature, over-load protection. |
•Works with single channel LED strip/tape and dim-to-warm LED strip/tape (2 wires) •Constant voltage type.fine tune of output voltage
|
High power HZA series 300W dimmable LED driver has multiple mounting feet to meet the needs of users in different installation scenarios. It is necessary to install the product in a good heat dissipation position to avoid direct contact with the heat source. UL certification, in line with global safety lighting regulations, with a 5-year warranty
| HZA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 300W | AC L | Black | 18AWG | DC+ | Red |
24V/18AWG 24V/18AWG 48V/18AWG |
Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram

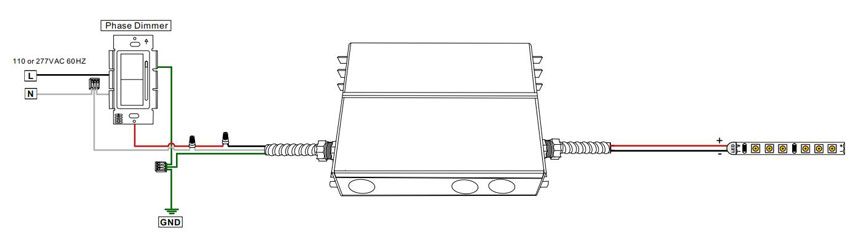

· Using Triac ELV wiring diagram

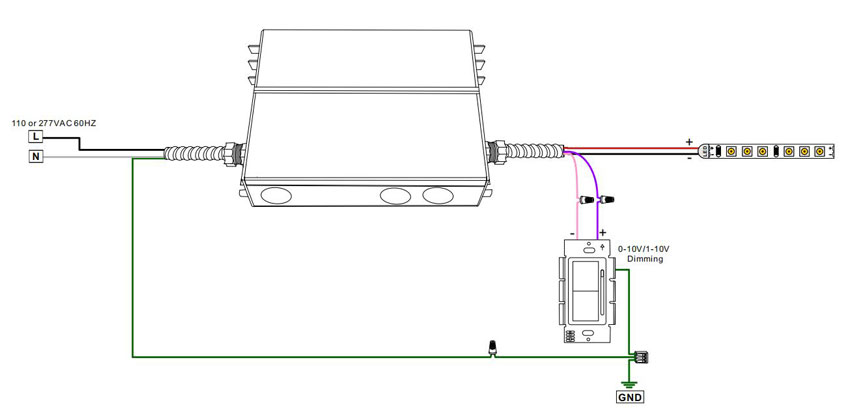

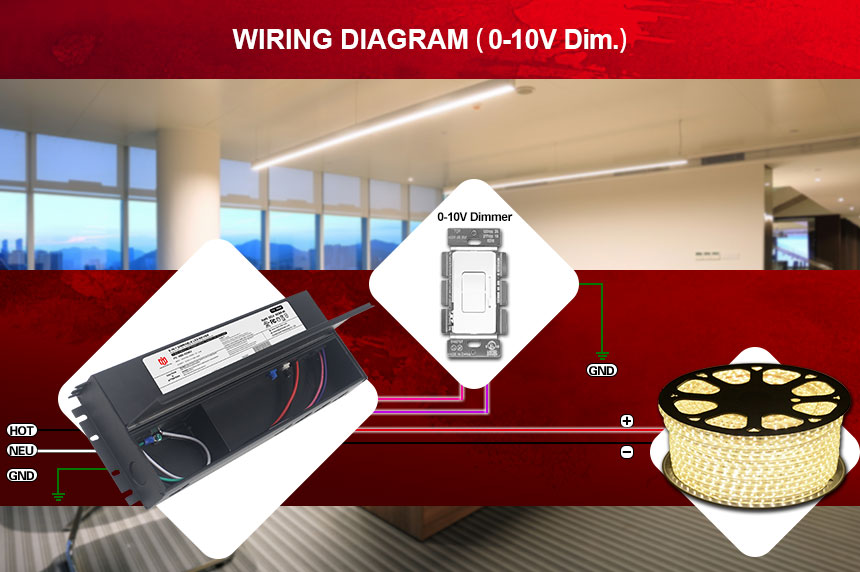

·Using 0-10/1-10V dimming(This driver is independently connected to the input)
