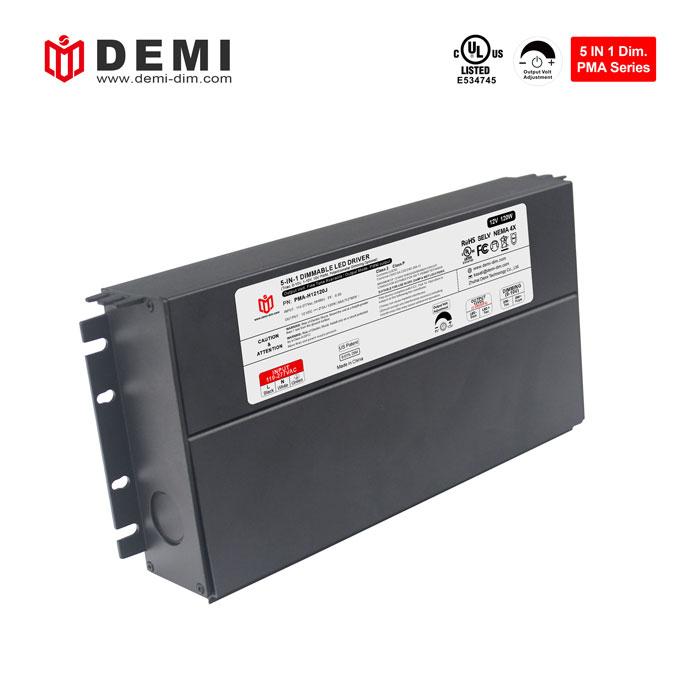

100-277vac triac & 0 10v dimmable 120W led driver constant voltage working mode, built-in active PFC function, power factor >0.95. Strong compatibility, well compatible with most triac dimmers and 0 10v dimmers on the market, such as ELEGRP dimmer
Brand:
DEMIItem no.:
PMA-H12120JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
120WOutput Voltage:
12VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 yearsClass 2 ul listed 12v 120 watt triac & 0 10v dimmable led power supply strip light drivers

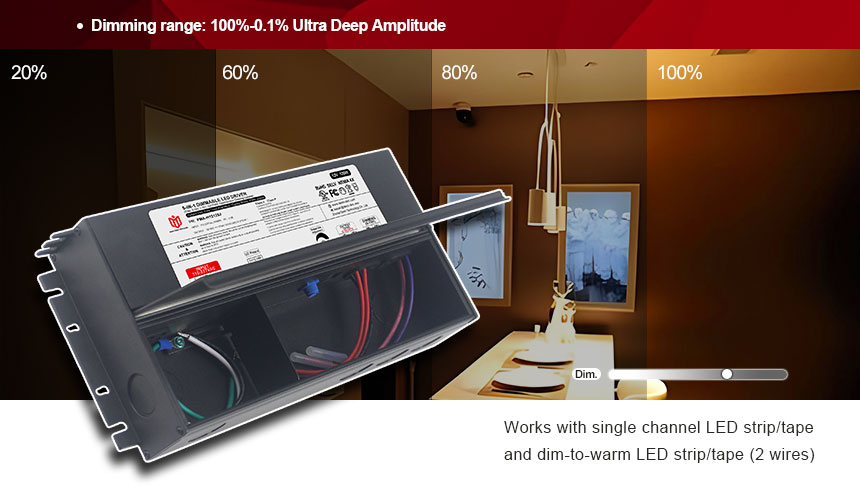

PMA series 5 in 1 dimmable led driver has single dimming function, PWM output mode, and built-in fine-tuning voltage function knob, which can compensate for the light attenuation of the lamp. Dimming range is 0.1~100% ultra-deep dimming, with short-circuit/overload/over-temperature protection function, 7-year warranty
Model Number | PMA-H12120J |
Output Type | |
Reted Power | 120W(2CH*60W) |
Reted Voltage | 12V |
Reted Current | 2CH*5A |
Voltage Tolerance | ±0.5V |
Voltage Regulation | ±0.5% |
Load Regulation | ±1% |
Input Type | |
Voltage Range | 110-277V |
Frequency Range | 47-63HZ |
Efficiency(Typ.) | 90%@120VAC 91%@277VAC |
Total Harmonic Distortion | THD< 15%(@100% load) |
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC |
AC Current(Typ.) | 1.26A |
Inrush Current(Typ.) | 27A |
Leakage Current | <0.5mA |
PROTECTION | |
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed |
Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. |
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed |
ENVIRONMENT | |
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
Working humidity | 20 ~ 95% RH non-condensing |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
Temp .coefficient | ±0.03%/℃(0~50℃) |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
SAFETY & EMC | |
Safety standards | UL8750, CSAC22.2 No. 250.0-08 |
Withstand voltage | I/P-O/P:1.88KVAC |
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH |
EMC Emission | Compliance to FCC part 15 Subpart B |
OTHERS | |

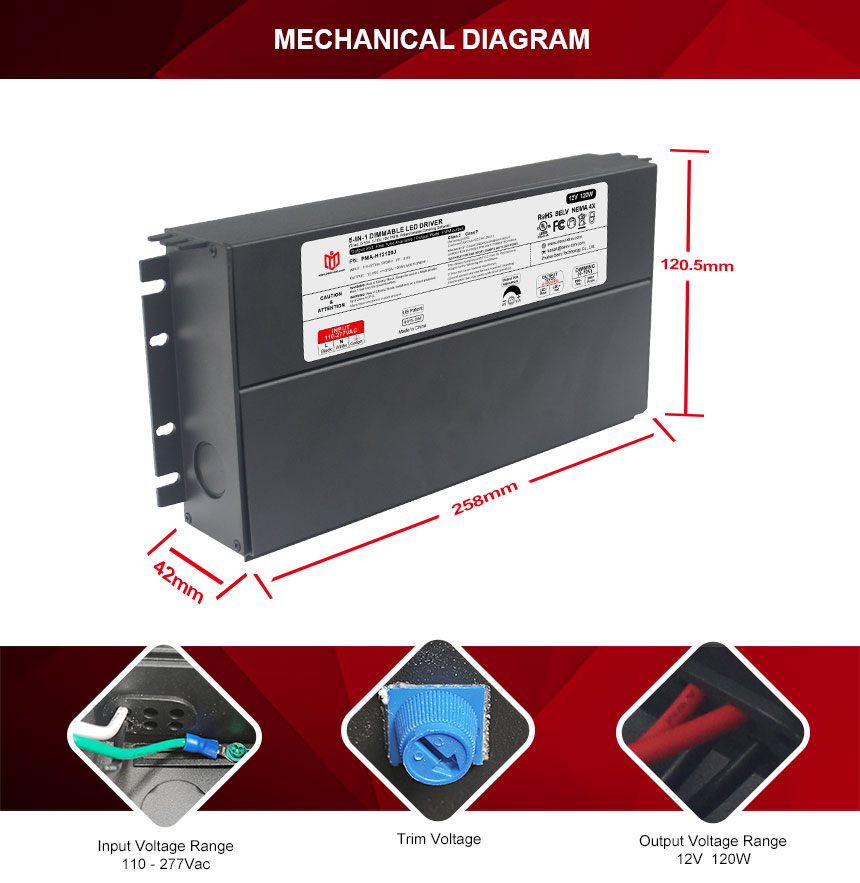

Dimension | 258x120.5x42mm (L*W*H) |
Packing | - |

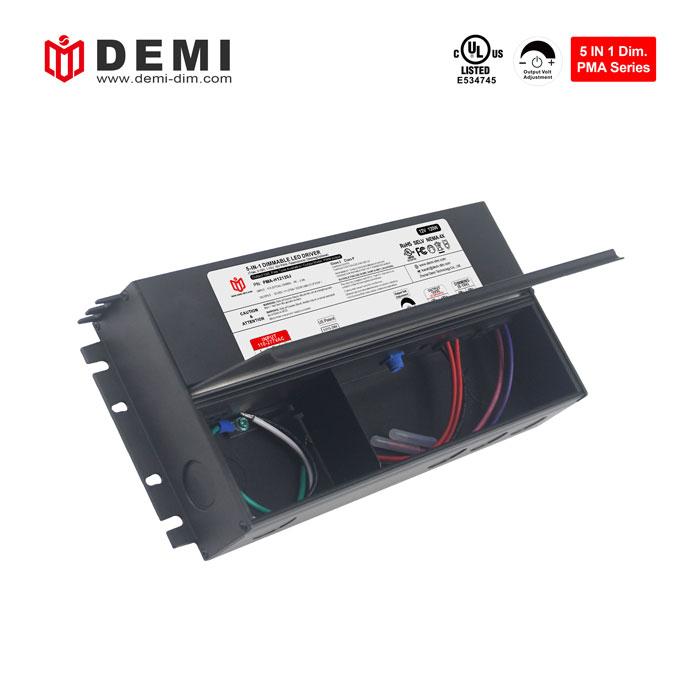

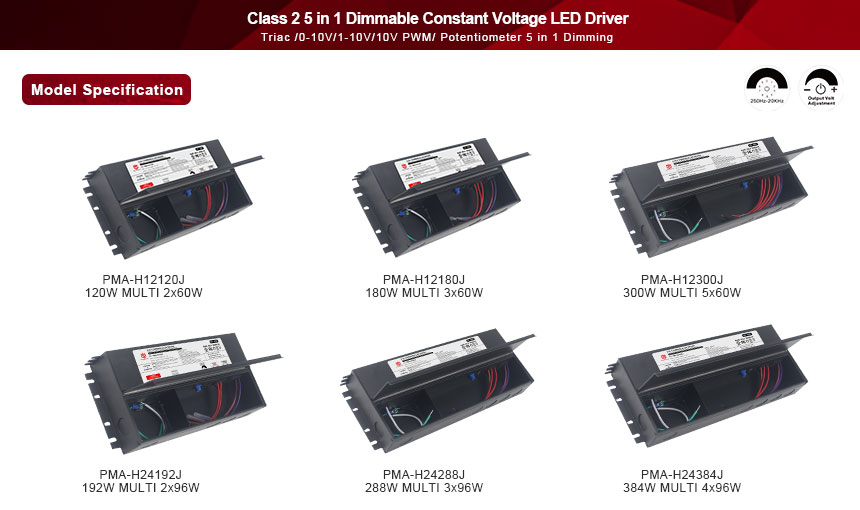

This PMA series triac & 0 10v dimmable led power supply has an exclusive patented design junction box, passed NEMA 4X, has good heat dissipation, and has multiple mounting feet to meet customers' installation needs in different scenarios. It can be used in advertising light boards. Used with LED advertising lighting module

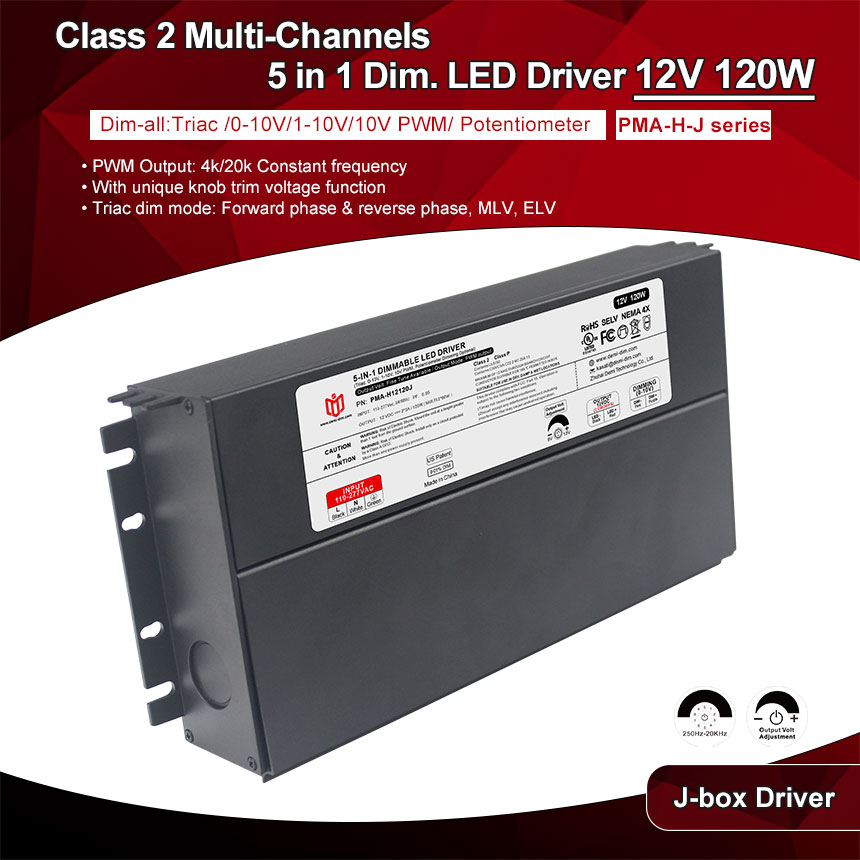

•110-277Vac Universal input. •5 years warranty. •Triac dim mode: Forward phase & reverse phase, MLV, ELV |
•PWM Output: 4k/HZ Constant frequency •Constant voltage type.fine tune of output voltage
|
PMA-H-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
120W (MULTI 60W * 2) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*2 | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG*2 | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | / | / | / | / | / | / |

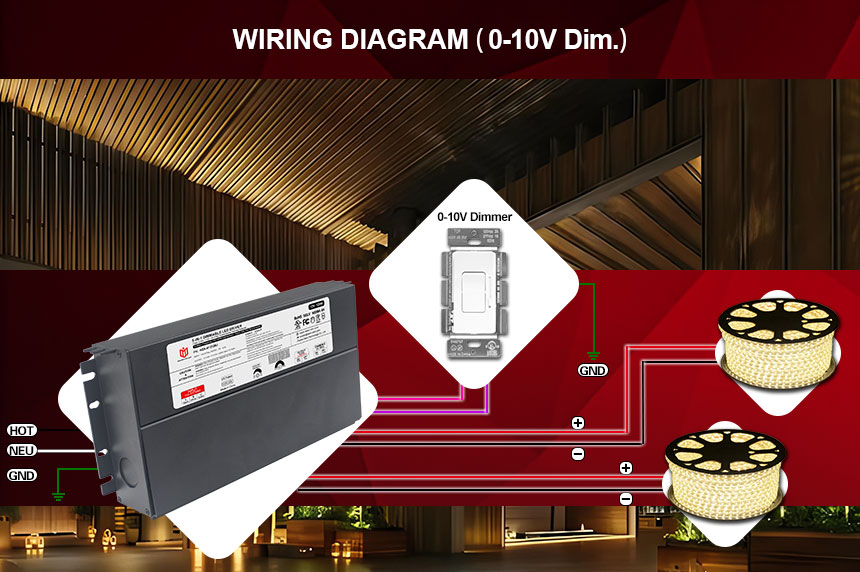

Wiring Diagram
· Using Triac MLV wiring diagram
· Using Triac ELV wiring diagram
