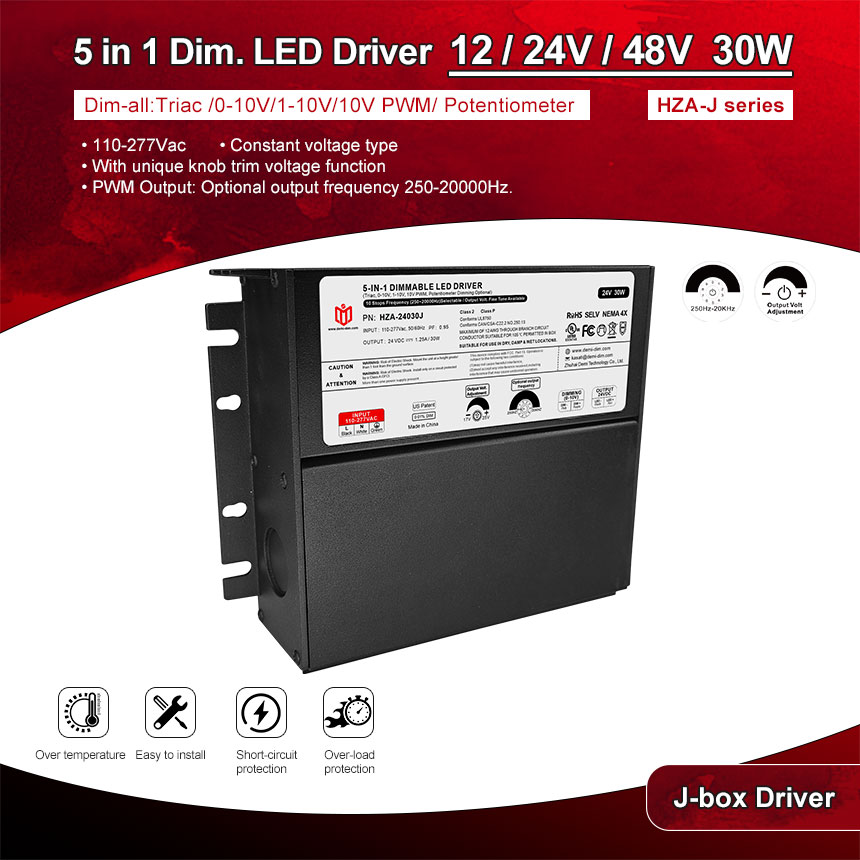

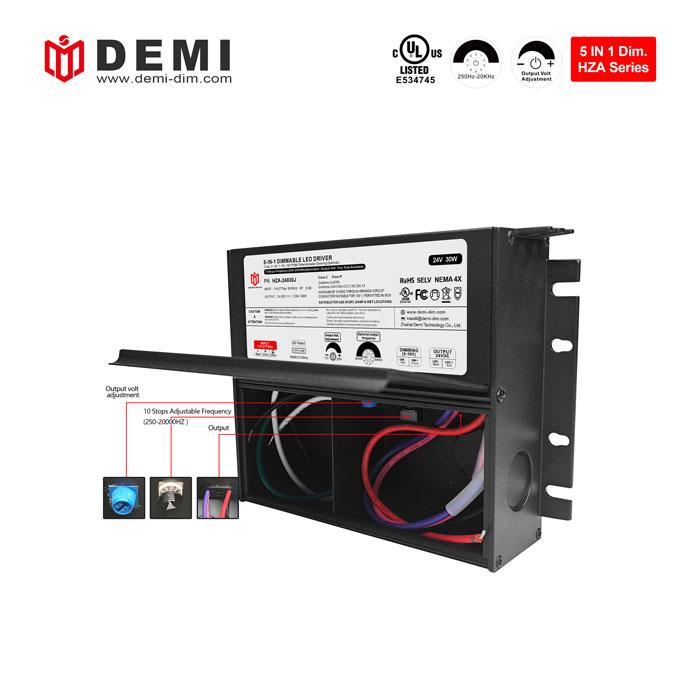

HZA series 24v 30W triac & 0 10v dimmable led driver has a built-in 9-speed output frequency knob, with a range of 250HZ-20KHZ. It has strong compatibility and can be used well with most TRIAC dimmables and 0 10v dimmables on the market. For example, Insteon dimmer
Brand:
DEMIItem no.:
HZA-24030JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
30WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
158*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years

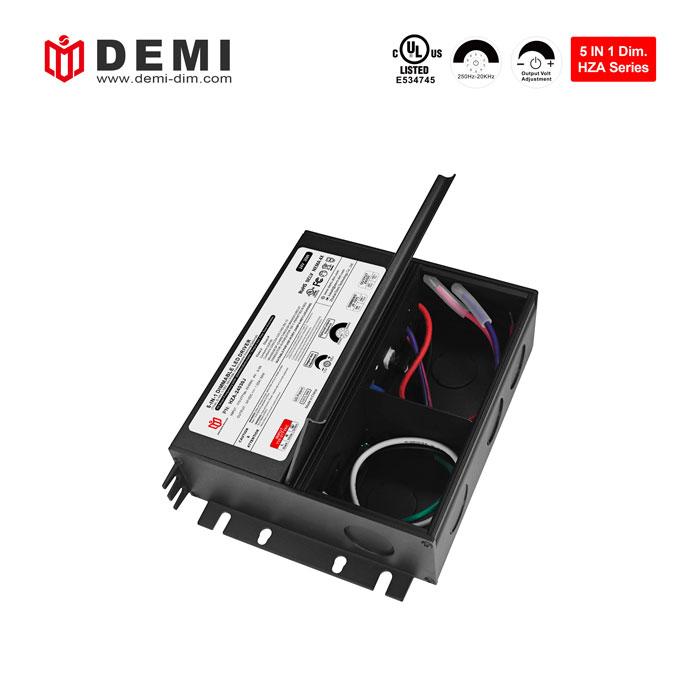

PWM output constant voltage traic & 0 10v dimmable 30W 24v led driver strip power supply price
This triac & 0 10v dimmable led power supply has a built-in voltage adjustment knob. It is compact and easy to install. It has high working efficiency. This 30W dimmable led driver can reach 84% efficiency at full load. It complies with global safety lighting regulations. 5-year warranty

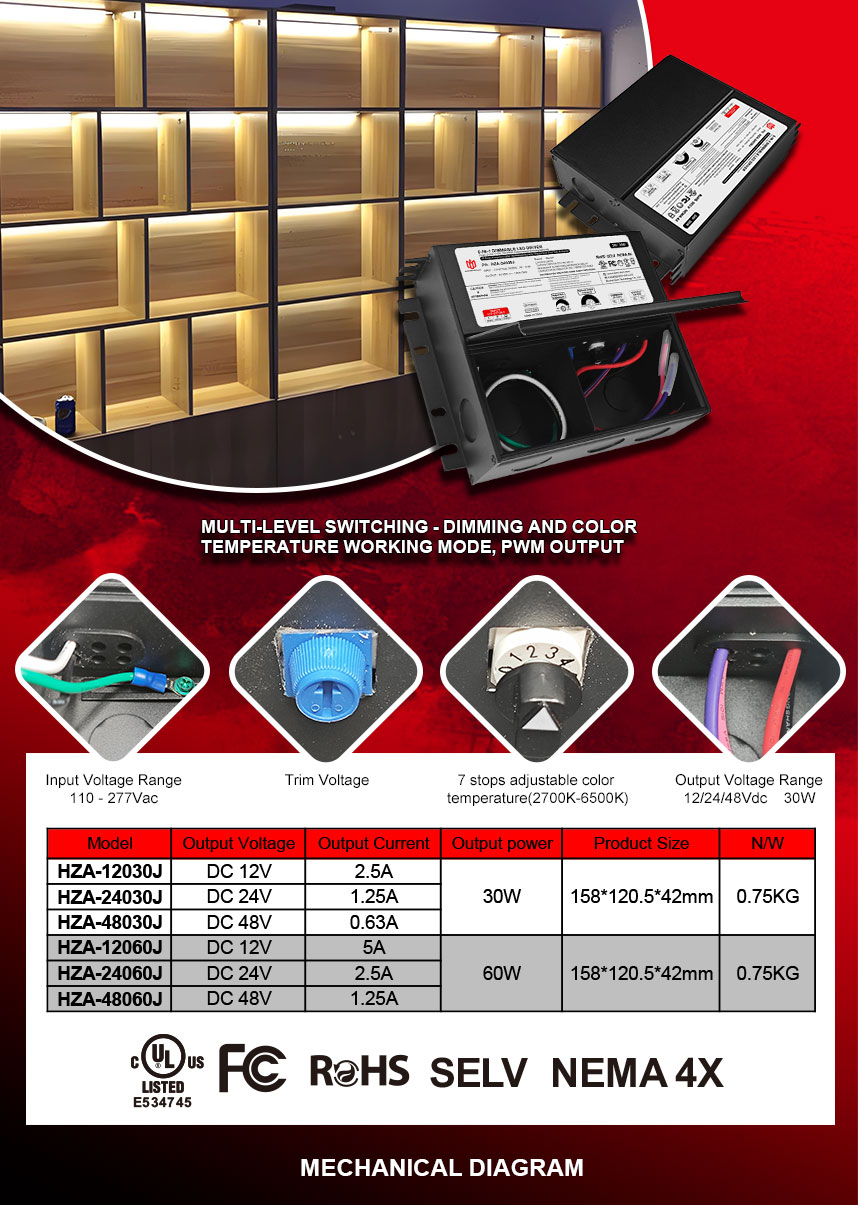

| Model Number | HZA-12030J | HZA-24030J | HZA-48030J |
| Output Type | |||
| Reted Power | 30W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 2.5A | 1.25A | 0.63A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 85%@120VAC 86%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 0.35A | ||
| Inrush Current(Typ.) | 18A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

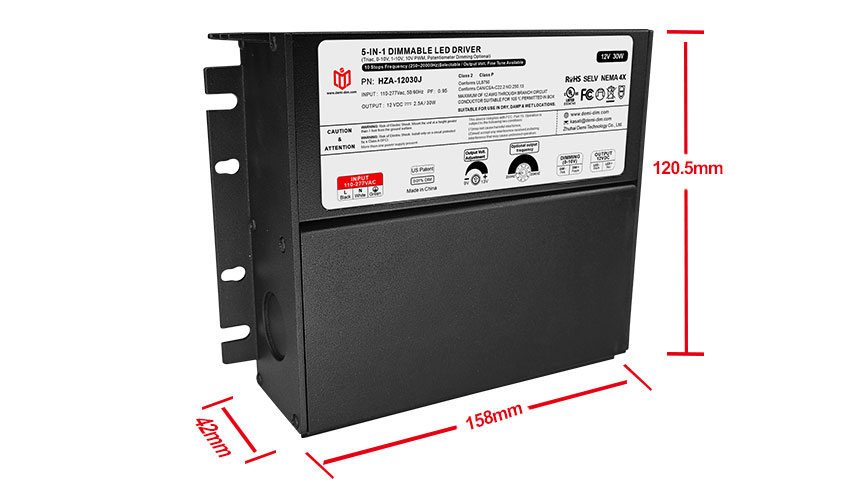

| Dimension | 158x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|

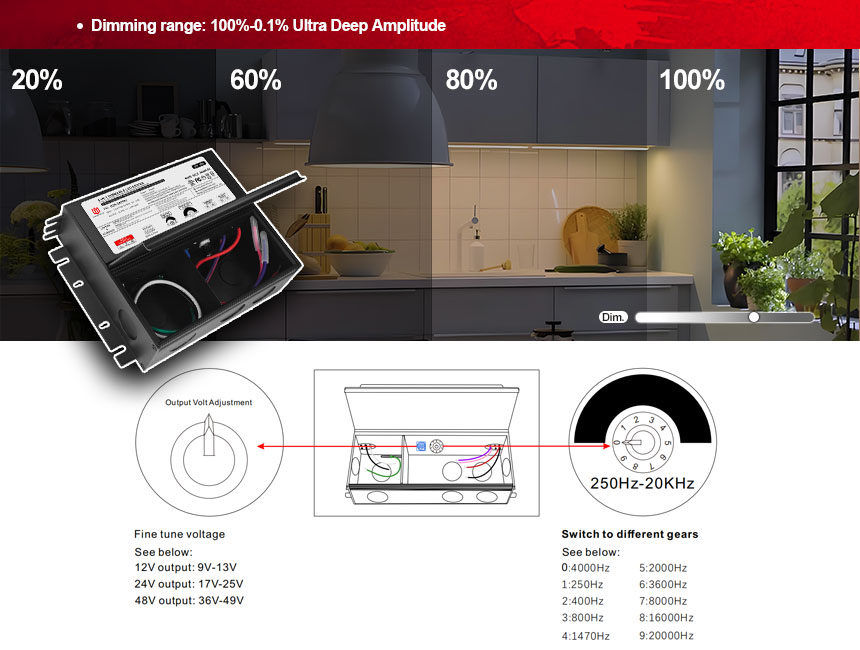

•Dimming range: 100%-0.1% Ultra Deep Amplitude •Short-circuit, over-temperature, over-load protection. |
•Constant voltage type.fine tune of output voltage •Exclusive patent design of “Clamshell” junction box
|
100-277VAC Universal Input Voltage Range Dimmable 30W 24V LED Driver Notes during Installation Ensure that the output of the driver matches the LED load connected to the lock. Ensure that the LED driver is installed in a ventilated location. Avoid direct contact with heat sources to avoid affecting the performance and life of the LED driver. Please refer to the installation guide and product manual provided by the manufacturer before installation.
| HZA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 30W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram
· Using Triac ELV wiring diagram

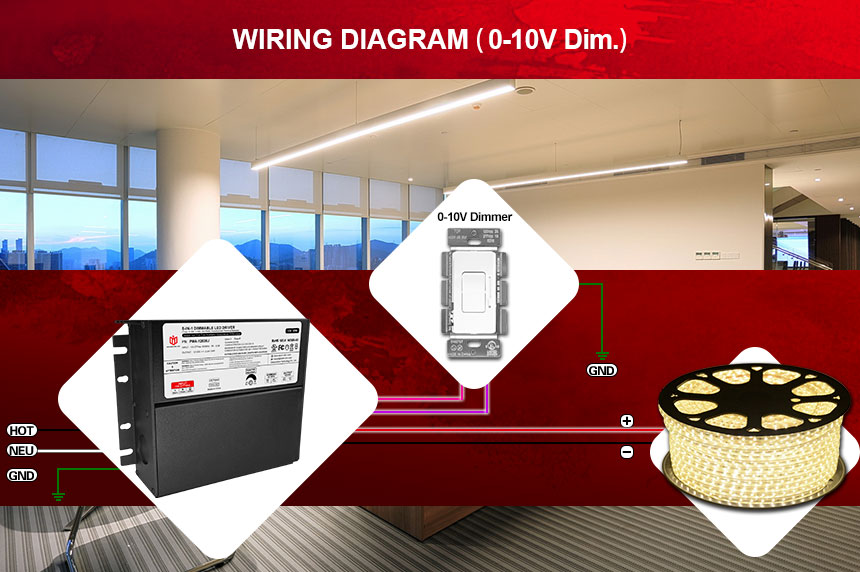

·Using 0-10/1-10V dimming(This driver is independently connected to the input)
