120w 24v constant voltage triac & 0 10v dimmable led driver built-in fine-tuning voltage function knob, can slightly adjust the output voltage range according to user needs. Strong compatibility, can be compatible with most triac dimmer and 0 10v dimmer on the market. For example, Leviton dimmer
Brand:
DEMIItem no.:
PMA-24120JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
120WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:

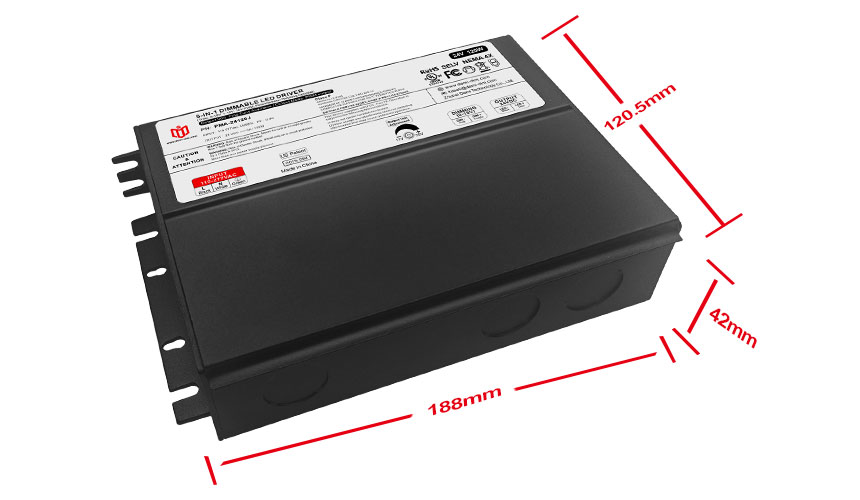

188*120.5*42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years

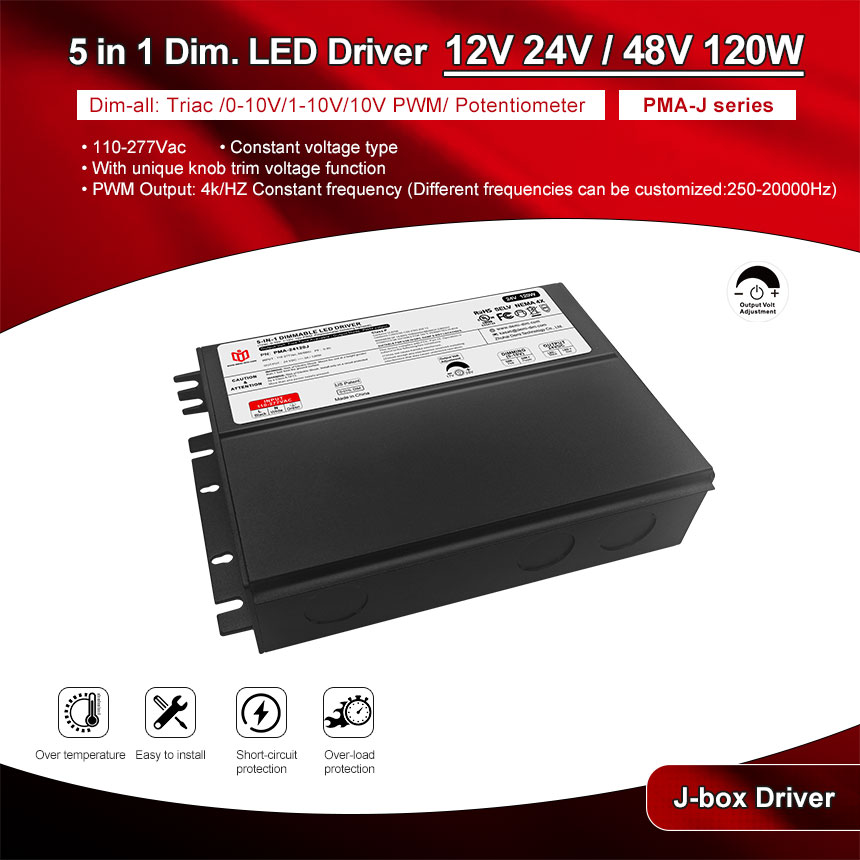

24v dc 120W constant voltage triac & 0 10v dimmable led strip light driver
This PMA series 5 in 1 dimmable LED driver has a smooth flicker-free dimming range of 0.1-100%. It has a built-in active PFC function with a power factor >0.95. It has ultra-low load requirements and can work perfectly at 10-100% load.
| Model Number | PMA-12120J | PMA-24120J | PMA-48120J |
| Output Type | |||
| Reted Power | 120W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 10A | 5A | 2.5A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 87%@120VAC 88%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 1.25A | ||
| Inrush Current(Typ.) | 27A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, Class 2 | ||
| Safety standards | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||
| Dimension | 188x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|

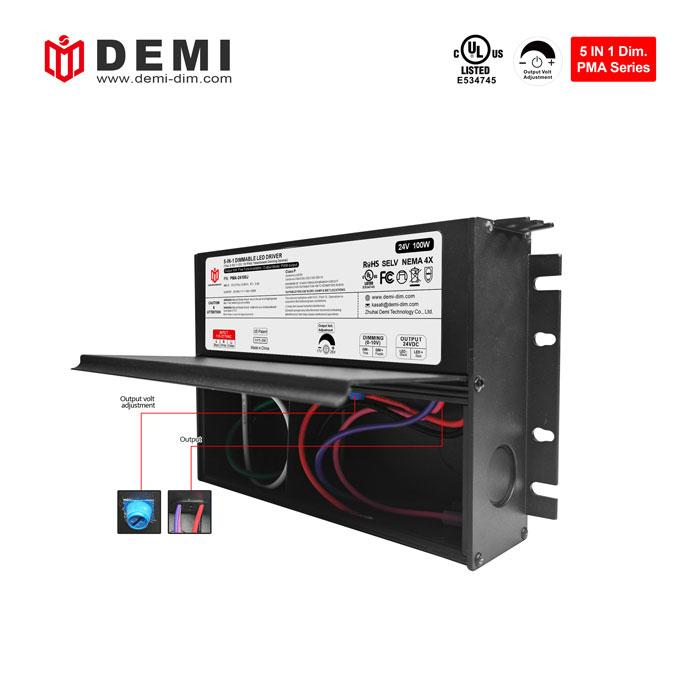

•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •Dimming range: 100%-0.1% Ultra Deep Amplitude |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •With unique knob trim voltage function |

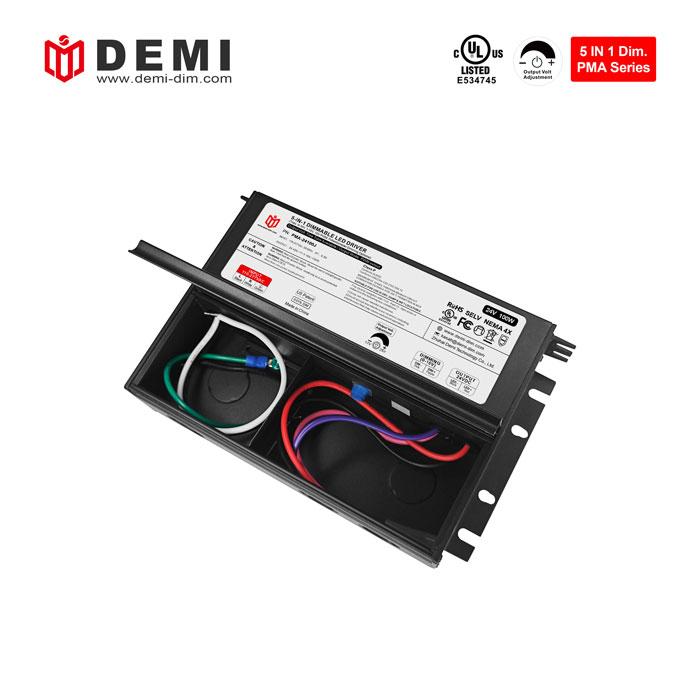

This constant voltage 120W 24V dimmable LED driver has an exclusive patented flip-top junction box design, meets NEMA 4X standards, and is made of aluminum. It has good heat dissipation and is easy and quick to install. It has multiple mounting feet. It can meet the installation needs of users in different scenarios.
| PMA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 120W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram
· UsingTriac MLV wiring diagram
· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
Tags :
The CCT & triac/0 10v dimmable led driver 30W 12V has a built-in fine-tuning voltage function knob, which can compensate for the light attenuation of the lamp and adjust the brightness. It is compatible with popular front and rear triac dimmers and systems, and 0-10V dimmers and systems on the market. Such as Lutron dimmer
triac & 0 10v dimmable 12v 60W led power supply easy and quick to install, built-in active PFC function, power factor >0.95, very compatible with CreeLighting's 60W LED floodlight, achieving smooth flicker-free dimming, 5 years Warranty
110-277vac 5 in 1 dimmable 80W 12v led driver has short circuit/over temperature/overload protection function, suitable for use in wet and dry lighting projects, compatible with popular front and rear edge thyristor dimmers and systems, 0-10V dimmers and systems, Such as Lutron dimmer
CCT& 5 in 1 dimmable led power supply input voltage range 110vac-277vac, aluminum housing design, good heat dissipation, easy and fast installation, well compatible with AQ Lighting's 96W LED strip/light strip, achieving smooth flicker-free dimming
PMA output triac & 0 10v dimmable led driver 100W 12V constant voltage output mode, able to provide stable protection for LED lamps, with short circuit/overload/overtemperature functions, 5-year warranty
triac & 0 10v dimmable 120W 12V LED power supply, PWM output, built-in fine-tuning voltage function knob for light attenuation compensation, dimming range between 0.01~100%, high working efficiency, constant voltage working mode, can be used for billboards on, used with LED advertising lighting modules
