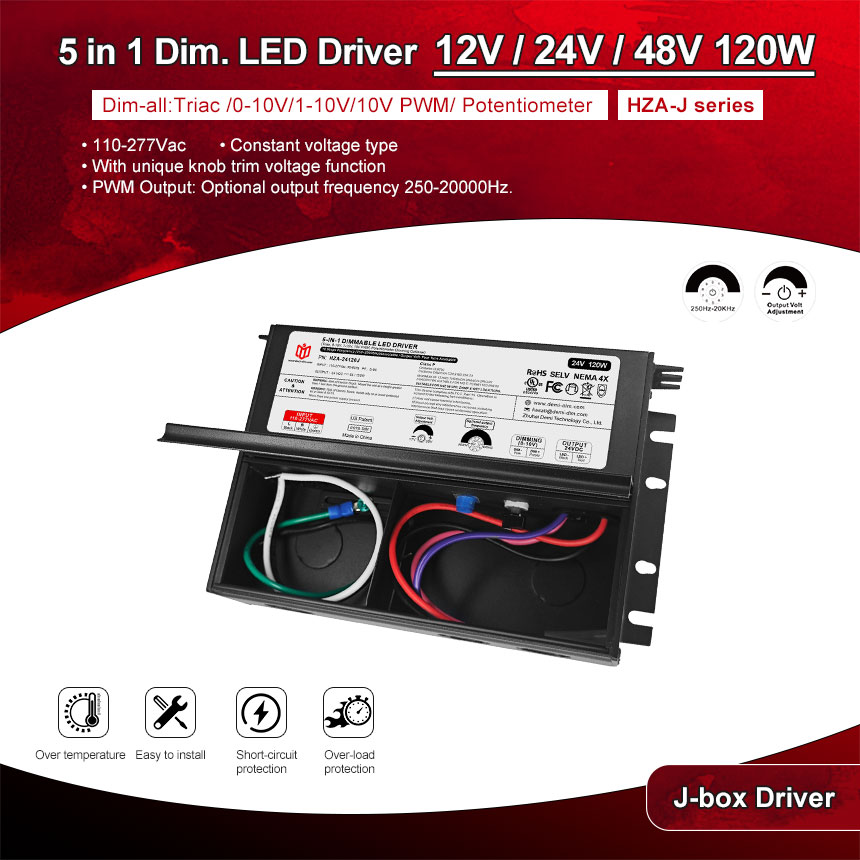

HZA series 120W 24V dimmable LED driver output voltage can be fine-tuned, and a certain brightness can be adjusted when no dimmer is connected. It has strong compatibility and can be well connected with most TRIAC dimmers and 0 10v dimmers on the market to achieve smooth flicker-free dimming. For example, Leviton dimmer
Brand:
DEMIItem no.:
HZA-24120JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
120WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years
120W 24V pwm output triac & 0 10v dimmable led driver light power supply Junction Box

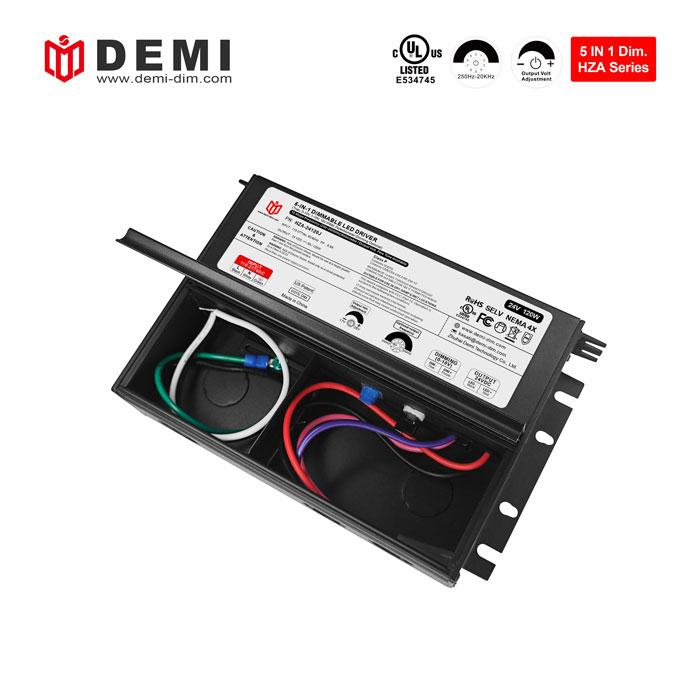

Constant voltage triac & 0 10v dimmable led driver 120W 24V Built-in active PFC function, power factor>0.95. With ultra-low load requirements, it can work perfectly under 10-100% load. The exclusive patented flip-top junction box design can effectively save installation labor.
| Model Number | HZA-12120J | HZA-24120J | HZA-48120J |
| Output Type | |||
| Reted Power | 120W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 10A | 5A | 2.5A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 1.25A | ||
| Inrush Current(Typ.) | 27A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

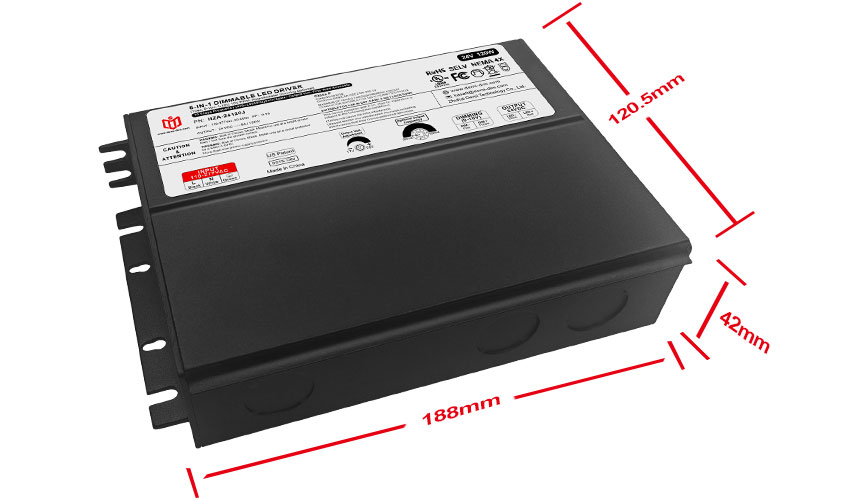

| Dimension | 188x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|

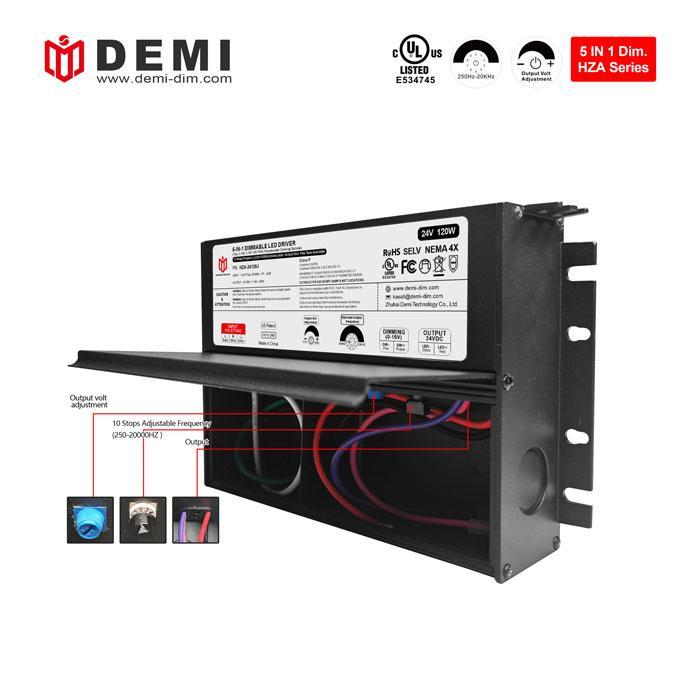

•PWM Output: Optional output frequency 250-20000Hz •Short-circuit, over-temperature, over-load protection. •Exclusive patent design of “Clamshell” junction box |
•Works with single channel LED strip/tape and dim-to-warm LED strip/tape (2 wires) •Constant voltage type.fine tune of output voltage
|
DM's new HZA series 120W 5 in 1 dimmable led power supply has an aluminum housing design, good heat dissipation, and has passed the NEMA 4X standard. It has multiple mounting feet and can be installed in different ways according to user needs. It can be used on advertising light billboards and installed with LED lighting modules.

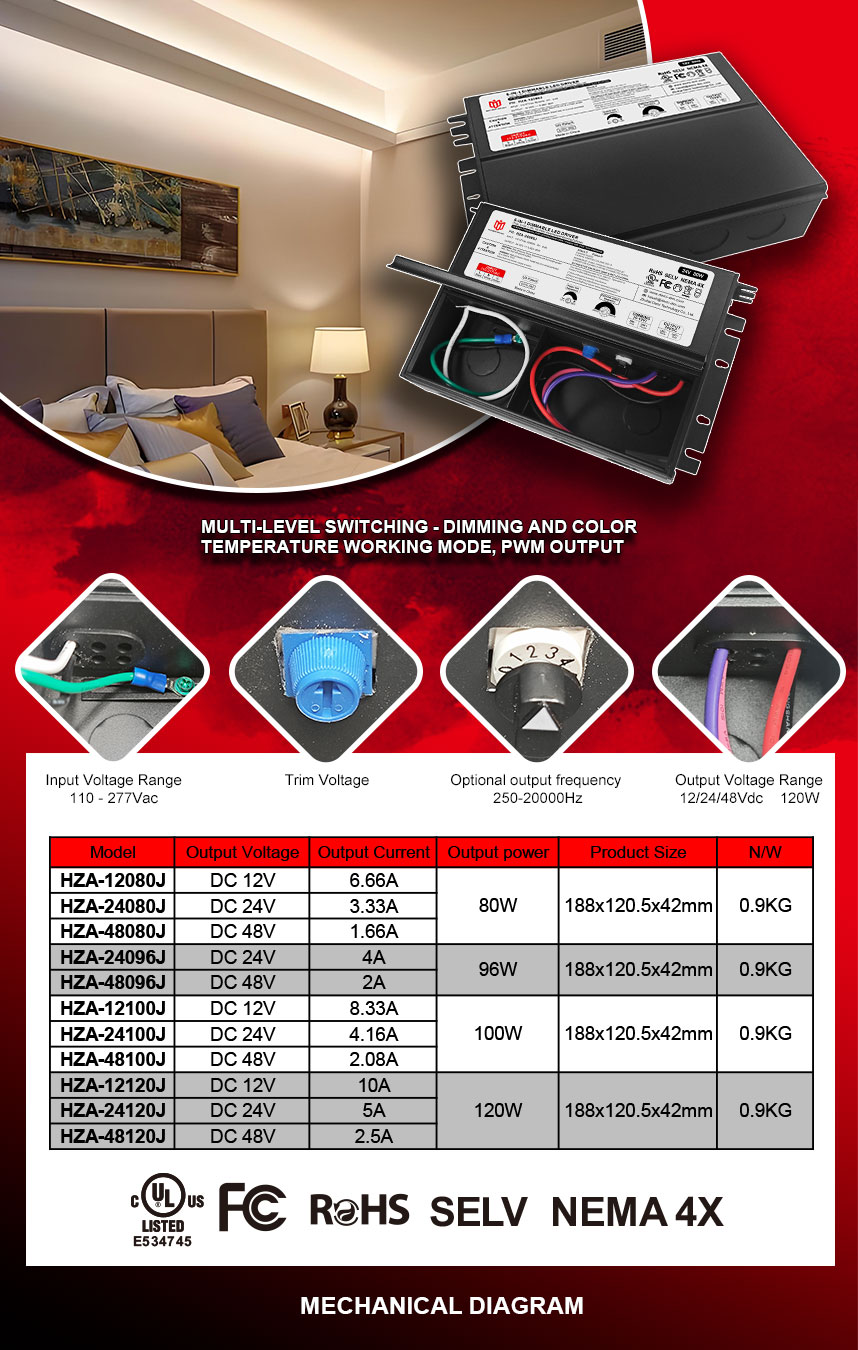

| HZA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 120W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram

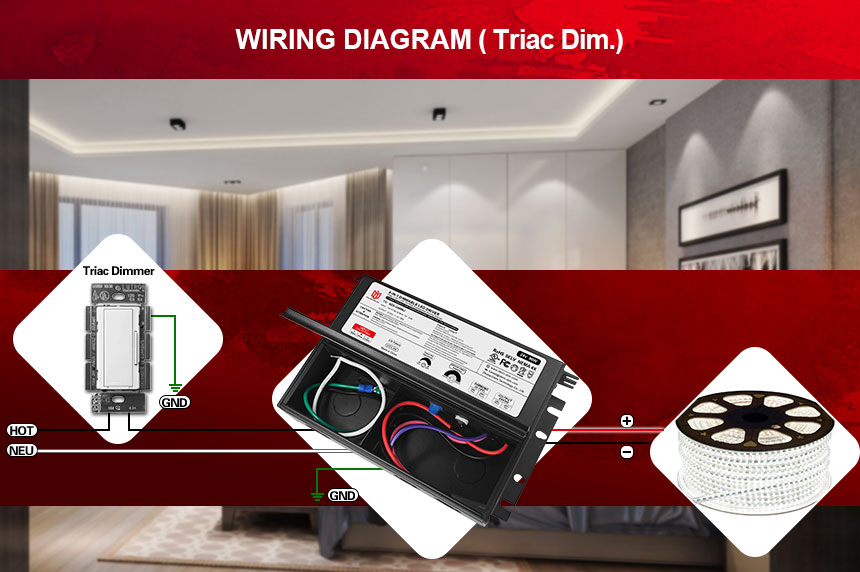

· Using Triac ELV wiring diagram
·Using 0-10/1-10V dimming(This driver is independently connected to the input)
