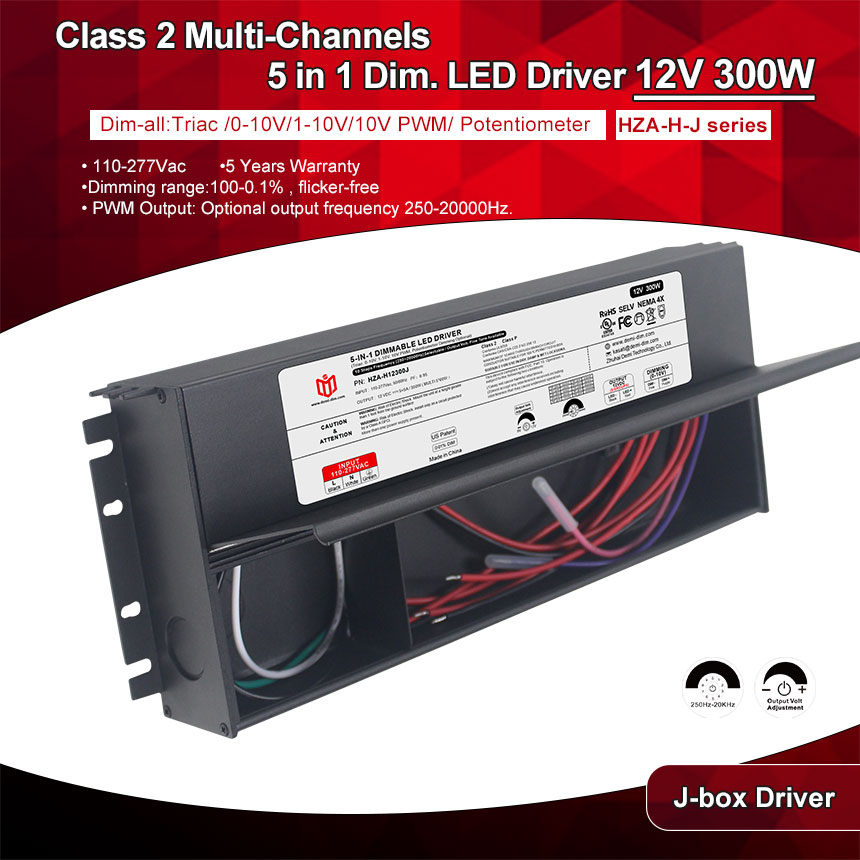

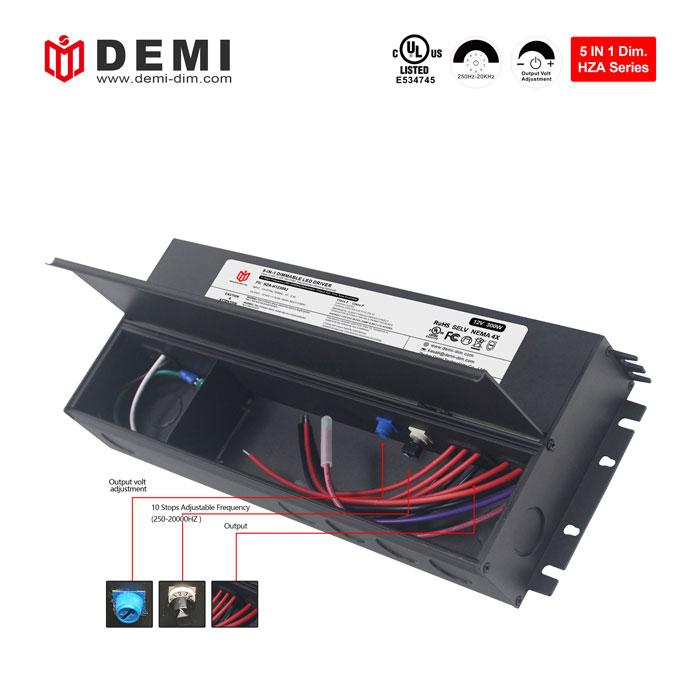

The 300W triac & 0 10v dimmable led driver itself serves as its own junction box, with a built-in 9-level output frequency knob function to meet lamps with special frequency requirements and customer needs. Aluminum shell design, good heat dissipation performance. As good as inventronics’ 300W dimmable led driver
Brand:
DEMIItem no.:
HZA-H12300JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
300WOutput Voltage:
12VdcShape & Size:
J-box DriverSize:
316x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years
PWM output 300w 12v triac & 0 10v dimmable led strip light driver junction box
PWM output mode 300W high power 5 in 1 dimmable led driver output frequency between 250-20000, constant voltage operating mode, ultra-low load requirements, able to work perfectly under 10-100% load, UL certification, complies with global safety lighting regulations, with short circuit/overload/ Over temperature protection function
| Model Number | HZA-H12300J |
| Output Type | |
| Reted Power | 300W(5CH*60W) |
| Reted Voltage | 12V |
| Reted Current | 5CH*5A |
| Voltage Tolerance | ±0.5V |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±1% |
| Input Type | |
| Voltage Range | 110-277V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 91%@120VAC 92%@277VAC |
| Total Harmonic Distortion | THD< 15%(@100% load) |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC |
| AC Current(Typ.) | 3.06A |
| Inrush Current(Typ.) | 38A |
| Leakage Current | <0.5mA |
| PROTECTION | |
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 |
| Withstand voltage | I/P-O/P:1.88KVAC |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH |
| EMC Emission | Compliance to FCC part 15 Subpart B |
| OTHERS | |

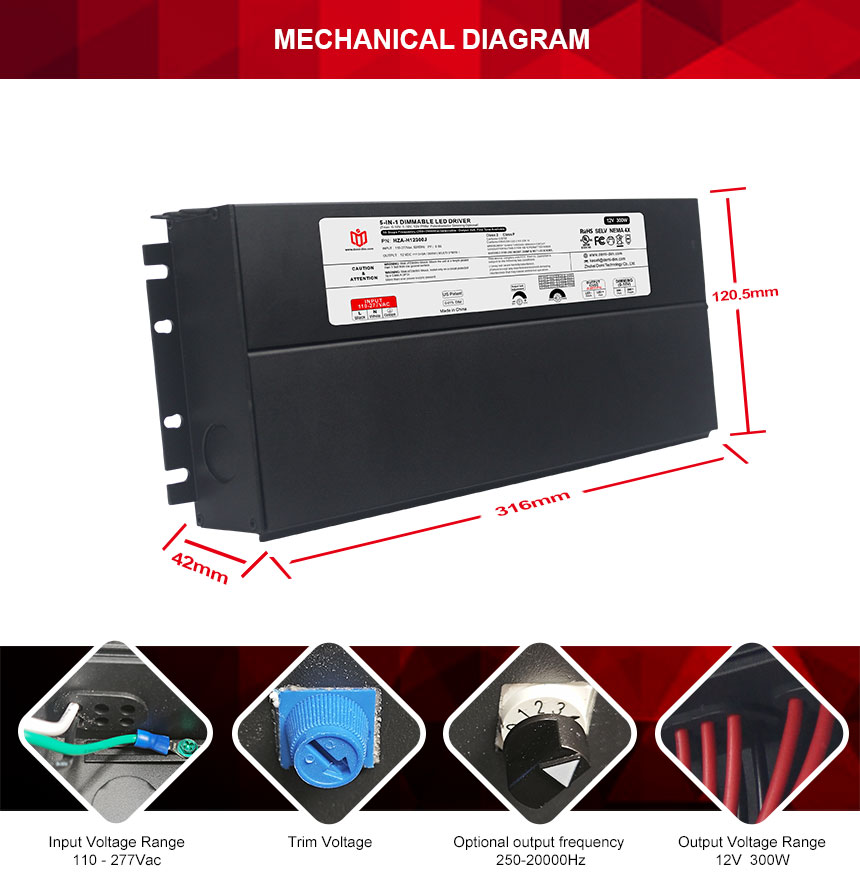

| Dimension | 316x120.5x42mm (L*W*H) |
| Packing | - |
HZA series Class 2 300W dimmable LED driver complies with Class2 LED power supply standards, has lower power output, is safer and more reliable, and can reduce safety risks. Efficient performance helps save energy and reduce lighting system costs, with multiple protection functions to ensure lamp stability and long life of the LED driver
|

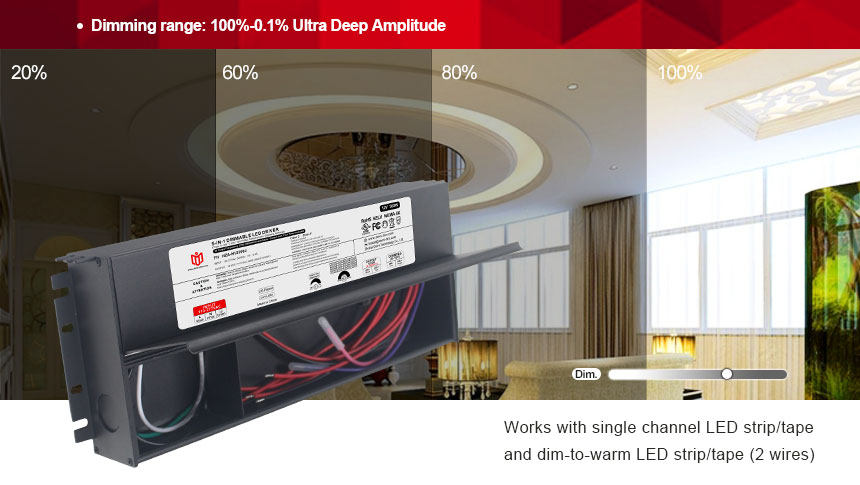

•Dimming range: 100%-0.1% Ultra Deep Amplitude •Build in active PFC, typical power factor>0.95 |
•Dim-all: Triac/0-10V/1-10V/10VPWM/Potentiometer. •Triac dim mode: Forward phase & reverse phase, MLV, ELV
|
| HZA-H-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
300W (MULTI 60W * 5) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*5 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*5 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram
· Using Triac MLV wiring diagram

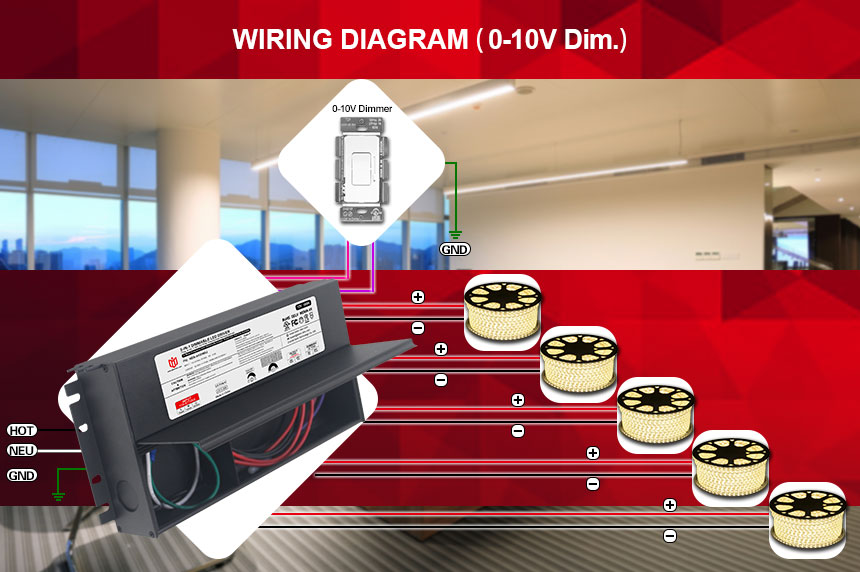

· Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
