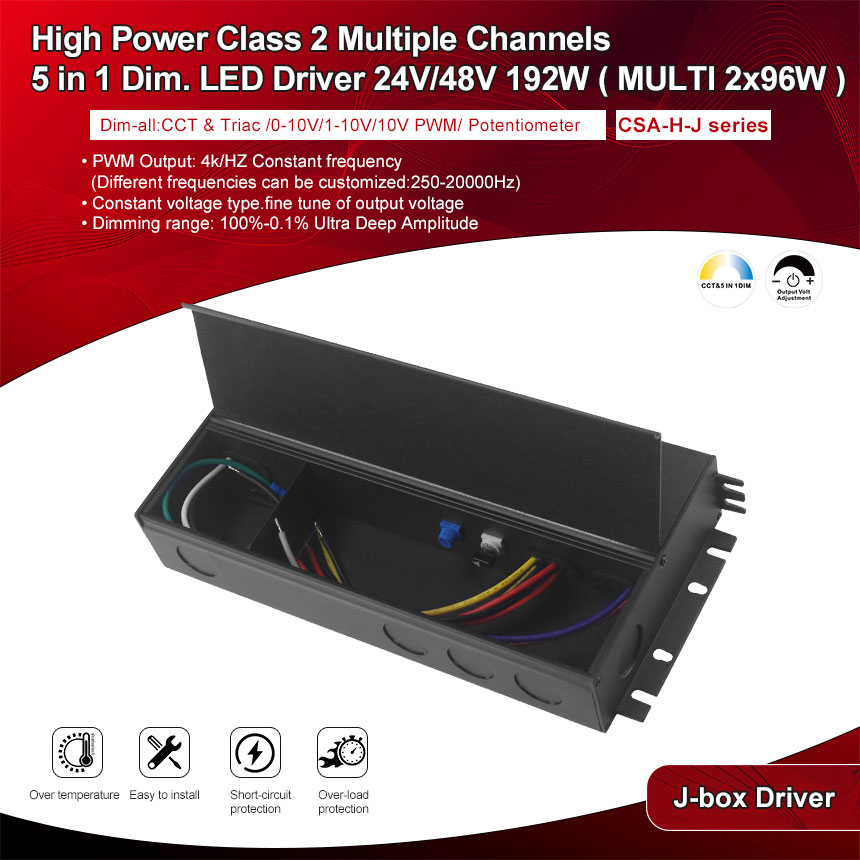

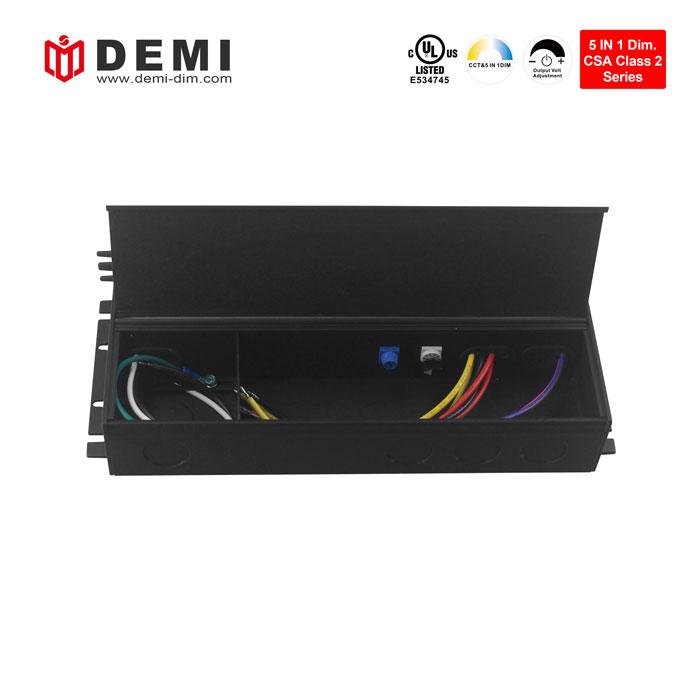

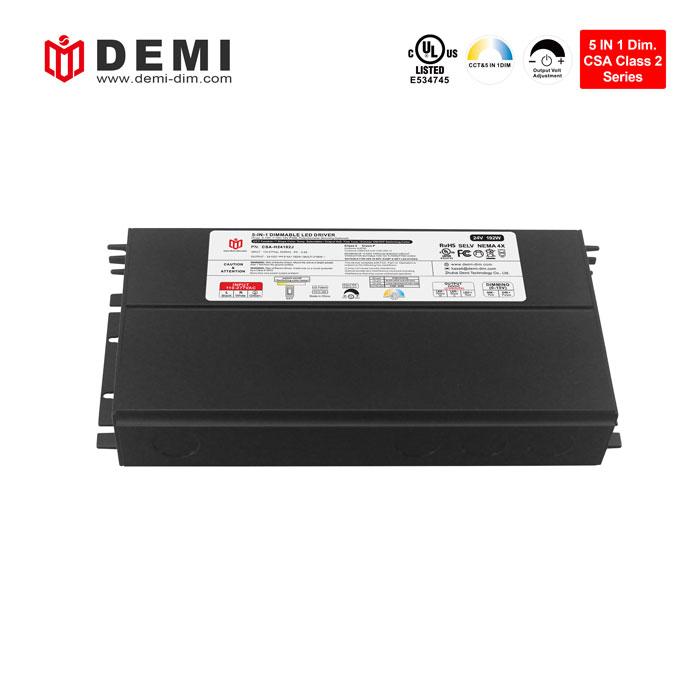

24v/48v 192W dimmable led driver, the input voltage range is 110-277vac, with a unique fine-tuning voltage function knob, which can adjust a certain brightness without installing a dimmer. Strong compatibility, compatible with most triacs and 0 10v dimmers on the market to achieve smooth and flicker-free dimming, such as Leviton dimmer
Brand:
DEMIItem no.:
CSA-H24192JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
192WOutput Voltage:
24/48VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years
ul listed triac & 0 10v dimmable 24V/48V 192W constant voltage led power supply strip light drivers

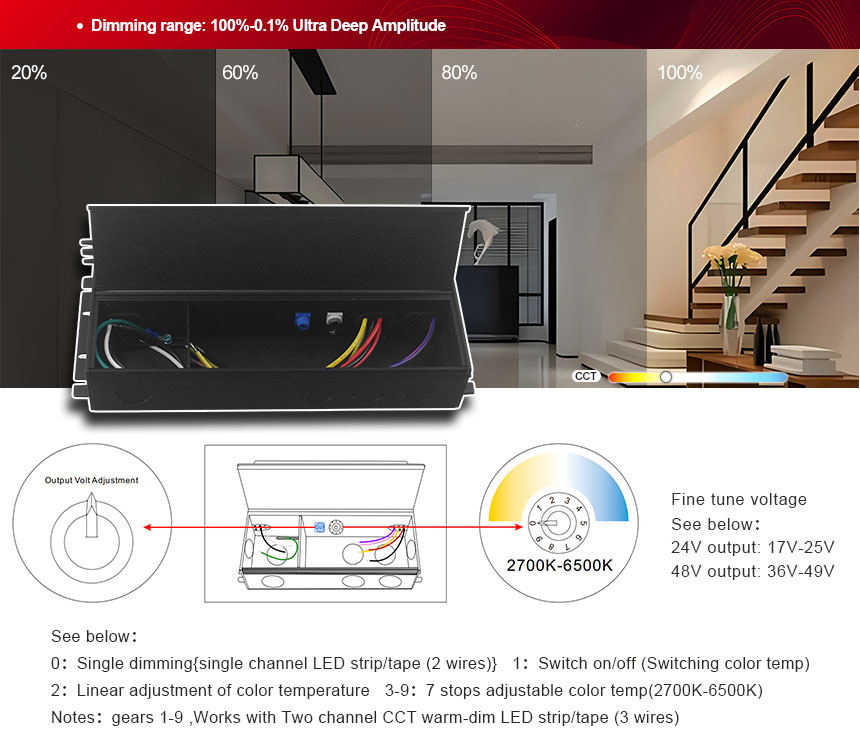

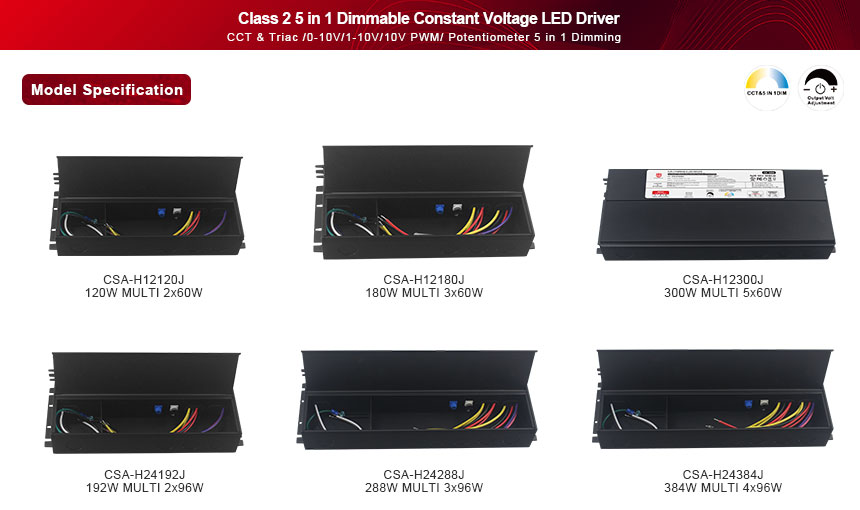

This Class 2 192W constant voltage dimmable led driver is easy and quick to install, NEMA 4X standard, aluminum shell design, and good heat dissipation performance. The dimming range is 0.1%-100%, the entire dimming process is smooth and noise-free, and comes with a five-year warranty.
| Model Number | CSA-H24192J | CSA-H48192J |
| Output Type | ||
| Reted Power | 192W(MULTI 96W * 2) | |
| Reted Voltage | 24V | 48V |
| Reted Current | 2CH*4A | 2CH*2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 2.2A | |
| Inrush Current(Typ.) | 30A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

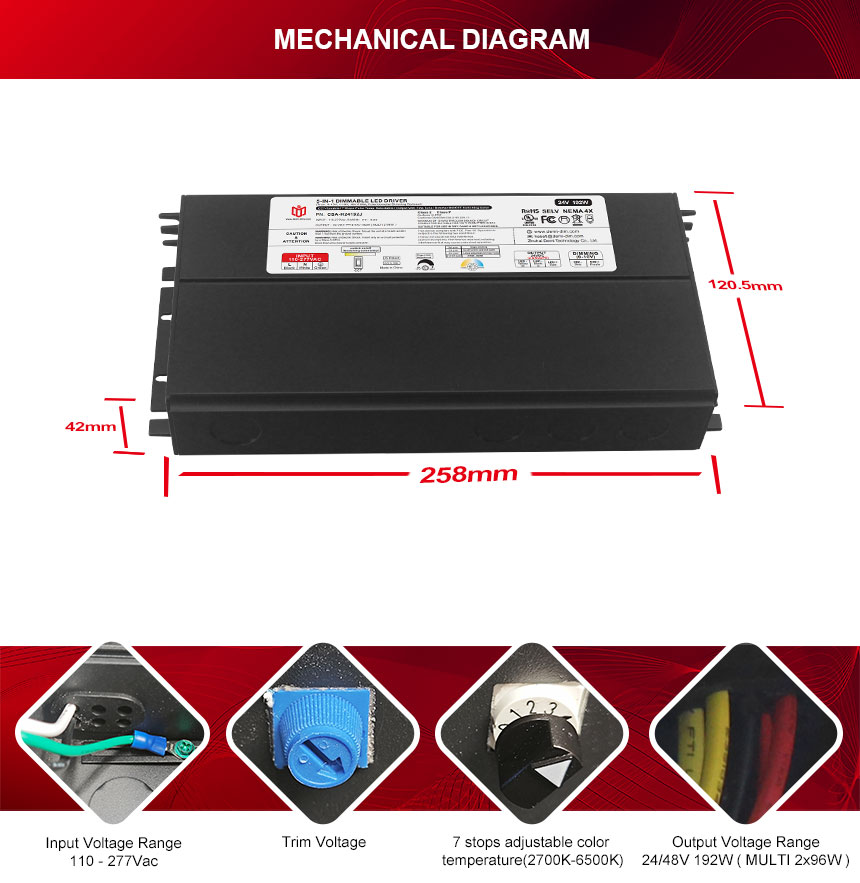

| Dimension | 258x120.5x42mm (L*W*H) | |
| Packing | - | |
|
•110-277Vac Universal input. •5 years warranty. •PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) |
•Short-circuit, over-temperature, over-load protection. •Build in active PFC, typical power factor>0.95, THD<10%@120V Max. Load.
|
This CSA series 24v/48v 192W 5 in 1 dimmable led power supply is Class 2 standard. It has multiple outputs and can provide stable power supply for multiple lamps at the same time. It is UL certified and complies with global safety lighting regulations. It is mainly sold to North America.
| CSA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
192W (MULTI 2*96W) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*2 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*2 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG*2 | Dim- | Orange | 18AWG | |

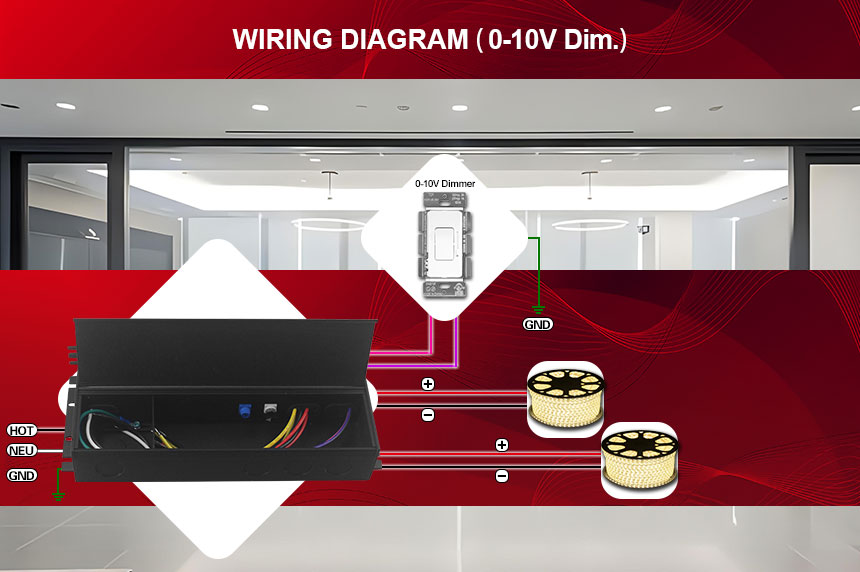

Wiring Diagram
· Using Triac MLV wiring diagram
· Using 0-10/1-10V dimming
Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
