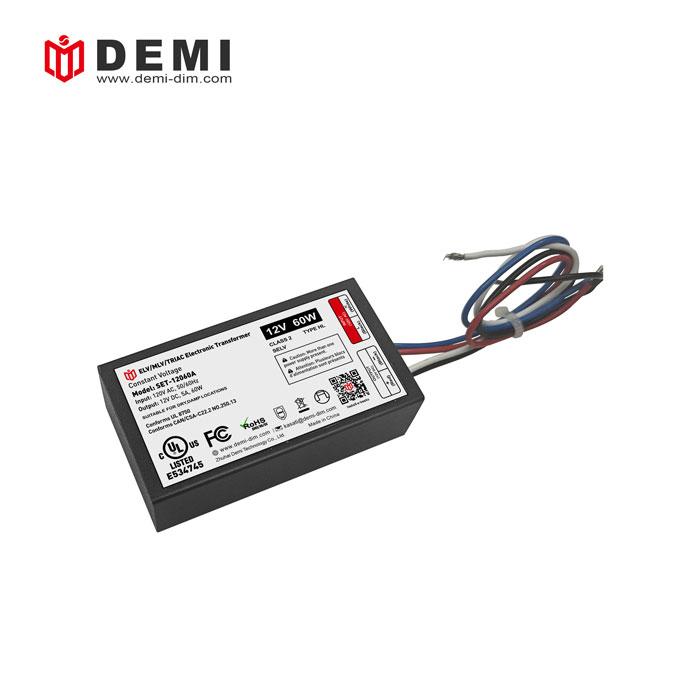

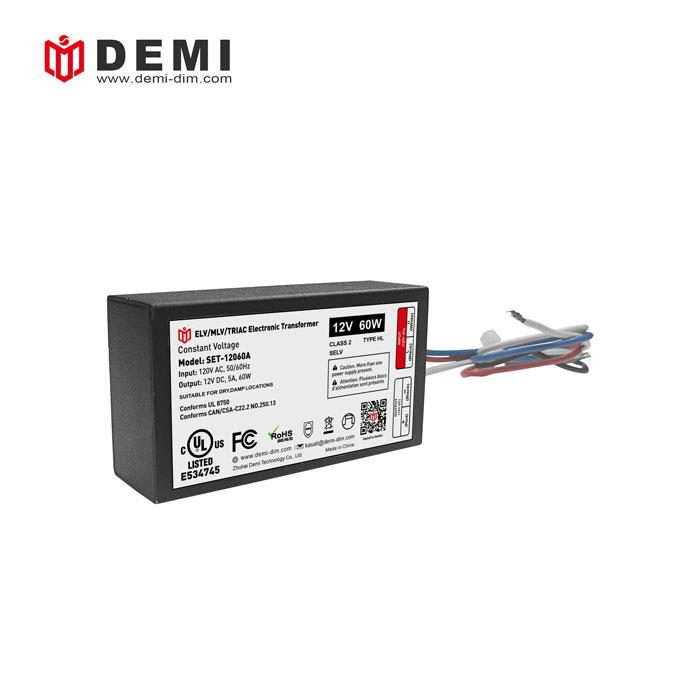

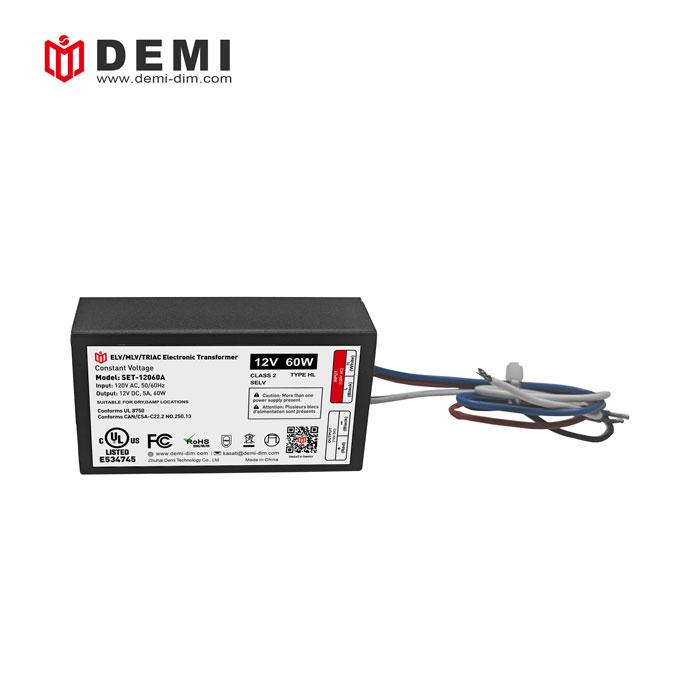

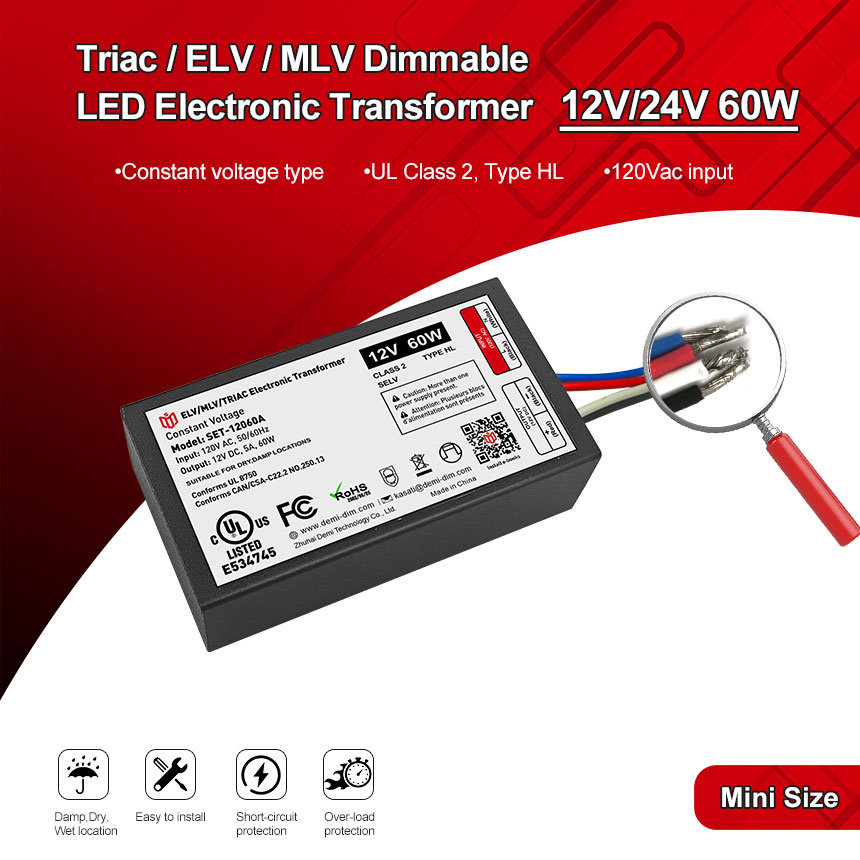

Triac/ ELV/ MLV Dimmable 60W 12v led strip light transformer has built-in active PFC function, power factor >0.98, constant voltage working mode, short circuit, overload protection function, Can be applied to commercial or residential lighting projects
Brand:
DEMIItem no.:
SET-12060ADimming Mode:
Triac Dim.Working Mode:
Constnat VoltageInput Voltage:
120VacOutput Power(Watt):
60WOutput Voltage:
12/24VdcShape & Size:
Mini SizeSize:

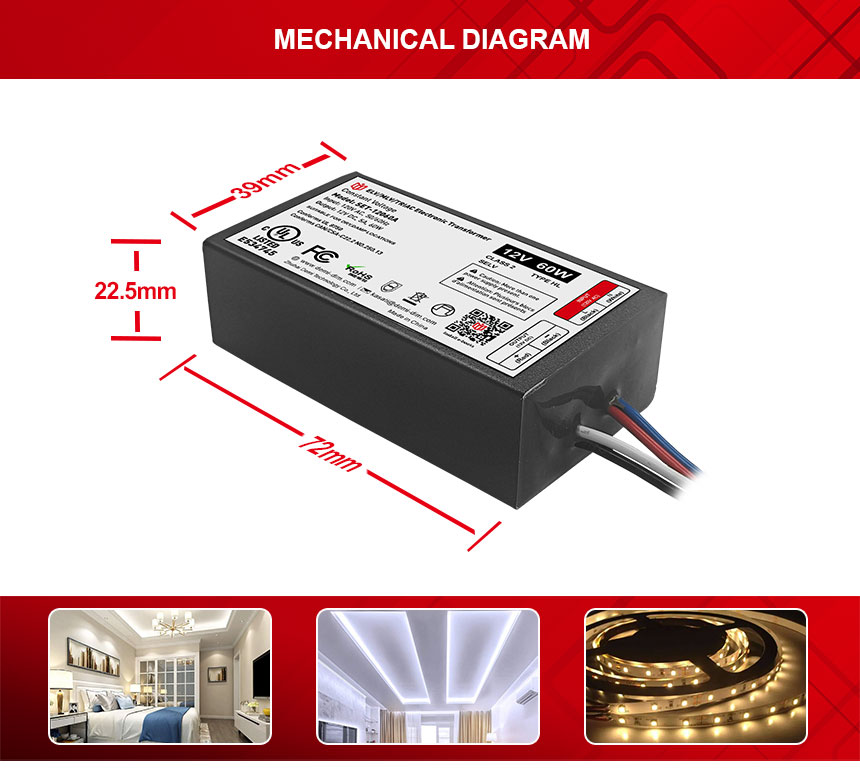

72*39*22.5mmWeight:
0.16KGCertification:
UL/cULWarranty:
5 years
ip67 triac dimmable constant voltage 60W 12v led strip light transformer suppliers outdoor
This 60W 12V constant voltage led transformer has ultra-low load requirements and can work perfectly under 20-100% load, which can be applied to LED strip/LED tape/LED module, Residential Lighting and Commercial Lighting
| Model Number | SET-12060A | SET-24060A |
| Output Type | ||
| Reted Power | 60W | 60W |
| Reted Voltage | 12V | 24V |
| Reted Current | 5A | 2.50A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 120V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 88%@120VAC | |
| Total Harmonic Distortion | THD< 20%(@100% load) | |
| Power Factor(typ.) | 0.98@120VAC | |
| AC Current(Typ.) | 0.58A | |
| Inrush Current(Typ.) | - | |
| Leakage Current | <0.5mA/ 120VAC | |
| PROTECTION | ||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Load | Hiccup mode, recovers automatically after fault condition is removed. | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, Class 2 | |
| Safety standards | I/P-O/P:1.88KVAC | |
| OTHERS | ||
| Dimension | 2.83x1.53x0.79 inch (L*W*H) | |
| Packing | - | |
