Brand:
DEMIItem no.:
SET-24060JDimming Mode:
Triac Dim.Working Mode:
Constnat VoltageInput Voltage:
120VacOutput Power(Watt):
60WOutput Voltage:
24VdcShape & Size:
J-box DriverSize:
128*120.5*42mmWeight:
0.35KGCertification:
UL/cULWarranty:

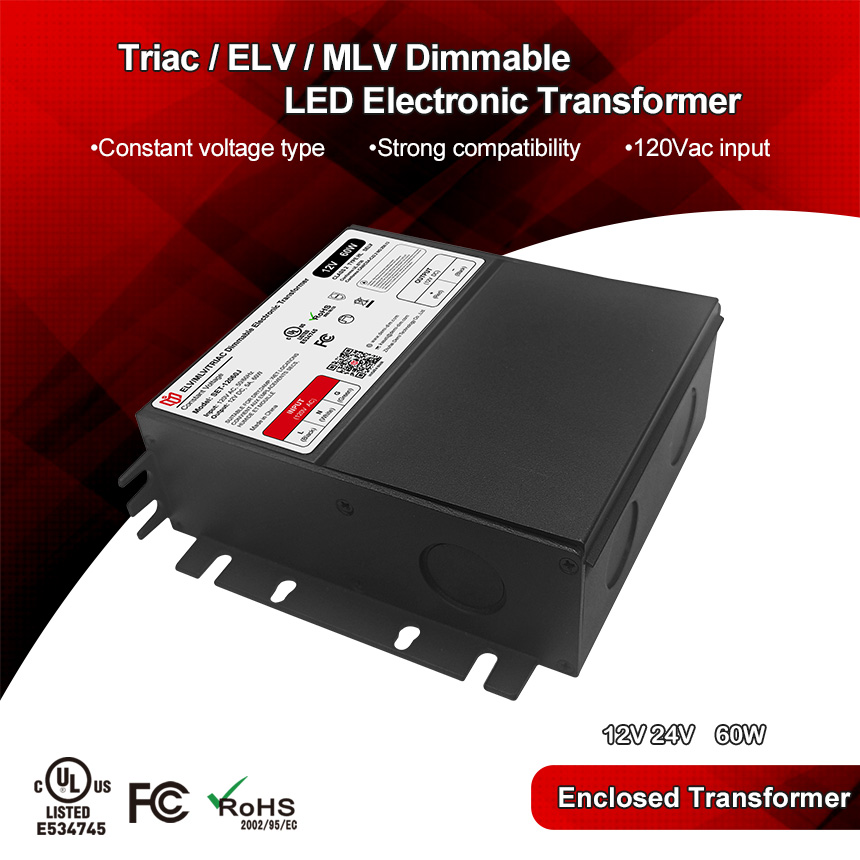

5 years24v 60W constant voltage triac dimmable led driver electronic transformer UL listed
This 24v constant voltage triac dimmable led electronic transformer with an input voltage of 120vac has ultra-low load requirements, making it a perfect choice for multiple output needs in many other residential and commercial lighting applications
Part Number | SET-12060J | SET-24060J |
Output Spec | ||
Reted Power | 60W | 60W |
Reted Voltage | 12V | 24V |
Reted Current | 5A | 2.50A |
Voltage Tolerance | ±0.5V | |
Voltage Regulation | ±0.5% | |
Load Regulation | ±1% | |
Input Spec.: | ||
Voltage Range | 120V | |
Frequency Range | 47-63HZ | |
Efficiency(Typ.) | 87%@120VAC | |
Total Harmonic Distortion | THD< 20%(@100% load) | |
Power Factor(typ.) | 0.98@120VAC | |
AC Current(Typ.) | 0.58A | |
Inrush Current(Typ.) | - | |
Leakage Current | <0.5mA/ 120VAC | |
PROTECTION: | ||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
Over Load | Hiccup mode, recovers automatically after fault condition is removed. | |
ENVIRONMENT: | ||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
Working humidity | 20 ~ 95% RH non-condensing | |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
Temp .coefficient | ±0.03%/℃(0~50℃) | |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
SAFETY & EMC: | ||
Safety standards | UL8750, Class 2 | |
Safety standards | I/P-O/P:1.88KVAC | |
OTHERS: | ||
Dimension | 5.03x4.74x1.65 inch (L*W*H) | |
Packing | - |
DEMI best-selling series constant voltage 12v/24v LED electronic transformer provides stable voltage protection to ensure that the lamps can work normally and stably. It is suitable for indoor home lighting and commercial lighting scenes, so that LED lamps can work efficiently and reliably.

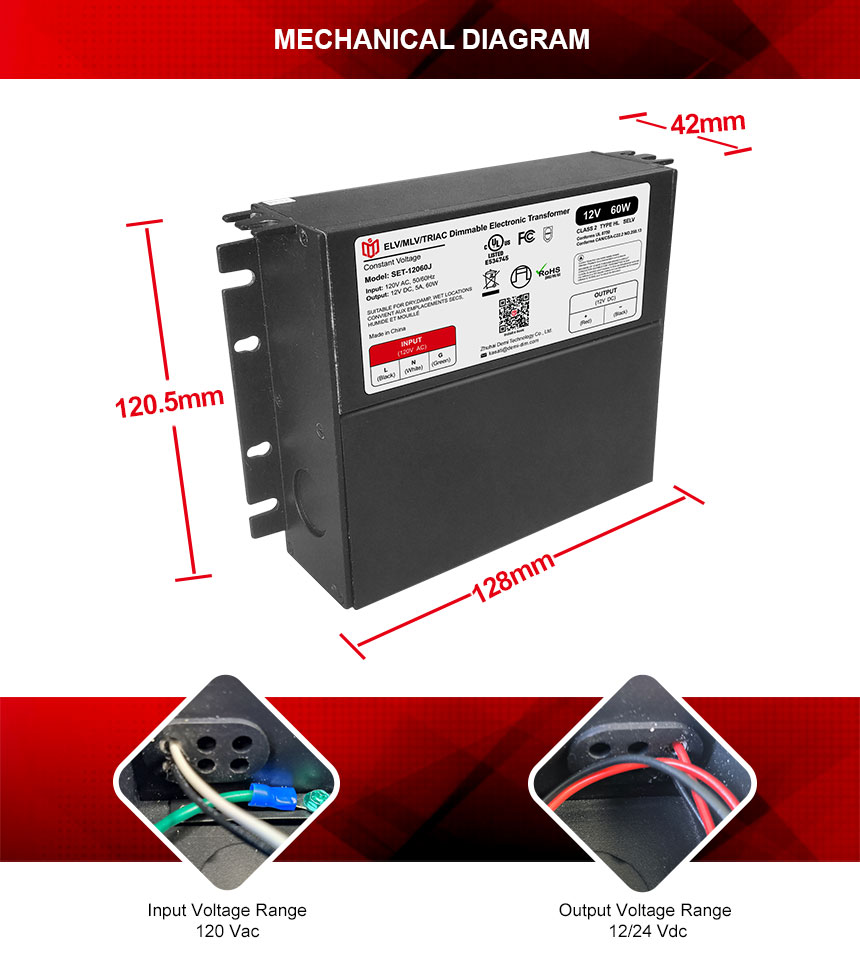

Mechanical Diagram
To know more product details, please leave message or e-mail us !
Mounting
1.This driver must be installed in a well-ventilated area free from explosive gases and vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate heat. Vertical mounting is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.
Connection Preparation

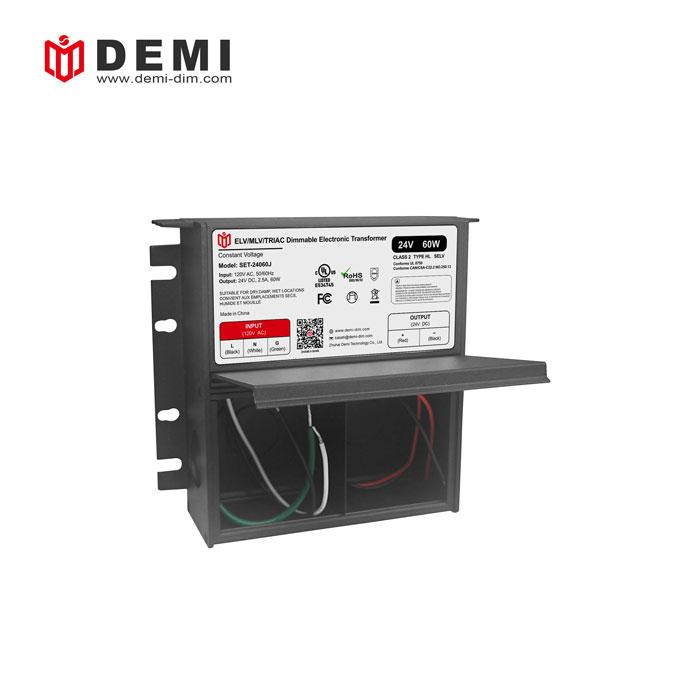

Input Connections & Grounding
Output Connections

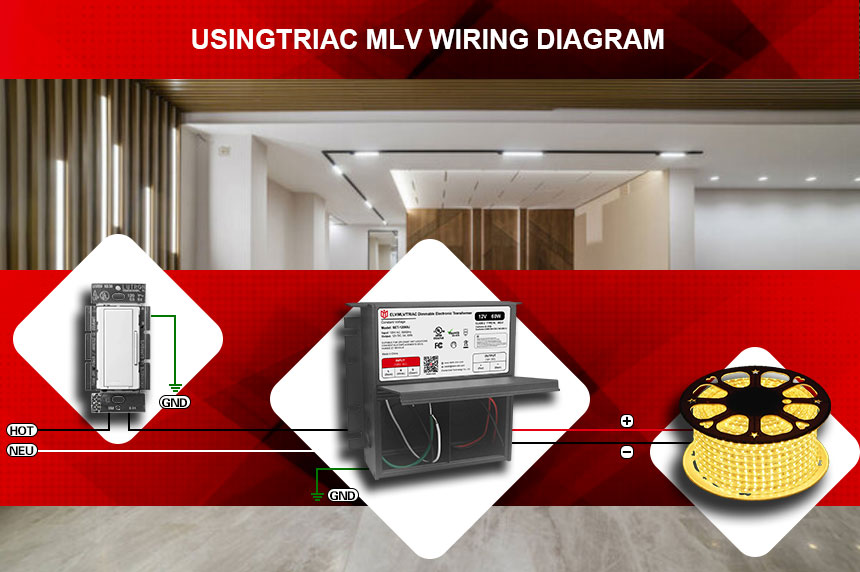

Wiring Diagram
