Brand:
DEMIItem no.:
SET-12060ADimming Mode:
Triac Dim.Working Mode:
Constnat VoltageInput Voltage:
120VacOutput Power(Watt):
60WOutput Voltage:
12/24VdcShape & Size:
Mini SizeSize:

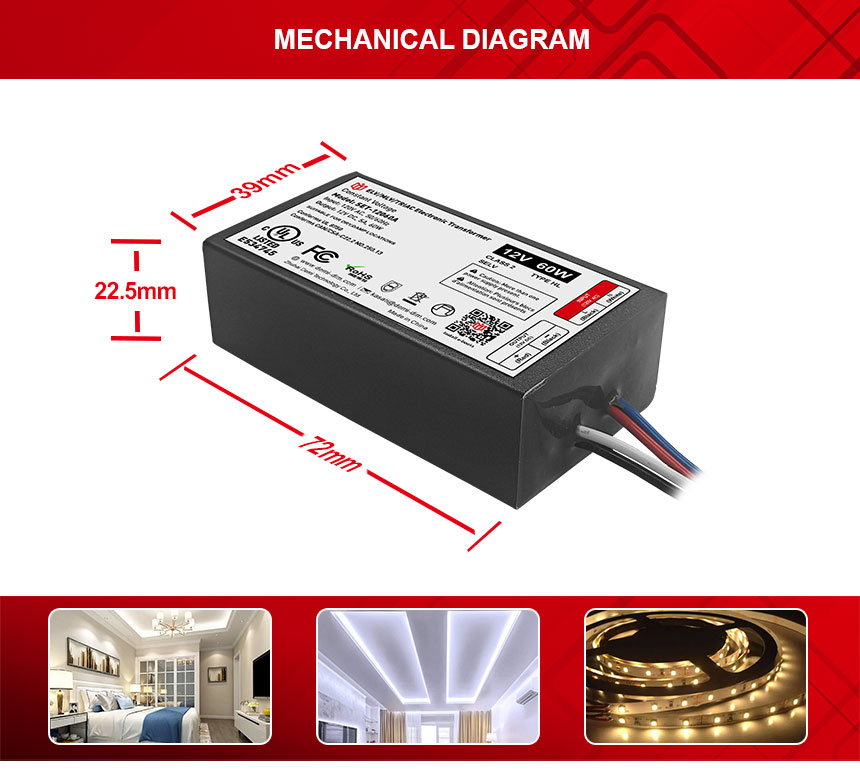

72*39*22.5MMWeight:
0.16KGCertification:
UL/cULWarranty:
5 years

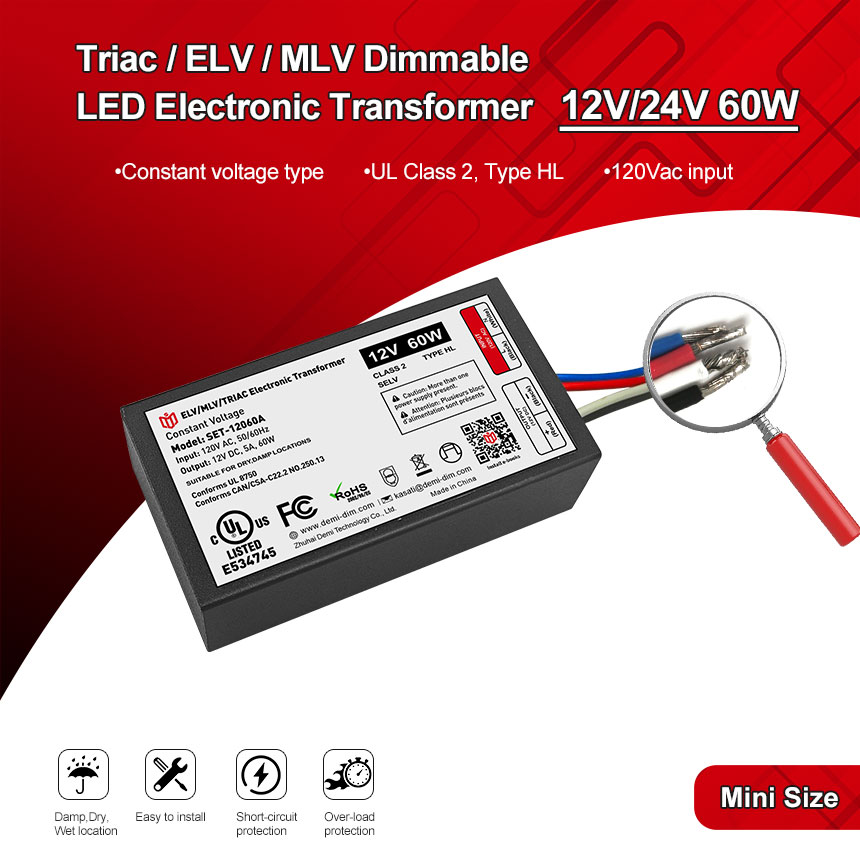

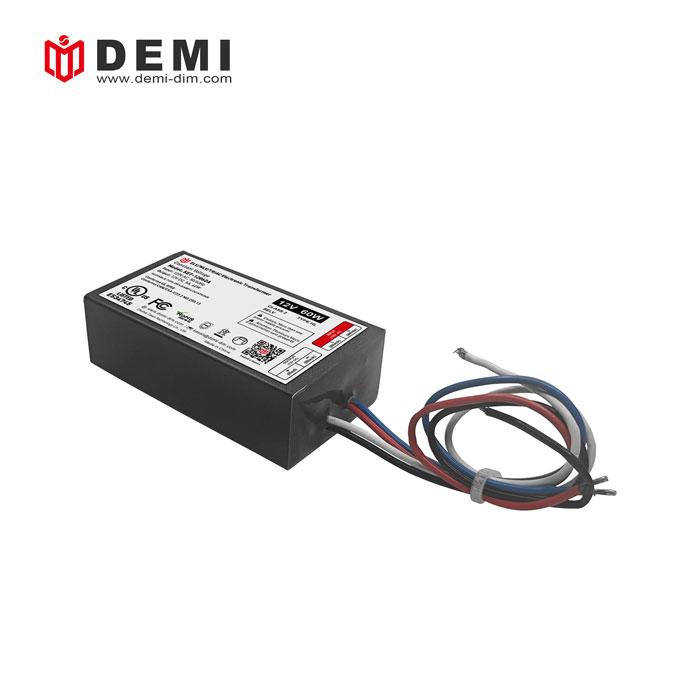

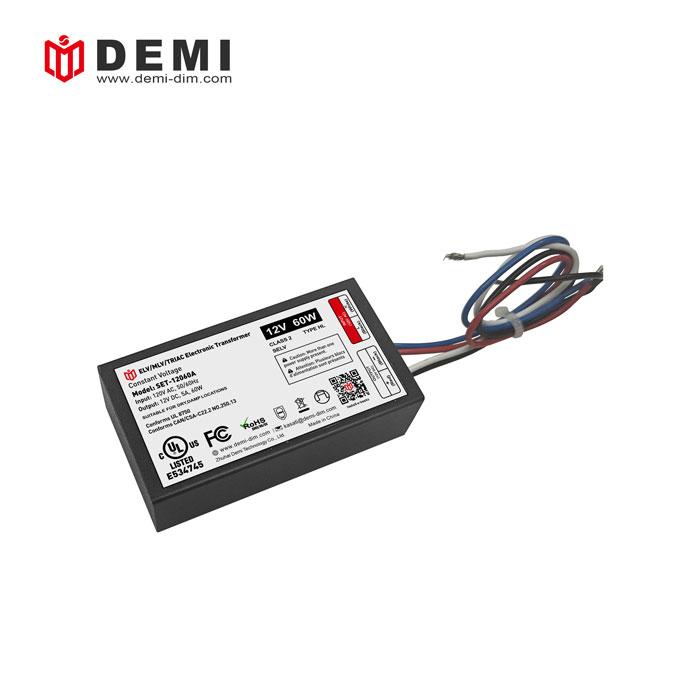

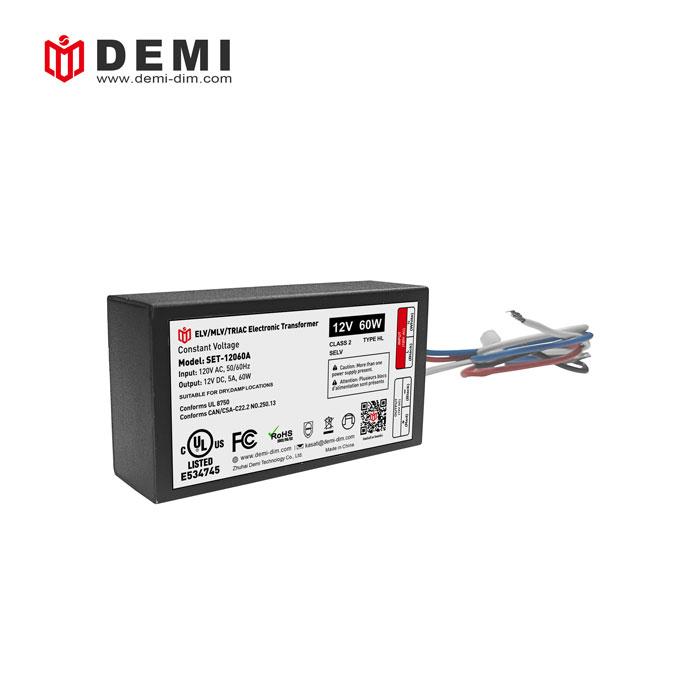

ip67 triac dimmable waterproof led power supply transformer 12v 60w

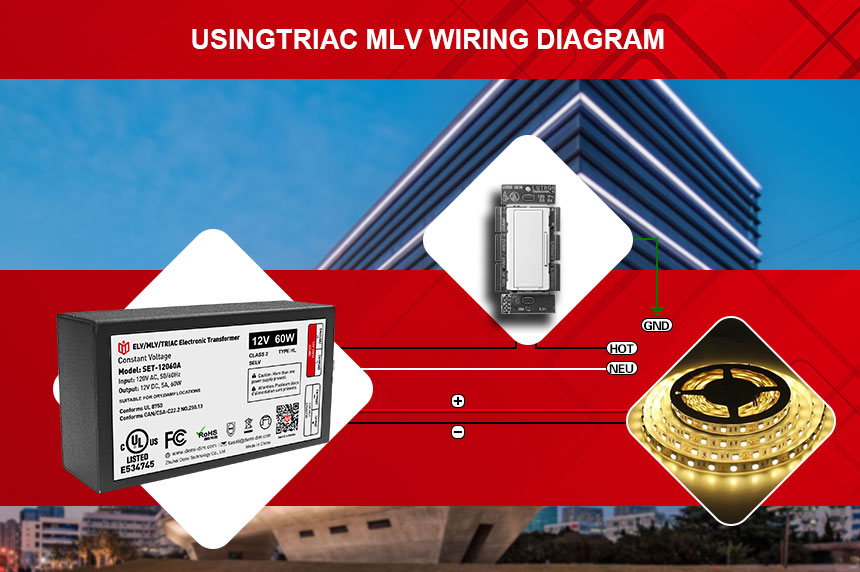

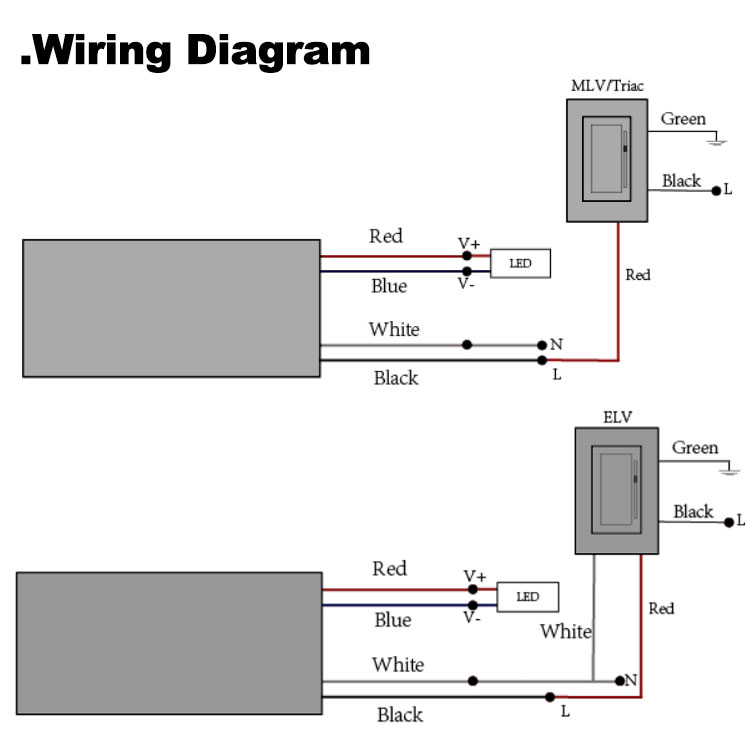

Triac/ ELV/ MLV dimmable 60W led driver , small size, ultra-low load requirements, can work perfectly under 20-100% load,The dimming range is 0-100%，constant voltage working mode, can provide stable voltage for the lamp,Mainly sold to North America
| Model Number | SET-12060A | SET-24060A |
| Output Type | ||
| Reted Power | 60W | 60W |
| Reted Voltage | 12V | 24V |
| Reted Current | 5A | 2.50A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 120V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 88%@120VAC | |
| Total Harmonic Distortion | THD< 20%(@100% load) | |
| Power Factor(typ.) | 0.98@120VAC | |
| AC Current(Typ.) | 0.58A | |
| Inrush Current(Typ.) | - | |
| Leakage Current | <0.5mA/ 120VAC | |
| PROTECTION | ||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Load | Hiccup mode, recovers automatically after fault condition is removed. | |
| ENVIRONMENT | ||

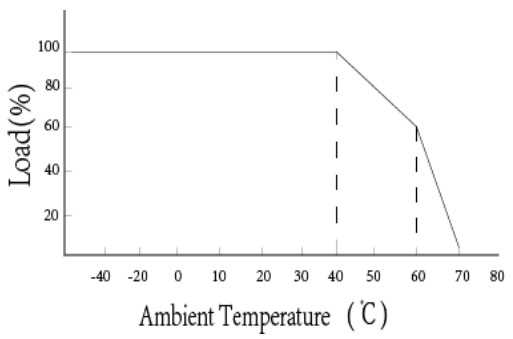

| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, Class 2 | |
| Safety standards | I/P-O/P:1.88KVAC | |
| OTHERS | ||

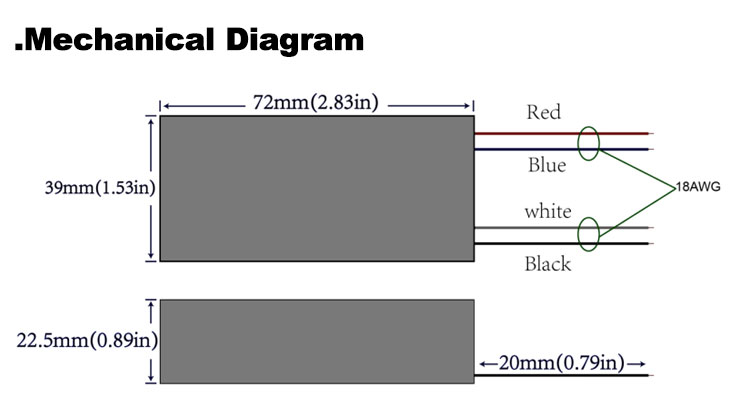

| Dimension | 2.83x1.53x0.79 inch (L*W*H) | |
| Packing | - | |
To know more product details, please leave message or e-mail us !

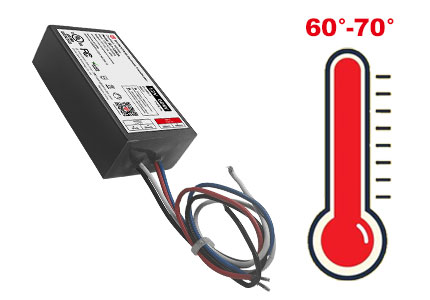

What is the normal operating temperature of an aluminum case power supply?
