Brand:
DEMIItem no.:
SET-12180JDimming Mode:
Triac Dim.Working Mode:
Constnat VoltageInput Voltage:
120VacOutput Power(Watt):
180WOutput Voltage:
12VdcShape & Size:
J-box DriverSize:
258*120.5*42mmWeight:
0.35KGCertification:
UL/cULWarranty:
5 years

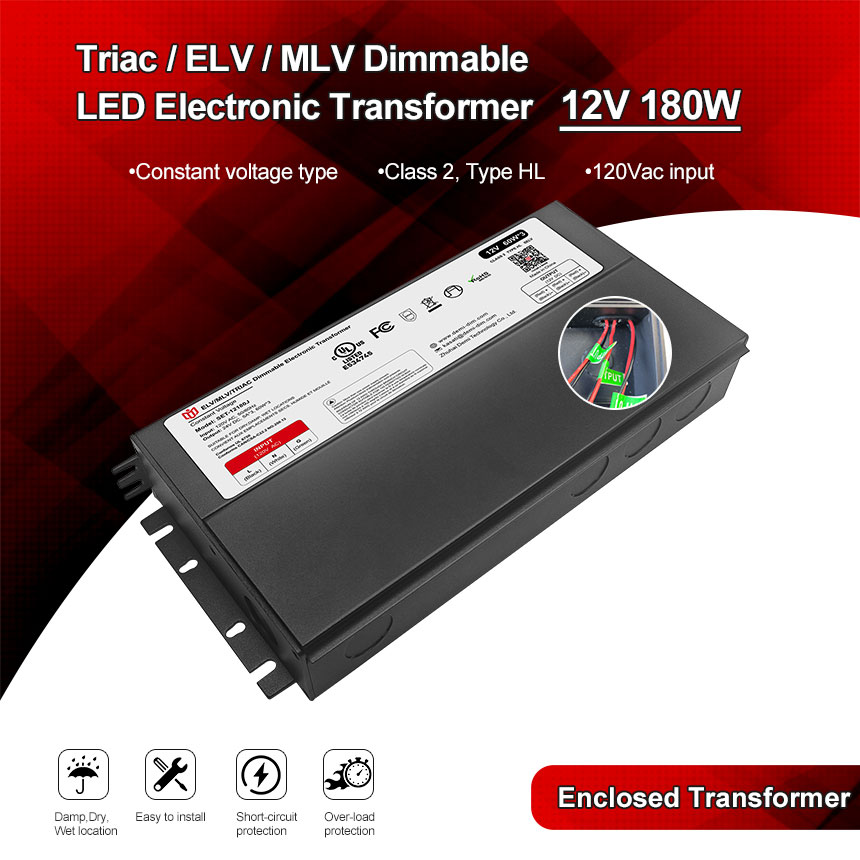

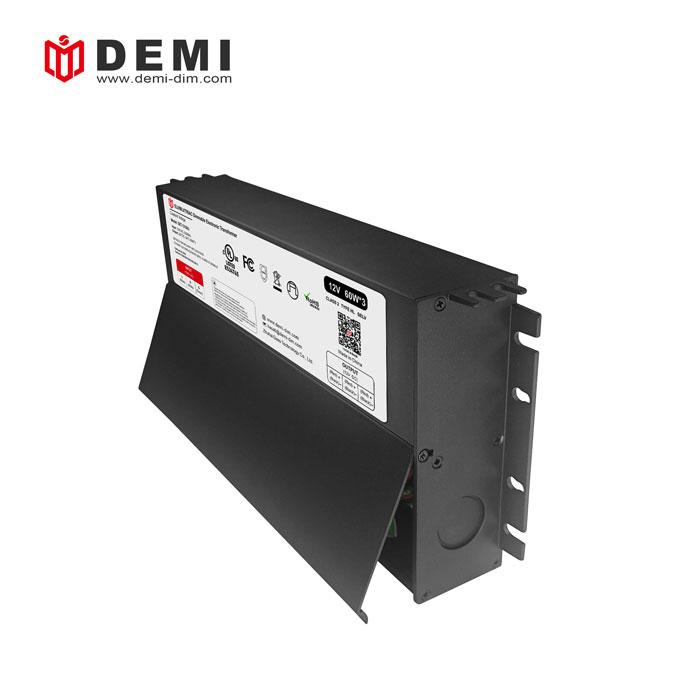

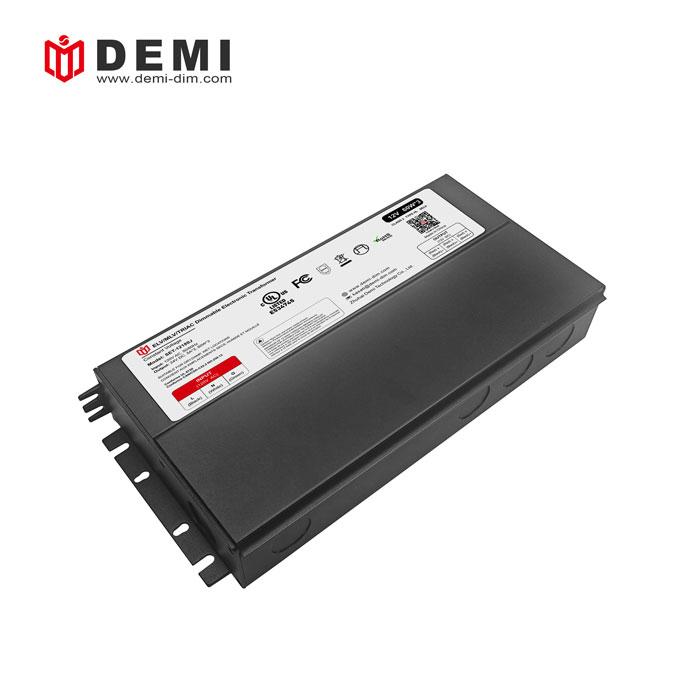

UL constant voltage 12 volt 180W triac dimmable LED strip lights transformer driver suppliers

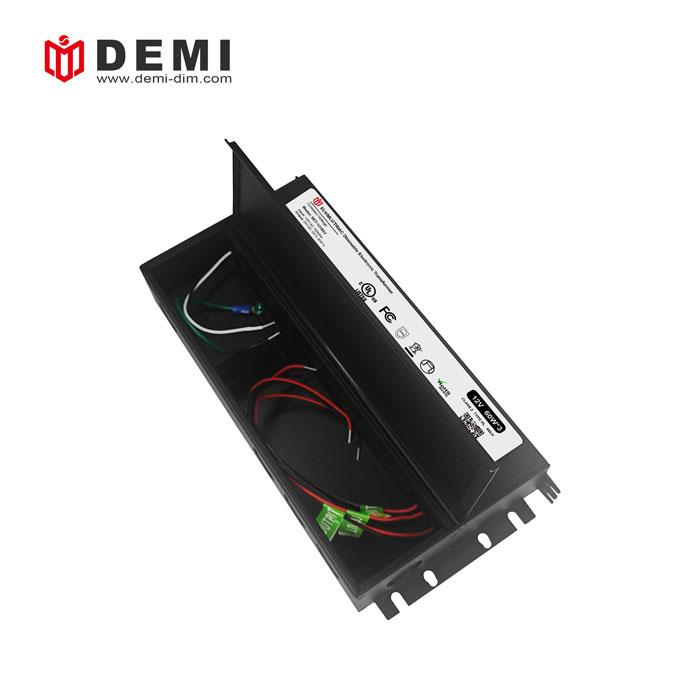

180W constant voltage led electronic transformer and junction box integrated design, metal shell design, easy installation, constant voltage mode work efficiency up to 87%, can be compatible with litom 180W LED spotlight to achieve stable dimming
| Model Number | SET-12180J |
| Output Type | |
| Reted Power | 60W * 3 |
| Reted Voltage | 12V |
| Reted Current | 5A * 3 |
| Voltage Tolerance | ±0.5V |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±1% |
| Input Type | |
| Voltage Range | 120V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 87%@120VAC |
| Total Harmonic Distortion | THD< 20%(@100% load) |
| Power Factor(typ.) | 0.98@120VAC |
| AC Current(Typ.) | 1.74A |
| Inrush Current(Typ.) | - |
| Leakage Current | <0.5mA/ 120VAC |
| PROTECTION | |
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
| Over Load | Hiccup mode, recovers automatically after fault condition is removed. |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, Class 2 |
| Safety standards | I/P-O/P:1.88KVAC |
| OTHERS | |
| Dimension |
10.15 x 4.74 x 1.65 inch (L*W*H) |
| Packing | - |
To know more product details, please leave message or e-mail us !
How to choose the right dimmer to match the 12 volt Triac dimmable LED strip lights transformer 180W？

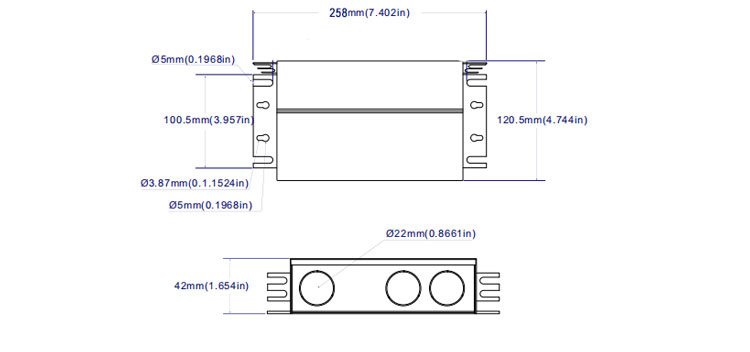

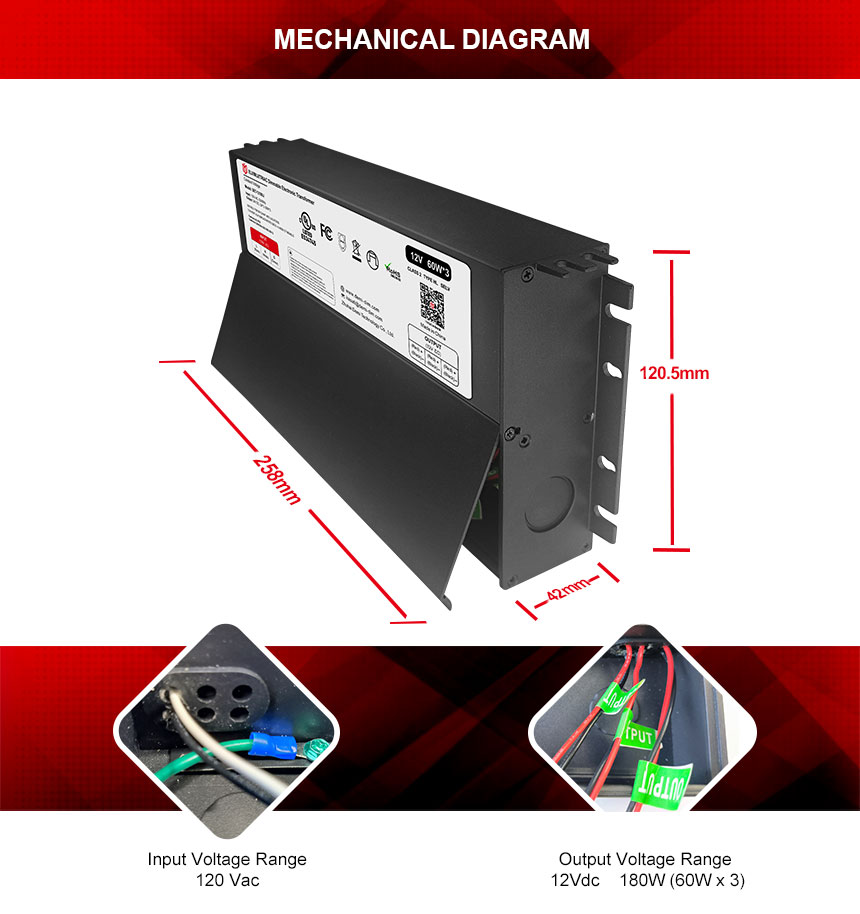

Mechanical Diagram
To know more product details, please leave message or e-mail us !
Mounting
1.This driver must be installed in a well-ventilated area free from explosive gases and vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate heat. Vertical mounting is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.
Connection Preparation
Input Connections & Grounding
Output Connections

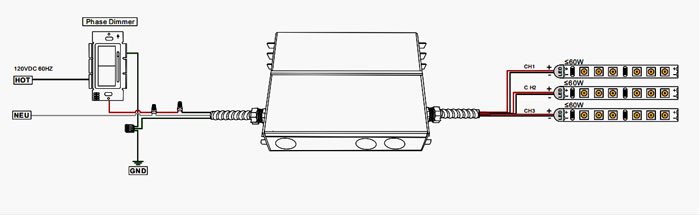

Wiring Diagram

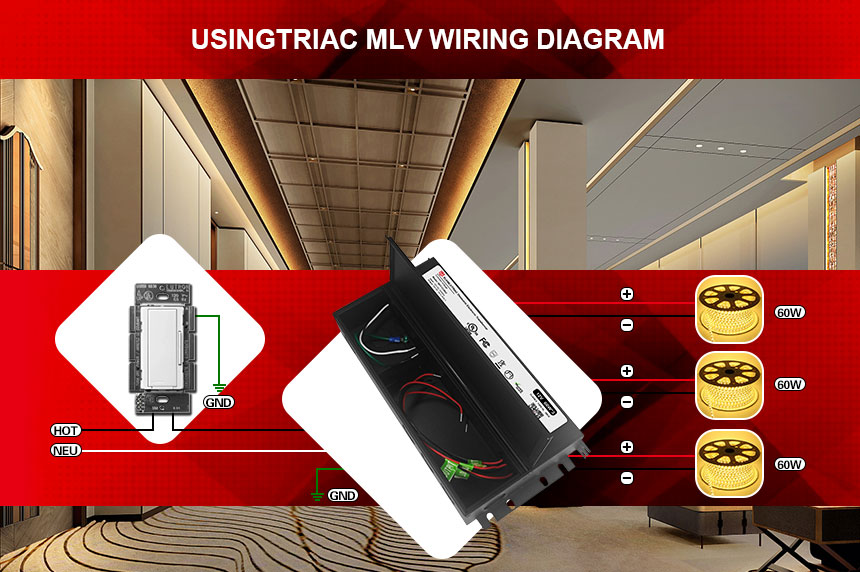

1)UsingTriac MLV wiring diagram

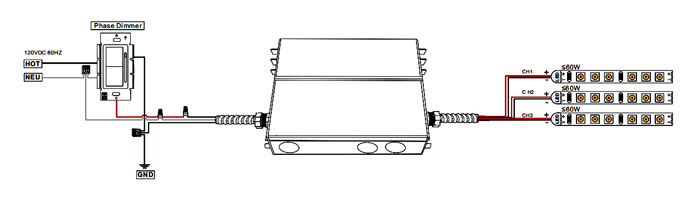

2)Using Triac ELV wiring diagram
