Brand:
DEMIItem no.:
SET-24060BDimming Mode:
Triac Dim.Working Mode:
Constnat VoltageInput Voltage:
120VacOutput Power(Watt):
60WOutput Voltage:
12/24VdcShape & Size:
J-box DriverSize:

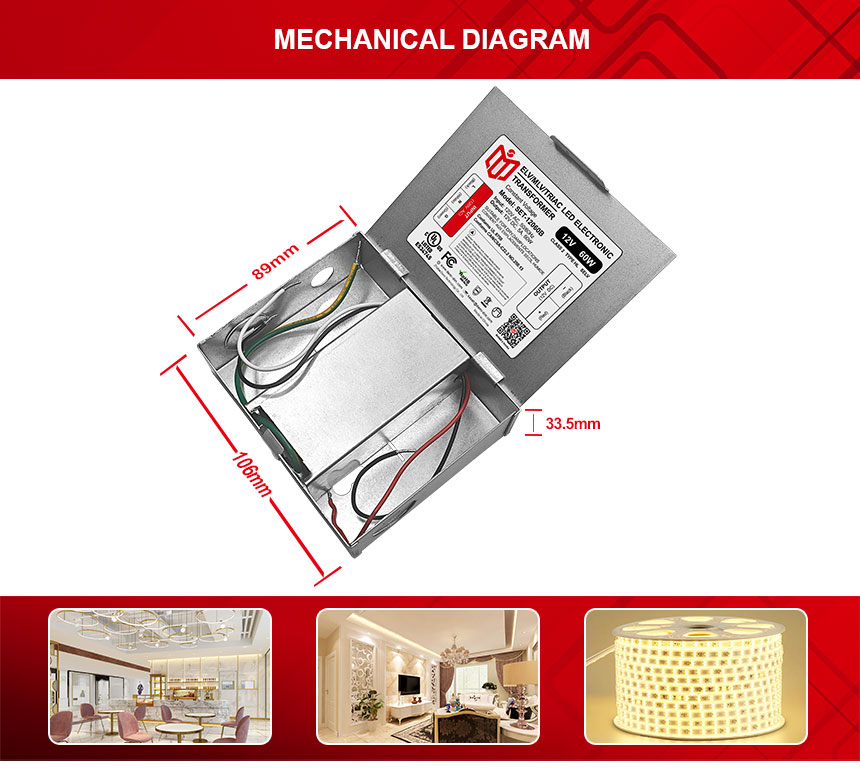

106*89*33.5mmWeight:
0.35KGCertification:
UL/cULWarranty:

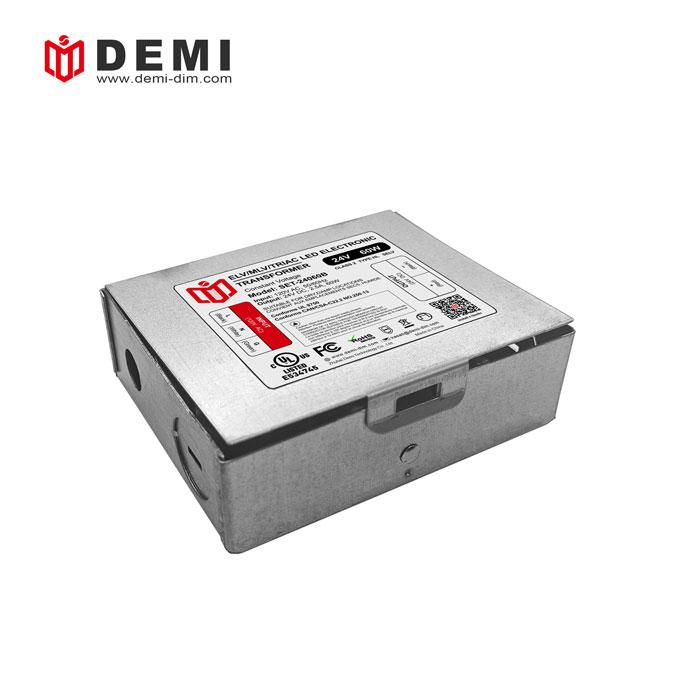

5 years warranty24v 60W triac dimmable led strip light power supply transformer for led lights

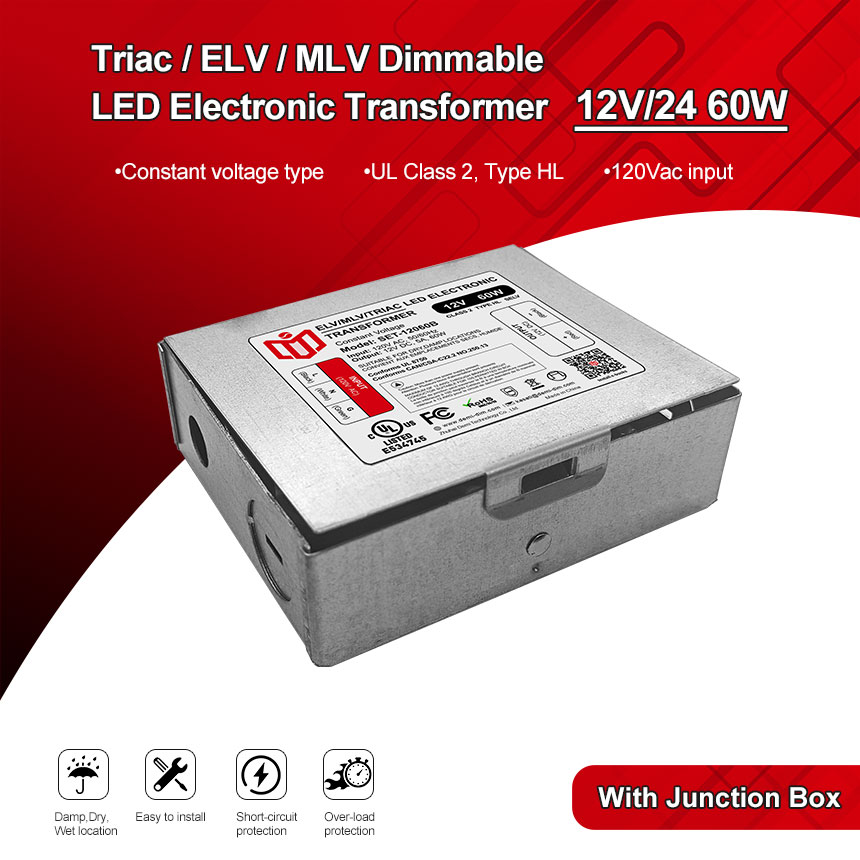

UL listed 60w 24v triac dimmable led power supply Constant voltage working mode, 120vac output, short circuit, overload protection, compatible with dimmers on the market such as Lutron 60W triac dimmer
Model Number | SET-12060B | SET-24060B |
Output Type | ||
Reted Power | 60W | 60W |
Reted Voltage | 12V | 24V |
Reted Current | 5A | 2.50A |
Voltage Tolerance | ±0.5V | |
Voltage Regulation | ±0.5% | |
Load Regulation | ±1% | |
Input Type | ||
Voltage Range | 120V | |
Frequency Range | 47-63HZ | |
Efficiency(Typ.) | 86%@120VAC | |
Total Harmonic Distortion | THD< 20%(@100% load) | |
Power Factor(typ.) | 0.98@120VAC | |
AC Current(Typ.) | 0.58A | |
Inrush Current(Typ.) | - | |
Leakage Current | <0.5mA/ 120VAC | |
PROTECTION | ||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
Over Load | Hiccup mode, recovers automatically after fault condition is removed. | |
ENVIRONMENT | ||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
Working humidity | 20 ~ 95% RH non-condensing | |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
Temp .coefficient | ±0.03%/℃(0~50℃) | |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
SAFETY & EMC | ||
Safety standards | UL8750, Class 2 | |
Safety standards | I/P-O/P:1.88KVAC | |
OTHERS | ||
Dimension | 4.17x3.50x1.31 inch (L*W*H) | |
Packing | - |
