CTA series 96w 24v constant voltage led driver It is a PWM output mode. Strong compatibility, dimming performance is as good as Inventronics' 96W dimmable led driver, with 5-year warranty
Brand:
DEMIItem no.:
CTA-24096JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
96WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years
CCT & triac/0 10v dimmable 24v/48v 96W led driver power supply for led strip

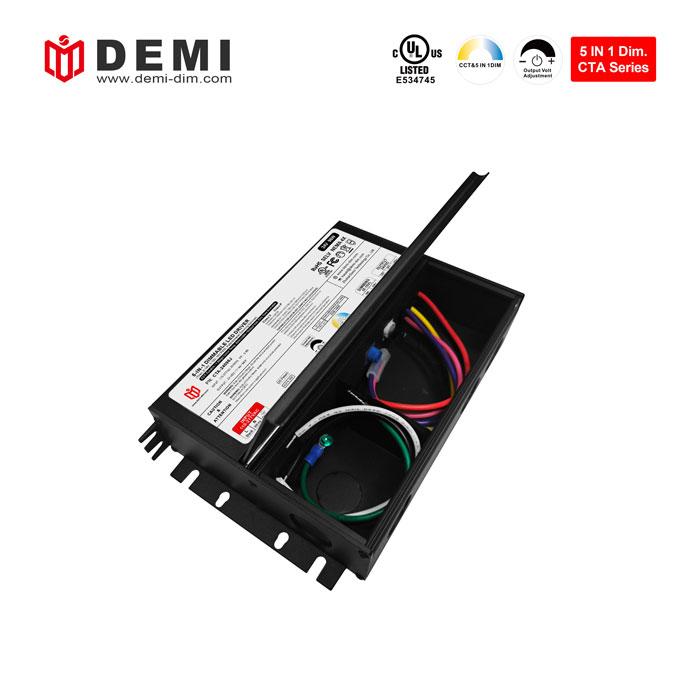

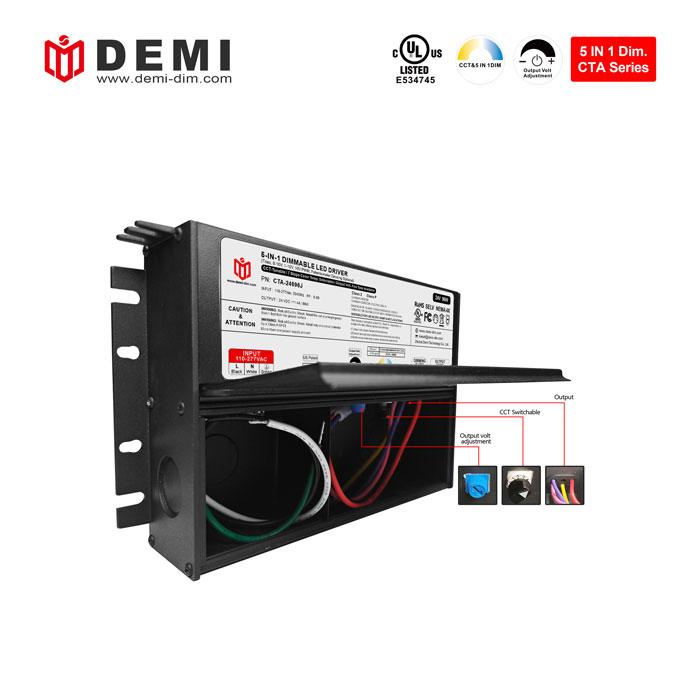

24V 96W CCT & triac/0 10v dimmable led driver Aluminum shell design, this led driver serves as its own junction box, easy and quick to install, has good heat dissipation, and has overload/overtemperature/short circuit protection functions
| Model Number | CTA-24096J | CTA-48096J |
| Output Type | ||
| Reted Power | 96W | |
| Reted Voltage | 24V | 48V |
| Reted Current | 4A | 2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 89%@120VAC 90%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 1.02A | |
| Inrush Current(Typ.) | 25A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

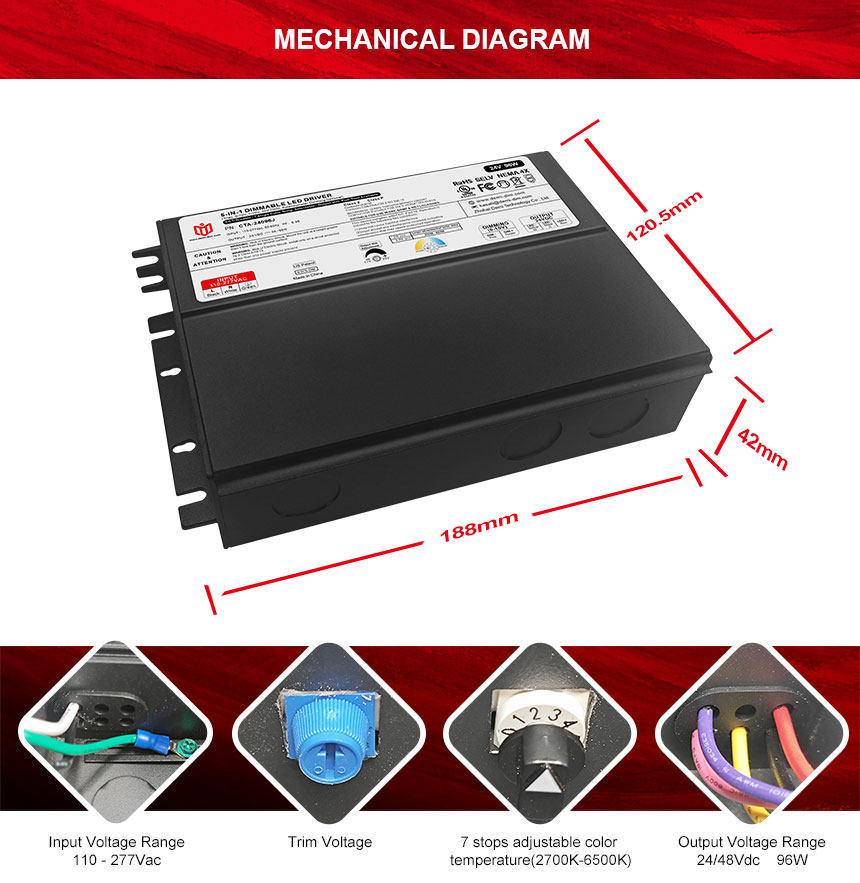

| Dimension | 188x120.5x42mm (L*W*H) | |
| Packing | - | |
|

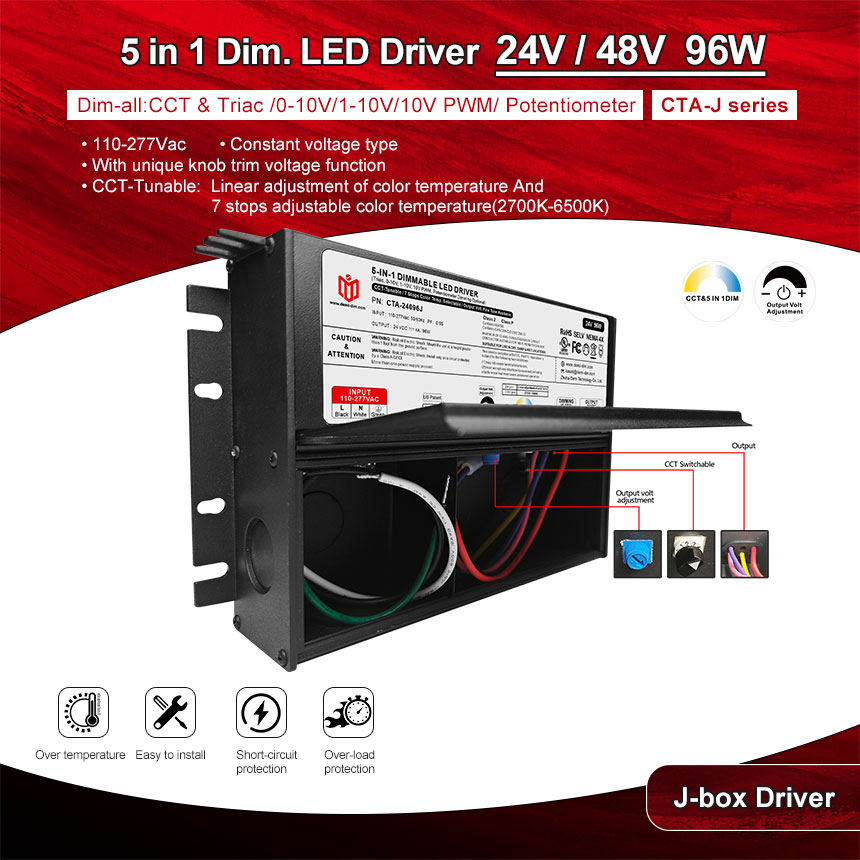

•CCT-Tunable: Linear adjustment of color temperature And 7 stops adjustable color temperature(2700K-6500K) •With unique knob trim voltage function |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|
When installing the product, please note that the CTA series dimmable led driver must be installed in a place with good air circulation, which is crucial for product heat dissipation. A minimum distance of ten centimeters is required between two led drivers. Please choose the appropriate one that can support the weight of the product. For installation, it is recommended that the product is installed away from flammable and explosive materials.
| CTA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 80W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / | |
Wiring Diagram
Works with Two channel CCT warm-dim LED strip/tape (3 wires)

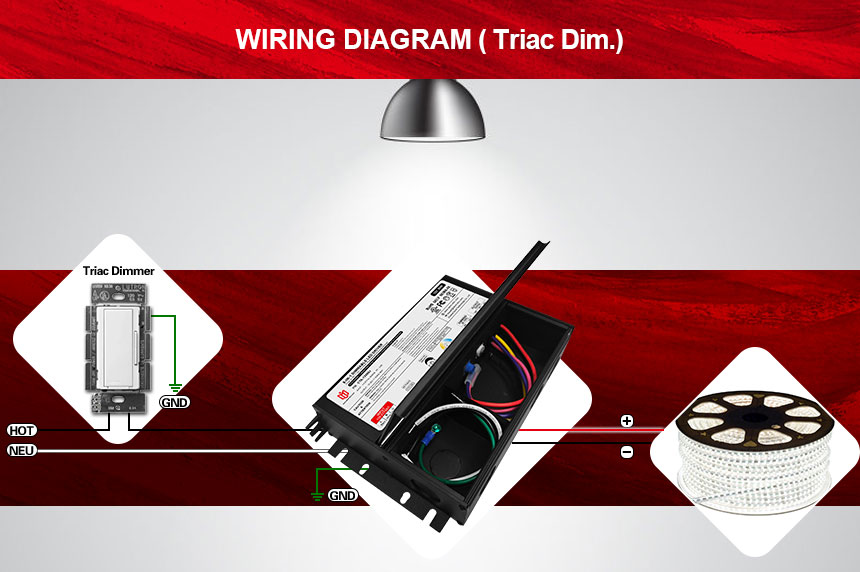

· Using Triac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
Tags :

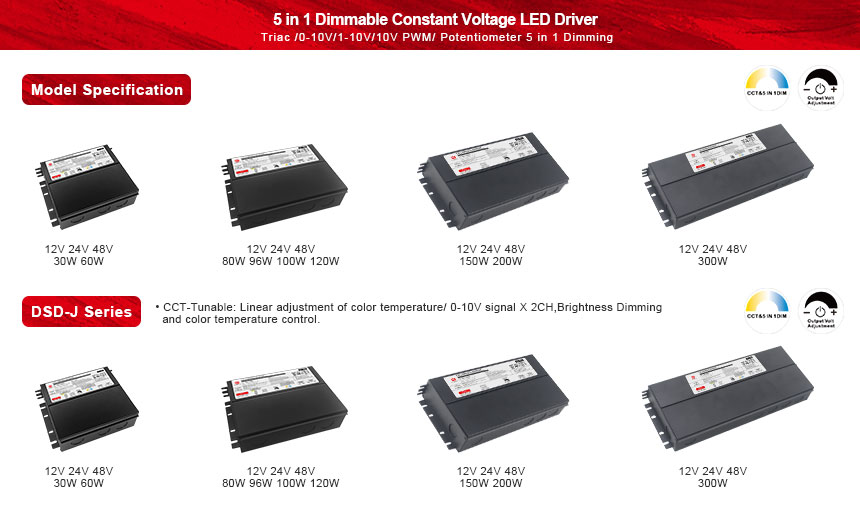

The best-selling product of the CTA series is the 30W CCT & triac/0 10v dimmable led driver integrated with the junction box. The dimmable range is 0.1~100% ultra-deep range. It has strong compatibility and can be used well with Legrand's 30W dimmer. Achieve smooth flicker-free dimming
