Brand:
DEMIItem no.:
CSA-12200JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
200WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 yearsUL certification 12v 200w triac & 0 10V dimmable led strip light driver power supply for indoor
CSA series CCT & triac & 0 10v dimmable led driver has a dimming range between 0.01~100% and is compatible with most dimmers on the market to achieve smooth and flicker-free dimming, such as Lutron dimmers
Model Number | CSA-12200J | CSA-24200J | CSA-48200J |
Output Type | |||
Reted Power | 200W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 16.6A | 8.33A | 4.16A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 89%@120VAC 90%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 2.06A | ||
Inrush Current(Typ.) | 30A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

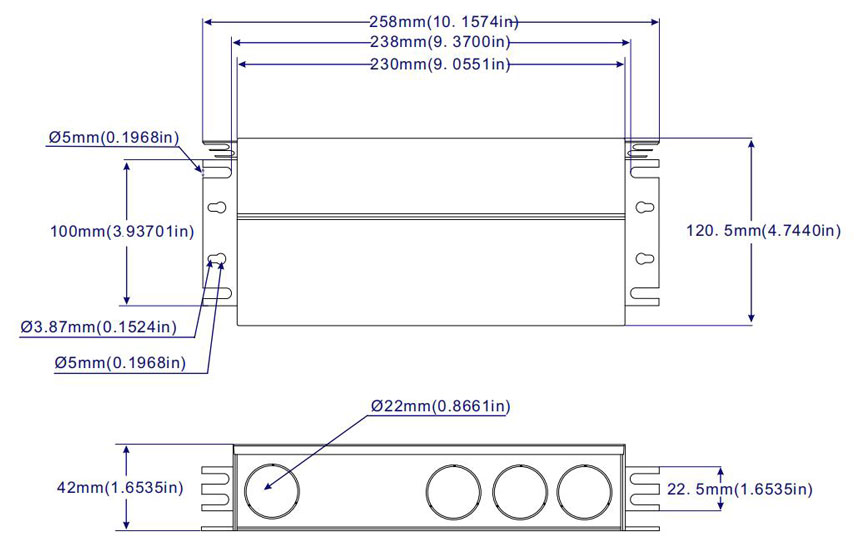

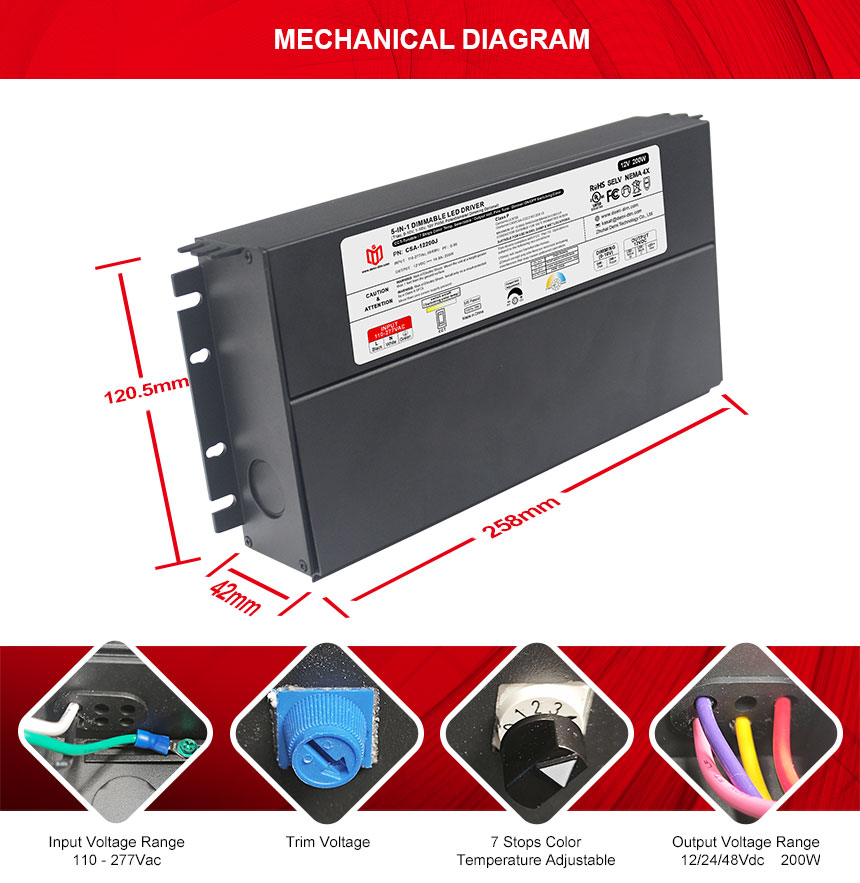

Dimension | 258x120.5x42mm (L*W*H) | ||
Packing | - |
To know more product details, please leave message or e-mail us !

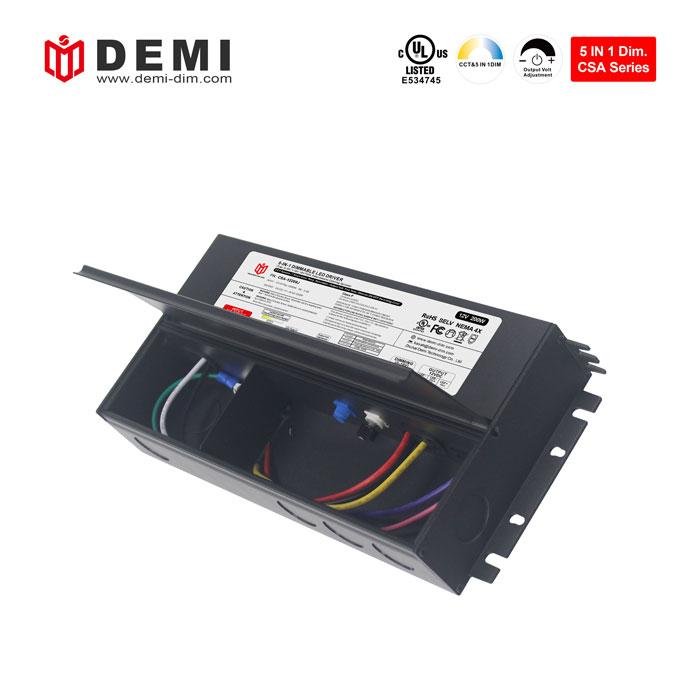

The wiring of CCT & 5 in 1 Dimmable LED Driver shall follow relevant electrical installation requirements and standards. It is best to install and wiring professional electrical engineers to ensure safety and reliability and avoid accidents. It is recommended to wiring according to the detailed instructions provided by the product manual or manufacturer, and carefully check whether the wiring is correct and stable.

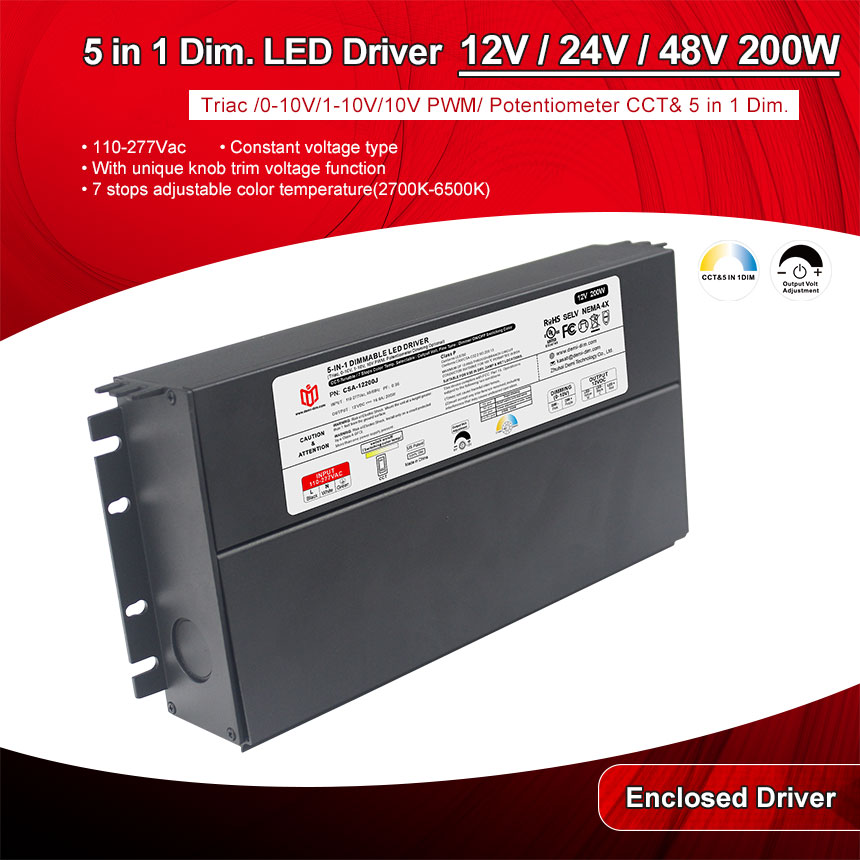

•With unique knob trim voltage function •110-277Vac Universal input.•Super low loading request |
•7 stops adjustable color temperature(2700K-6500K). •CCT-Tunable: Press Dimmer ON/OFF button to change color temp.) |
CSA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
200W | AC L | Black | 18AWG | DC+ | Red |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow |
12V/14AWG 24V/18AWG 48V/18AWG |
/ | / | / |

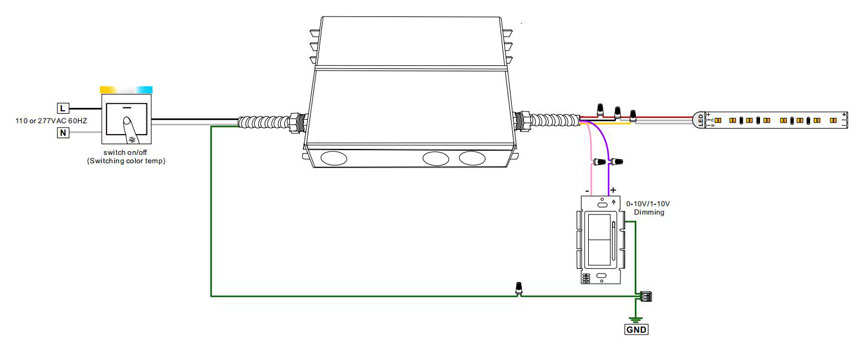

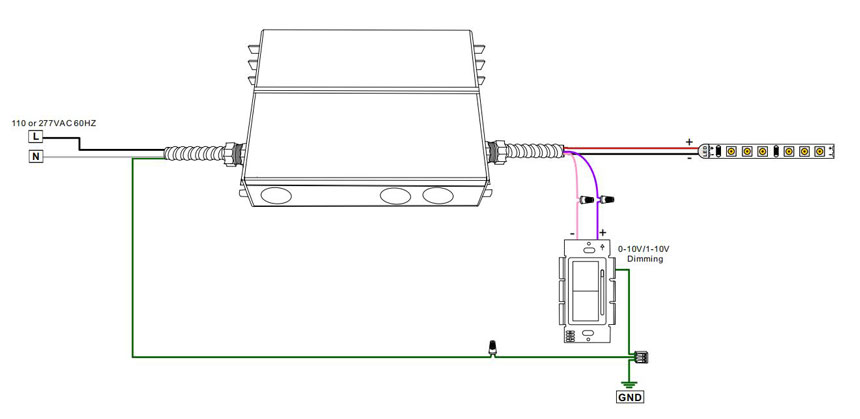

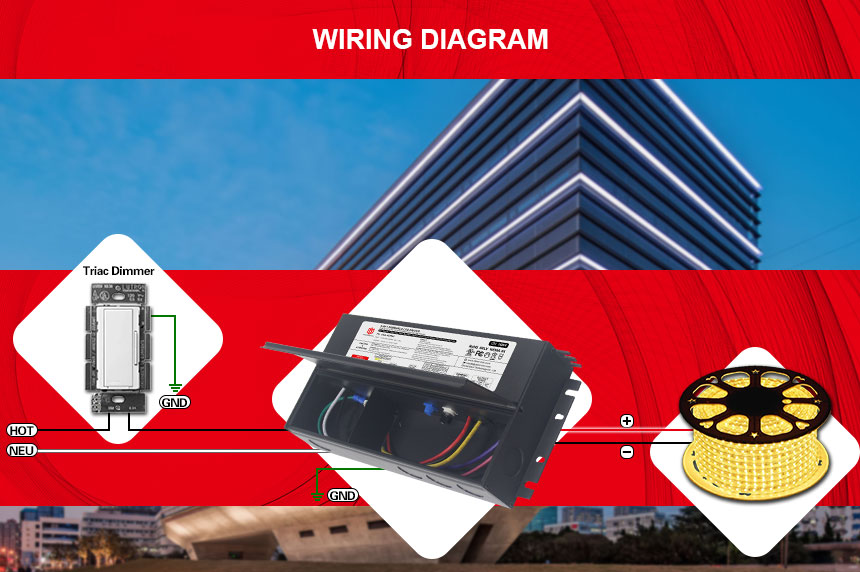

Wiring Diagram
· Using Triac/ELV wiring diagram
· Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
Works with Two channel CCT warm-dim LED strip/tape (3 wires)
· UsingTriac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
