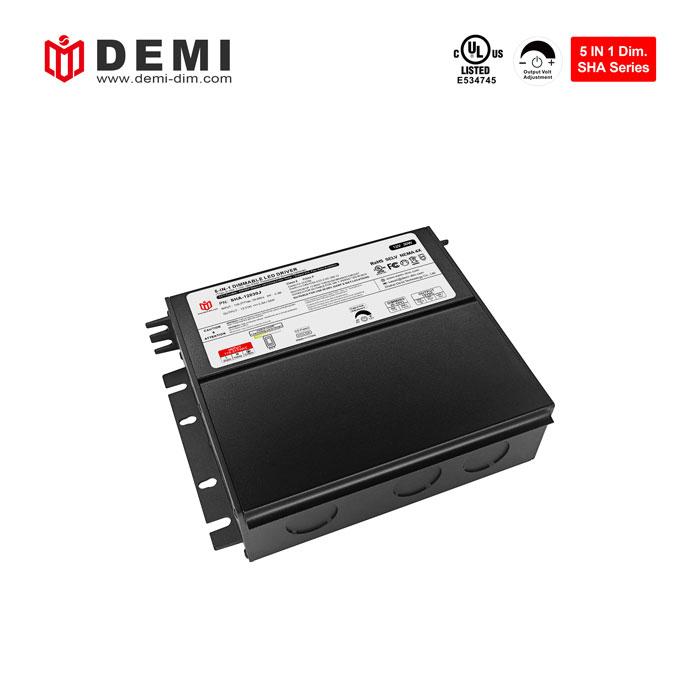

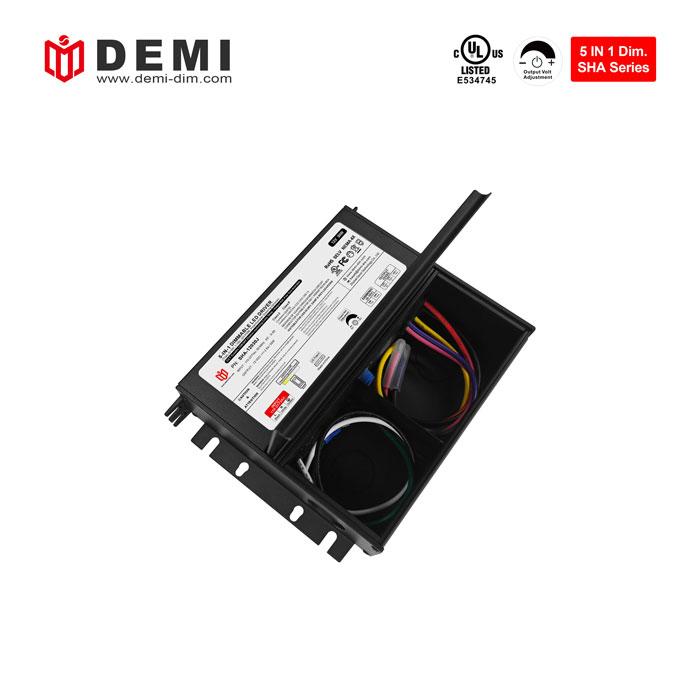

This new product 5 in 1 dimmable led power supply has an input voltage of 110-277vac and a constant voltage output mode. It is compatible with popular front and rear thyristor dimmers and systems, and 0-10V dimmers and systems on the market. Such as Lutron dimmer
Brand:
DEMIItem no.:
SHA-12030JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
30WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
158*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years24v 30w triac & 0 10v dimmable constant voltage led driver power supply
30W CCT & triac/0 10v dimmable led driver has a built-in fine-tuning voltage function knob, which can compensate for light attenuation of the lamp. It is small in size and easy to install. It is UL certified and complies with global safety lighting regulations. 5-year warranty

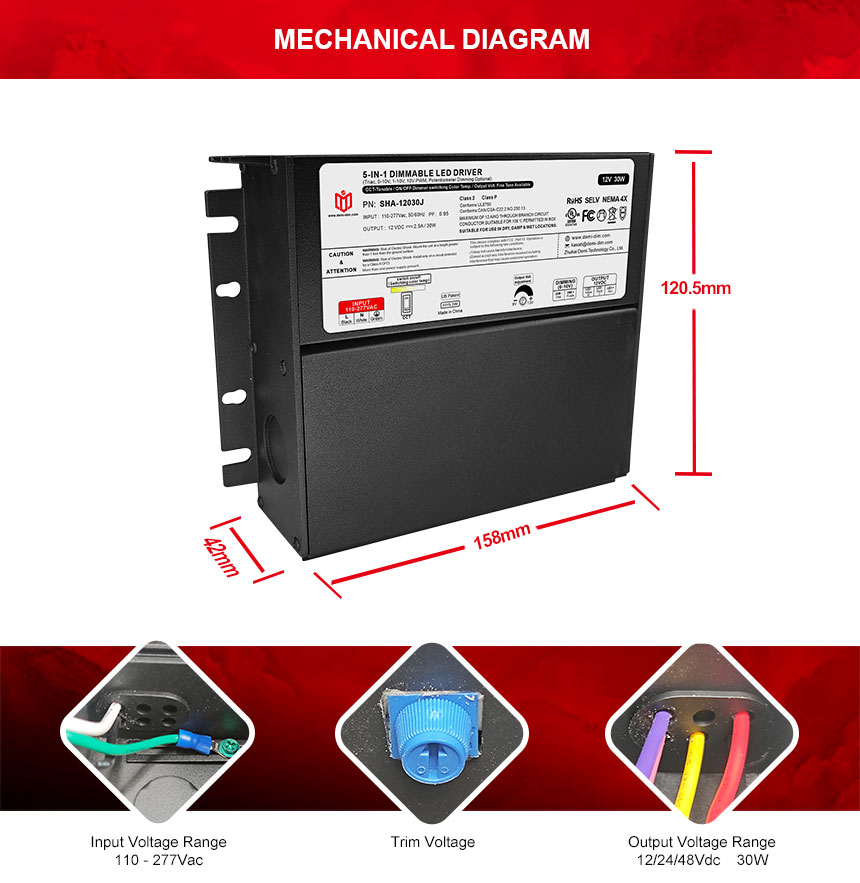

Model Number | SHA-12030J | SHA-24030J | SHA-48030J |
Output Type | |||
Reted Power | 30W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 2.5A | 1.25A | 0.63A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 85%@120VAC 86%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 0.35A | ||
Inrush Current(Typ.) | 18A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||
Dimension | 158x120.5x42mm (L*W*H) | ||
Packing | 0.75KG |

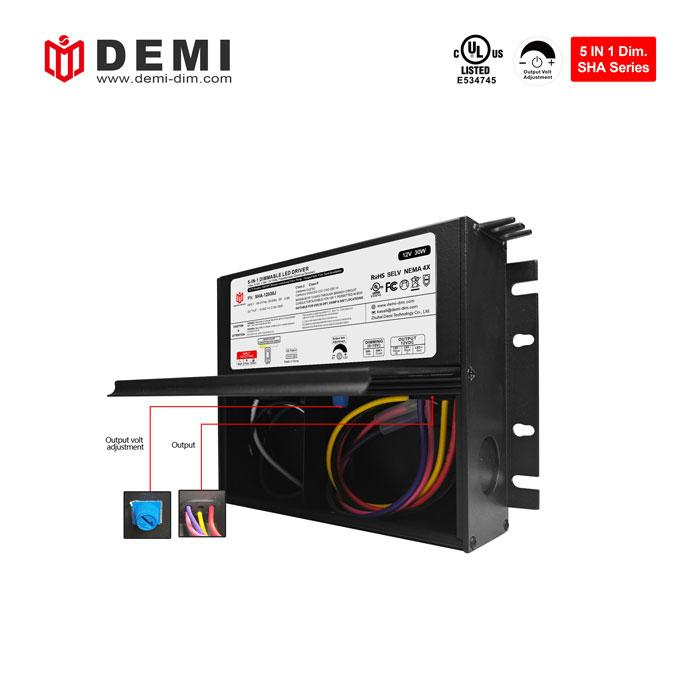

SHA series 5 in 1 dimmable led driver is a unique and practical lamp driver with a built-in fine-tuning voltage knob function. Users can use this knob to adjust a certain brightness without a dimmer. The three-speed switch switches the color temperature to meet the needs of adjustment using a switch. light user use

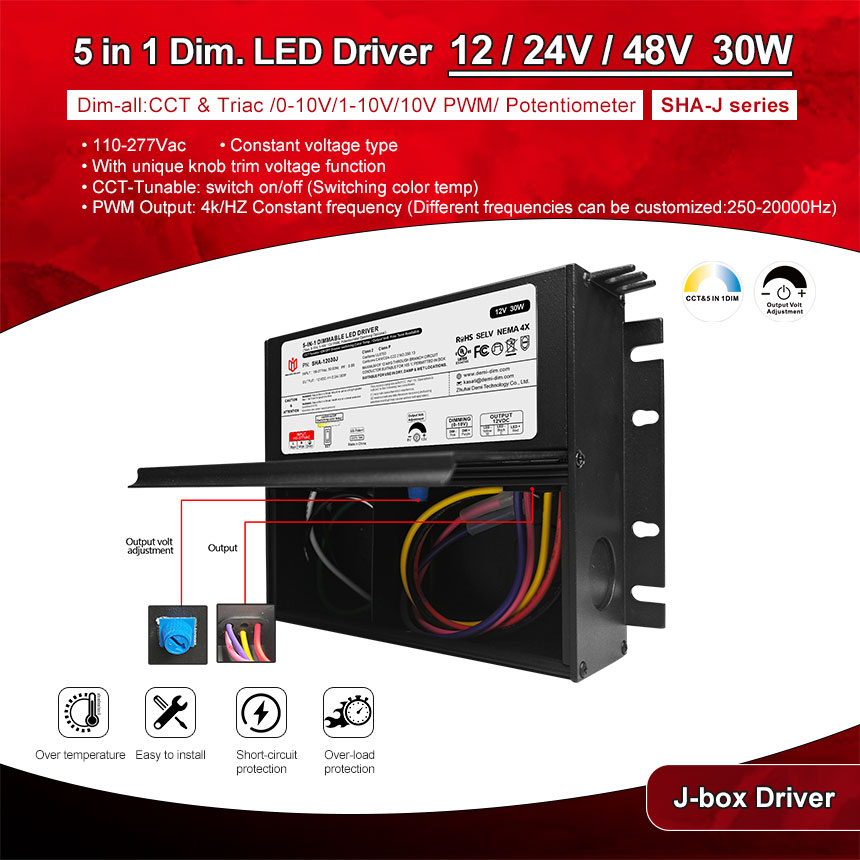

•CCT-Tunable: Linear adjustment of color temperature And 7 stops adjustable color temperature(2700K-6500K) •With unique knob trim voltage function |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|
SHA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
30W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / |
Wiring Diagram

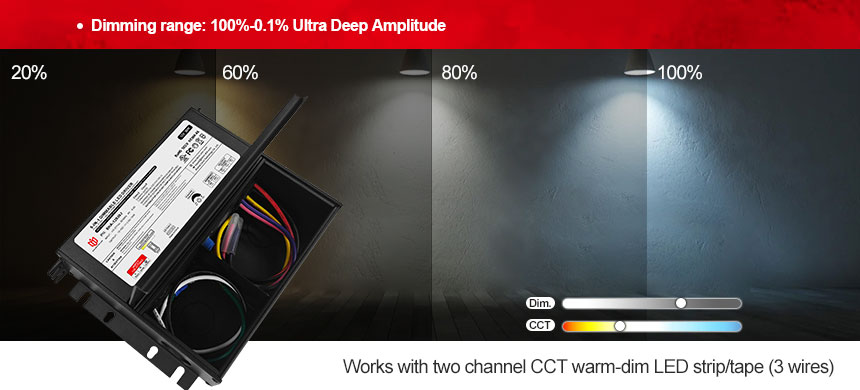

Works with Two channel CCT warm-dim LED strip/tape (3 wires)

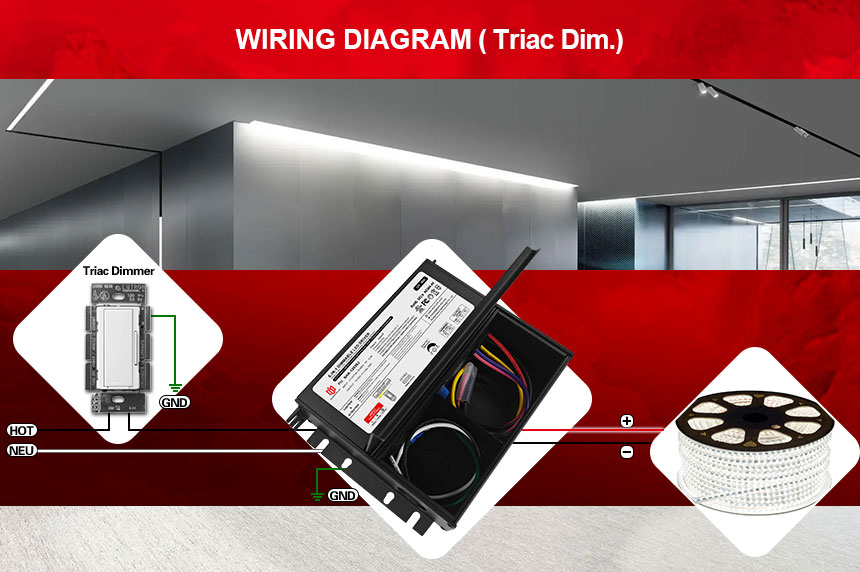

· Using Triac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
