CCT & triac/0 10v dimmable 120W led driver 110- 277VAC input voltage mode, dimming range 100%-0.1%, built-in active PFC function, power factor >0.95, aluminum shell design, good heat dissipation, 5-year warranty
Brand:
DEMIItem no.:
SHA-12120JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
120WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 yearsUL certification 120w triac & 0 10v dimmable junction box led driver power supply for led strips
This 120W CCT & 5 in 1 dimmable led driver has ultra-low load requirements and can work perfectly at 10-100% load. It is compatible with popular front and rear thyristor dimmers and systems, and 0-10V dimmers and systems on the market. Such as Lutron dimmer

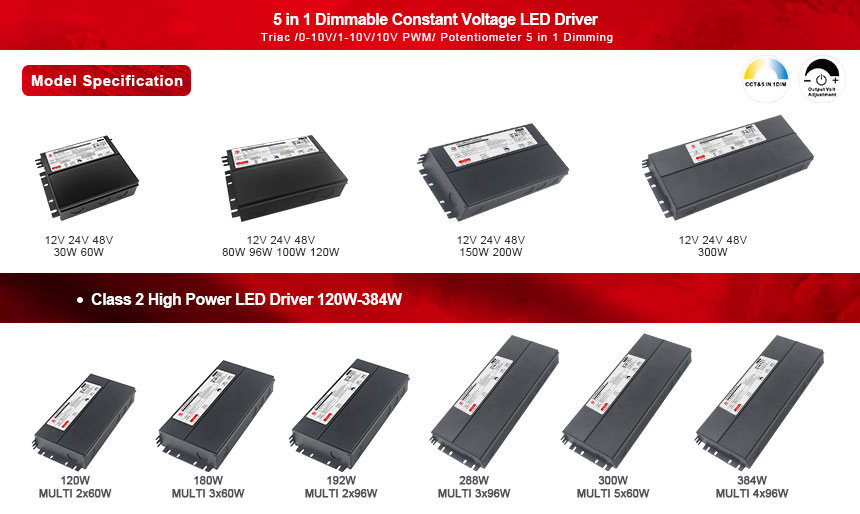

Model Number | SHA-12120J | SHA-24120J | SHA-48120J |
Output Type | |||
Reted Power | 120W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 10A | 5A | 2.5A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 1.25A | ||
Inrush Current(Typ.) | 27A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

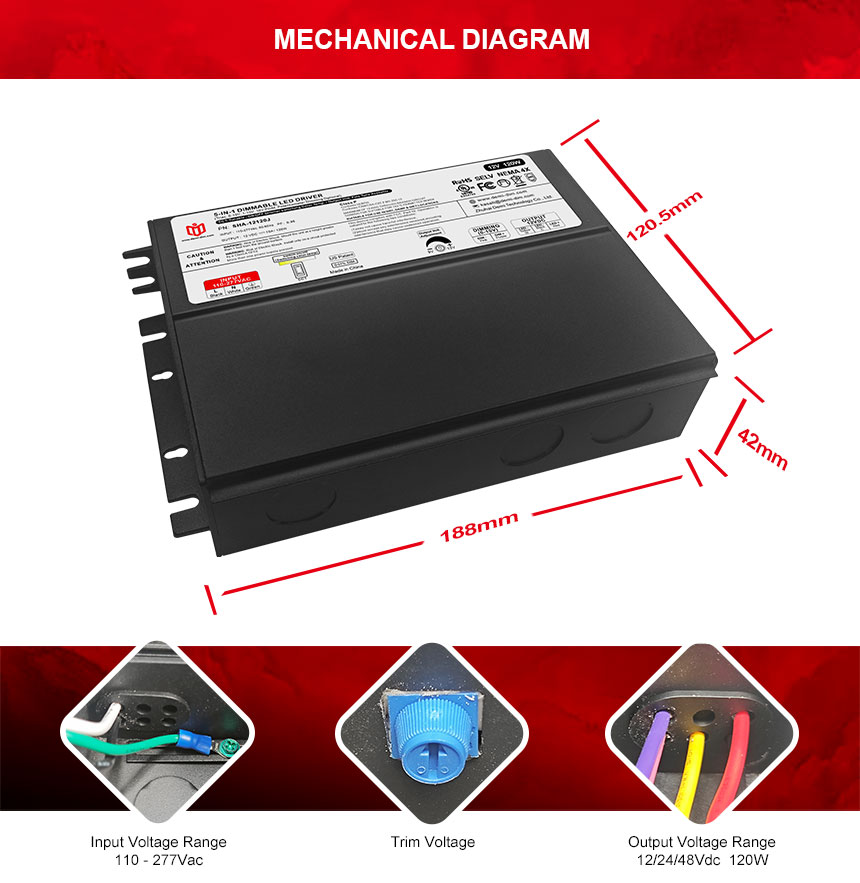

Dimension | 188x120.5x42mm (L*W*H) | ||
Packing | - |

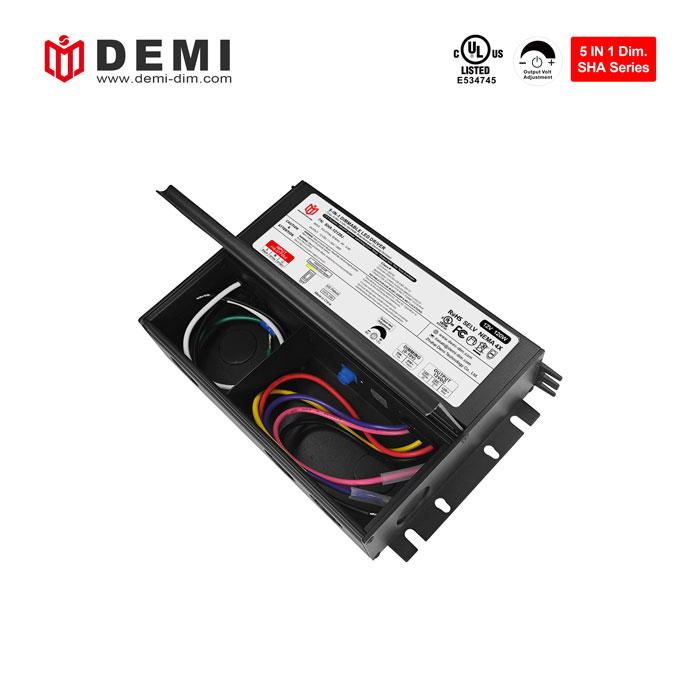

When wiring this 120W 5 in 1 dimmable led driver, you need to pay attention to installing it in a well-ventilated location. Make sure the power is off before installation. Install strictly in accordance with the instructions in the product manual. Make sure the driver is properly grounded. After the installation is complete, you need to carefully check the connections to make sure there are no loose or wrong wires.

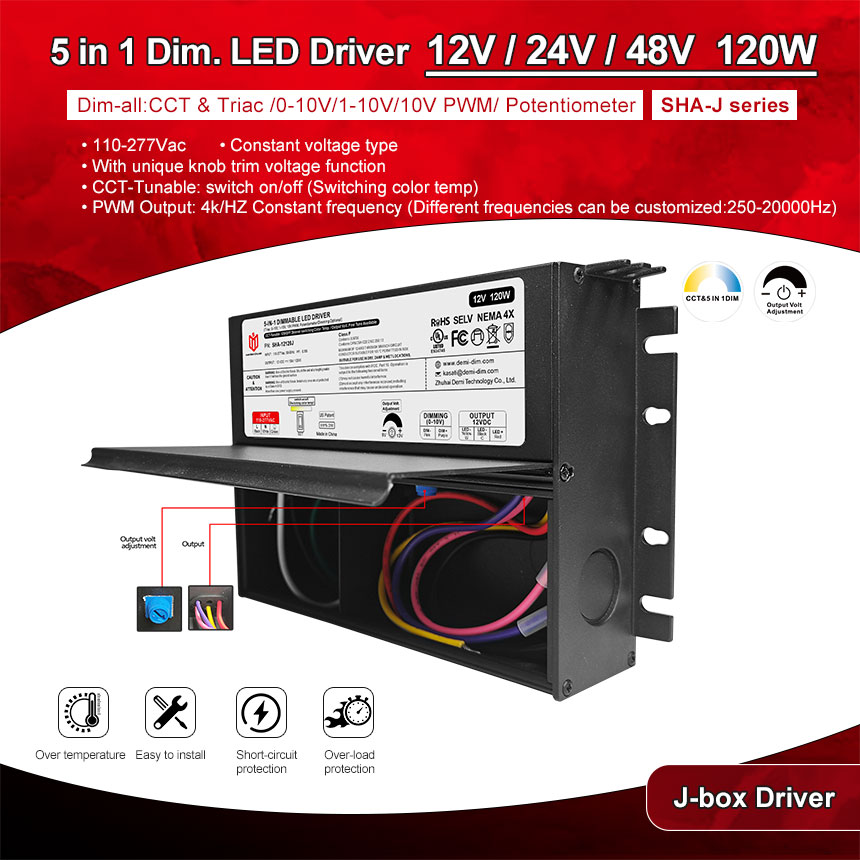

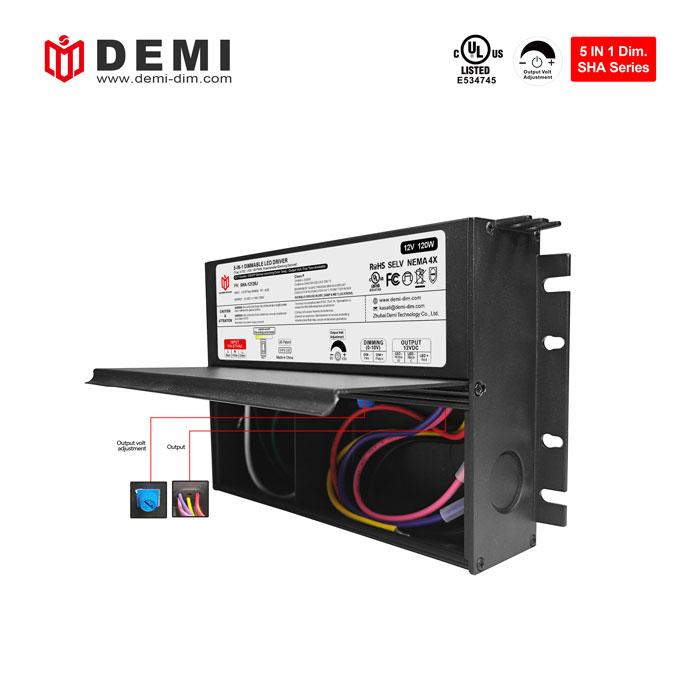

•Exclusive patent design of “Clamshell” junction box(Fixed without screws) •CCT-Tunable: switch on/off (Switching color temp). |

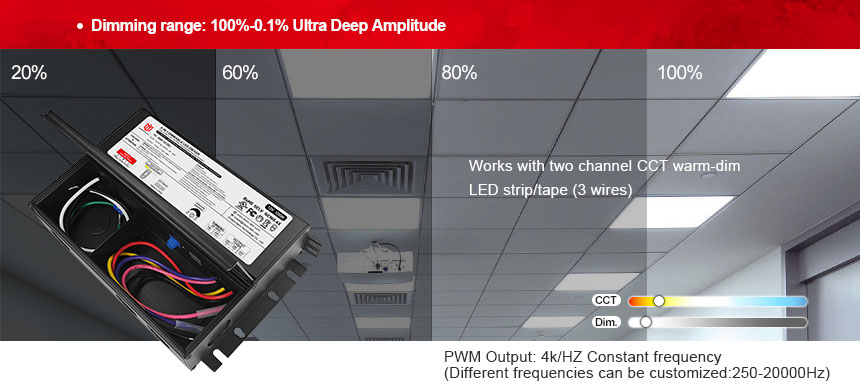

•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Dimming range: 100%-0.1% Ultra Deep Amplitude
|
SHA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
120W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / |

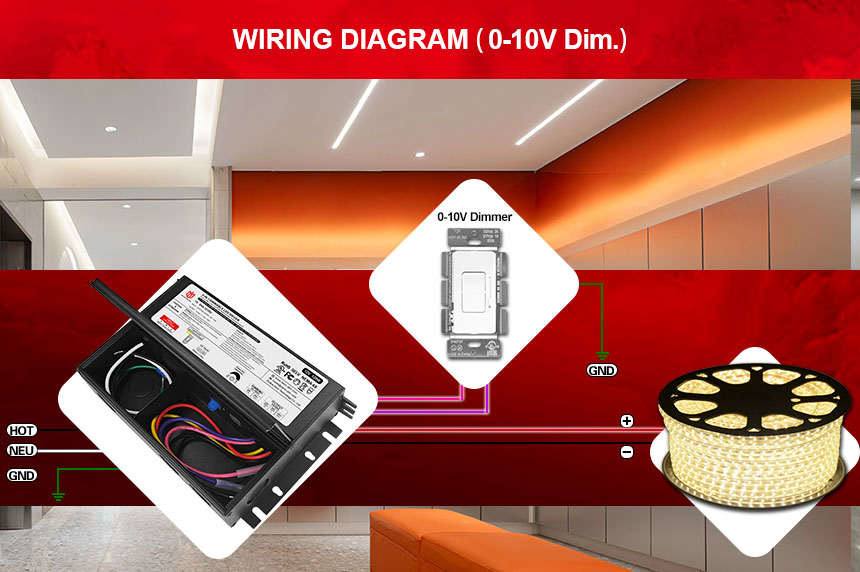

Wiring Diagram
Works with Two channel CCT warm-dim LED strip/tape (3 wires)
· Using Triac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
