200W CCT & 5 in 1 dimmable led driver SHA series products have a color temperature switching function, which can meet the requirements of users using traditional switches for dimming and coloring functions. It has strong compatibility and the dimming effect is as good as Magnitude Lighting’s 200W dimmable led driver.
Brand:
DEMIItem no.:
SHA-12200JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
200WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
258*120.5*42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years12v/24v/48v 200w CCT & triac/0 10v dimmable constant voltage led power supply
UL certified CCT & Triac/0-10V/1-10V/10VPWM/Potentiometer dimmable led power supply, dimmable range is 0.1~100% ultra-deep amplitude, has ultra-low load requirements, and can work perfectly under 10-100% load. Comply with global safety lighting regulations, mainly sold to North America, 5-year warranty
Model Number | SHA-12200J | SHA-24200J | SHA-48200J |
Output Type | |||
Reted Power | 200W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 16.6A | 8.33A | 4.16A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 2.06A | ||
Inrush Current(Typ.) | 30A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

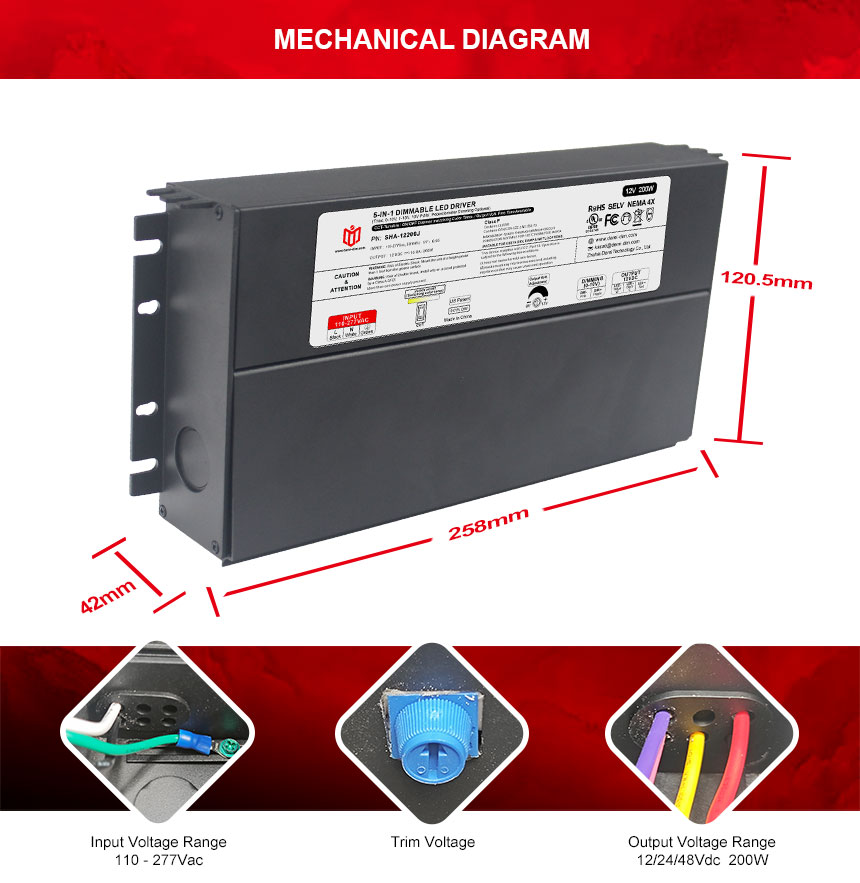

Dimension | 258x120.5x42mm (L*W*H) | ||
Packing | - |

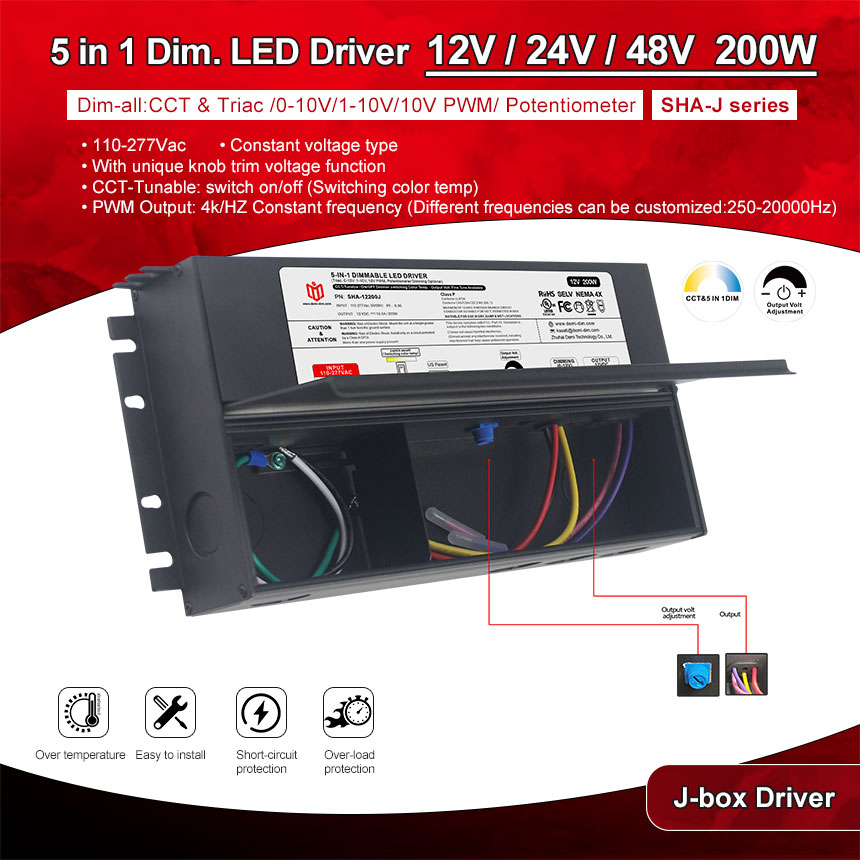

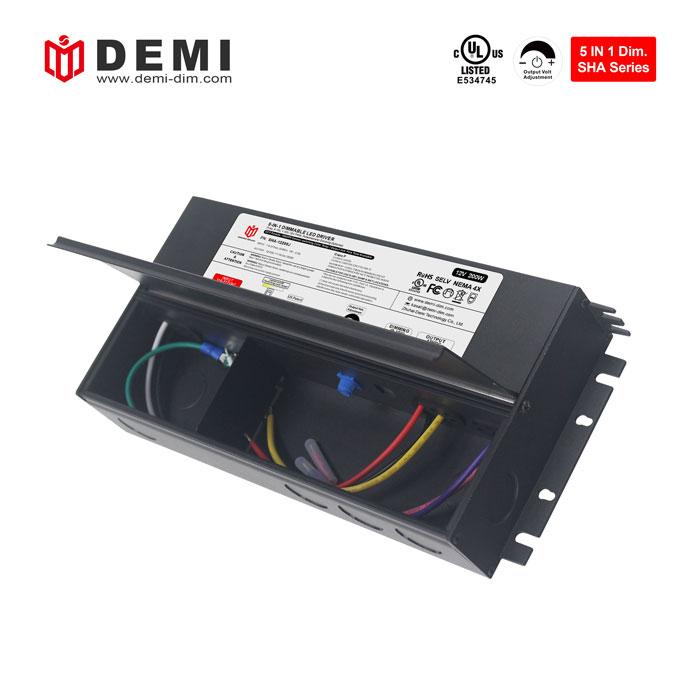

•Exclusive patent design of “Clamshell” junction box(Fixed without screws) •CCT-Tunable: switch on/off (Switching color temp). |

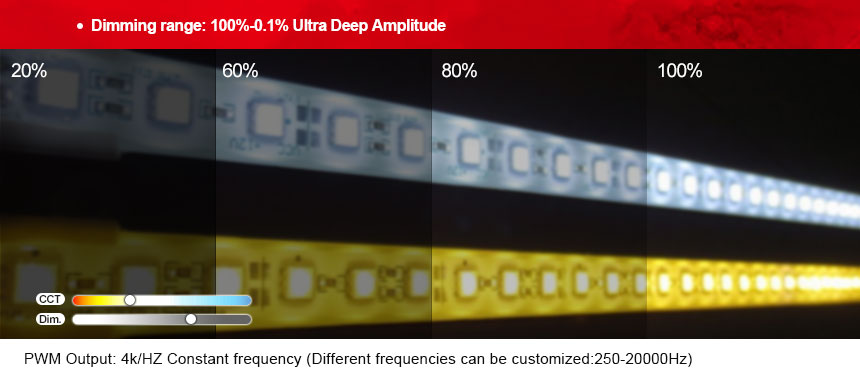

•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Dimming range: 100%-0.1% Ultra Deep Amplitude
|

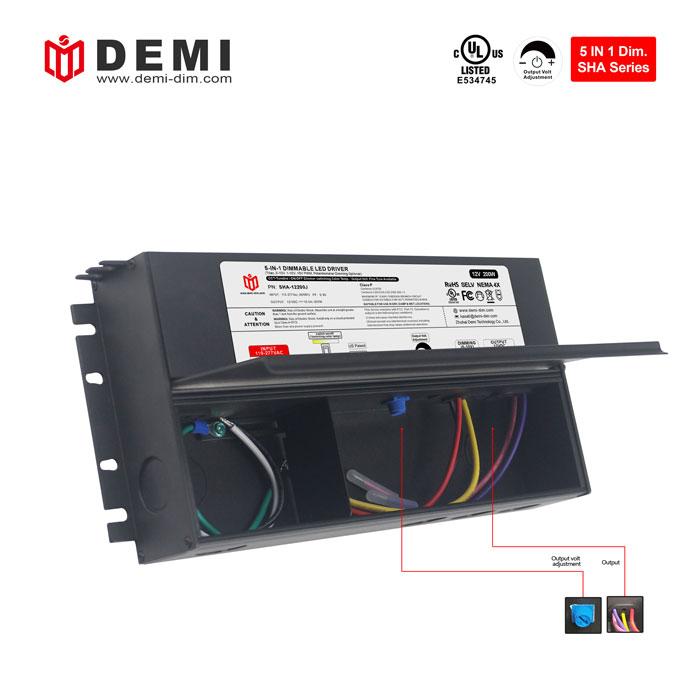

As its own junction box, this SHA series constant voltage 200W LED driver has good heat dissipation performance. It has a built-in fine-tuning voltage function knob, which can compensate for the light attenuation of the lamp. At the same time, it can also adjust a certain brightness when not connected to a dimmer. The light range is 0.1~100% deep dimming, with ultra-low load requirements, and can work perfectly under 10%~100% load
SHA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
200W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / |

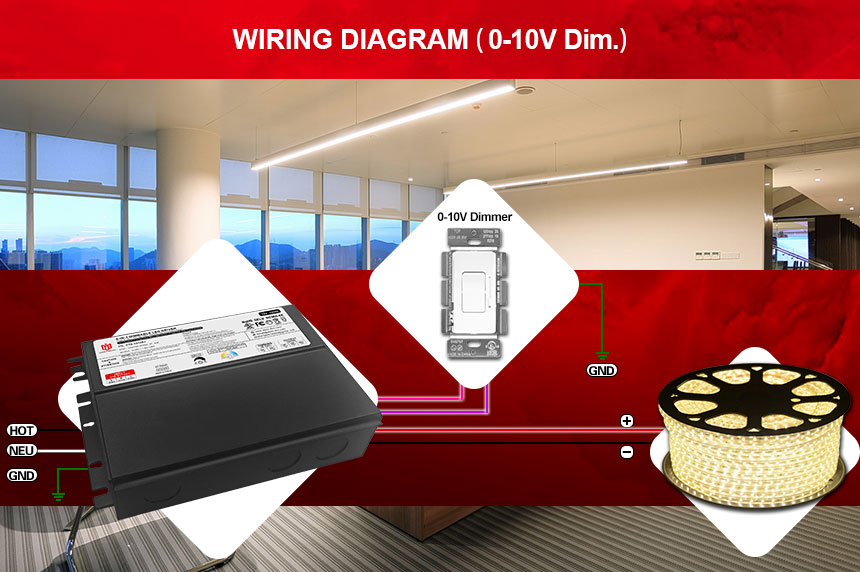

Wiring Diagram
Works with Two channel CCT warm-dim LED strip/tape (3 wires)
· Using Triac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
