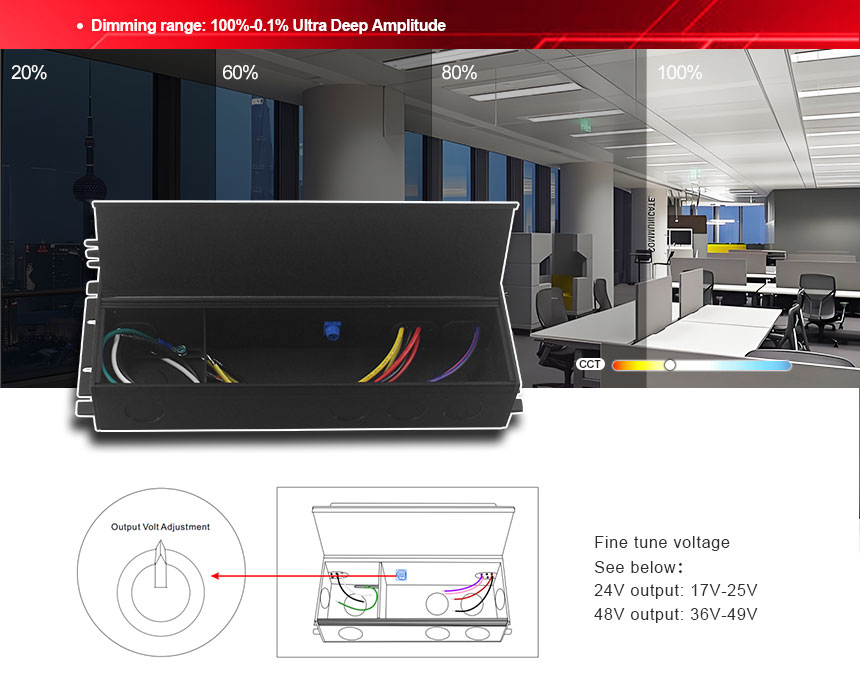

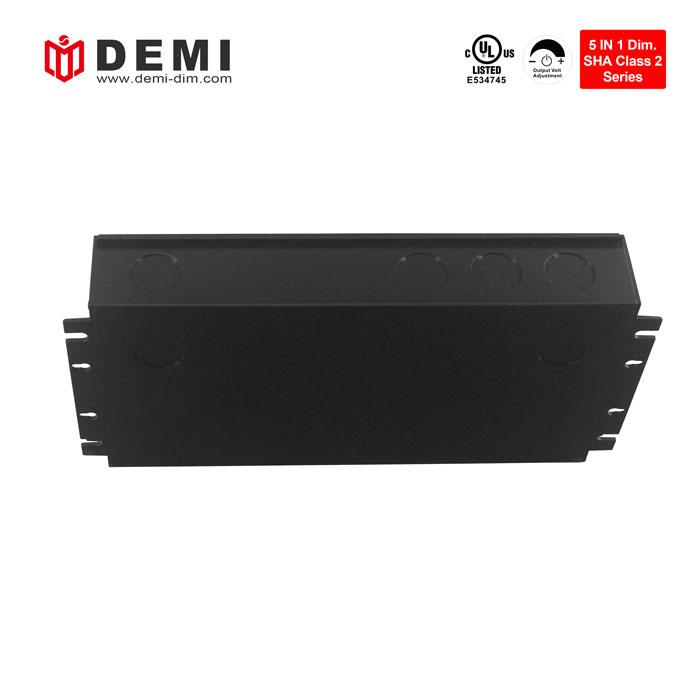

SHA series 24v/48v 192W dimmable led driver, dimmable mode is CCT & 5 in 1 dimmable. It has a built-in fine-tuning voltage function knob, which can adjust a certain brightness when used without a dimmer. It has strong compatibility and can be well connected with Leviton dimmer to achieve smooth and flicker-free dimming.
Brand:
DEMIItem no.:
SHA-H24192JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
192WOutput Voltage:
24/48VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years
24v/48v class 2 triac & 0 10v dimmable constant voltage led power supply driver
This 192W dimmable led driver operates in a constant voltage mode and can achieve no frequency change or voltage drop during the entire process of dimming and color temperature adjustment. Ultra-low load requirements, can work perfectly under 10%-100% load, with 5-year warranty
| Model Number | SHA-H24192J | SHA-H48192J |
| Output Type | ||
| Reted Power | 192W(MULTI 96W * 2) | |
| Reted Voltage | 24V | 48V |
| Reted Current | 2CH*4A | 2CH*2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 2.20A | |
| Inrush Current(Typ.) | 30A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||
| Dimension | 258x120.5x42mm (L*W*H) | |
| Packing | - | |

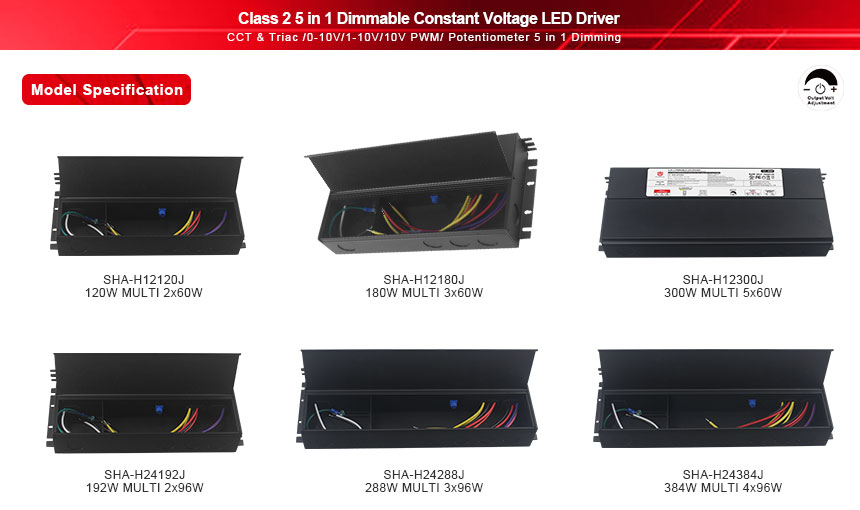

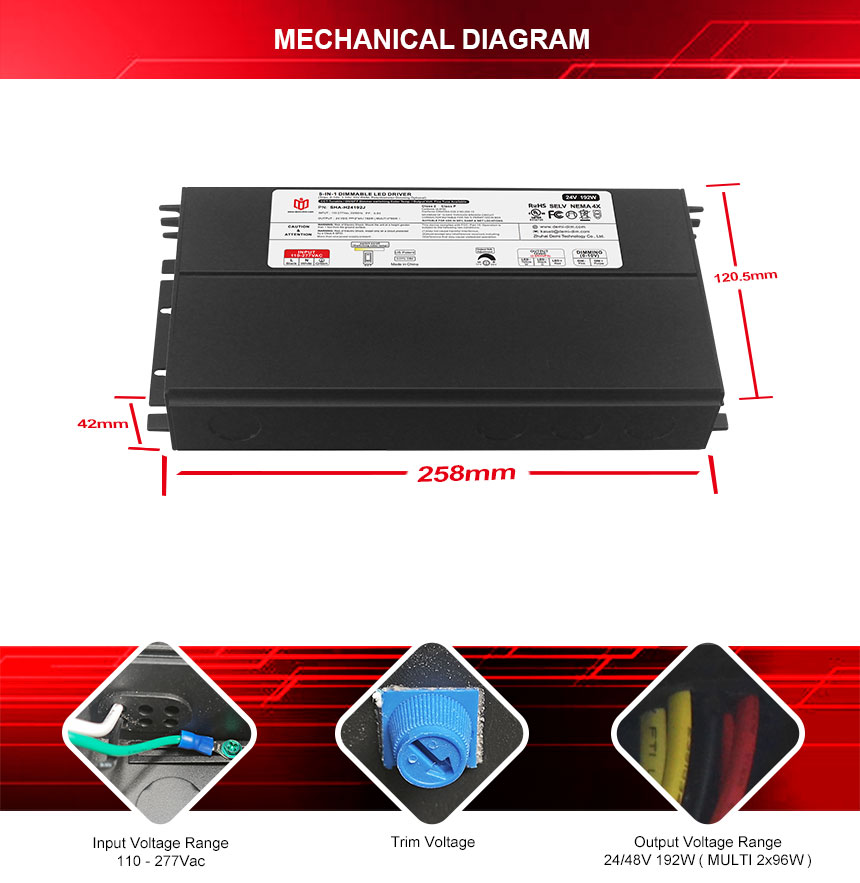

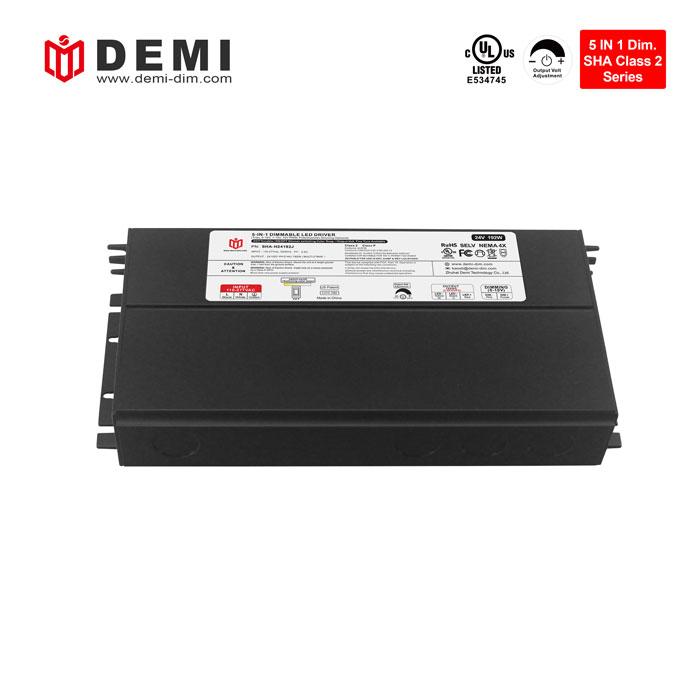

SHA series 192W dimmable led driver has an aluminum housing design that has passed the NEMA 4X standard. It has good heat dissipation performance and has multiple mounting feet to meet customers' various installation needs in different scenarios. 5-year warranty
|

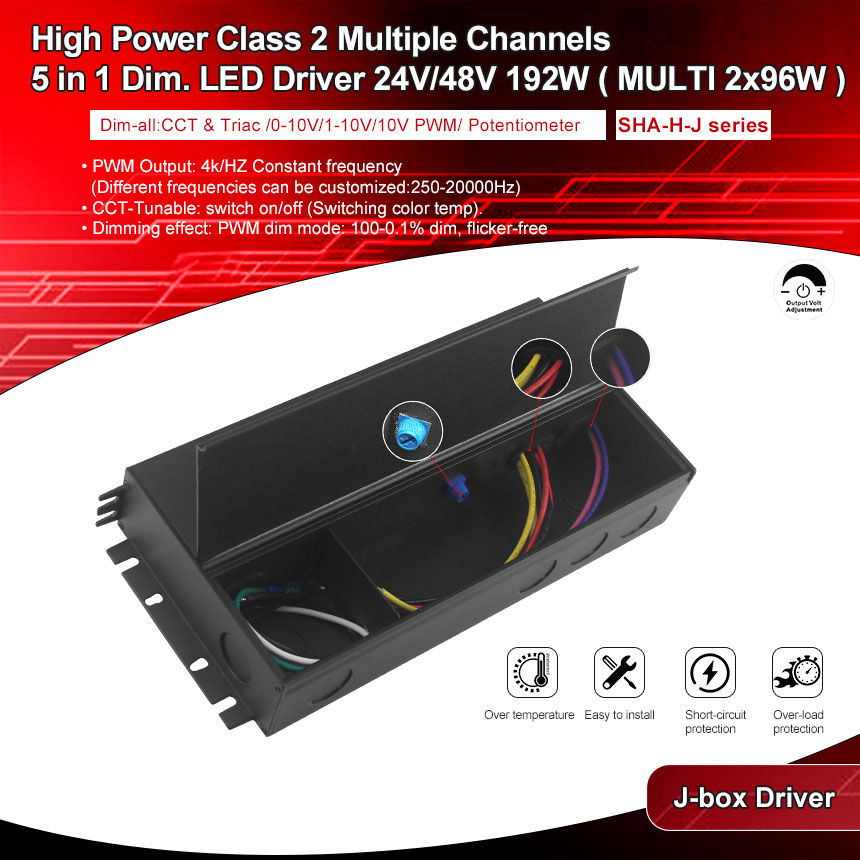

•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Build in active PFC, typical power factor>0.95, THD<10%@120V Max. Load •Works with two channel CCT warm-dim LED strip/tape (3 wires) |

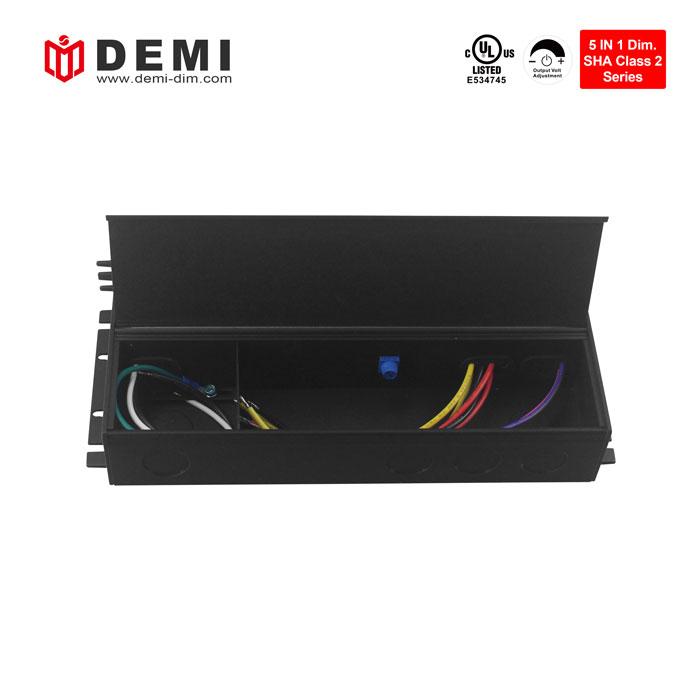

•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •Build in active PFC, typical power factor>0.95, THD<10%@120V Max. Load •CCT-Tunable: switch on/off (Switching color temp).
|
| SHA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
192W (MULTI 96W*2) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*2 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*2 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG*2 | / | / | / | |
Wiring Diagram

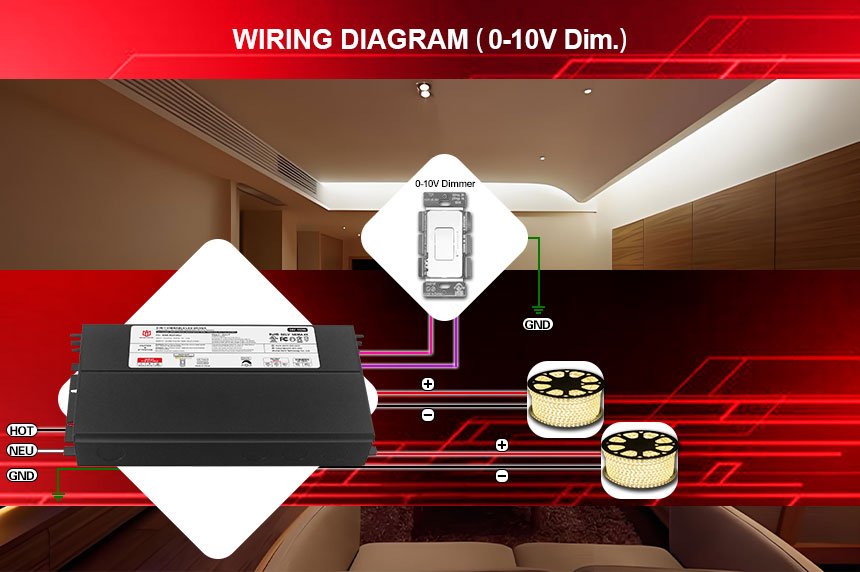

· Using Triac MLV wiring diagram
· Using 0-10/1-10V dimming
Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
