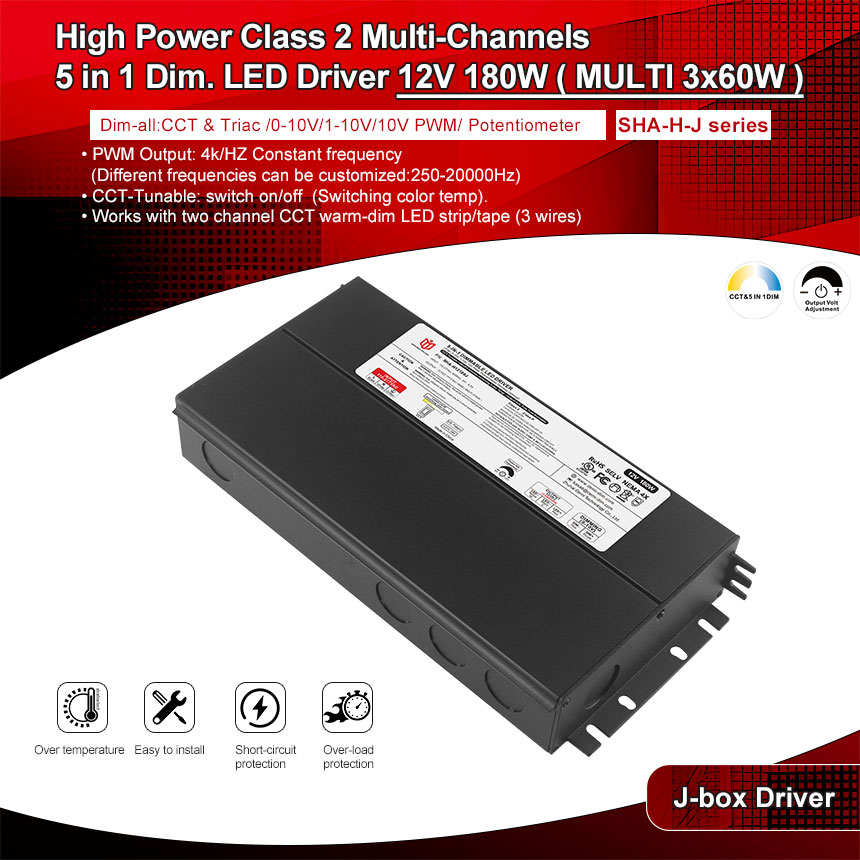

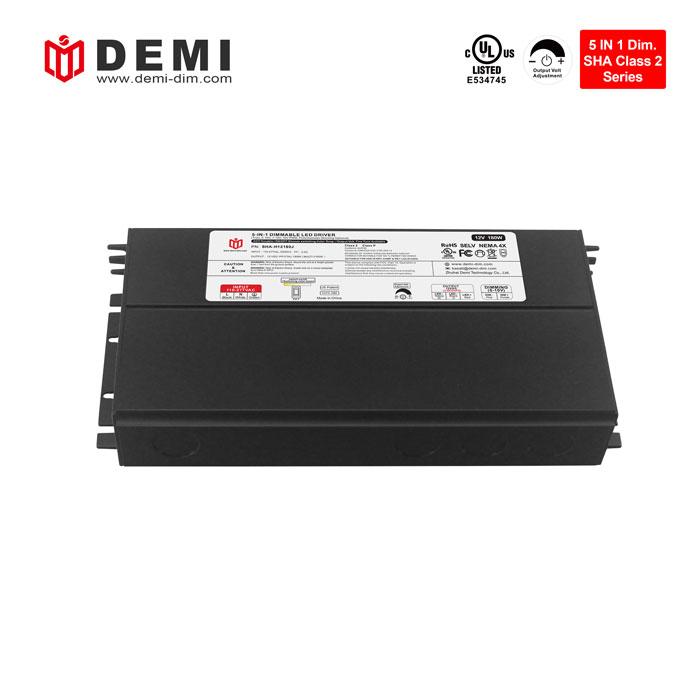

180w 12v CCT & 5 in 1 dimmable led driver has built-in active PFC function, constant voltage working mode, and dimming range between 0.1%-100%. Dimming effect is as good as Magnitude Lighting's 180W dimmable led driver
Brand:
DEMIItem no.:
SHA-H12180JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
180WOutput Voltage:
12VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years180W 12V PWM Output class 2 CCT & triac & 0 10v dimmable led driver for sale

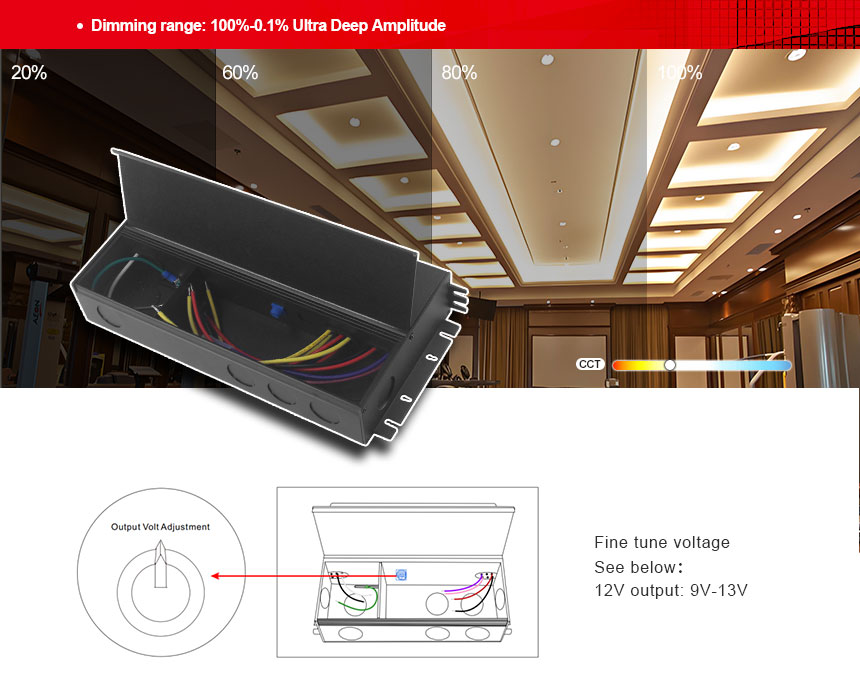

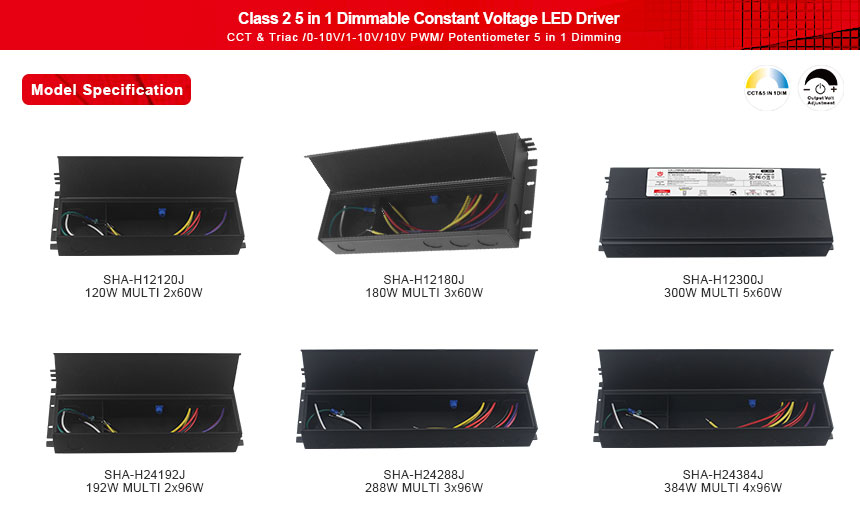

This SHA series dimmable led power supply 180W has a built-in fine-tuning voltage function knob. +1v can compensate for the light attenuation of the lamp. The unique switch switches between three levels of color temperature, allowing users to choose appropriate lighting in different scenarios. Comes with 5 year warranty
Model Number | SHA-H12180J | |
Output Type | ||
Reted Power | 120W(MULTI 60W * 3) | |
Reted Voltage | 12V | |
Reted Current | 3CH*5A | |
Voltage Tolerance | ±0.5V | |
Voltage Regulation | ±0.5% | |
Load Regulation | ±1% | |
Input Type | ||
Voltage Range | 110-277V | |
Frequency Range | 47-63HZ | |
Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
Total Harmonic Distortion | THD< 15%(@100% load) | |
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
AC Current(Typ.) | 1.88A | |
Inrush Current(Typ.) | 28A | |
Leakage Current | <0.5mA | |
PROTECTION | ||
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. | |
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
ENVIRONMENT | ||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
Working humidity | 20 ~ 95% RH non-condensing | |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
Temp .coefficient | ±0.03%/℃(0~50℃) | |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
SAFETY & EMC | ||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
Withstand voltage | I/P-O/P:1.88KVAC | |
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
EMC Emission | Compliance to FCC part 15 Subpart B | |
OTHERS | ||

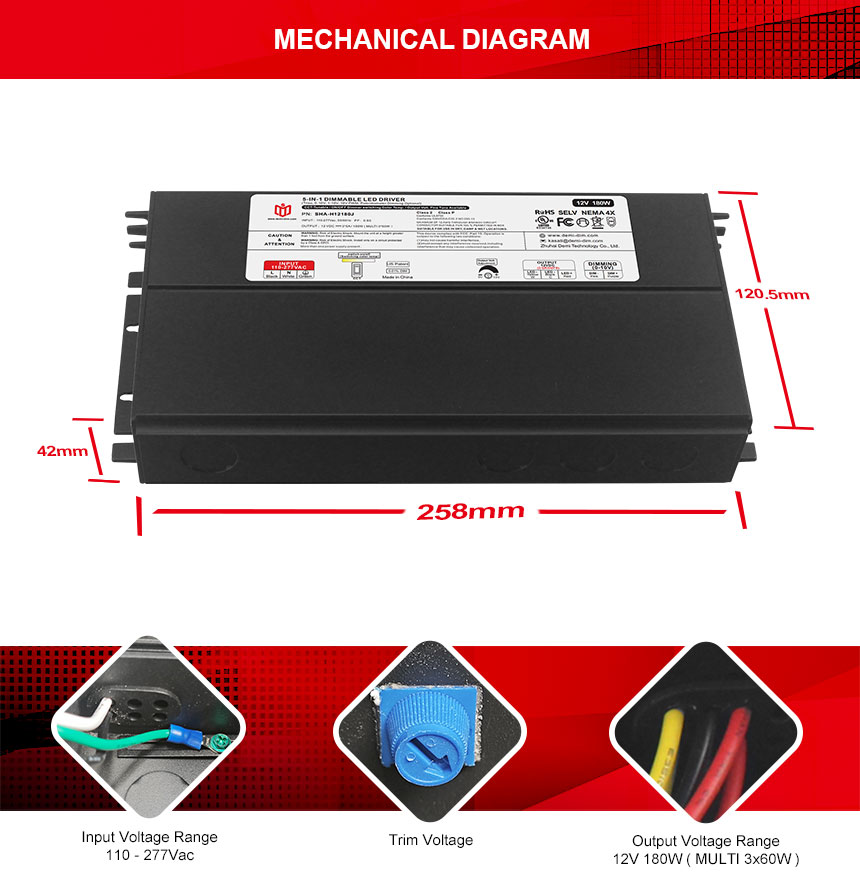

Dimension | 258x120.5x42mm (L*W*H) | |
Packing | - |

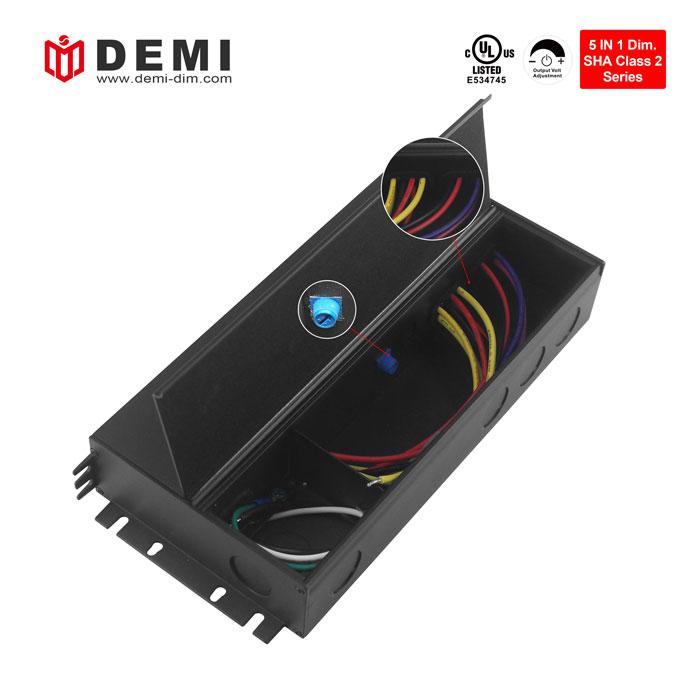

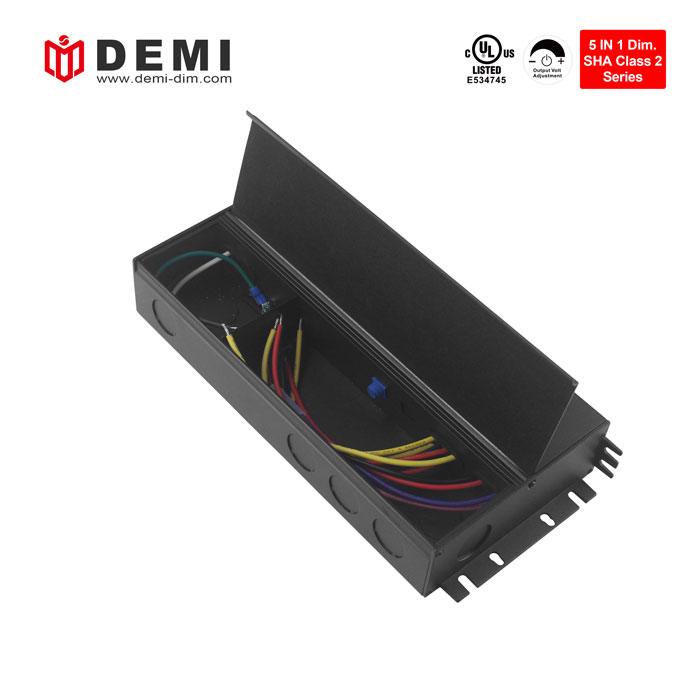

•CCT-Tunable: Linear adjustment of color temperature And 7 stops adjustable color temperature(2700K-6500K). •Exclusive patent design of “Clamshell” junction box |
•Super low loading request, works perfect at 10-100% load. •Constant voltage type.fine tune of output voltage Works with two channel CCT warm-dim LED strip/tape (3 wires)
|
110-277vac universal input voltage SHA series 180W 12V dimmable LED driver complies with Class 2 standards and has three outputs, which can provide stable power protection for multiple lamps at the same time. It has short-circuit/overload/over-temperature protection functions, complies with global safety lighting regulations, and has passed UL certification.
SHA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
180W (MULTI 3*60W) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*3 | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG*3 | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG*3 | / | / | / |

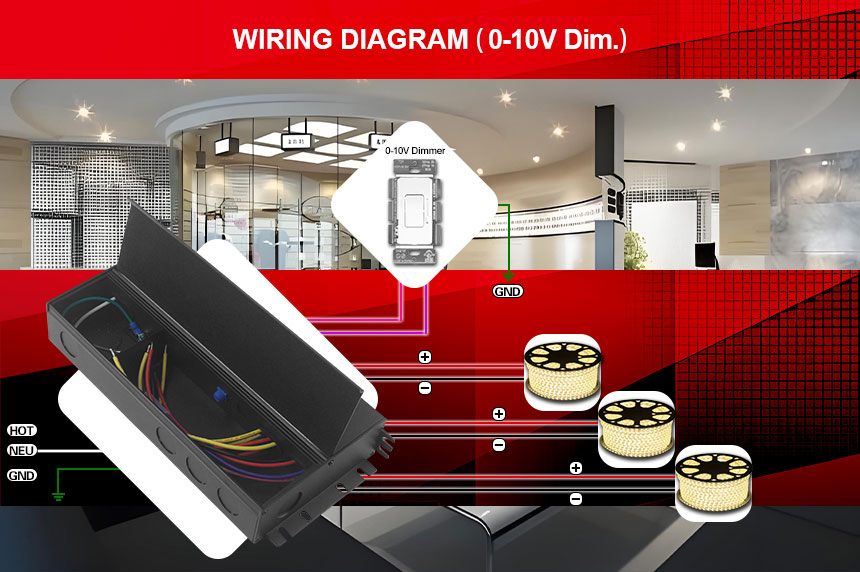

Wiring Diagram
· Using Triac MLV wiring diagram

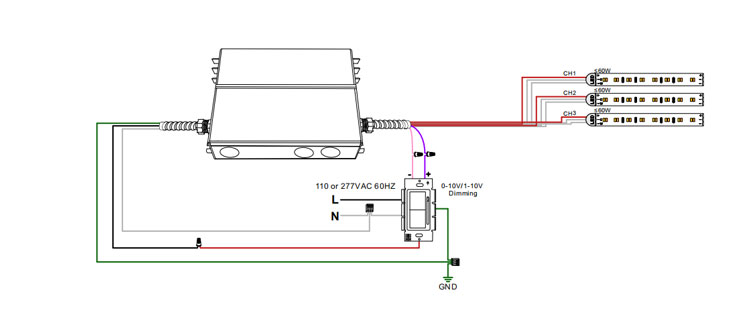

· Using 0-10/1-10V dimming
Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
