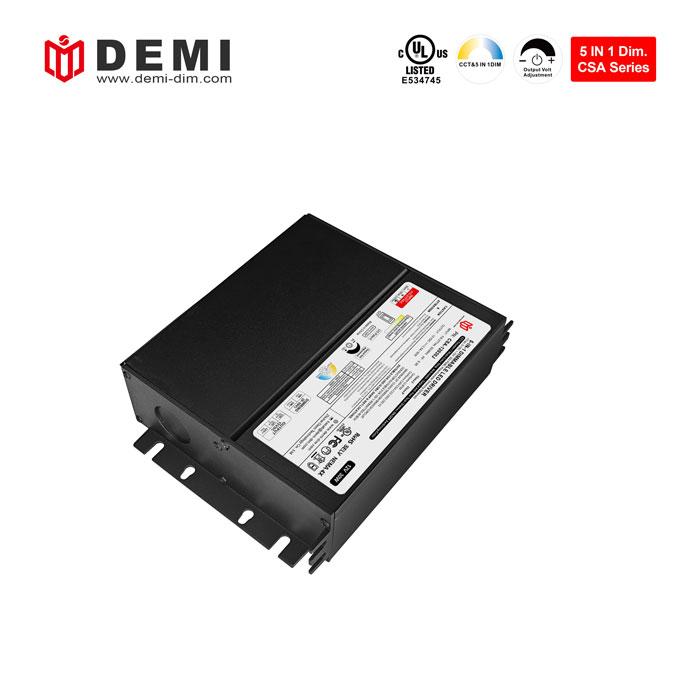

CSA series 24v 30W dimmable led driver adopts PWM output mode and has a built-in fine-tuning voltage function knob. It can adjust a certain brightness without installing a dimmer. It is suitable for projects such as advertising light boxes that do not frequently adjust the brightness. The dimming performance is as good as inventronics' 30W dimmable led driver.
Brand:
DEMIItem no.:
CSA-24030JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
30WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
158*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years24vdc 30W CCT & triac/0 10v dimmable constant voltage LED strip power supply driver
CCT & 5 in 1 dimmable led driver has built-in active PFC function, 110-277vac universal input voltage range, has ultra-low load requirements, and can work perfectly under 10-100% load. 5 years warranty
Model Number
CSA-12030J
CSA-24030J
CSA-48030J
Output Type
Reted Power
30W
Reted Voltage
12V
24V
48V
Reted Current
2.5A
1.25A
0.63A
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±1%
Input Type
Voltage Range
110-277V
Frequency Range
47-63HZ
Efficiency(Typ.)
79%@120VAC 80%@277VAC
Total Harmonic Distortion
THD< 15%(@100% load)
Power Factor(typ.)
0.99@120VAC 0.98@277VAC
AC Current(Typ.)
0.35A
Inrush Current(Typ.)
18A
Leakage Current
<0.5mA
PROTECTION
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over Load
Intelligently reduce the output voltage, auto-recovery or re-power on to recovery
Over Temperate
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp.
Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
Working humidity
20 ~ 95% RH non-condensing
Storage temp., Humidity
-40 ~ +90, 10 ~ 95% RH
Temp .coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards
UL8750, CSAC22.2 No. 250.0-08
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission
Compliance to FCC part 15 Subpart B
OTHERS

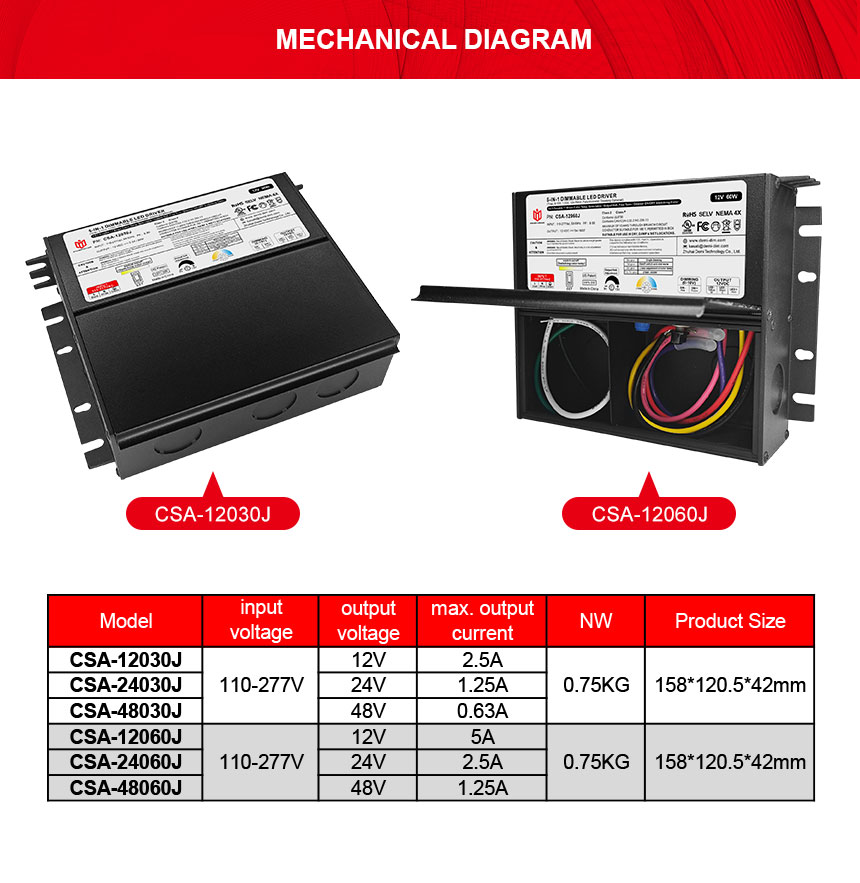

Dimension
158x120.5x42mm (L*W*H)
Packing
-

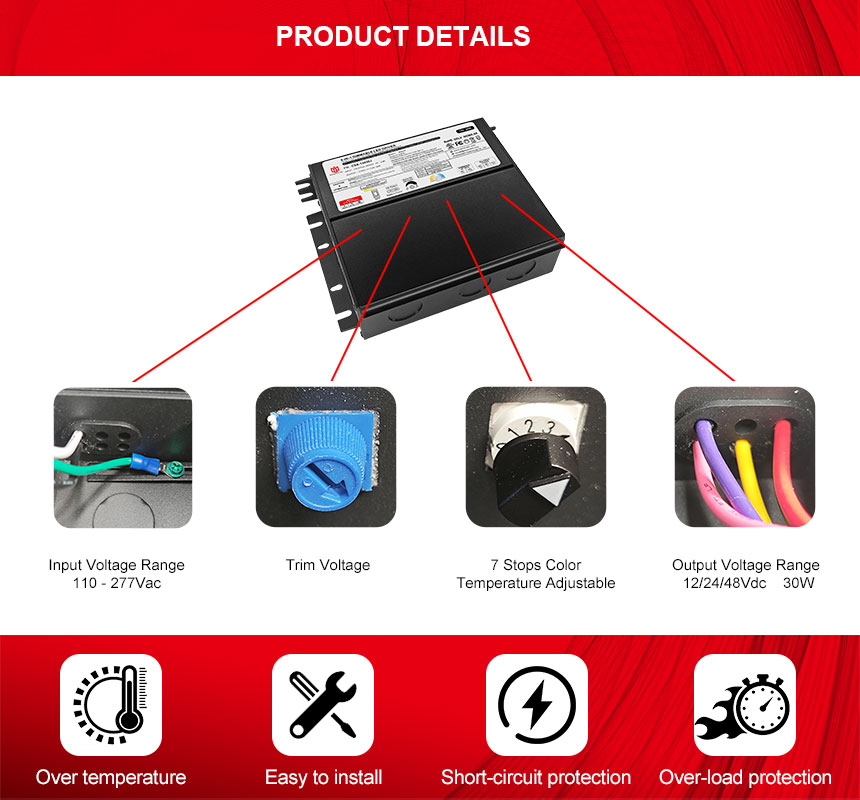

•Triac dim mode: Forward phase & reverse phase, MLV, ELV •7 stops adjustable color temperature(2700K-6500K). |

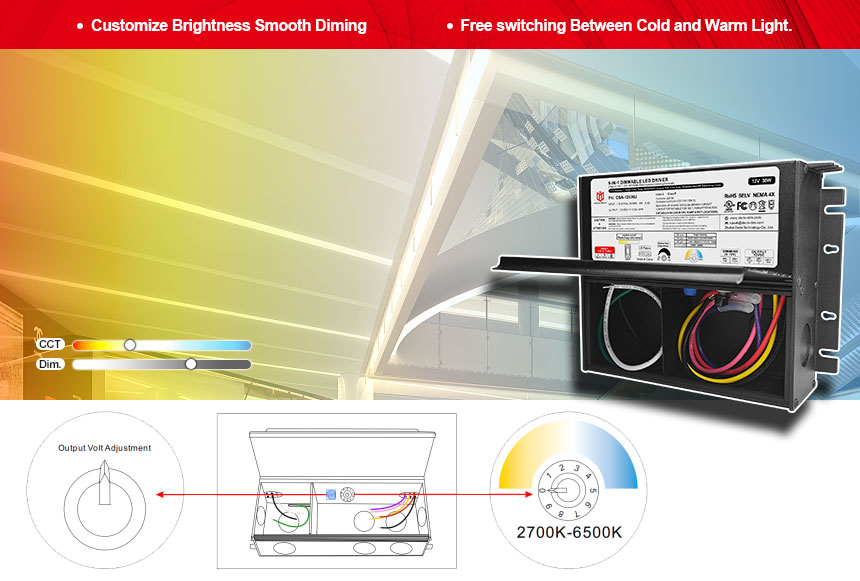

•CCT-Tunable: Press Dimmer ON/OFF button to change color temp.)Linear adjustment of color temperature |

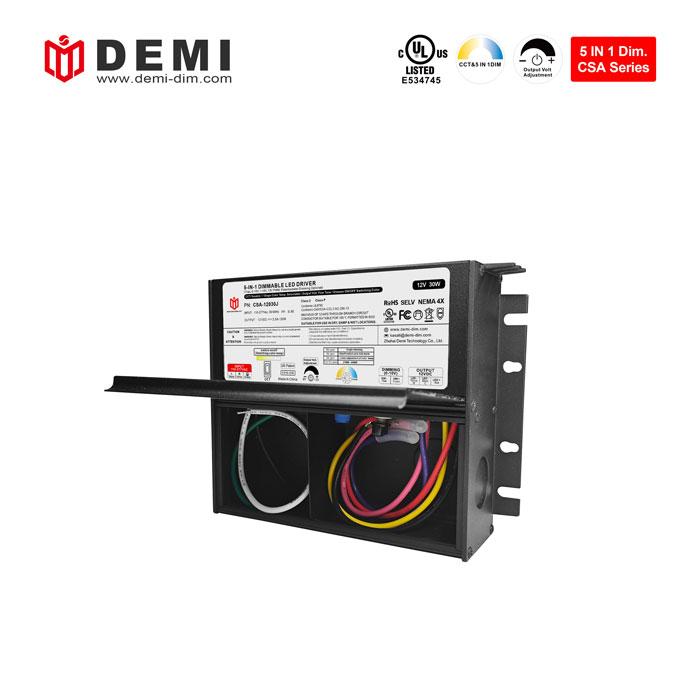

This CSA series dimmable constant voltage 24v 30W led driver has a small body and is easy and quick to install. The outer casing is designed with an aluminum shell and has passed the NEMA 4X standard and has good heat dissipation performance. The dimming range is from 0.1% to 100%, which is smooth and noise-free. There is no frequency or voltage during the dimming and coloring process. Comply with global safety lighting regulations
CSA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
30W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / |
Wiring Diagram
· Using Triac/MLV wiring diagram
· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
