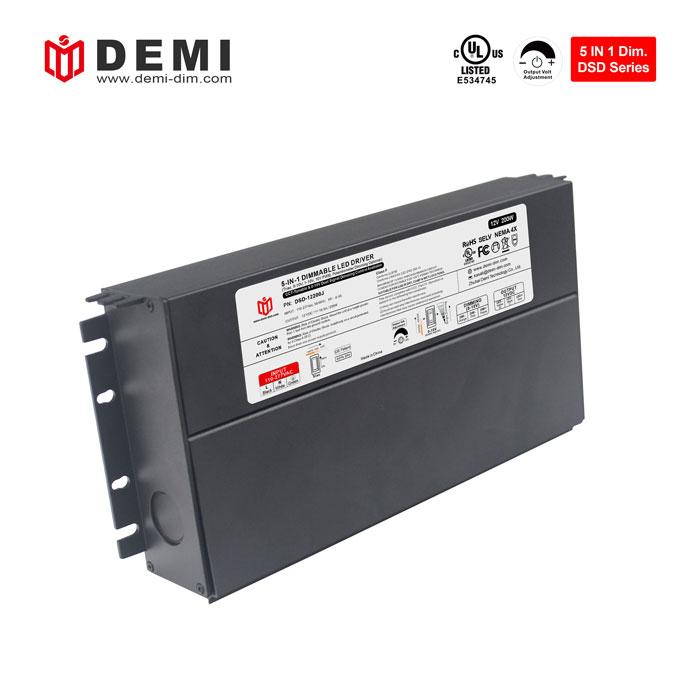

This 200W 0-10V dual signal dimming and color adjustment dimmable led driver PWM output mode can be customized with different output frequencies and has strong compatibility. It is almost compatible with the popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems, such as LTECH dimmers
Brand:
DEMIItem no.:
DSD-12200JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
200WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
258*120.5*42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years

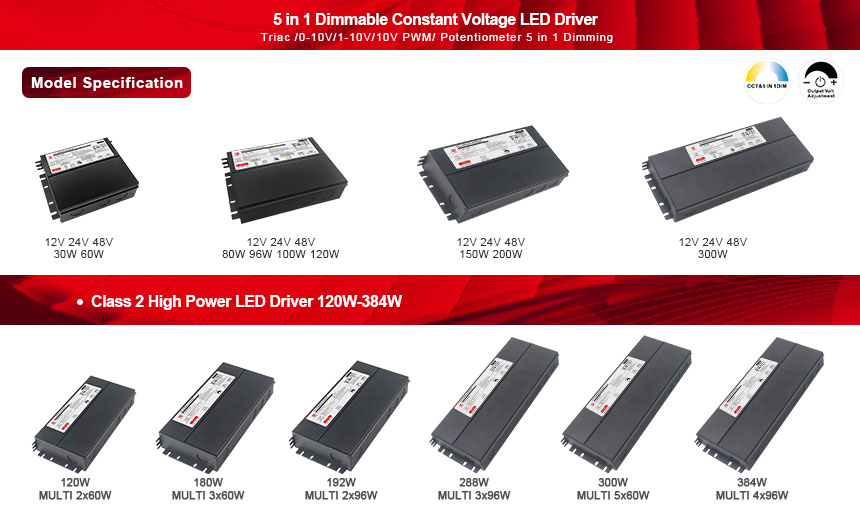

china 200W 12V CCT & triac/0 10v dimmable LED power supply strip lights driver manufacturers
DSD series 200W 12V/24V/48V 5 in 1 dimmable led driver is compatible with most dimmable systems on the market, provides stable voltage protection, and has an input voltage range of 110-277vac, making it a good match for single-channel LED lighting products. This product also doubles as its own junction box, is quick and easy to install and comes with a 5-year warranty
| Model Number | DSD-12200J | DSD-24200J | DSD-48200J |
| Output Type | |||
| Reted Power | |||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 16.6A | 8.33A | 4.16A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 2.06A | ||
| Inrush Current(Typ.) | 30A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

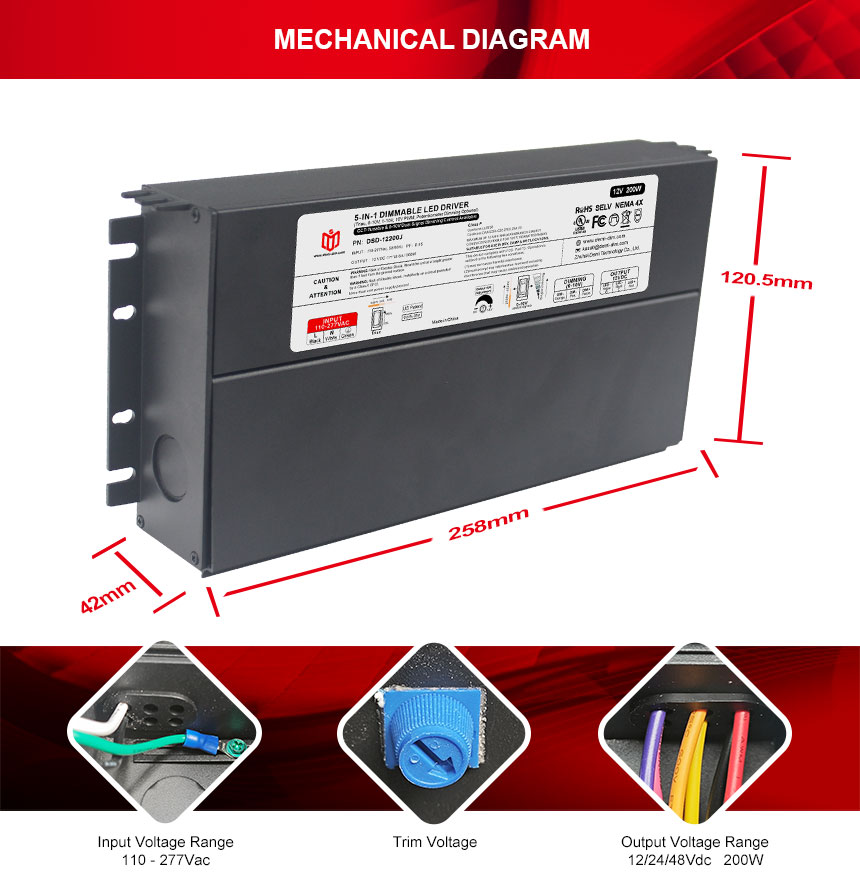

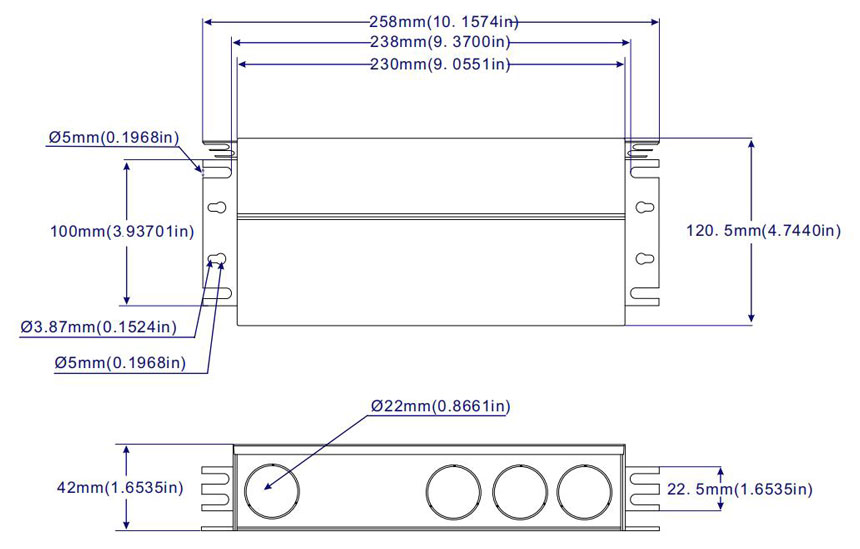

| Dimension | 258x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|

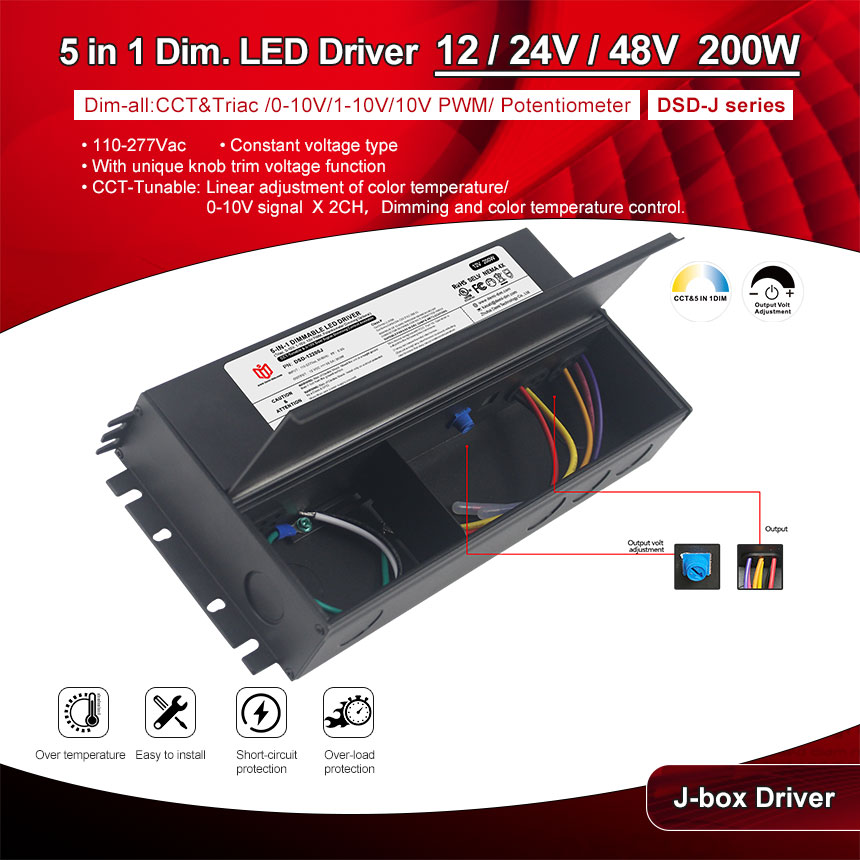

•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •CCT-Tunable: Linear adjustment of color temperature/0-10V signal |

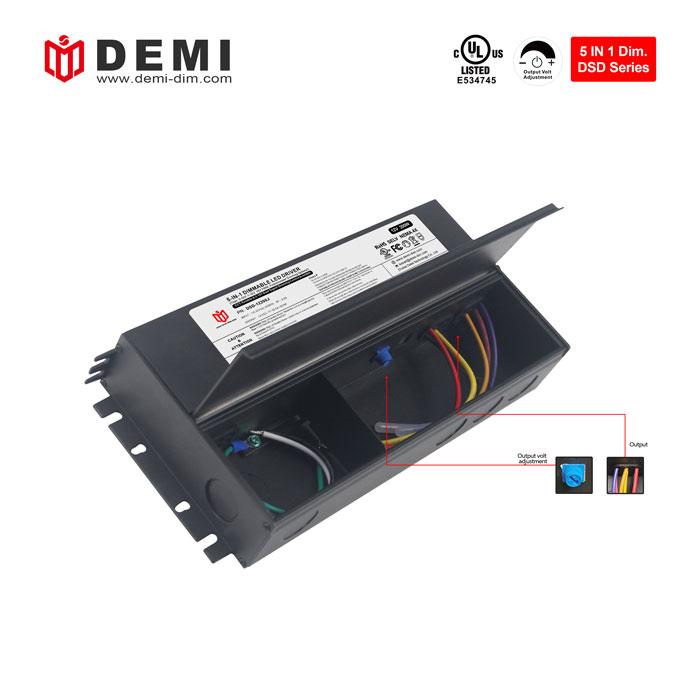

•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|
When using the DSD series 200W dimming LED driver for wiring, you need to ensure correct grounding to provide a stable and safe operating environment. You need to ensure that the LED driver can effectively dissipate heat to avoid performance degradation and damage caused by overheating. Sufficient space for heat dissipation needs to be provided. , and pay attention to choosing a good installation location. Please always refer to the product manual for installation operations to ensure correct and safe installation of the product.
| DSD-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 200W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | Dim- | Orange | 18AWG | |
Wiring Diagram

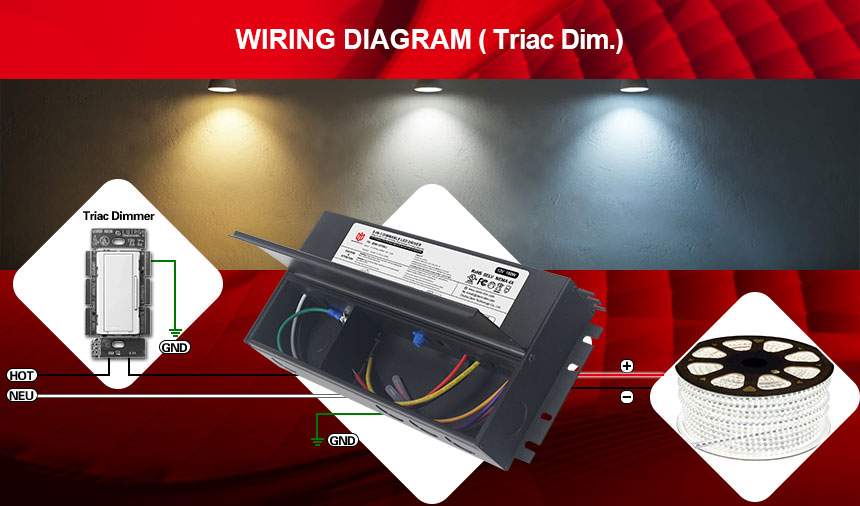

· Using Triac/MLV wiring diagram

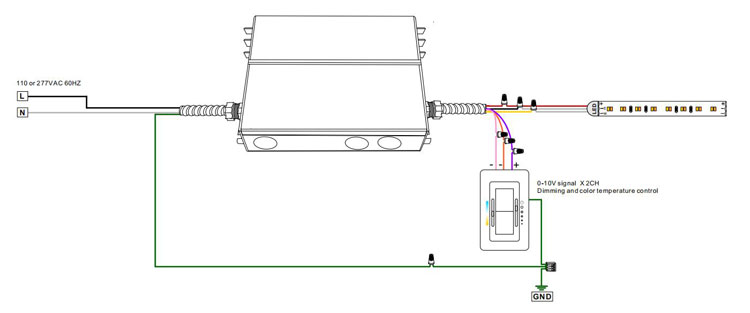

· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
