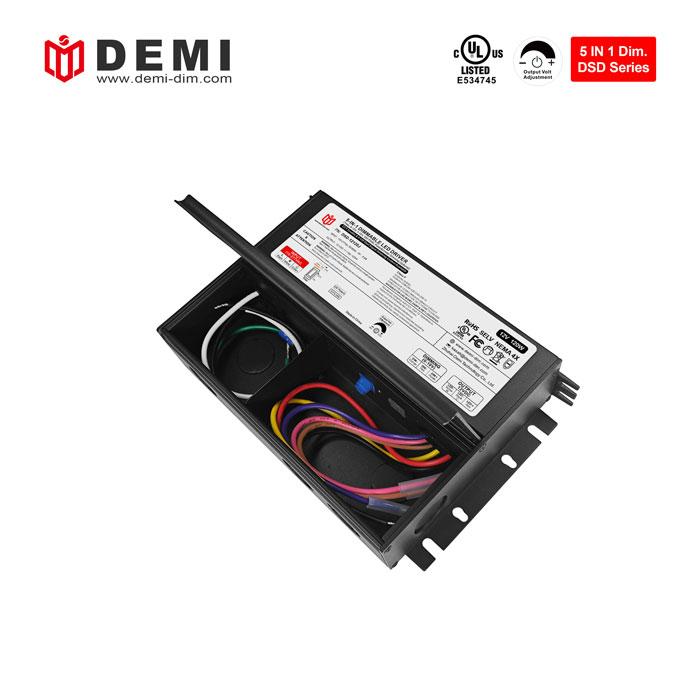

12V/24V/48V CCT & TRIAC & 0 10V dimmable led driver 120W PWM dimming mode, with a unique fine-tuning voltage function knob, which can compensate for the light attenuation of the lamp. It has strong compatibility and can be well connected with most dimmers on the market, such as Lutron dimmer.
Brand:
DEMIItem no.:
DSD-12120JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
120WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:

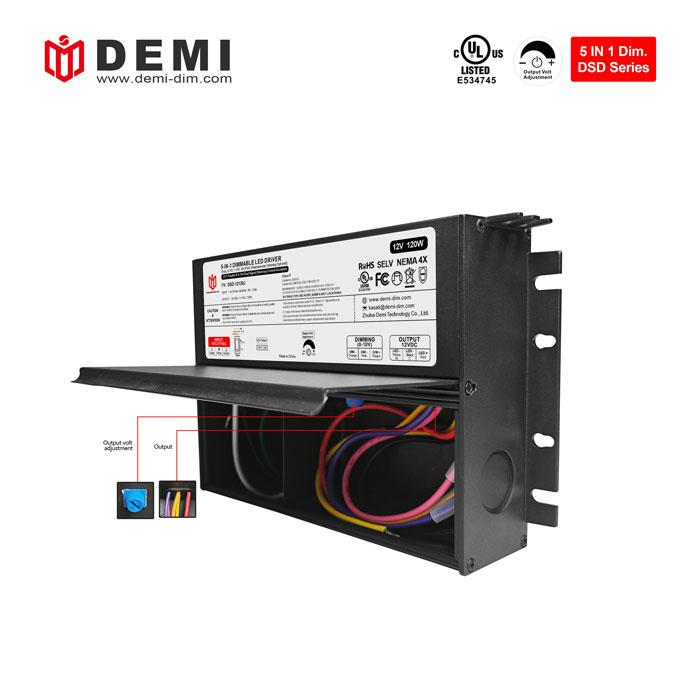

5 yearsUL listed CCT & 5 in 1 dimmable constant voltage 120W 12V LED power supply for led strip
This dual signal CCT Tunable 5 in 1 dimmable led driver 110-277vac universal input function, constant voltage operating mode, has ultra-low load requirements, can work perfectly under 10-100% load, 5-year warranty
Model Number | DSD-12120J | DSD-24120J | DSD-48120J |
Output Type | |||
Reted Power | |||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 10A | 5A | 2.5A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 1.25A | ||
Inrush Current(Typ.) | 27A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after load is removed over | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

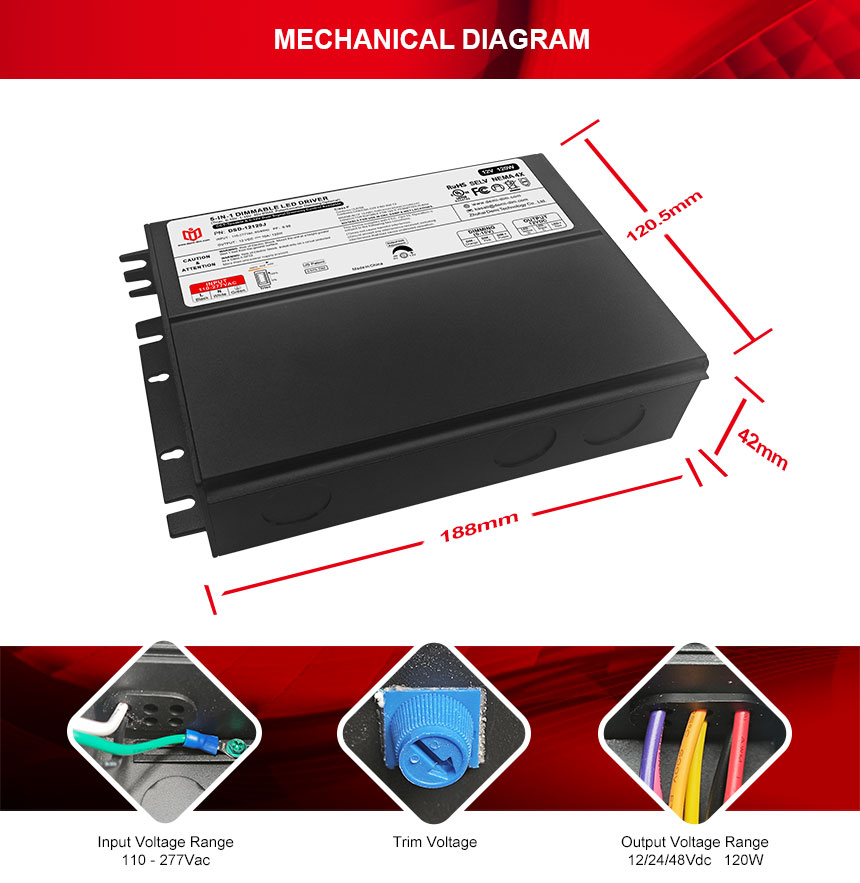

Dimension | 188x120.5x42mm (L*W*H) | ||
Packing | - |

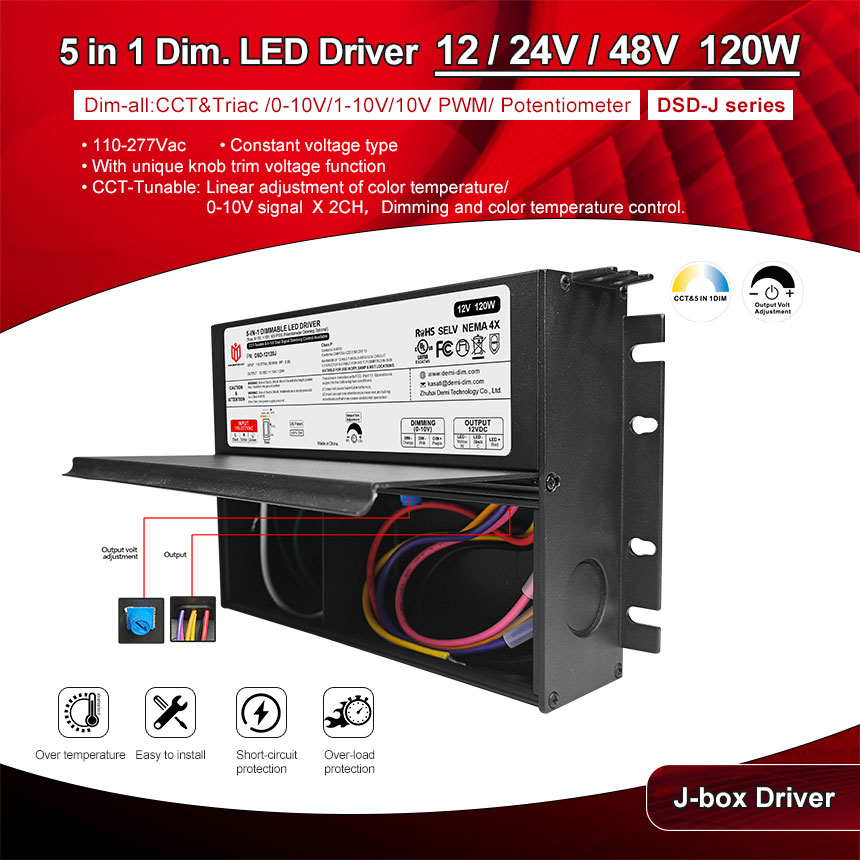

•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •CCT-Tunable: Linear adjustment of color temperature/0-10V signal |
•Exclusive patent design of “Clamshell” junction box(Fixed without screws) •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|
When choosing a DSD series led power supply, users need to choose a suitable dimmable led driver based on the actual use of the lamp. Make sure that the selected LED power supply meets the power requirements and dimming mode of the LED lamp. When wiring, you need to follow the instructions for use to ensure safe and reliable wiring. service life and dimming effect
DSD-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
120W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG | Dim- | Orange | 18AWG |

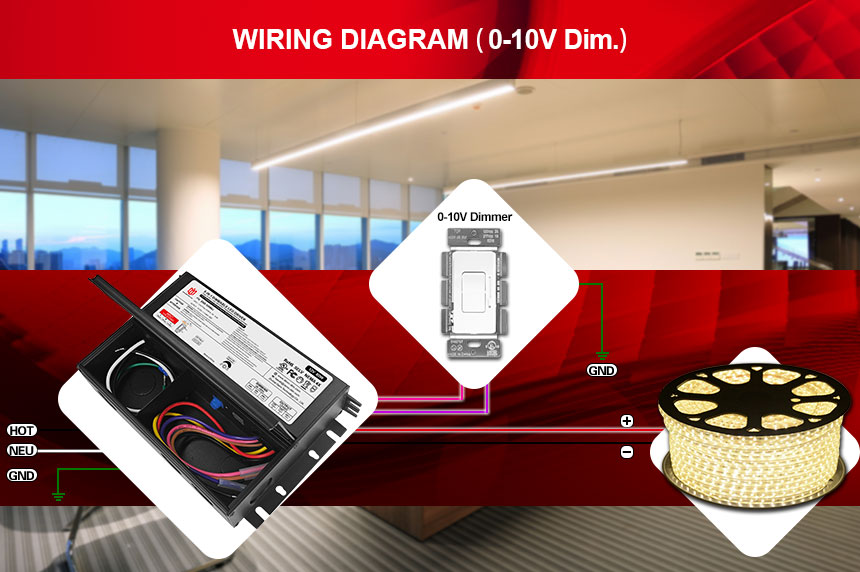

Wiring Diagram
· Using Triac/MLV wiring diagram
· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
