The 288W HZA series dimmable led driver has a built-in 9-level switchable output frequency knob function, ranging from 250-20KHZ to meet the use of lamps with special frequency requirements. It has strong compatibility and is almost compatible with the popular front and rear edge thyristor dimmers and 0 10v dimmers on the market, such as BESTTEN dimmers.
Brand:
DEMIItem no.:
HZA-H24288JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
288WOutput Voltage:
24VdcShape & Size:
J-box DriverSize:
316x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years

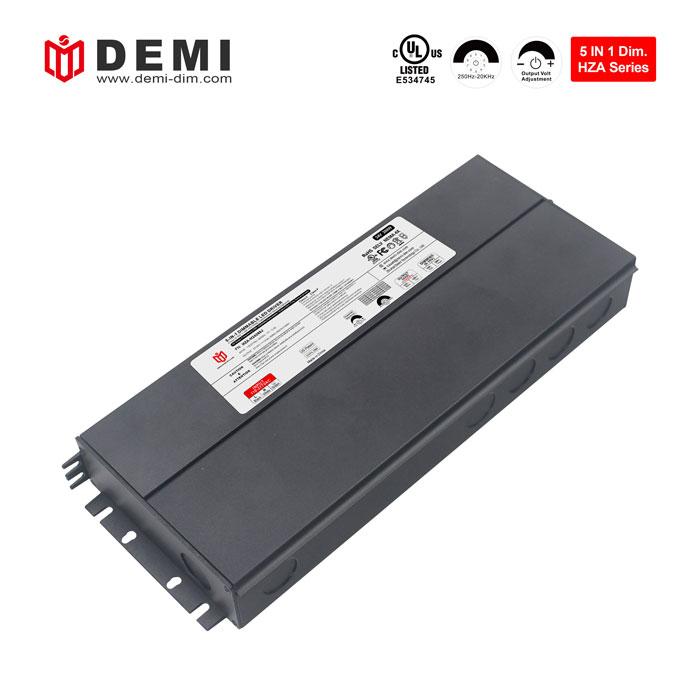

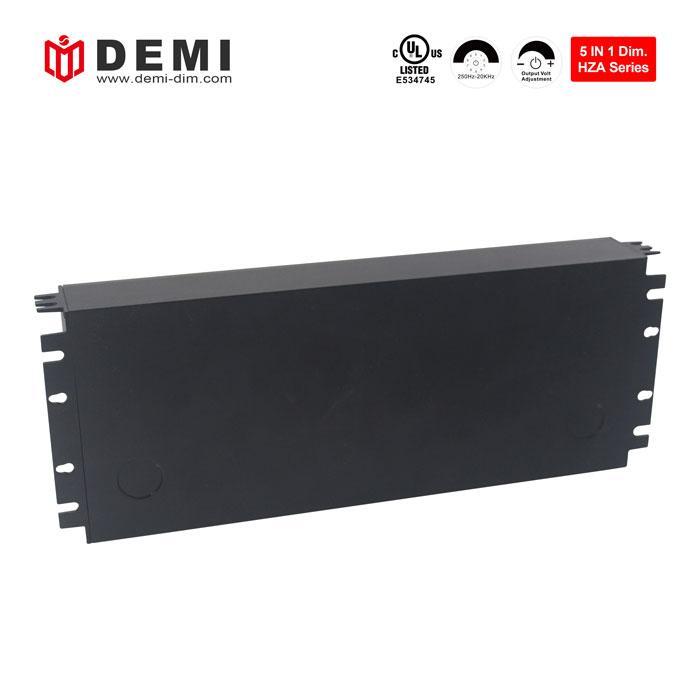

UL Certification 24v 288W constant voltage 5 in 1 dimmable class 2 led light strip driver
PWM output mode 288W triac & 0 10v dimmable led driver constant voltage working mode, passed UL Class 2 certification, suitable for single-channel LED light strips, has three outputs, can provide stable power to three light strips at the same time, complies with global safety Lighting Rules, 5 Year Warranty
| Model Number | HZA-H24288J |
| Output Type | |
| Reted Power | 288W(3CH*96W) |
| Reted Voltage | 24V |
| Reted Current | 3CH*4A |
| Voltage Tolerance | ±0.5V |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±1% |
| Input Type | |
| Voltage Range | 110-277V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 91%@120VAC 92%@277VAC |
| Total Harmonic Distortion | THD< 15%(@100% load) |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC |
| AC Current(Typ.) | 2.97A |
| Inrush Current(Typ.) | 35A |
| Leakage Current | <0.5mA |
| PROTECTION | |
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 |
| Withstand voltage | I/P-O/P:1.88KVAC |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH |
| EMC Emission | Compliance to FCC part 15 Subpart B |
| OTHERS | |

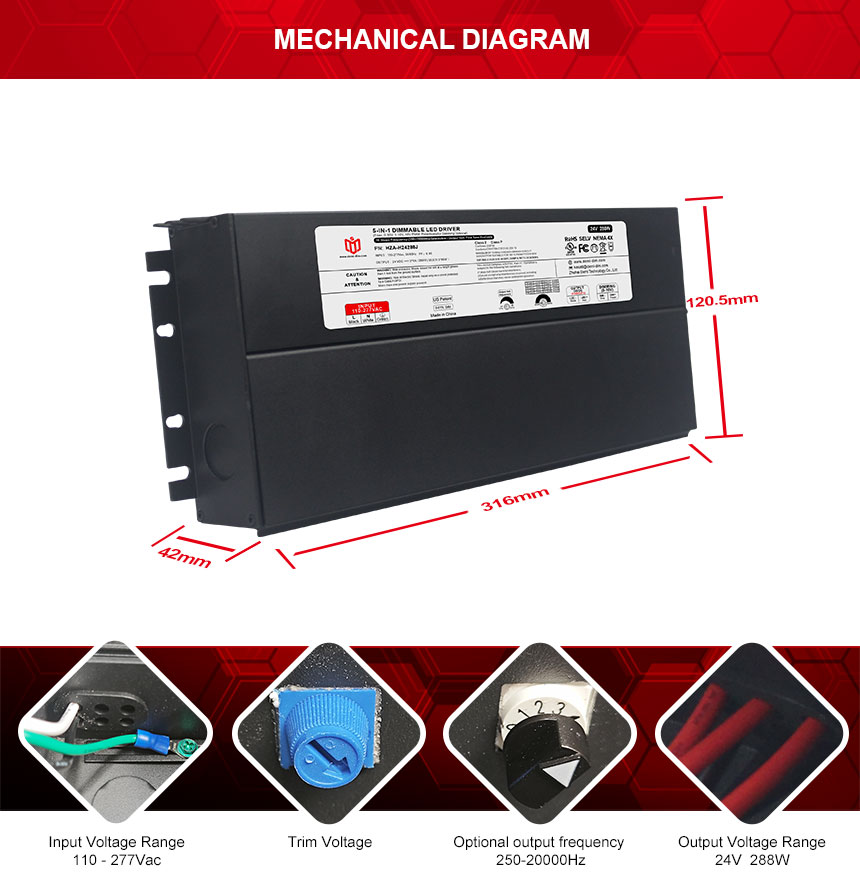

| Dimension | 316x120.5x42mm (L*W*H) |
| Packing | - |
|

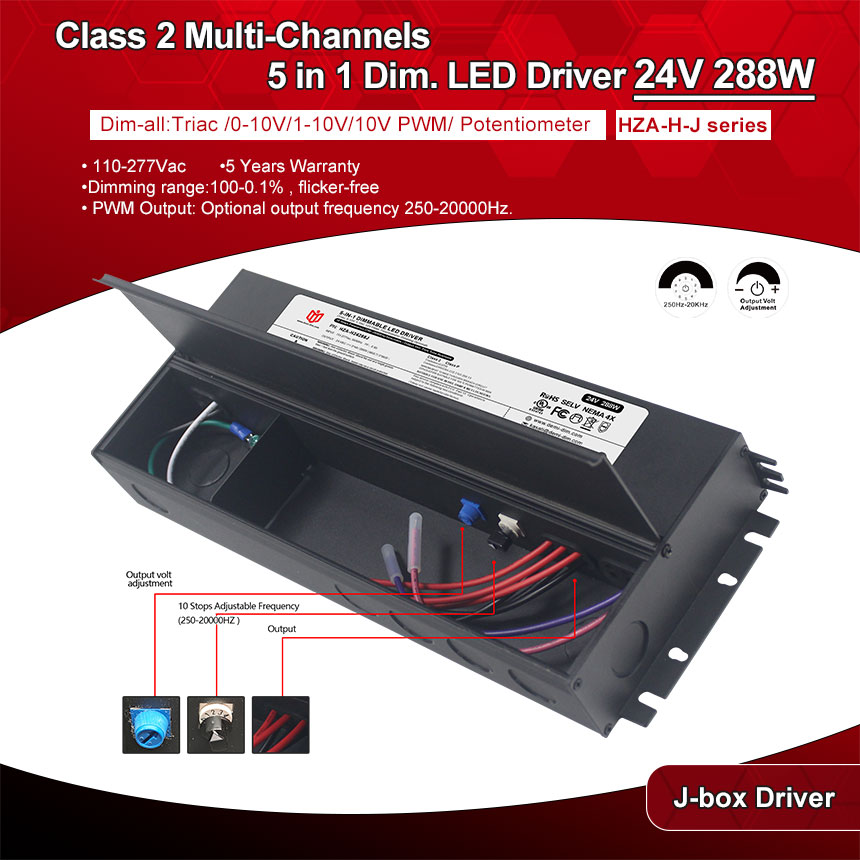

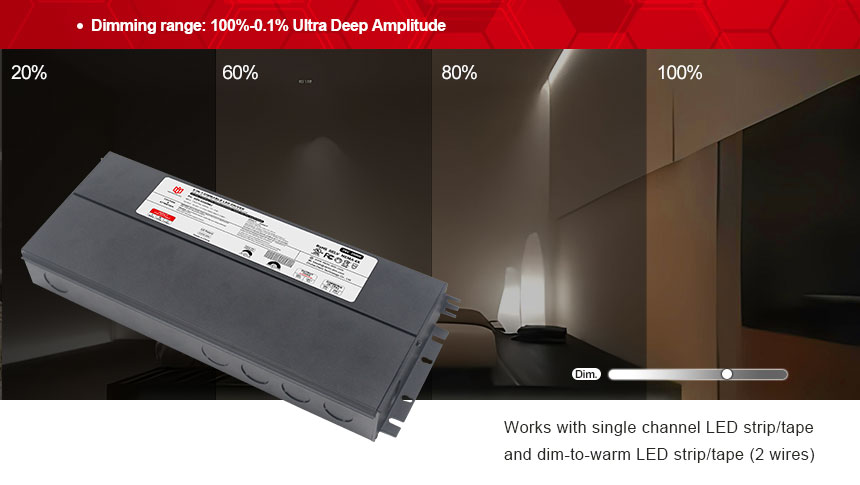

•Dimming range: 100%-0.1% Ultra Deep Amplitude •Build in active PFC, typical power factor>0.95 |
•Dim-all: Triac/0-10V/1-10V/10VPWM/Potentiometer. •Triac dim mode: Forward phase & reverse phase, MLV, ELV
|

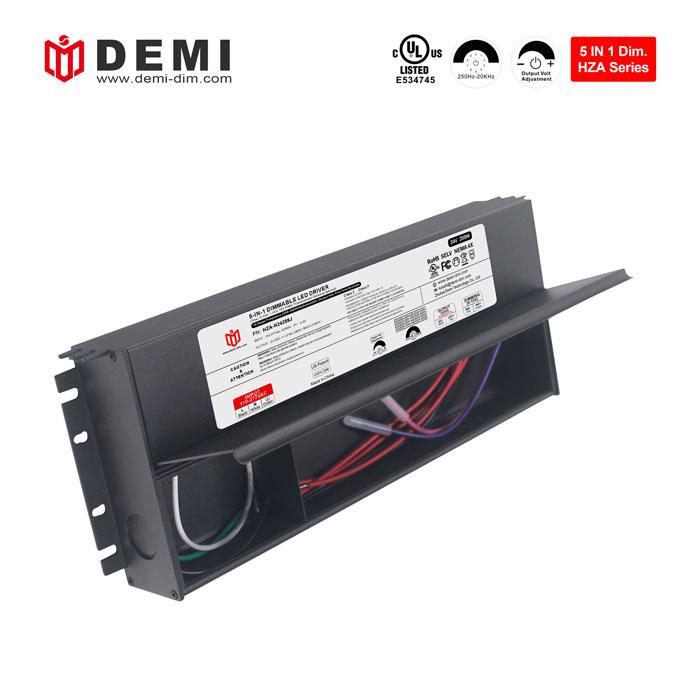

HZA series Class 2 5 in 1 dimmable led driver This LED driver complies with Class 2 power supply standards and has 3 independent output channels. It can provide stable power for multiple LED lamps at the same time. This design can easily connect and control multiple groups of LEDs. Lamps for more flexible lighting effects. Suitable for commercial and office environments, used with constant voltage input spotlights, lamp cups, and magnetic track lights.
| HZA-H-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
288W (MULTI 96W * 3) |
AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram

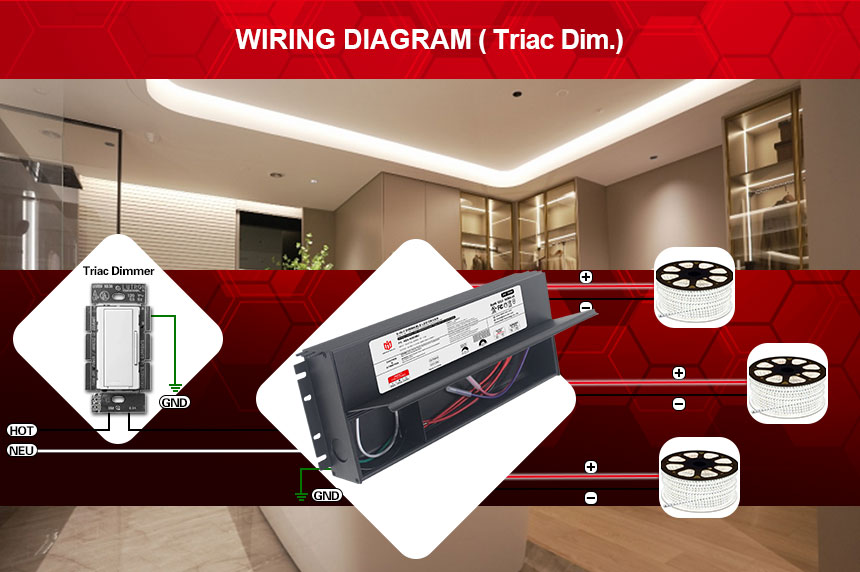

· Using Triac MLV wiring diagram

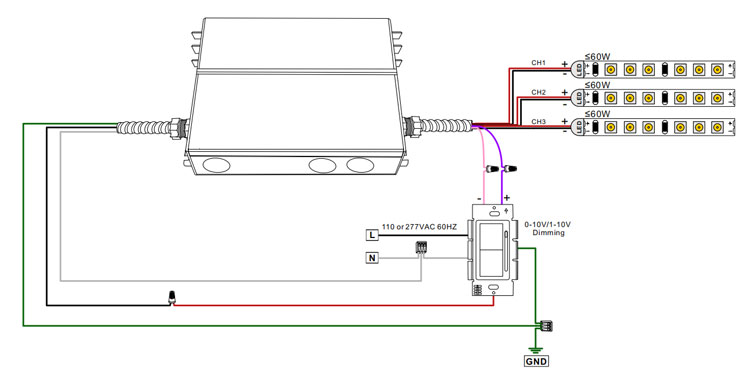

· Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
