DM SHA-J series 5 in 1 dimmable led power supply 120W has a dimming range of 0.1~100%. It has a built-in fine-tuning voltage function knob. The dimming performance is as good as Magnitude Lighting's 120W dimmable led driver. It has a 5-year warranty
Brand:
DEMIItem no.:
SHA-24120JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
120WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years
24v 120w CCT & triac/0 10v dimmable led driver power supply Junction Box
Constant voltage 120w 24v CCT & 5 in 1 dimmable led driver has switch color temperature function, which can meet the needs of dimming and color adjustment using traditional switch dimmers. PWM output mode. It has ultra-low load requirements and can work perfectly under 10-100% load.
| Model Number | SHA-12120J | SHA-24120J | SHA-48120J |
| Output Type | |||
| Reted Power | 120W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 10A | 5A | 2.5A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 1.25A | ||
| Inrush Current(Typ.) | 27A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

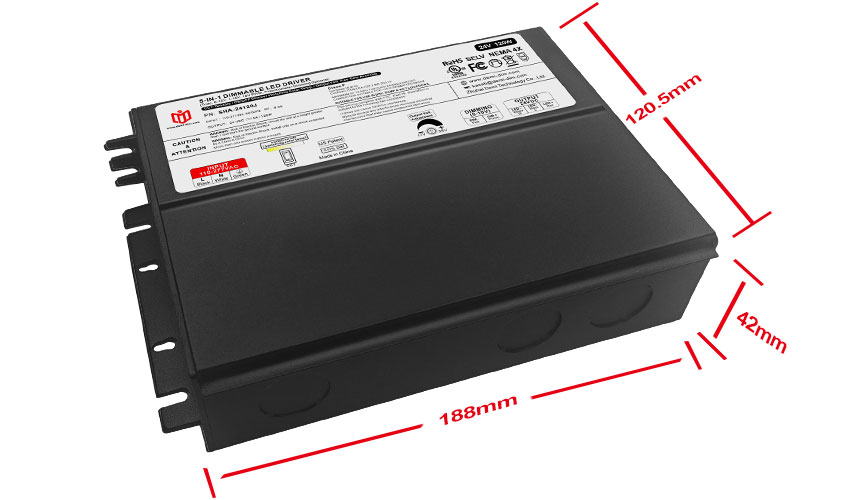

| Dimension | 188x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|

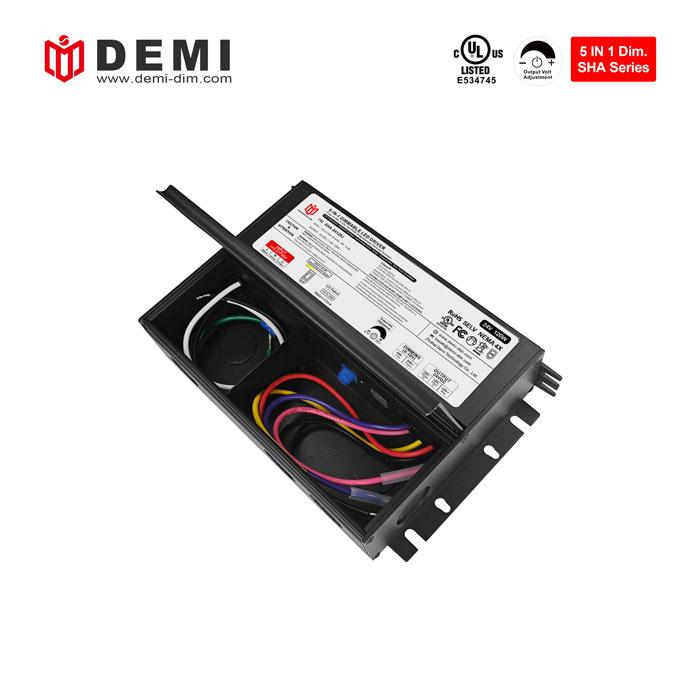

•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •CCT-Tunable: switch on/off (Switching color temp). |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Dimming range: 100%-0.1% Ultra Deep Amplitude
|
| SHA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 120W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / | |

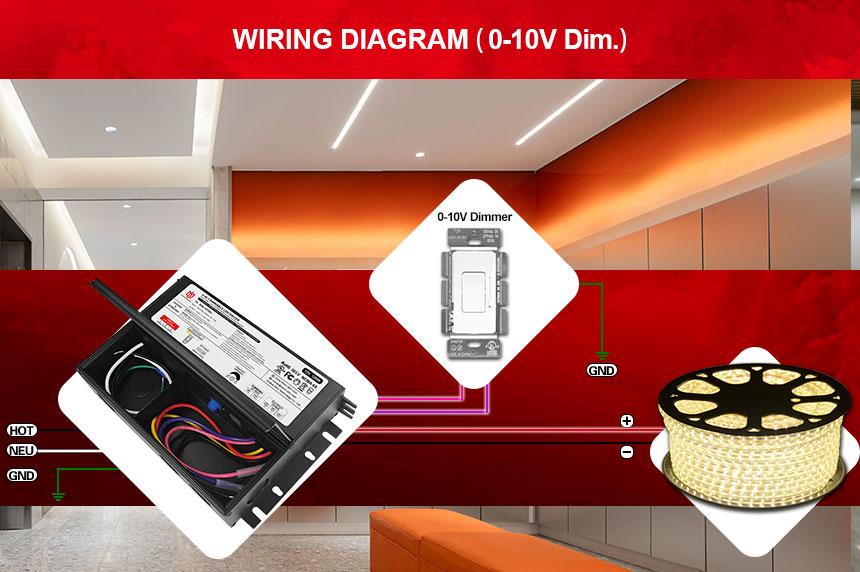

Wiring Diagram
Works with Two channel CCT warm-dim LED strip/tape (3 wires)
· Using Triac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
Tags :
This new product 5 in 1 dimmable led power supply has an input voltage of 110-277vac and a constant voltage output mode. It is compatible with popular front and rear thyristor dimmers and systems, and 0-10V dimmers and systems on the market. Such as Lutron dimmer
SHA series 60W 5 in 1 dimmable led driver is designed to be integrated with the junction box. It is small in size and easy to install. It can be well compatible with AQ Lighting's 60W LED strip to achieve smooth and flicker-free dimming.
UL certified 80W dimmable constant voltage LED driver with built-in active PFC function, power factor >0.95, aluminum housing design, easy installation, compatible with popular front and rear thyristor dimmers and systems, 0-10V dimmers and system. , such as Lutron dimmer
UL certification 96W dimmable led driver is designed with an integrated junction box, universal input voltage of 110-277vac, constant voltage output mode, and is well compatible with STASUN's 96W LED floodlight to achieve smooth flicker-free dimming.
CCT & triac/0 10v dimmable 120W led driver 110- 277VAC input voltage mode, dimming range 100%-0.1%, built-in active PFC function, power factor >0.95, aluminum shell design, good heat dissipation, 5-year warranty
SHA series CCT & 5 in 1 dimmable led driver 150W PWM output mode can customize different frequency products according to user needs. Strong compatibility, compatible with almost all popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems on the market, such as Leviton dimmer
200W CCT & 5 in 1 dimmable led driver SHA series products have a color temperature switching function, which can meet the requirements of users using traditional switches for dimming and coloring functions. It has strong compatibility and the dimming effect is as good as Magnitude Lighting’s 200W dimmable led driver.
CCT triac & 0-10V 5 in 1 dimmable LED driver 300W 250-20000Hz customizable frequency With unique knob trim voltage function
