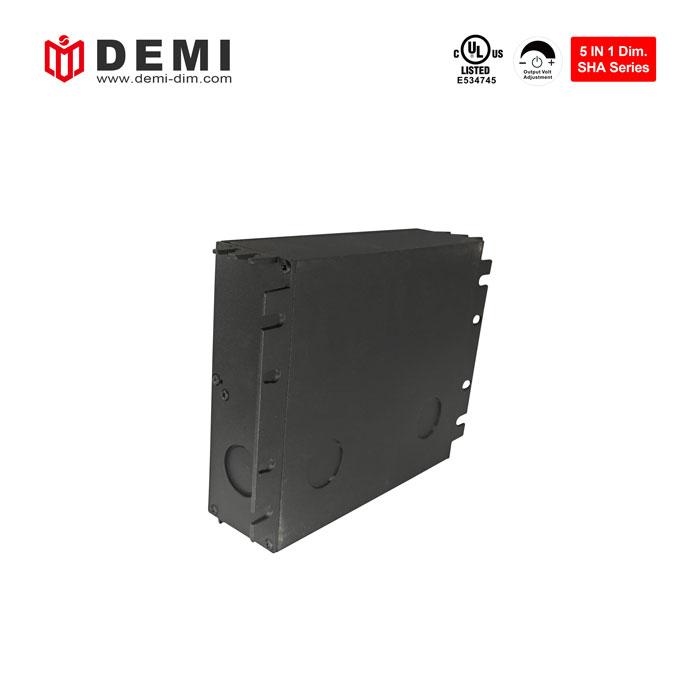

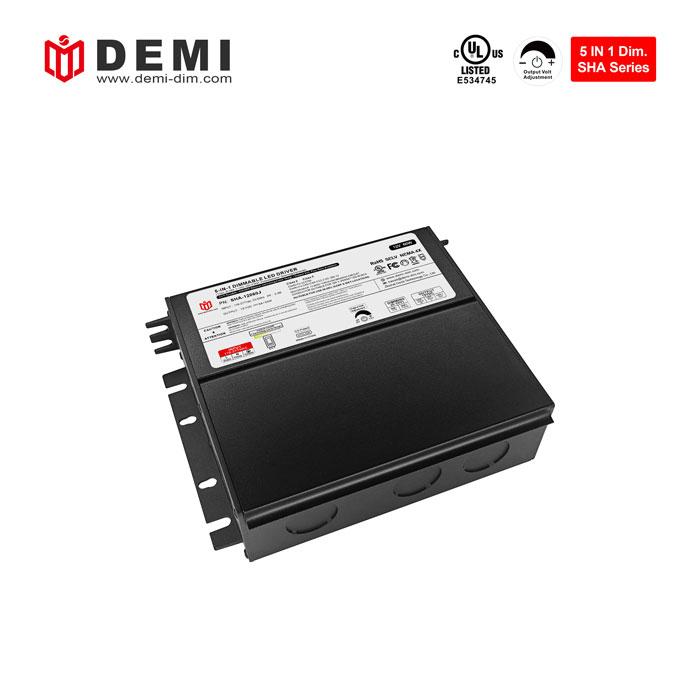

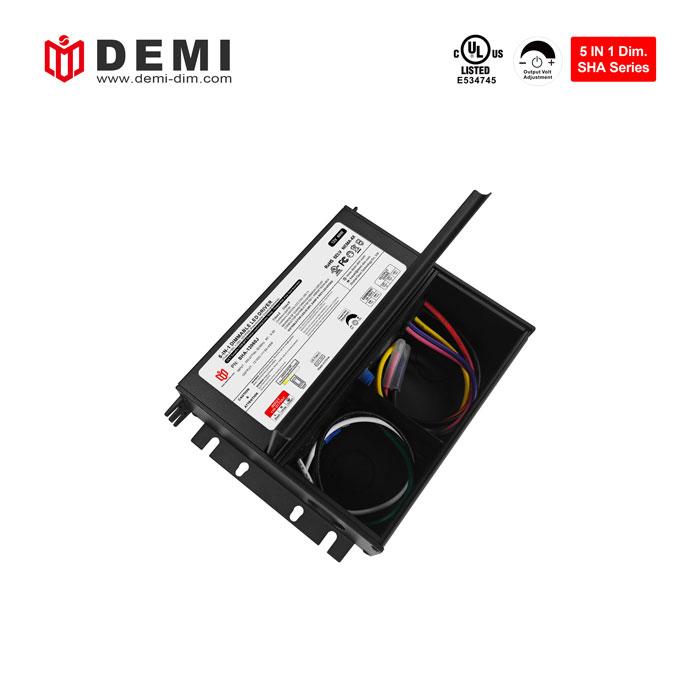

SHA series 60W 5 in 1 dimmable led driver is designed to be integrated with the junction box. It is small in size and easy to install. It can be well compatible with AQ Lighting's 60W LED strip to achieve smooth and flicker-free dimming.
Brand:
DEMIItem no.:
SHA-12060JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
60WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
158*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years24v 30w triac & 0 10v dimmable constant voltage led driver power supply
277vac input voltage triac & 0 10v dimmable led driver power supply 12v 60w constant voltage working mode, built-in active PFC function, with ultra-low load requirements, can work perfectly under 10%-100% load, 5-year warranty
Model Number | SHA-12060J | SHA-24060J | SHA-48060J |
Output Type | |||
Reted Power | 60W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 5A | 2.5A | 1.25A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 87%@120VAC 88%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 0.65A | ||
Inrush Current(Typ.) | 20A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
Withstand voltage | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

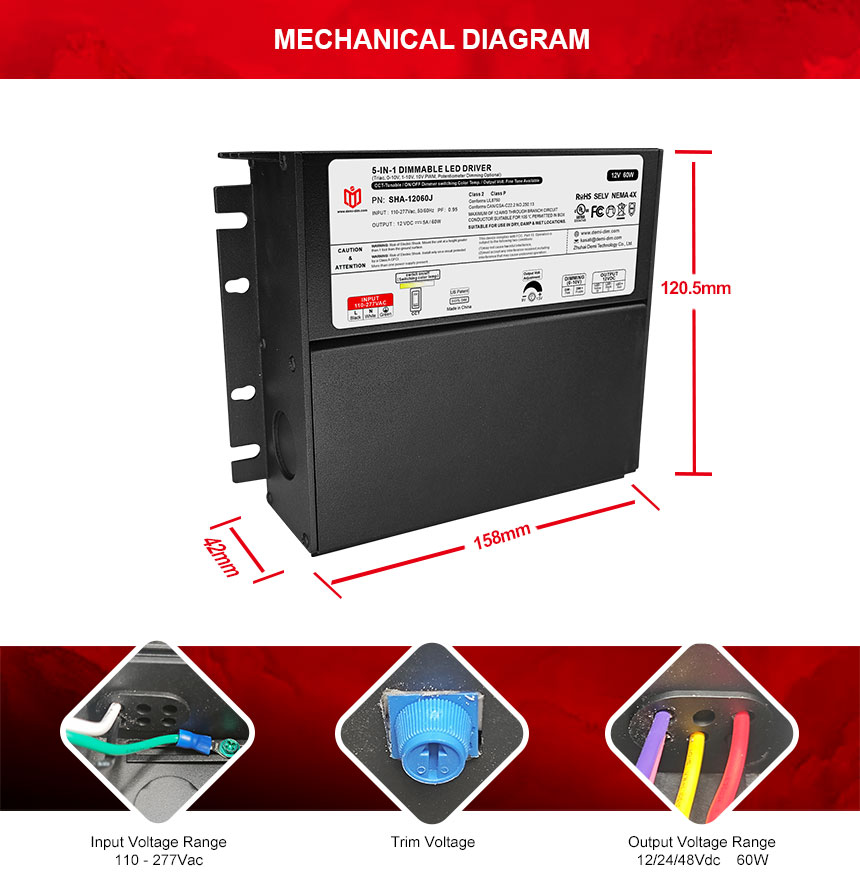

Dimension | 158x120.5x42mm (L*W*H) | ||
Packing | - |
•Exclusive patent design of “Clamshell” junction box(Fixed without screws) •CCT-Tunable: switch on/off (Switching color temp). |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Dimming range: 100%-0.1% Ultra Deep Amplitude
|
This SHA series dimmable led driver, with constant voltage working mode, uses advanced technology and high-quality components to ensure efficient and stable power supply for lamps. In addition, this drive is easy and quick to install, has an aluminum housing design, good heat dissipation, and a 5-year warranty.
SHA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
60W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / |

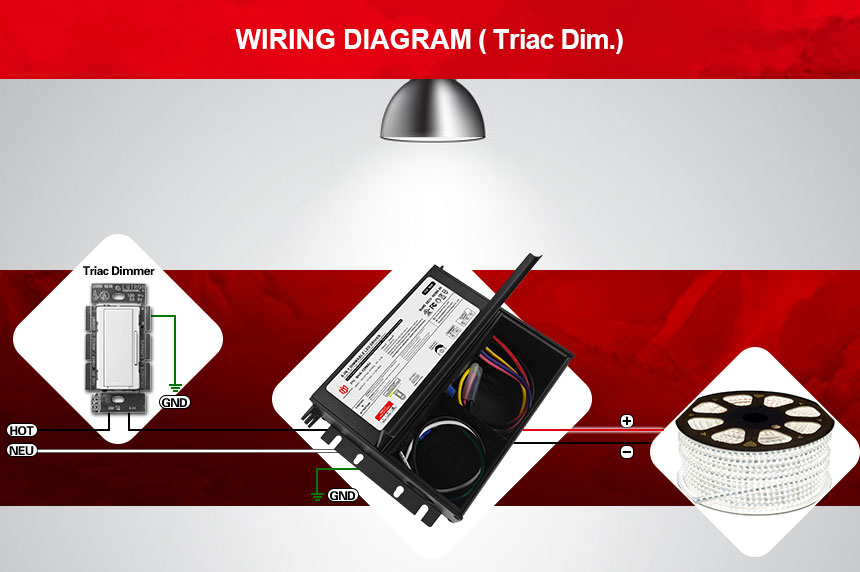

Wiring Diagram
