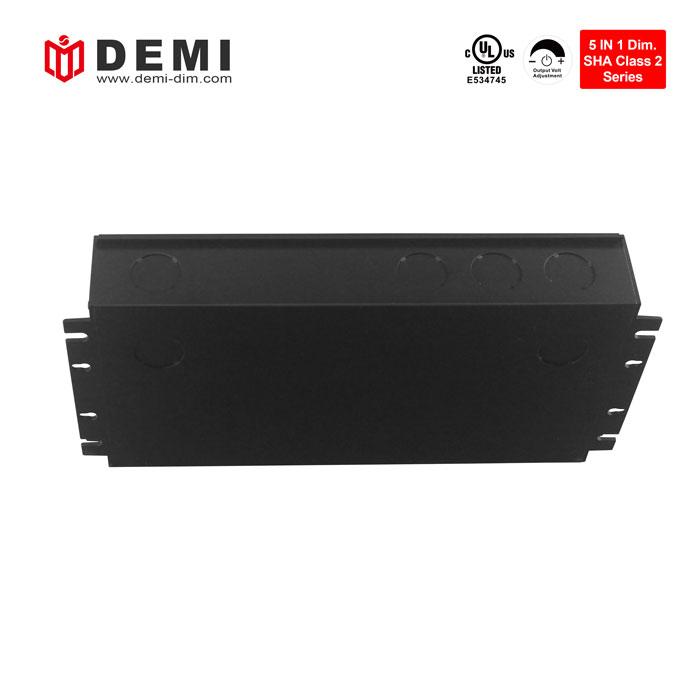

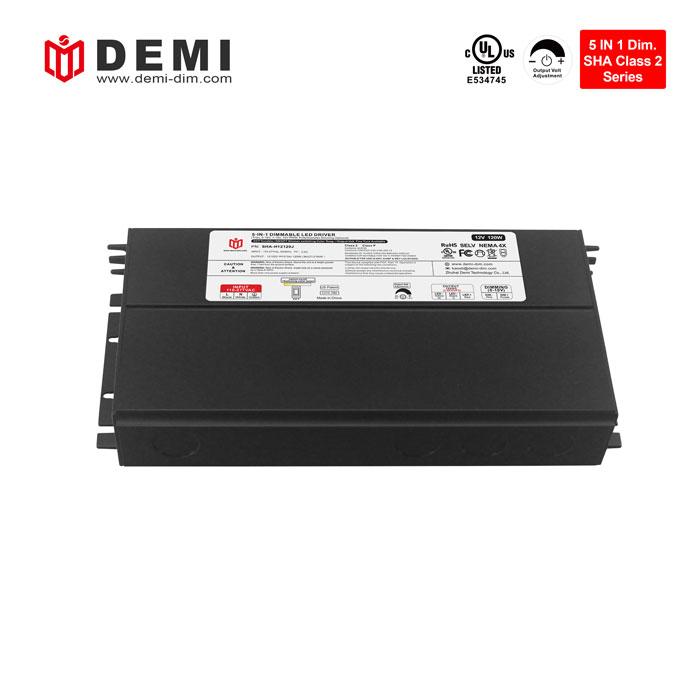

SHA series 120W CCT & 5 in 1 Dimmable led driver has a built-in fine-tuning voltage function knob, which can adjust a certain brightness when not connected to a dimmer, and can switch between three color temperatures through a switch. It has strong compatibility and is well compatible with popular front and rear thyristor dimmers and systems, as well as 0-10V dimmers and systems on the market, such as INSTEON.
Brand:
DEMIItem no.:
SHA-H12120JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
120WOutput Voltage:
12VdcShape & Size:
J-box DriverSize:
258x120.5x42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years

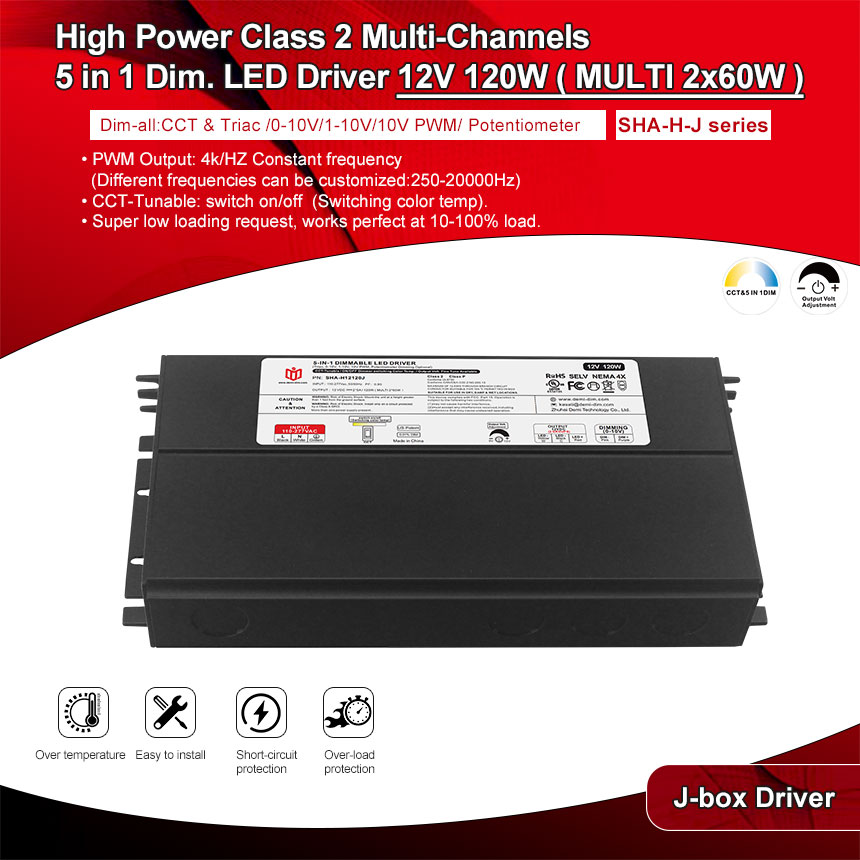

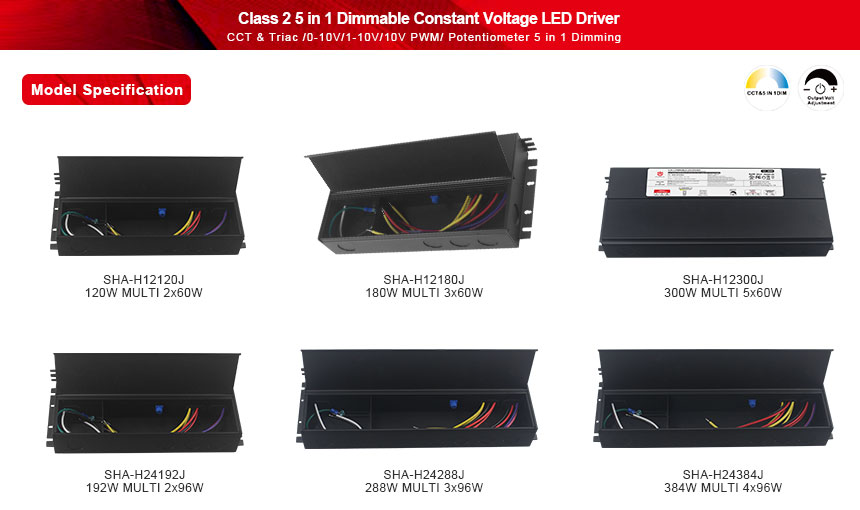

Class 2 CCT & triac/0 10v dimmable 12V 120W led strip light driver power supply
This CCT 120W Dimmable led driver adopts PWM output mode, which can operate at a constant frequency of 4K/HZ, and can customize different frequencies at 250-20000HZ according to user needs. Ultra-low load requirements, able to work perfectly under 10-100% load
| Model Number | SHA-H12120J | |
| Output Type | ||
| Reted Power | 120W(MULTI 60W * 2) | |
| Reted Voltage | 12V | |
| Reted Current | 2CH*5A | |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 1.25A | |
| Inrush Current(Typ.) | 27A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

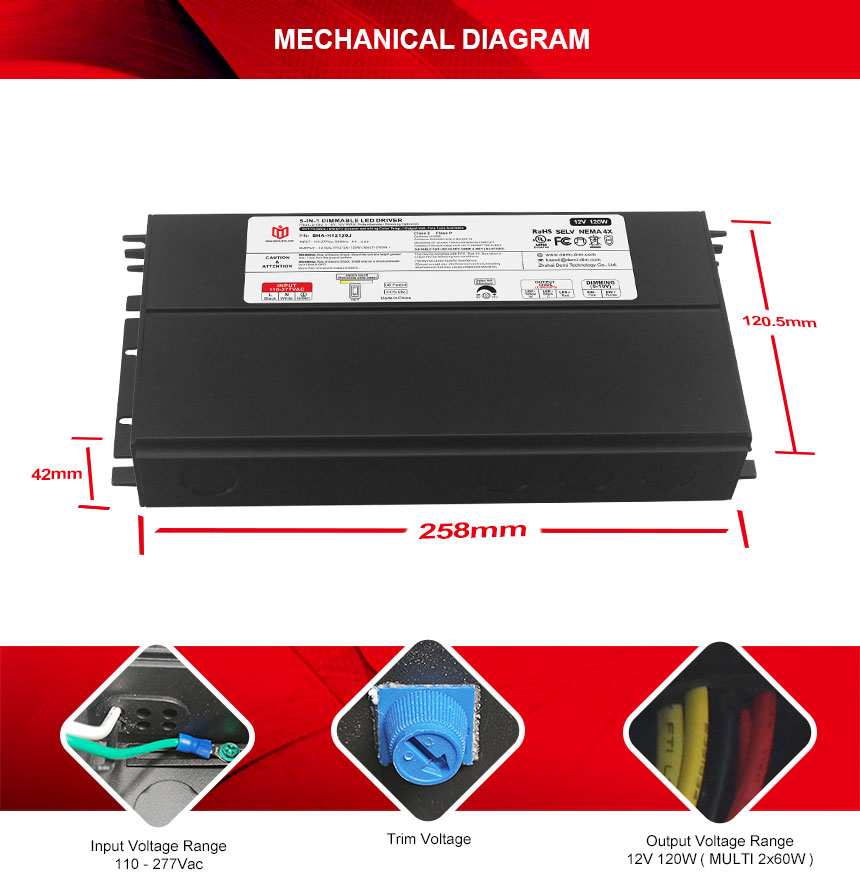

| Dimension | 258x120.5x42mm (L*W*H) | |
| Packing | - | |

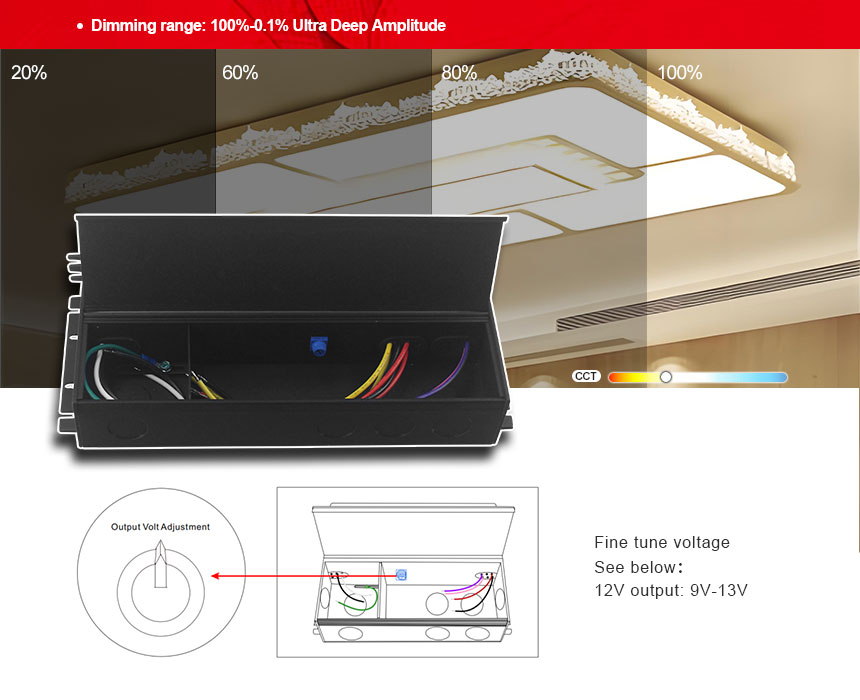

SHA series 120W 12V 5 in 1 dimmable led power supply. The dimmable mode is PWM mode, constant voltage operating mode, and the dimming range is 0.1%-100%. Aluminum shell, good heat dissipation, can be used in high-end hotels and villas, used with LED flexible light strips/hard light strips
|
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Build in active PFC, typical power factor>0.95, THD<10%@120V Max. Load. •Works with two channel CCT warm-dim LED strip/tape (3 wires) |

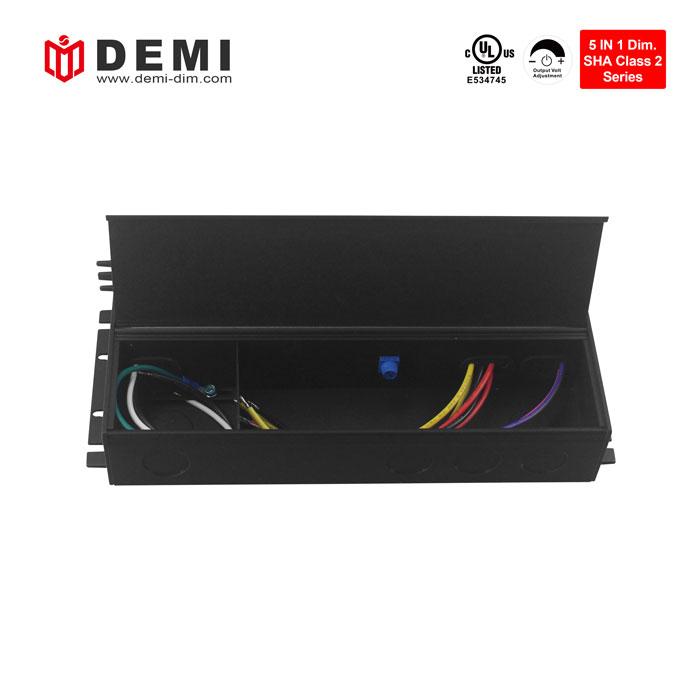

•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •Build in active PFC, typical power factor>0.95, THD<10%@120V Max. Load.
•CCT-Tunable: switch on/off (Switching color temp). |
| SHA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
120W (MULTI 60W*2) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*2 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*2 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG*2 | / | / | / | |

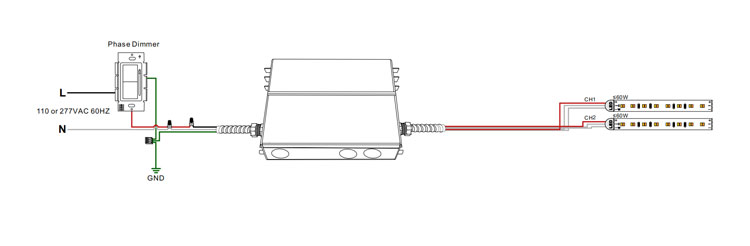

Wiring Diagram

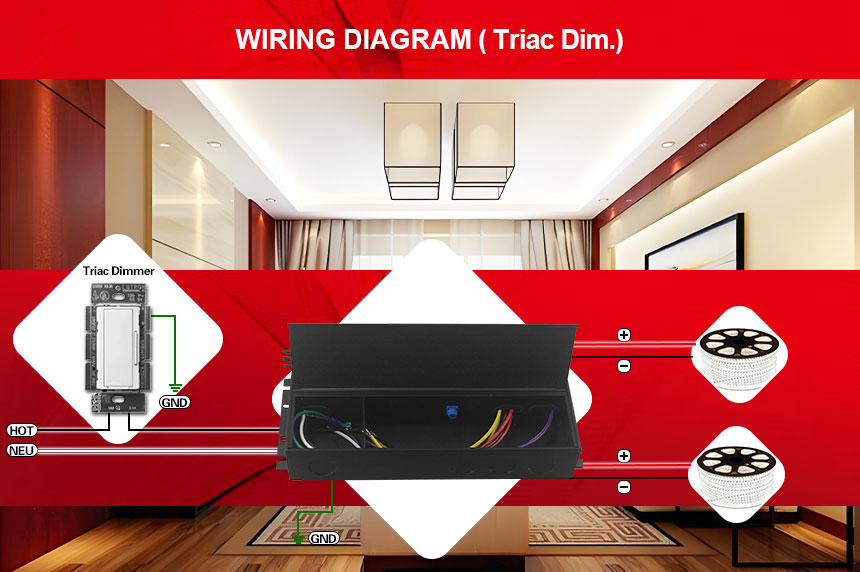

· Using Triac MLV wiring diagram

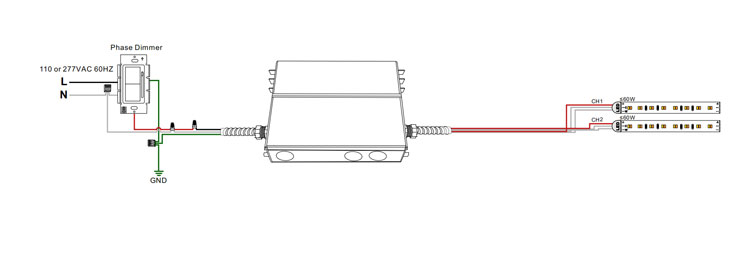

· Using Triac ELV wiring diagram
