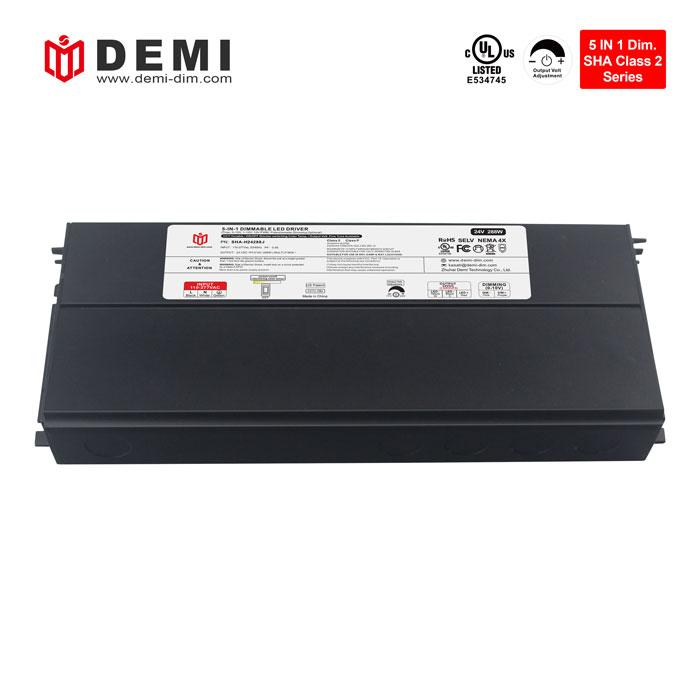

110-277vac universal input voltage 288W dimmable led driver is Class 2 standard, constant voltage operating mode, with built-in fine-tuning voltage function knob. Strong compatibility, dimming effect is as good as Inventronics dimmable led driver
Brand:
DEMIItem no.:
SHA-H24288JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
288WOutput Voltage:
24/48VdcShape & Size:
J-box DriverSize:
316x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years

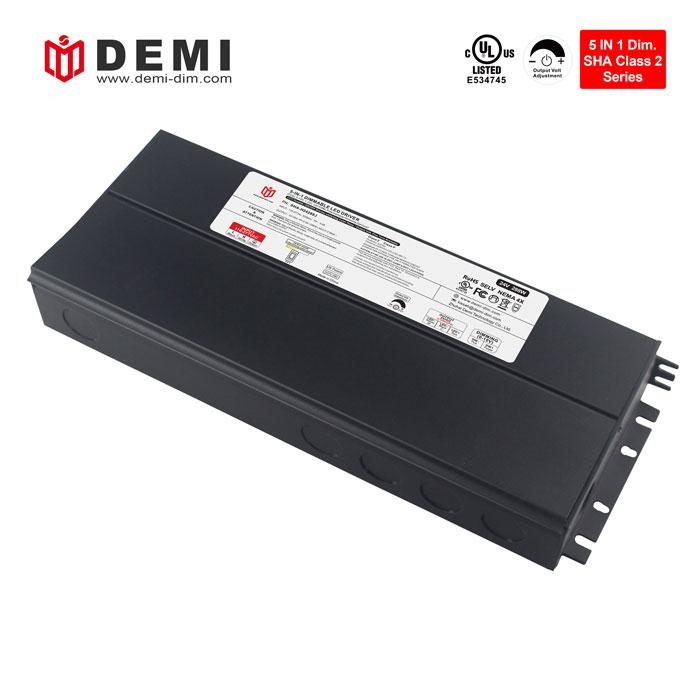

24v/48v triac & 0 10v dimmable constant voltage led light strip driver 288w
This SHA series 288W dimmable led power supply is PWM output and can be customized with different frequencies between 250-20KHz. The exclusive patented design "Clamshell" junction box makes installation easy and fast. Comply with global safety lighting regulations, UL certified, mainly sold to North America

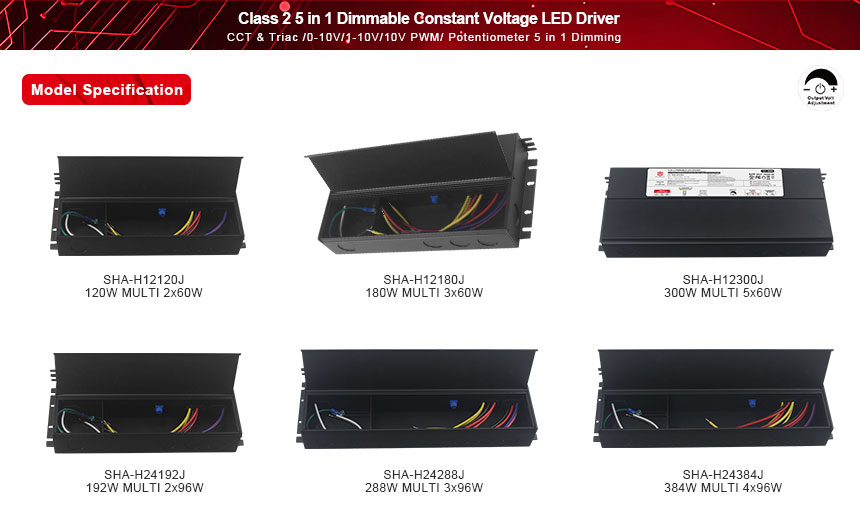

| Model Number | SHA-H24288J | SHA-H48288J |
| Output Type | ||
| Reted Power | 288W(MULTI 96W * 3) | |
| Reted Voltage | 24V | 48V |
| Reted Current | 3CH*4A | 3CH*2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 2.97A | |
| Inrush Current(Typ.) | 35A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

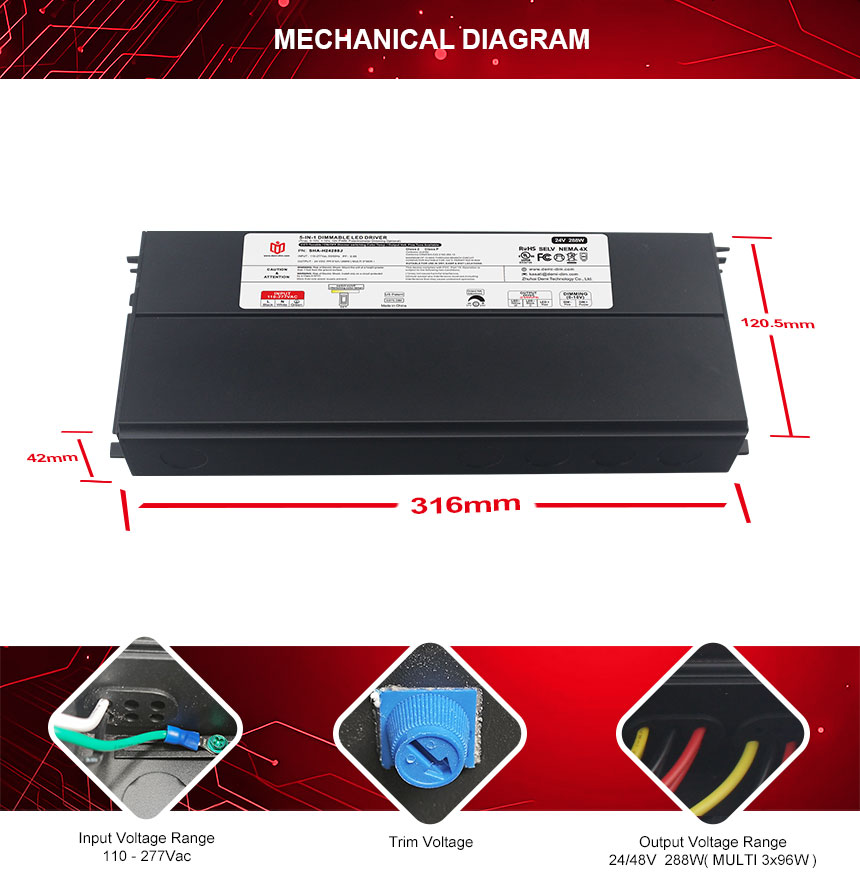

| Dimension | 316x120.5x42mm (L*W*H) | |
| Packing | - | |
|

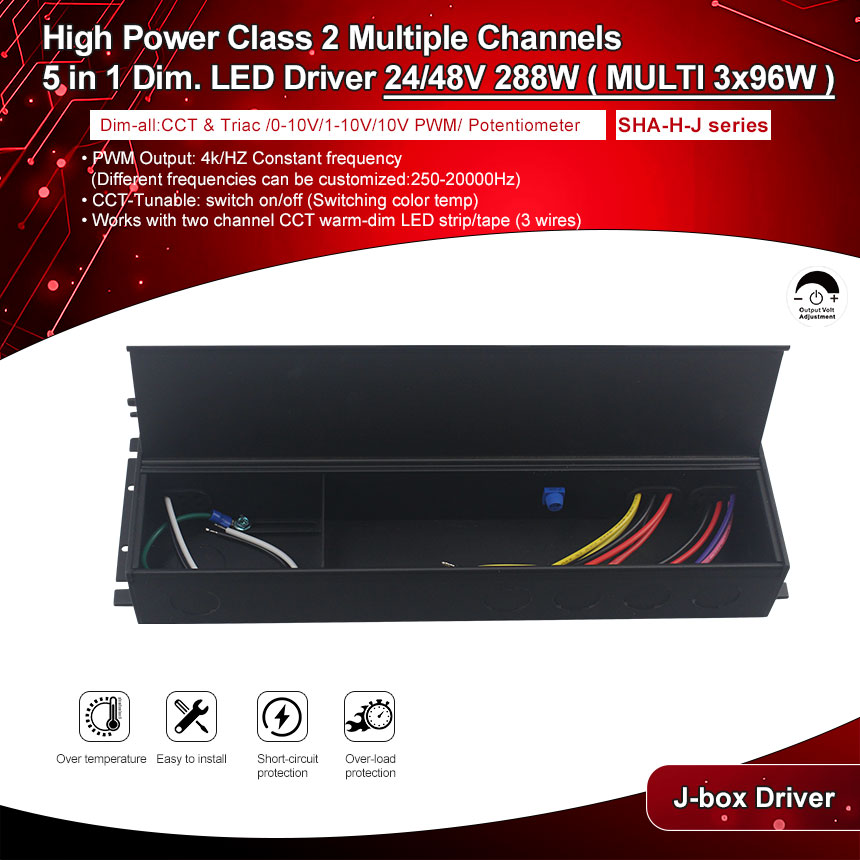

•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Build in active PFC, typical power factor>0.95, THD<10%@120V Max. Load •Works with two channel CCT warm-dim LED strip/tape (3 wires) |

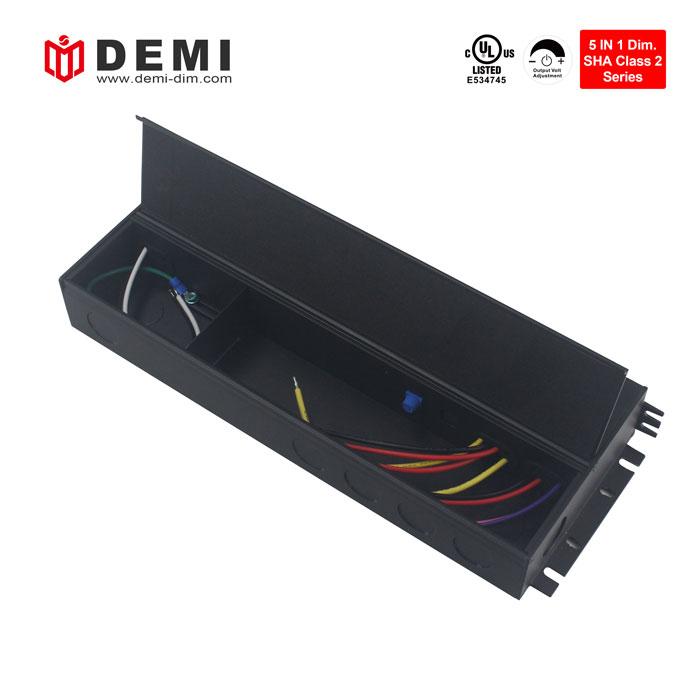

•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •Build in active PFC, typical power factor>0.95, THD<10%@120V Max. Load •CCT-Tunable: switch on/off (Switching color temp)
|

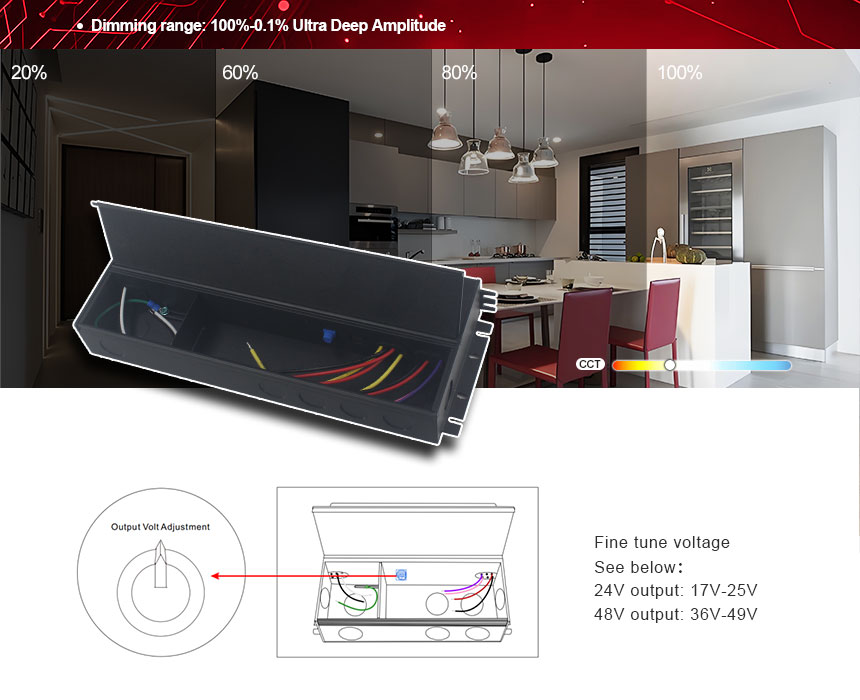

The 288W CCT & triac/0 10v dimmable led driver SHA series has a switchable color temperature function, which can satisfy users who use traditional switch dimmers to achieve dimming and color adjustment. With short-circuit/overload/over-temperature protection function and 5-year warranty
| SHA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
288W (MULTI 3*96W) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*3 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*3 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG*3 | / | / | / | |
Wiring Diagram

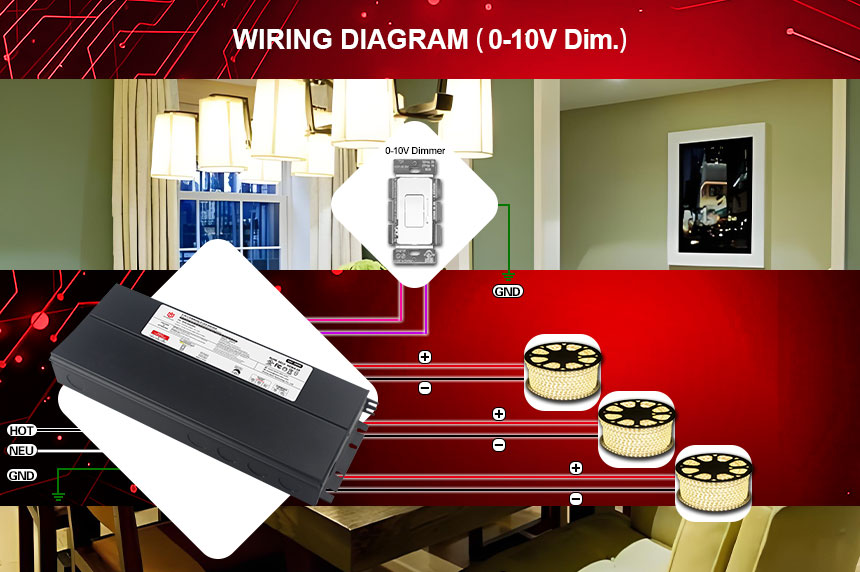

· Using Triac MLV wiring diagram
· Using 0-10/1-10V dimming
Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
Tags :
This new product 5 in 1 dimmable led power supply has an input voltage of 110-277vac and a constant voltage output mode. It is compatible with popular front and rear thyristor dimmers and systems, and 0-10V dimmers and systems on the market. Such as Lutron dimmer
SHA series 60W 5 in 1 dimmable led driver is designed to be integrated with the junction box. It is small in size and easy to install. It can be well compatible with AQ Lighting's 60W LED strip to achieve smooth and flicker-free dimming.
UL certified 80W dimmable constant voltage LED driver with built-in active PFC function, power factor >0.95, aluminum housing design, easy installation, compatible with popular front and rear thyristor dimmers and systems, 0-10V dimmers and system. , such as Lutron dimmer
UL certification 96W dimmable led driver is designed with an integrated junction box, universal input voltage of 110-277vac, constant voltage output mode, and is well compatible with STASUN's 96W LED floodlight to achieve smooth flicker-free dimming.
CCT & triac/0 10v dimmable 120W led driver 110- 277VAC input voltage mode, dimming range 100%-0.1%, built-in active PFC function, power factor >0.95, aluminum shell design, good heat dissipation, 5-year warranty
SHA series CCT & 5 in 1 dimmable led driver 150W PWM output mode can customize different frequency products according to user needs. Strong compatibility, compatible with almost all popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems on the market, such as Leviton dimmer
200W CCT & 5 in 1 dimmable led driver SHA series products have a color temperature switching function, which can meet the requirements of users using traditional switches for dimming and coloring functions. It has strong compatibility and the dimming effect is as good as Magnitude Lighting’s 200W dimmable led driver.
CCT triac & 0-10V 5 in 1 dimmable LED driver 300W 250-20000Hz customizable frequency With unique knob trim voltage function
