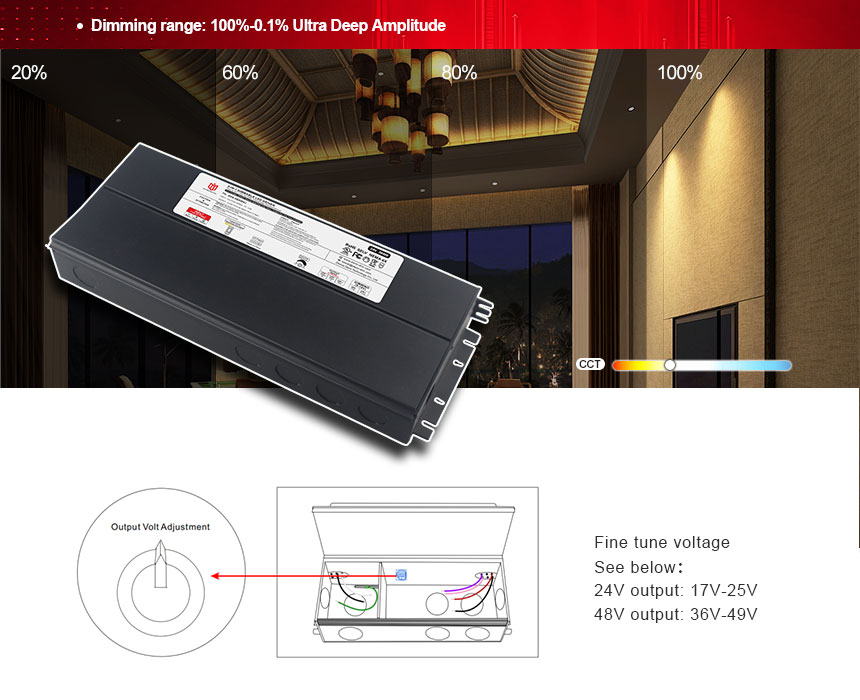

The 384W high power dimmable led driver is a PWM dimming mode with a dimming range of 0.1%-100% ultra-deep range. Built-in fine-tuning voltage function knob. Strong compatibility, able to achieve smooth dimming with most triac dimmers and 0 10v dimmers on the market, such as Insteon dimmer
Brand:
DEMIItem no.:
SHA-H24384JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
384WOutput Voltage:
24/48VdcShape & Size:
J-box DriverSize:
316x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years

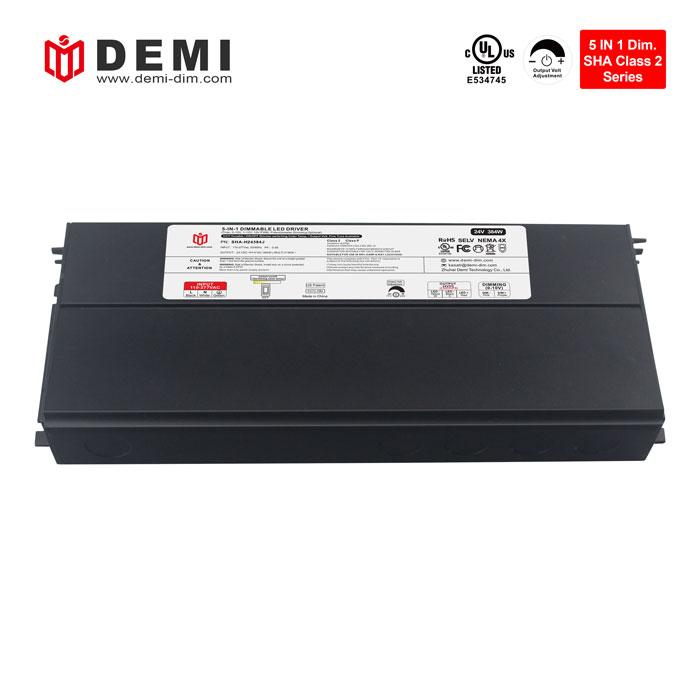

384w triac & 0 10v dimmable constant voltage led driver power supply for sale
SHA series 384W triac & 0 10v dimmable led driver has an output voltage range of 110-277vac. It has a built-in active PFC function and a unique switch color temperature design. Ultra-low load requirements, able to work perfectly under 10-100% load, UL certified, with 5-year warranty

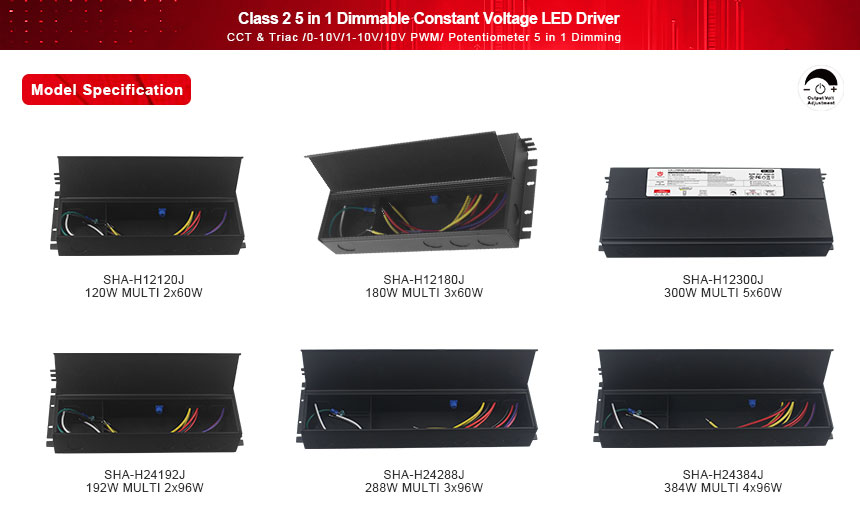

| Model Number | SHA-H24384J | SHA-H48384J |
| Output Type | ||
| Reted Power | 288W(MULTI 96W * 4) | |
| Reted Voltage | 24V | 48V |
| Reted Current | 4CH*4A | 4CH*2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 3.8A | |
| Inrush Current(Typ.) | 38A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

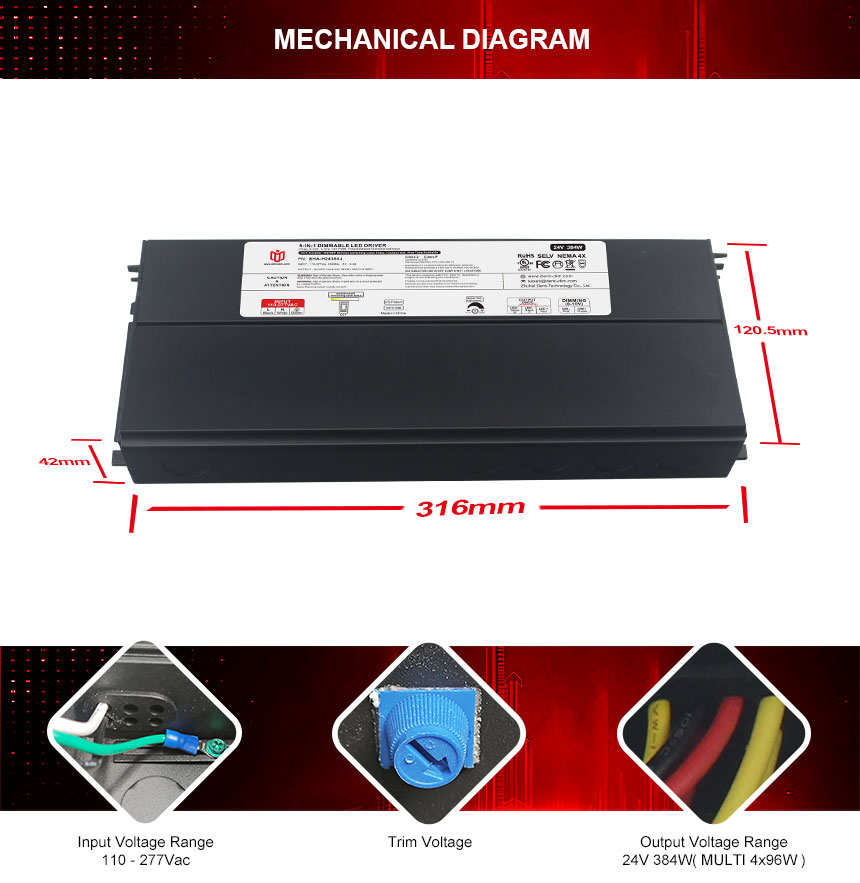

| Dimension | 316x120.5x42mm (L*W*H) | |
| Packing | - | |

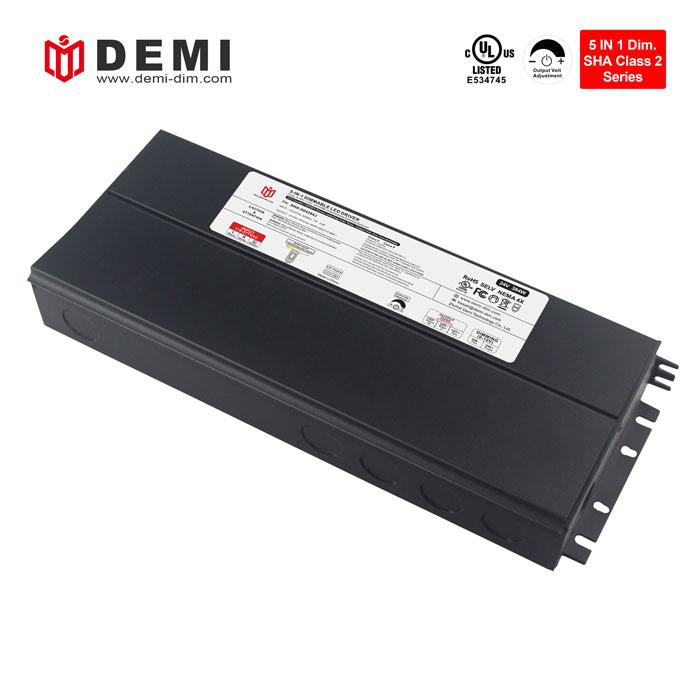

Class 2 standard 384W CCT & 5 in 1 dimmable led driver is constant voltage operating mode, aluminum housing design, passes NEMA 4X standard, has good heat dissipation, and has short circuit/overload/over temperature protection function
|

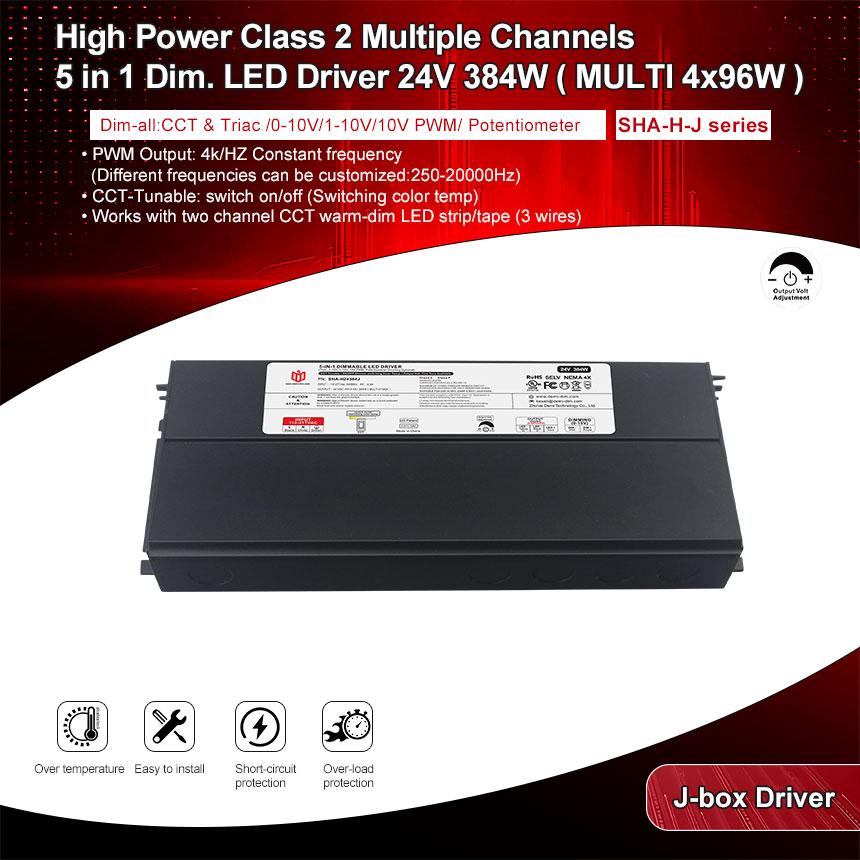

•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Build in active PFC, typical power factor>0.95, THD<10%@120V Max. Load. •Works with two channel CCT warm-dim LED strip/tape (3 wires) |

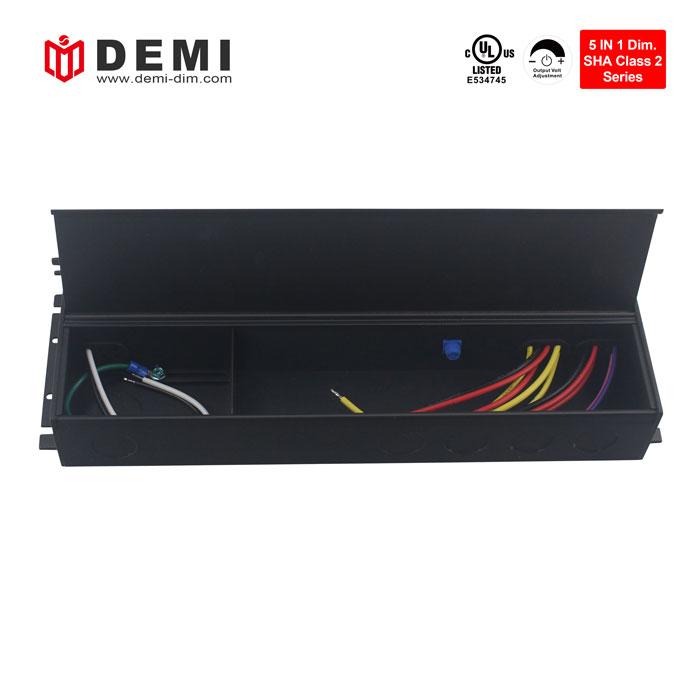

•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •Build in active PFC, typical power factor>0.95, THD<10%@120V Max. Load. •CCT-Tunable: switch on/off (Switching color temp).
|
| SHA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
384W (MULTI 4*96W) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*4 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*4 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG*4 | / | / | / | |
Wiring Diagram

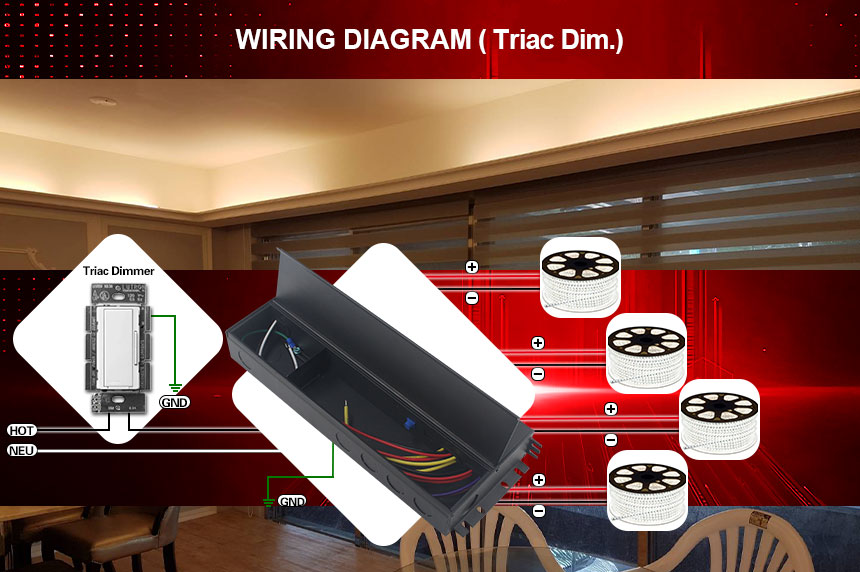

· Using Triac MLV wiring diagram
· Using 0-10/1-10V dimming
Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
