This 24v 200W CCT & triac/0 10v dimmable led driver has a voltage adjustment knob. It can compensate for the light decay of the lamp at +1v. It has good dimming performance, and the dimming process is smooth, noiseless and flicker-free. It has a 7-year warranty. The dimming effect is as good as the Magnitude Lighting 200W dimmable led driver. It has a 7-year warranty
Brand:
DEMIItem no.:
SHA-24200JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
200WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
258*120.5*42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years

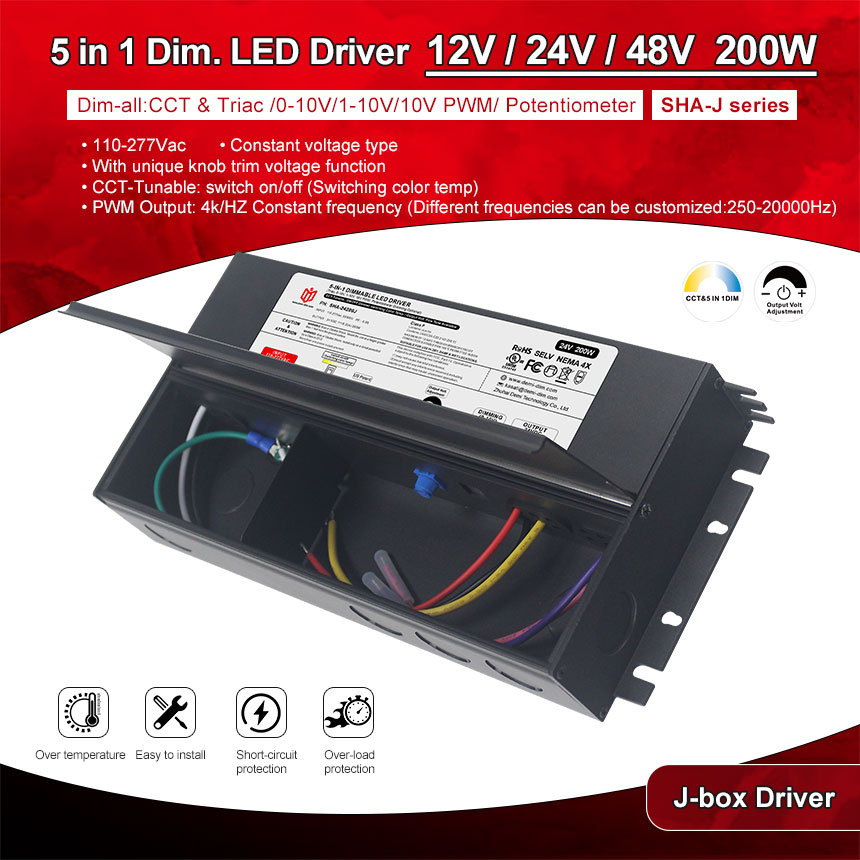

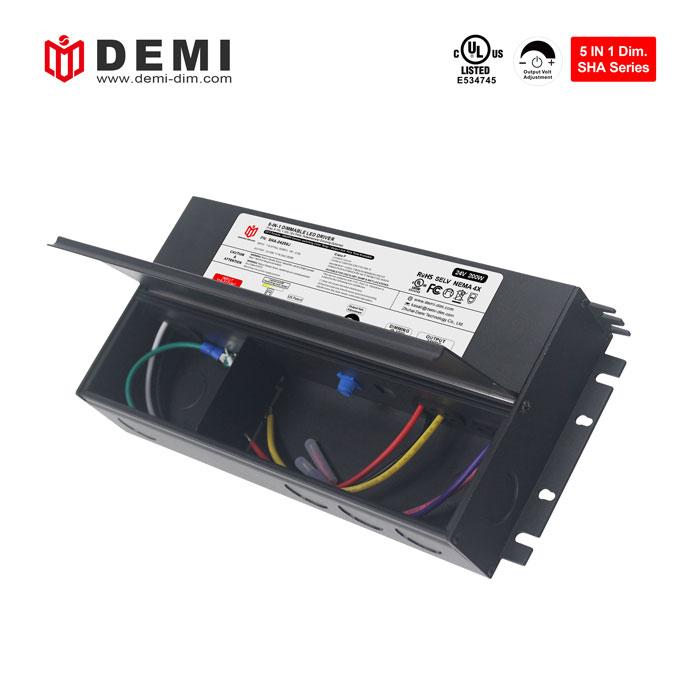

277vac to 24vdc pwm output CCT & triac / 0 10v dimmable constant voltage 200W led power supply

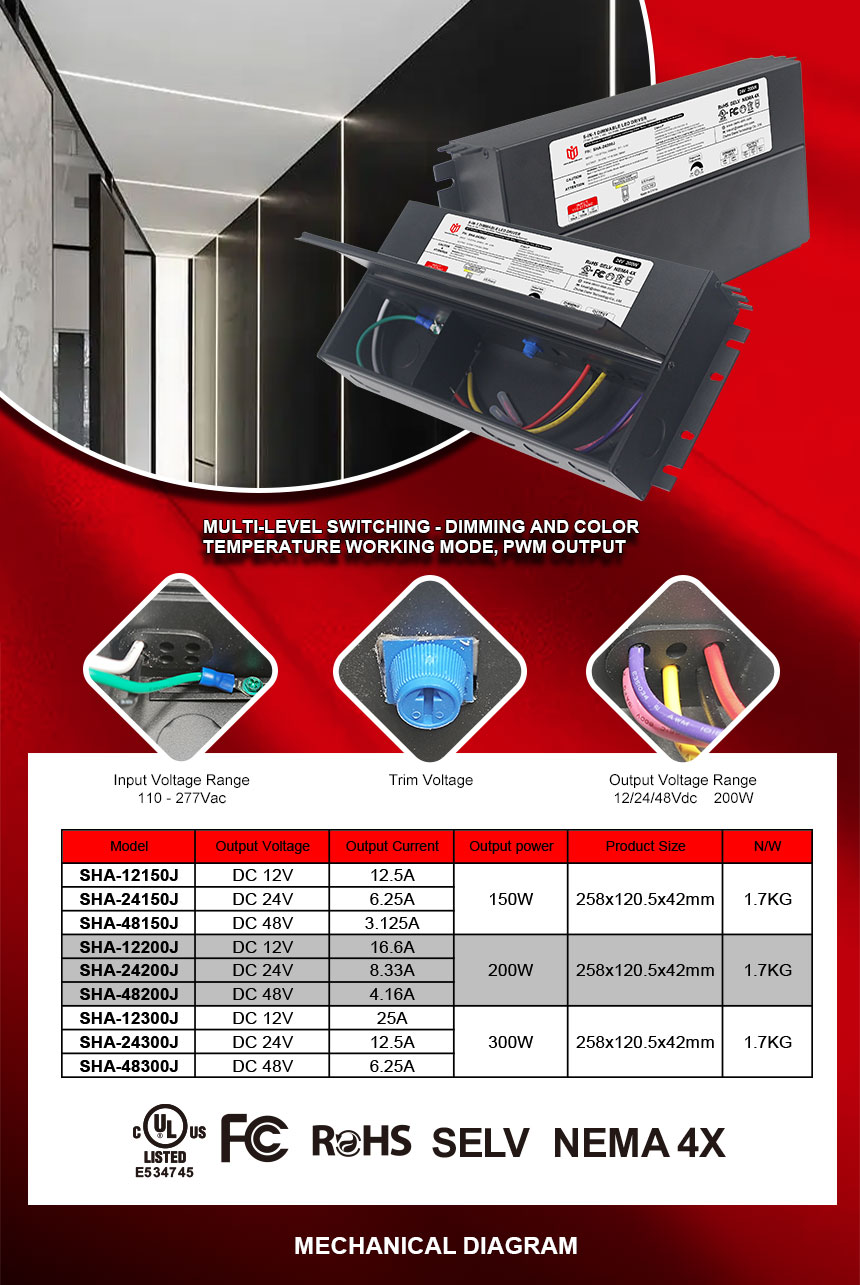

SHA series CCT & 5 in 1 dimmable LED driver 200W Aluminum housing design, truly passed the NEMA 4X standard, good heat dissipation performance. Dimming range between 0.1~100% ultra-deep dimming. With ultra-low load requirements, it can work perfectly at 10-100% load.
| Model Number | SHA-12200J | SHA-24200J | SHA-48200J |
| Output Type | |||
| Reted Power | 200W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 16.6A | 8.33A | 4.16A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 2.06A | ||
| Inrush Current(Typ.) | 30A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

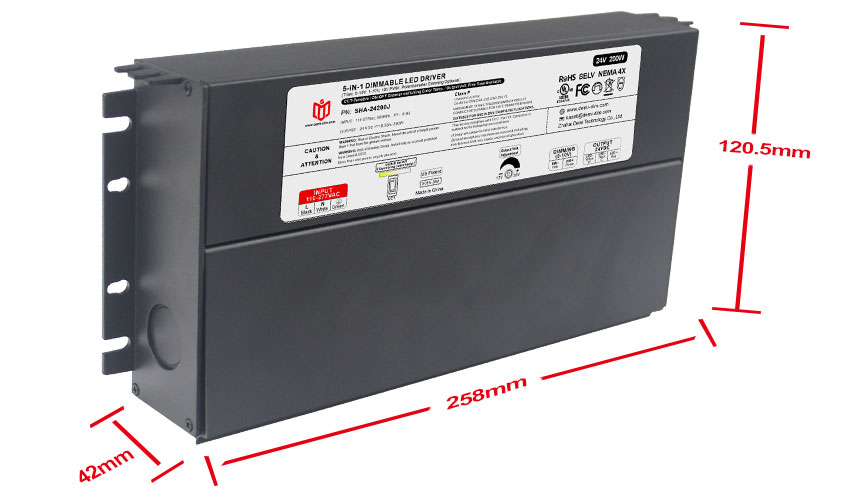

| Dimension | 258x120.5x42mm (L*W*H) | ||
| Packing | - | ||
To know more product details, please leave message or e-mail us !
|
•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •CCT-Tunable: switch on/off (Switching color temp). |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Dimming range: 100%-0.1% Ultra Deep Amplitude
|
| SHA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 200W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / | |
Wiring Diagram
Works with Two channel CCT warm-dim LED strip/tape (3 wires)
· Using Triac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
