Brand:
DEMIItem no.:
SET-24060ADimming Mode:
Triac Dim.Working Mode:
Constnat VoltageInput Voltage:
120VacOutput Power(Watt):
60WOutput Voltage:
24VdcShape & Size:
Mini SizeSize:

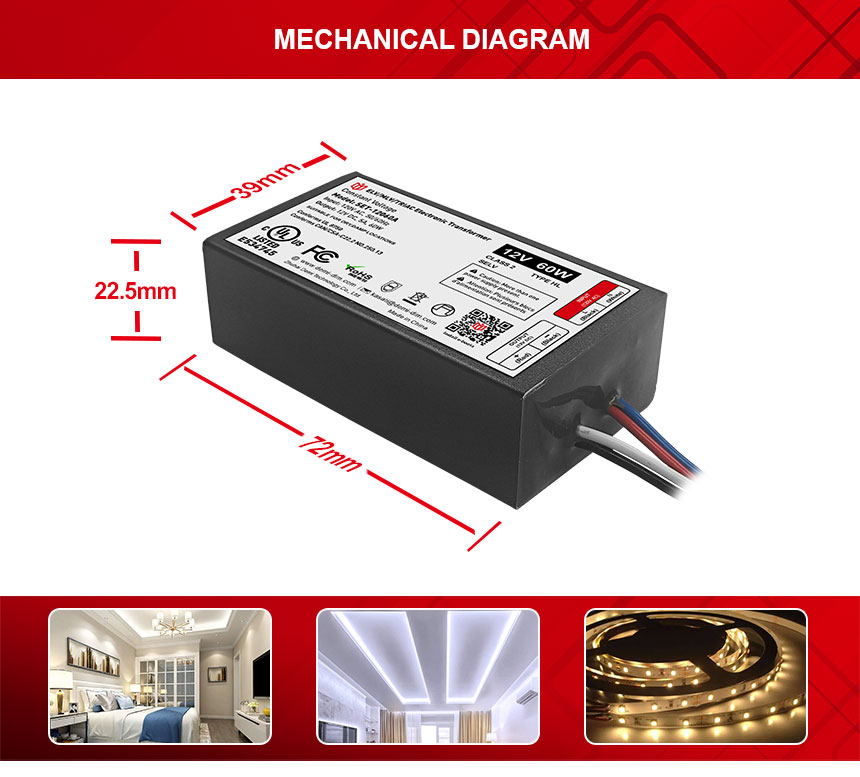

72*39*22.5mmWeight:
0.16KGCertification:
UL/cULWarranty:

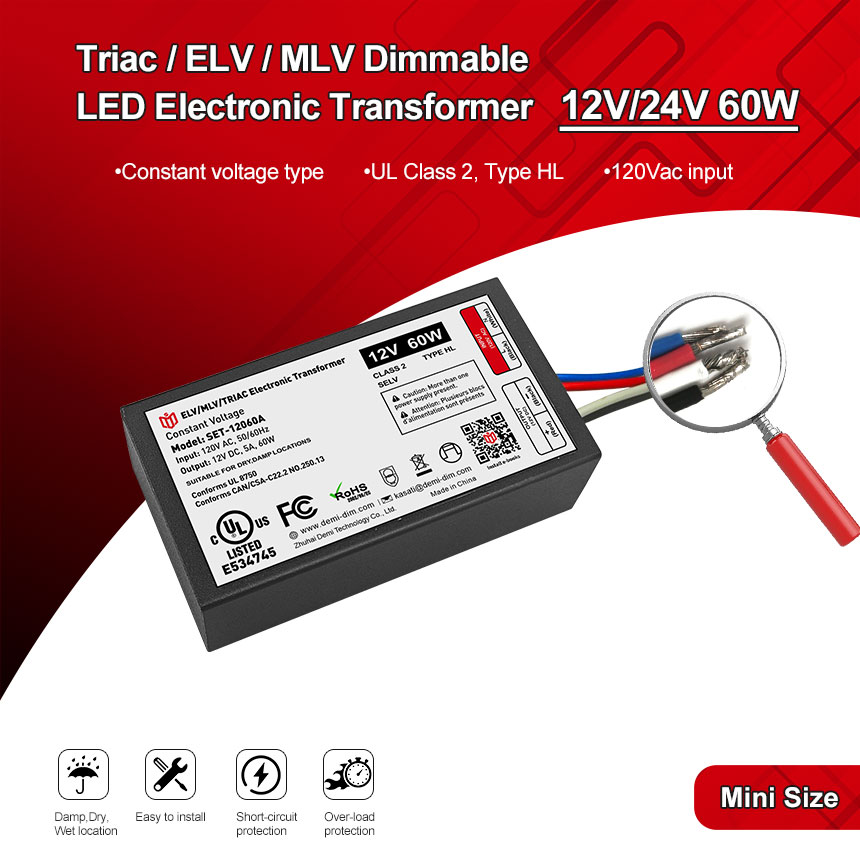

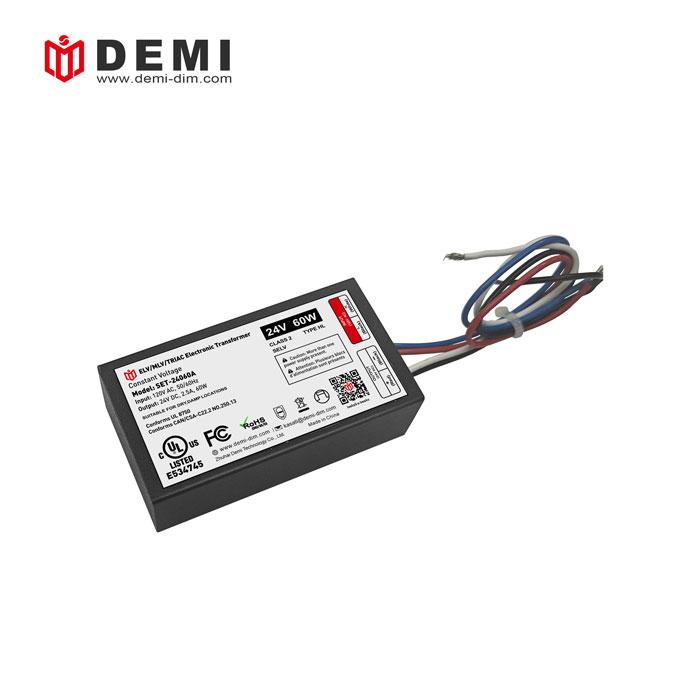

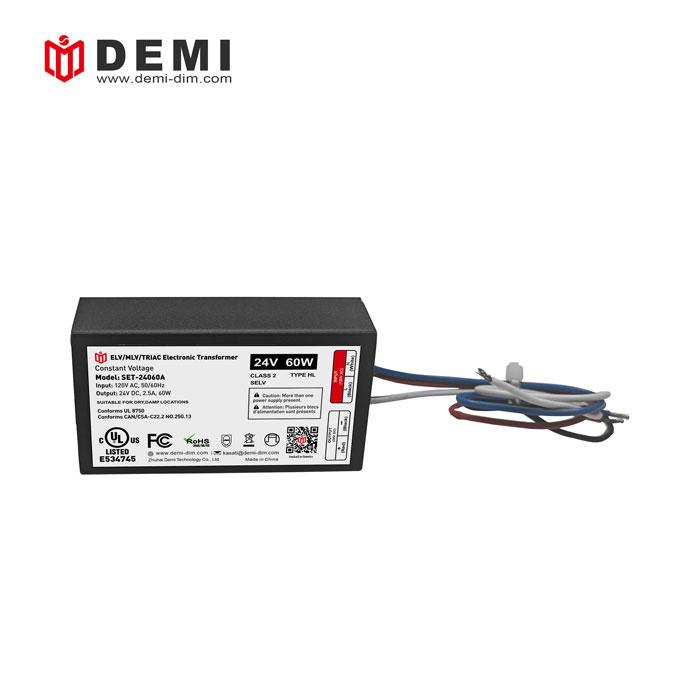

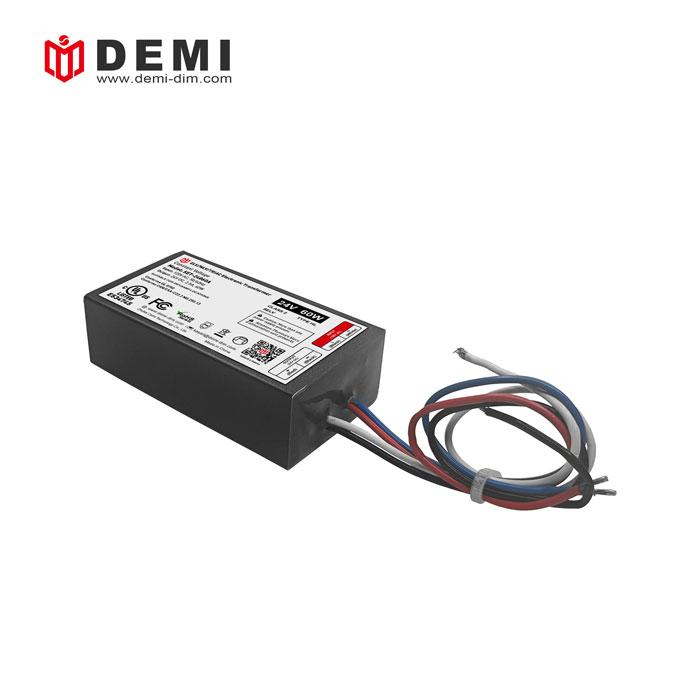

5 yearsip67 Aluminum housing triac dimmable led driver lighting transformer 60w 24vdc
This triac dimmable 24v led lighting transformer has passed UL certification and complies with global safety lighting regulations. It has built-in active PFC function and is very suitable for multiple other residential and commercial lighting applications. The effect is as good as the 60W led electronic transformer of magnitude
Model Number | SET-12060A | SET-24060A |
Output Type | ||
Reted Power | 60W | 60W |
Reted Voltage | 12V | 24V |
Reted Current | 5A | 2.50A |
Voltage Tolerance | ±0.5V | |
Voltage Regulation | ±0.5% | |
Load Regulation | ±1% | |
Input Type | ||
Voltage Range | 120V | |
Frequency Range | 47-63HZ | |
Efficiency(Typ.) | 88%@120VAC | |
Total Harmonic Distortion | THD< 20%(@100% load) | |
Power Factor(typ.) | 0.98@120VAC | |
AC Current(Typ.) | 0.58A | |
Inrush Current(Typ.) | - | |
Leakage Current | <0.5mA/ 120VAC | |
PROTECTION | ||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
Over Load | Hiccup mode, recovers automatically after fault condition is removed. | |
ENVIRONMENT | ||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
Working humidity | 20 ~ 95% RH non-condensing | |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
Temp .coefficient | ±0.03%/℃(0~50℃) | |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
SAFETY & EMC | ||
Safety standards | UL8750, Class 2 | |
Safety standards | I/P-O/P:1.88KVAC | |
OTHERS | ||
Dimension | 2.83x1.53x0.79 inch (L*W*H) | |
Packing | - |
What are the characteristics of electronic transformers?
When measured with an oscilloscope, the output voltage measured is normal in the range of 22-37V when no load is used, and when the output voltage is measured in the range of 17-23V, it is normal
