triac & 0 10v dimmable 120W 12V LED power supply, PWM output, built-in fine-tuning voltage function knob for light attenuation compensation, dimming range between 0.01~100%, high working efficiency, constant voltage working mode, can be used for billboards on, used with LED advertising lighting modules
Brand:
DEMIItem no.:
PMA-12120JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
120WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years12v 120w constant voltage class 2 triac & 0 10v dimmable led driver power supply
12v 120W triac & 0 10v dimmable led driver output type is PWM output 110-277vac universal input voltage, aluminum shell design, ultra-low load requirements, able to work perfectly under 10-100% load
Model Number | PMA-12120J | PMA-24120J | PMA-48120J |
Output Type | |||
Reted Power | 120W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 10A | 5A | 2.5A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 87%@120VAC 88%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 1.25A | ||
Inrush Current(Typ.) | 27A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, Class 2 | ||
Safety standards | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

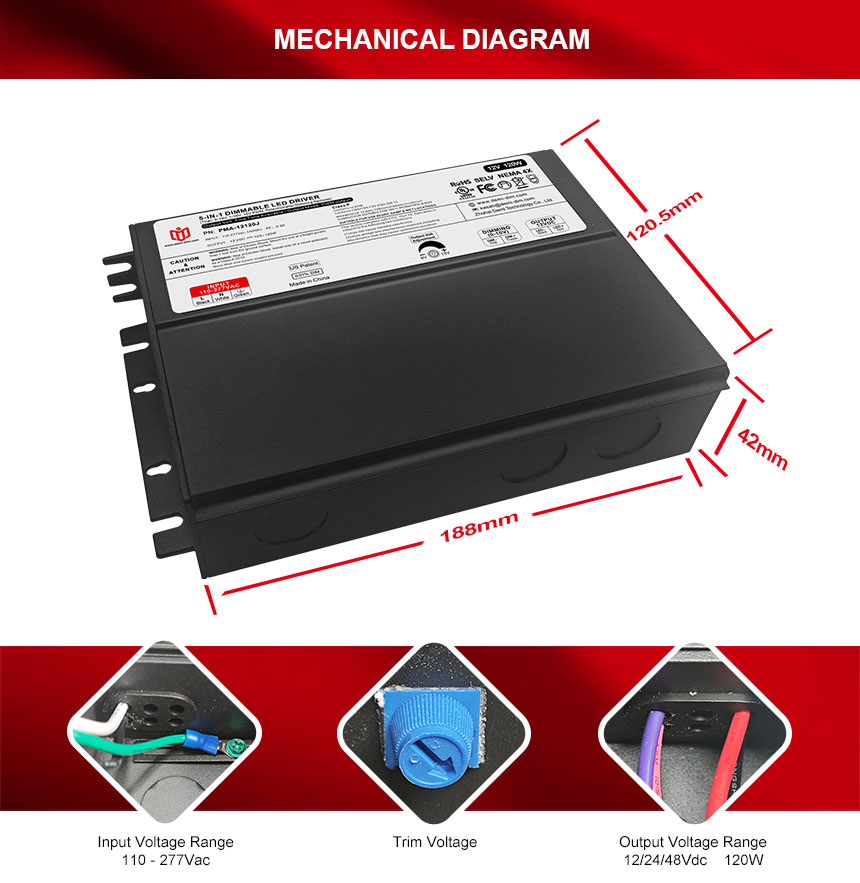

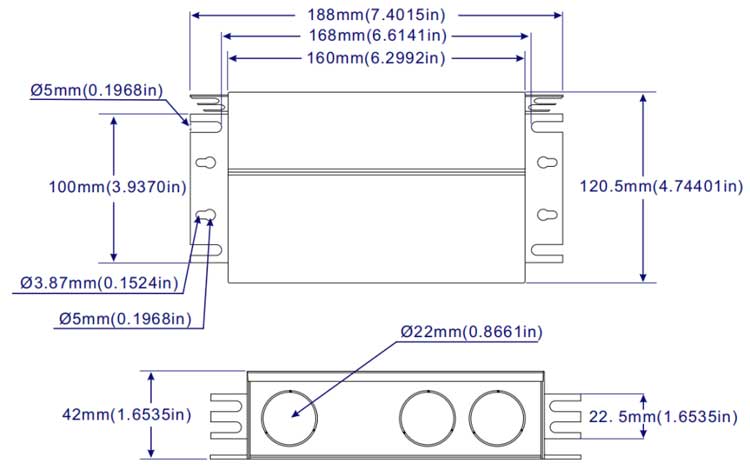

Dimension | 188x120.5x42mm (L*W*H) | ||
Packing | - |

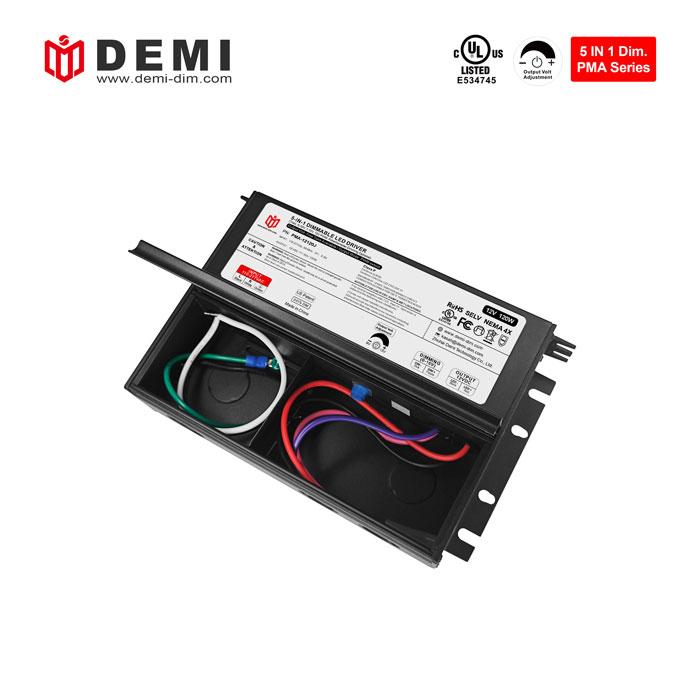

•Exclusive patent design of “Clamshell” junction box(Fixed without screws) •Dimming range: 100%-0.1% Ultra Deep Amplitude |

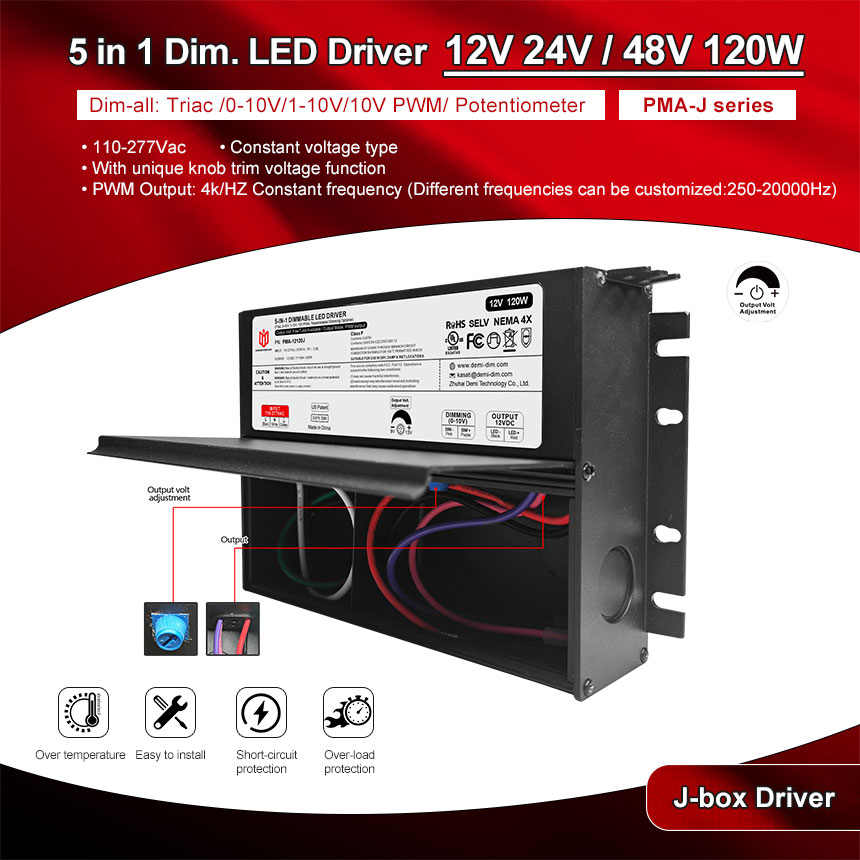

•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •With unique knob trim voltage function |
Triac/0-10V/1-10V/10VPWM/Potentiometer dimmable LED driver 120W 12V can be used for commercial lighting, in offices/hotels/restaurants and retail stores, PMA series 5 in 1 dimmable led driver can provide users with flexible lighting options
PMA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
120W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
Ground | Green | 18AWG | / | / | / | / | / | / |
Wiring Diagram

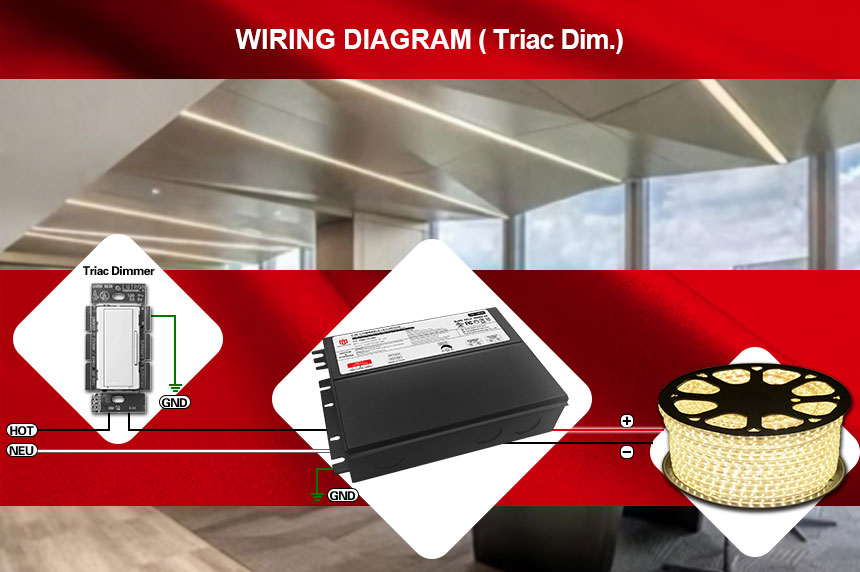

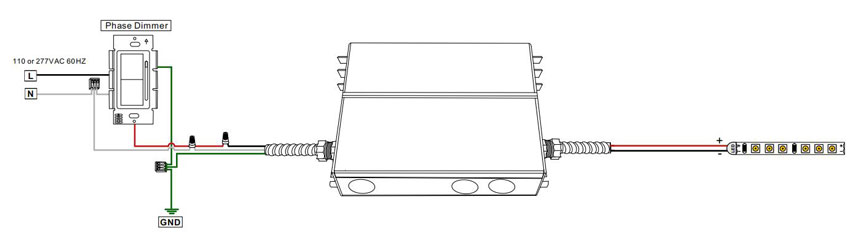

· UsingTriac MLV wiring diagram
· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
