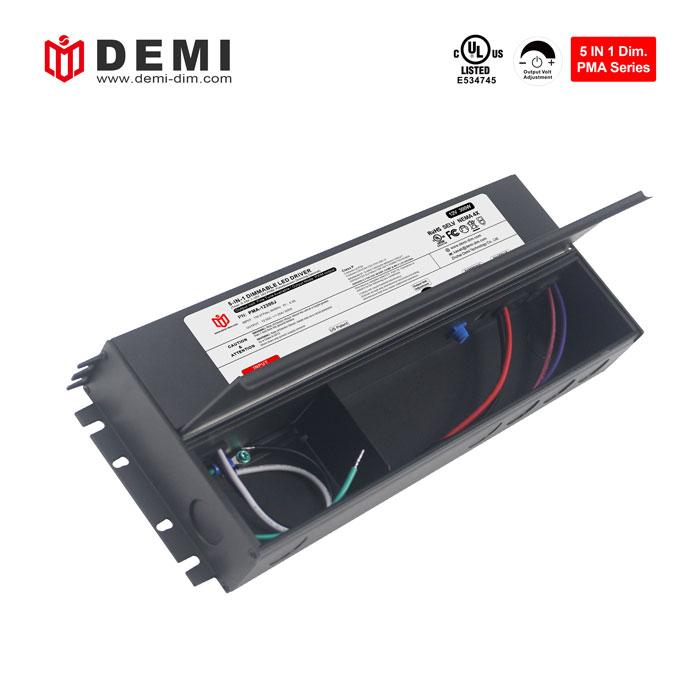

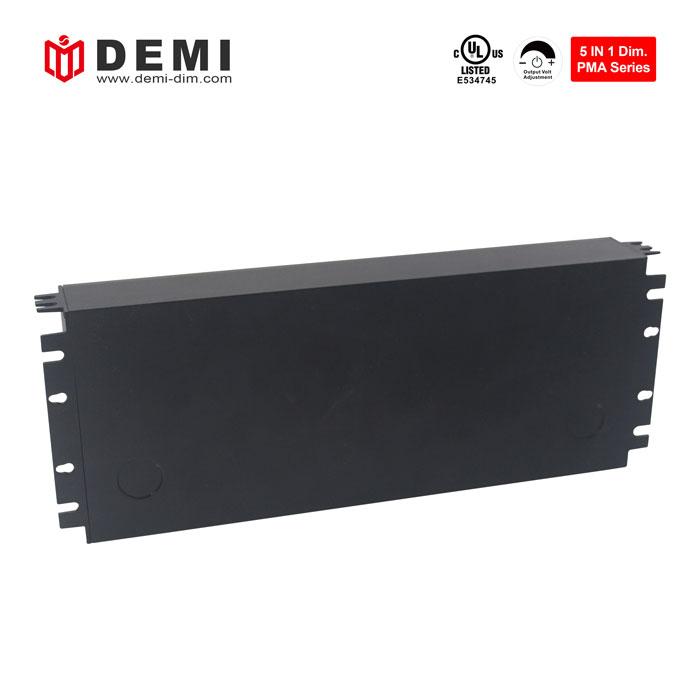

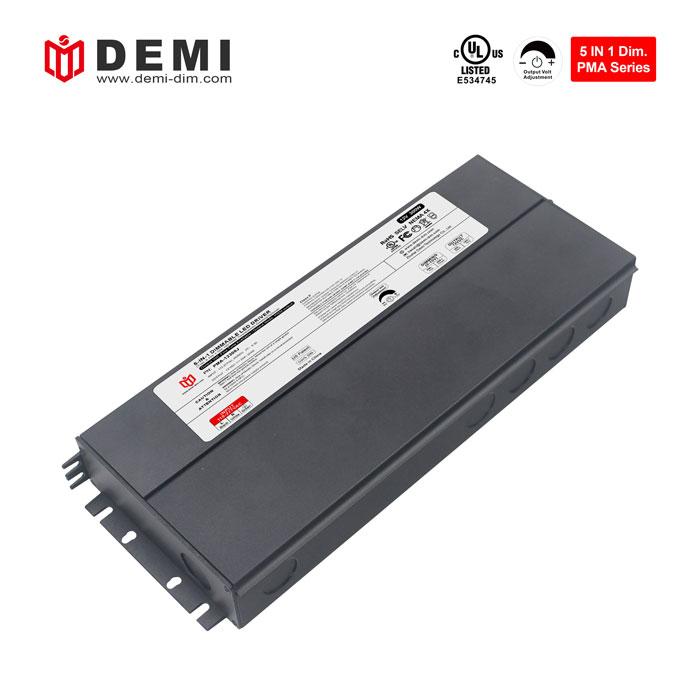

UL listed triac & 0 10v dimmable 300W 12V led light driver power supply

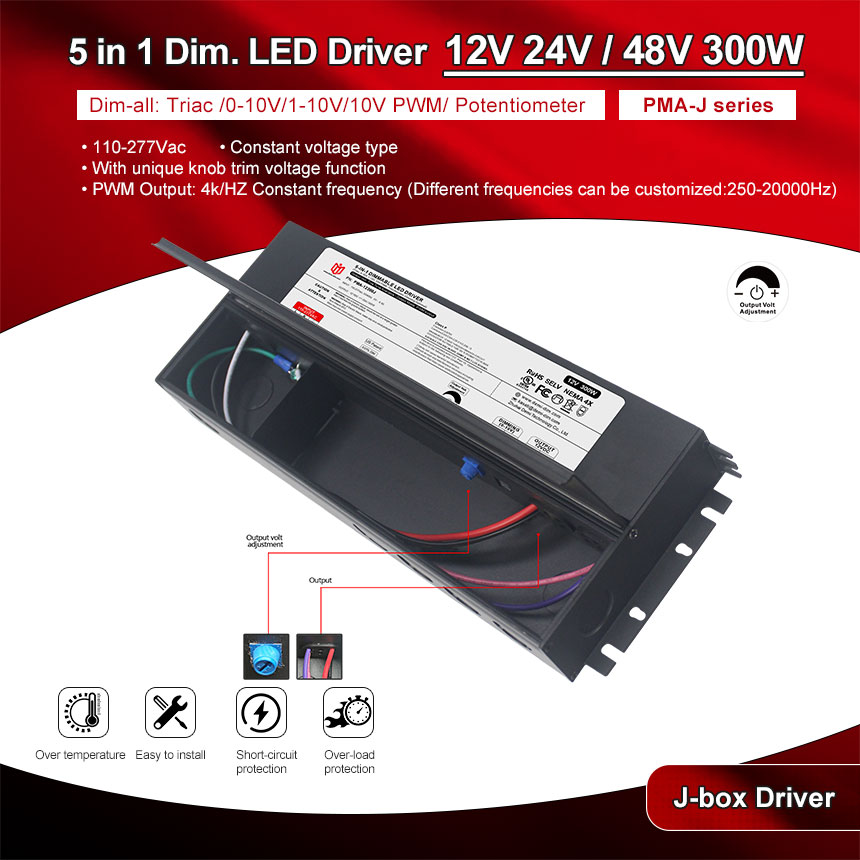

PMA series 300W led driver 5 in 1 dimming mode, respectively Triac/0-10V/1-10V/10VPWM/Potentiometer. Users can choose the most suitable dimming method according to different scenarios and needs. Whether it is commercial lighting or home lighting, this 300W LED driver can provide stable and reliable dimming performance.
| Model Number | PMA-12300J | PMA-24300J | PMA-48300J |
| Output Type | |||
| Reted Power | 300W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 25A | 12.5A | 6.25A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 91%@120VAC 92%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 3.02A | ||
| Inrush Current(Typ.) | 35A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

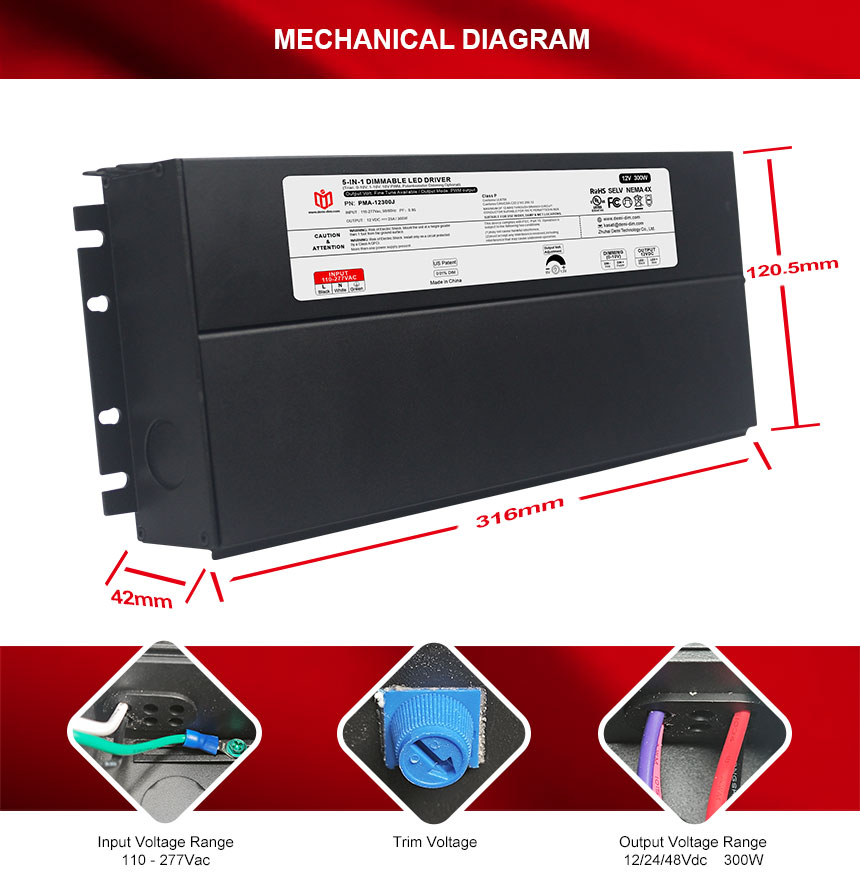

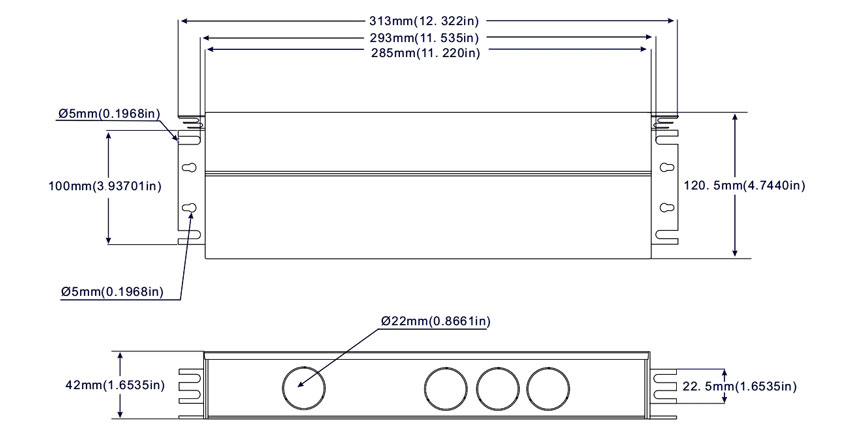

| Dimension | 258x120.5x42mm (L*W*H) | ||
| Packing | - | ||
To know more product details, please leave message or e-mail us !
PMA series 5-in-1 dimming LED power supply 300W has complete functions and is suitable for the dimming needs of LED lighting systems. It can flexibly meet the dimming requirements of different scenes and needs. Before performing wiring operations, the power supply needs to be disconnected to ensure safety. The rated voltage range of the selected PMA series power supply matches your LED lighting system. Check that the power supply's rated output current is sufficient for your fixture's needs.
|
•Super low loading request, works perfect at 10-100% load •Dimming range:100-0.1% , flicker-free •110-277Vac Universal input |
•Build in active PFC, typical power factor>0.95, THD<10%@120V Max. Load •With unique knob trim voltage function |
| PMA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 300W | AC L | Black | 18AWG | DC+ | Red |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black |
12V/14AWG 24V/18AWG 48V/18AWG |
Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |
Wiring Diagram

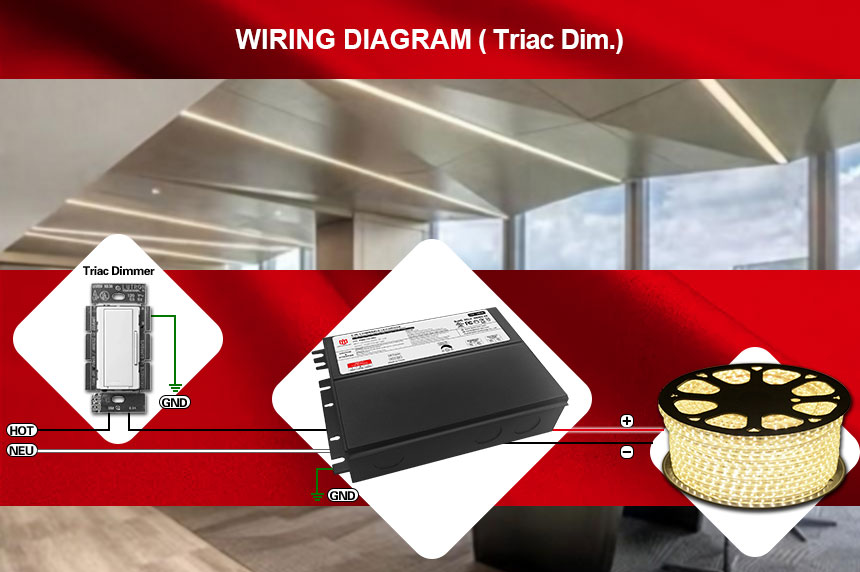

· Using Triac/ELV wiring diagram
· Using 0-10/1-10V dimming(The driver is independently connected to the input)
·dual channel CW color temperature LED strip/tape (3wires)
Tags :
The CCT & triac/0 10v dimmable led driver 30W 12V has a built-in fine-tuning voltage function knob, which can compensate for the light attenuation of the lamp and adjust the brightness. It is compatible with popular front and rear triac dimmers and systems, and 0-10V dimmers and systems on the market. Such as Lutron dimmer
triac & 0 10v dimmable 12v 60W led power supply easy and quick to install, built-in active PFC function, power factor >0.95, very compatible with CreeLighting's 60W LED floodlight, achieving smooth flicker-free dimming, 5 years Warranty
110-277vac 5 in 1 dimmable 80W 12v led driver has short circuit/over temperature/overload protection function, suitable for use in wet and dry lighting projects, compatible with popular front and rear edge thyristor dimmers and systems, 0-10V dimmers and systems, Such as Lutron dimmer
CCT& 5 in 1 dimmable led power supply input voltage range 110vac-277vac, aluminum housing design, good heat dissipation, easy and fast installation, well compatible with AQ Lighting's 96W LED strip/light strip, achieving smooth flicker-free dimming
PMA output triac & 0 10v dimmable led driver 100W 12V constant voltage output mode, able to provide stable protection for LED lamps, with short circuit/overload/overtemperature functions, 5-year warranty
triac & 0 10v dimmable 120W 12V LED power supply, PWM output, built-in fine-tuning voltage function knob for light attenuation compensation, dimming range between 0.01~100%, high working efficiency, constant voltage working mode, can be used for billboards on, used with LED advertising lighting modules
