triac & 0 10v dimmable 12v 60W led power supply easy and quick to install, built-in active PFC function, power factor >0.95, very compatible with CreeLighting's 60W LED floodlight, achieving smooth flicker-free dimming, 5 years Warranty
Brand:
DEMIItem no.:
PMA-12060JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
60WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
158*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 yearsUL certification CCT & triac/0 10v dimmable 12v 60W constant voltage dimmable led strip driver
277vac dimmable constant voltage 12v 60W LED driver PWM output mode, has a unique knob fine-tuning voltage function, can be adapted to PWM-adjusted dim to warm color temperature light strips, has short circuit/overload/over-temperature protection function, and has a 5-year warranty

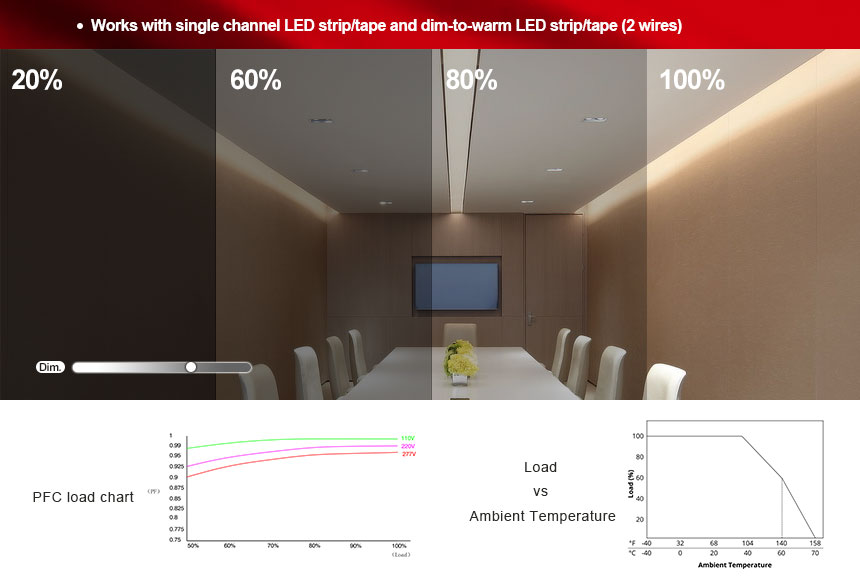

Model Number | PMA-12060J | PMA-24060J | PMA-48060J |
Output Type | |||
Reted Power | 30W | ||
Reted Voltage | 12V | 24V | 48V |
Reted Current | 5A | 2.5A | 1.25A |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% | ||
Input Type | |||
Voltage Range | 110-277V | ||
Frequency Range | 47-63HZ | ||
Efficiency(Typ.) | 83%@120VAC 84%@277VAC | ||
Total Harmonic Distortion | THD< 15%(@100% load) | ||
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
AC Current(Typ.) | 0.65A | ||
Inrush Current(Typ.) | 20A | ||
Leakage Current | <0.5mA | ||
PROTECTION | |||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
ENVIRONMENT | |||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
Working humidity | 20 ~ 95% RH non-condensing | ||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
Temp .coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
SAFETY & EMC | |||
Safety standards | UL8750, Class 2 | ||
Safety standards | I/P-O/P:1.88KVAC | ||
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
EMC Emission | Compliance to FCC part 15 Subpart B | ||
OTHERS | |||

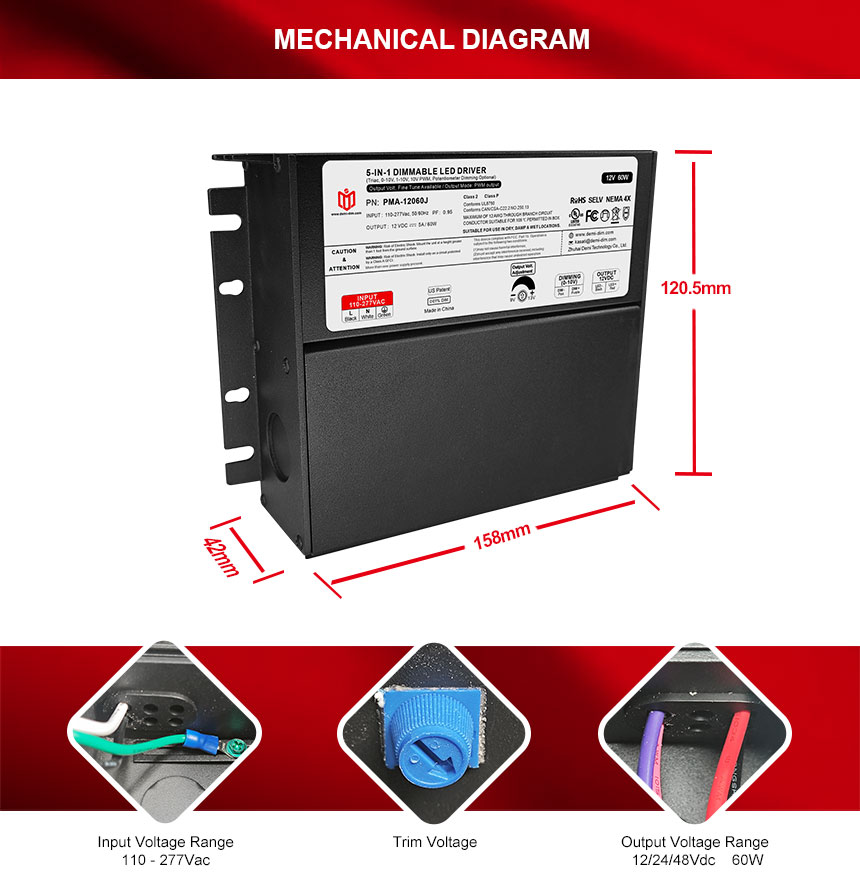

Dimension | 158x120.5x42mm (L*W*H) | ||
Packing | - |

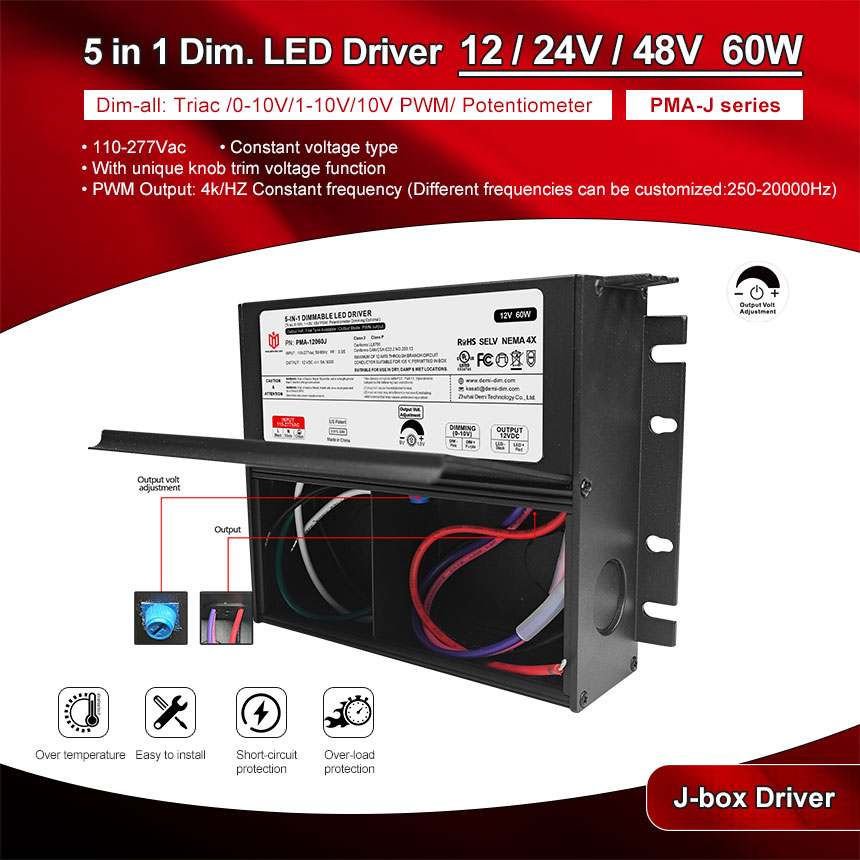

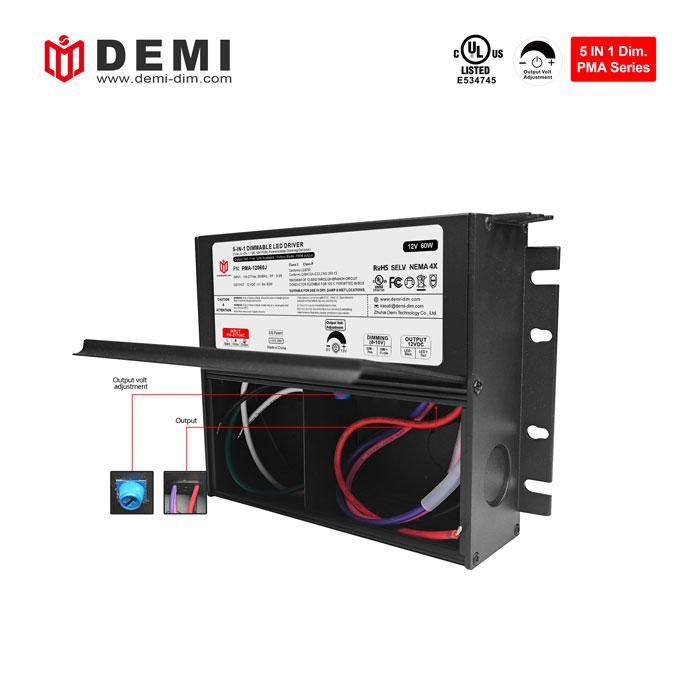

•Exclusive patent design of “Clamshell” junction box(Fixed without screws) •Dimming range: 100%-0.1% Ultra Deep Amplitude |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •With unique knob trim voltage function |
PMA output mode CCT & triac/0 10v dimmable led driver can be applied to a variety of scenes to provide reliable performance and excellent power consumption efficiency. The dimmable LED driver can control the brightness and color of the light to achieve lighting effects in different scenes.
PMA-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
60W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
Ground | Green | 18AWG | / | / | / | / | / | / |

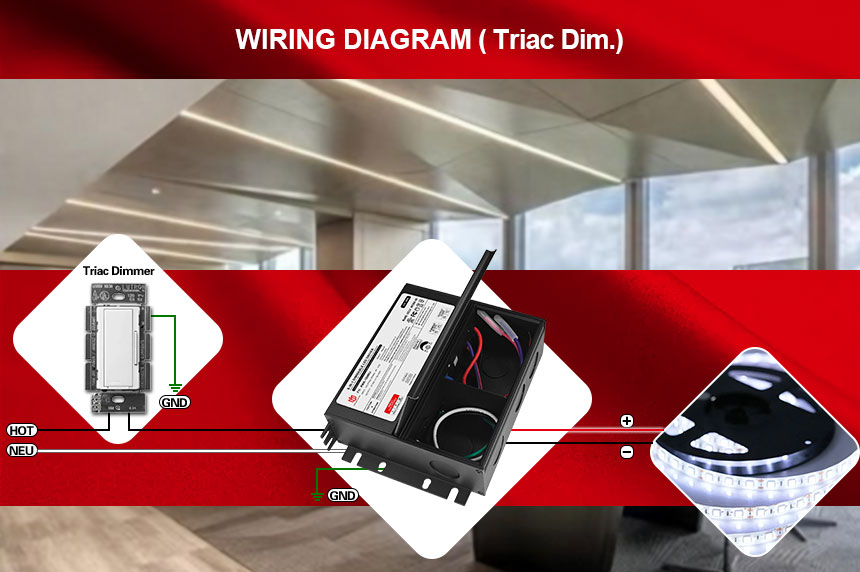

Wiring Diagram
· Using Triac/MLV wiring diagram
· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
