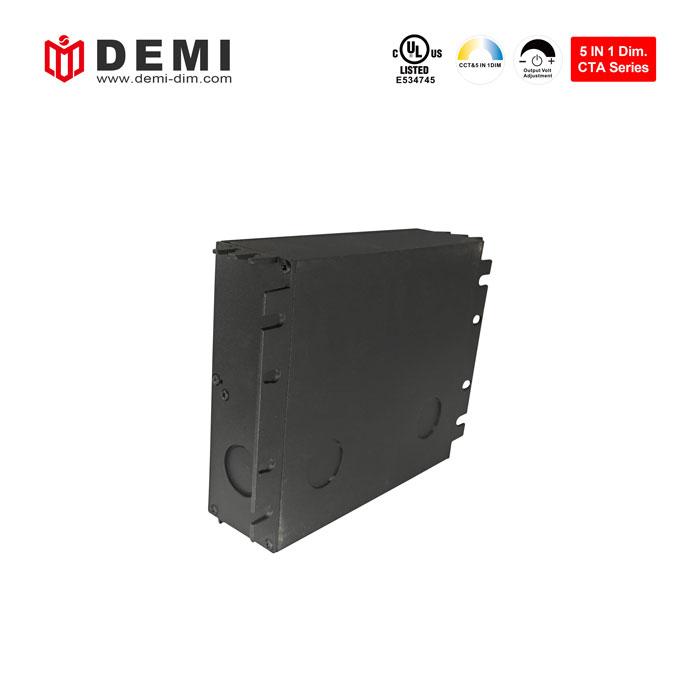

CTA series 24v 30W 5 in 1 dimmable led driver CCT adjustable, with linear adjustment of color temperature and 7-level adjustable color temperature function. The dimming range is from 0.1% to 100% ultra-deep range. Dimming effect is as good as Magnitude Lighting 30W dimmable led driver
Brand:
DEMIItem no.:
CTA-24030JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
30WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:
158*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years
pwm output constant voltage 30W 24V CCT & 5 in 1 dimmable led power supply junction box
110-277vac universal input voltage range CCT & triac/0 10v dimmable led driver 30W 24V Built-in active PFC function, constant voltage operating mode, operating efficiency up to 85%. It has ultra-low load requirements and can operate under 10%-100% load Works perfectly. 5 years warranty
| Model Number | CTA-12030J | CTA-24030J | CTA-48030J |
| Output Type | |||
| Reted Power | |||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 2.5A | 1.25A | 0.63A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 85%@120VAC 86%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 0.35A | ||
| Inrush Current(Typ.) | 18A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||

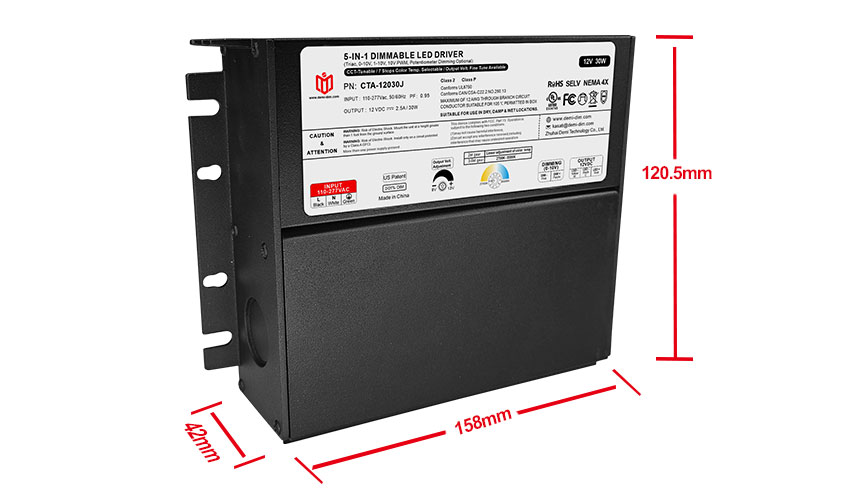

| Dimension | 158x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|

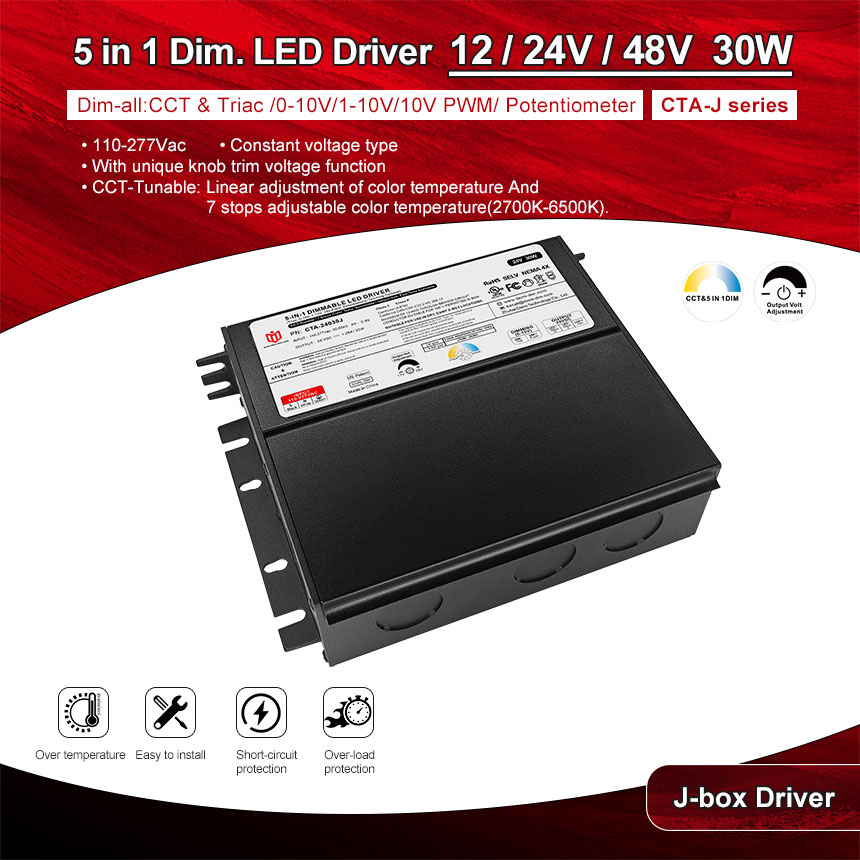

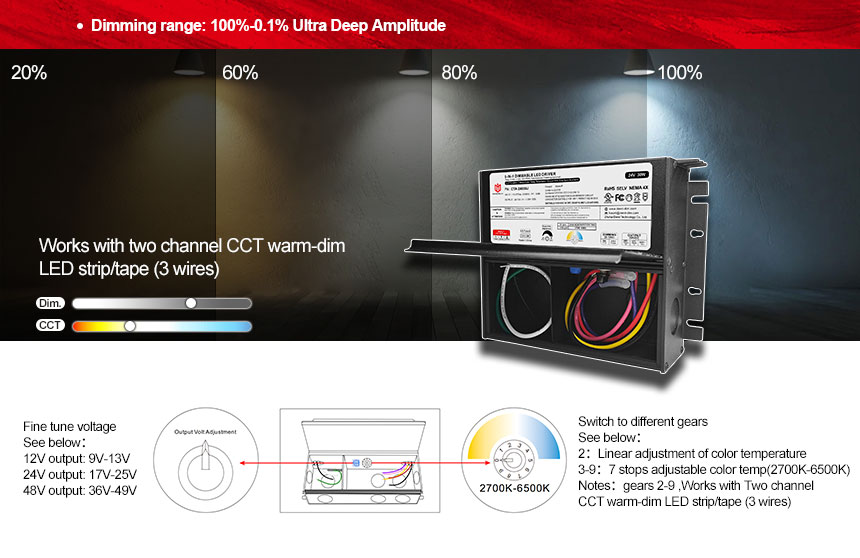

•CCT-Tunable: Linear adjustment of color temperature And 7 stops adjustable color temperature(2700K-6500K) •With unique knob trim voltage function |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|

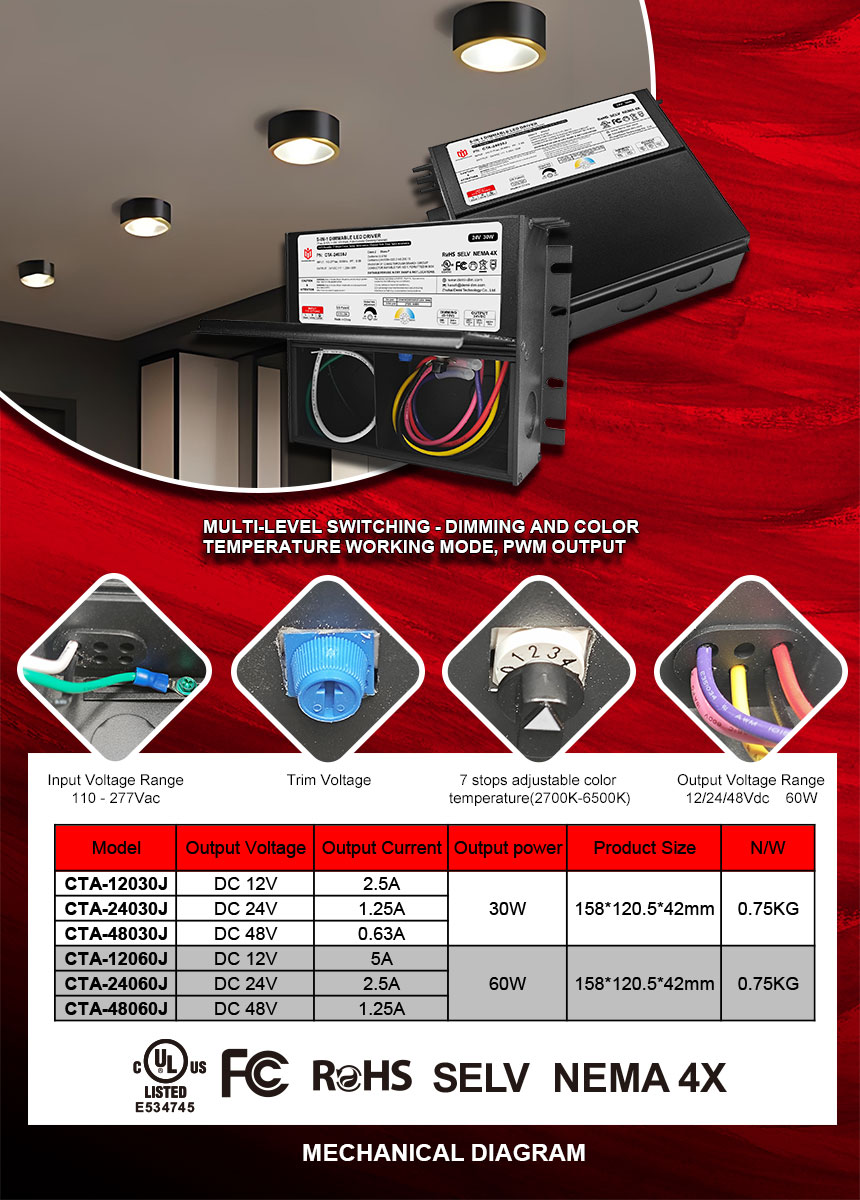

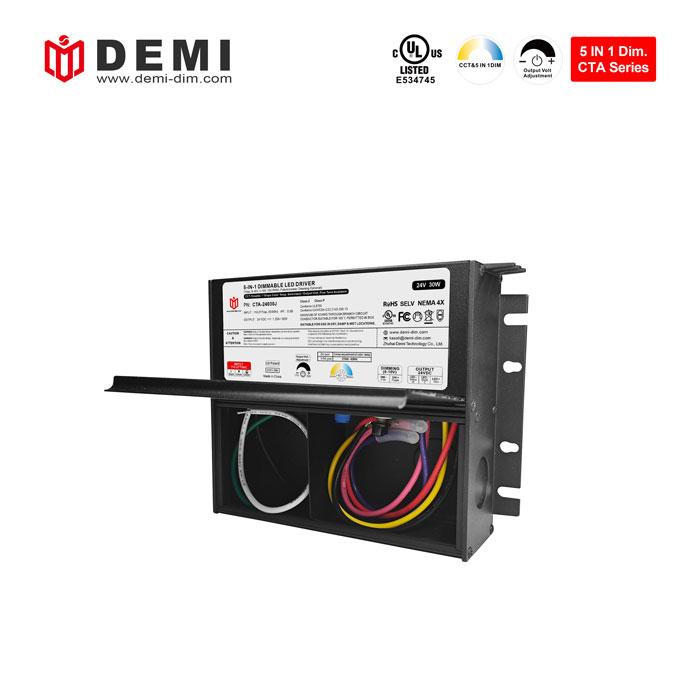

This CTA series 5 in 1 dimmable led power supply is designed to be integrated with the junction box. It uses an aluminum casing, passes the NEMA 4X standard, has good heat dissipation, and has short circuit/overload/overtemperature protection. Can be applied to cabinets and used with cabinet lights.
| CTA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 30W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / | |

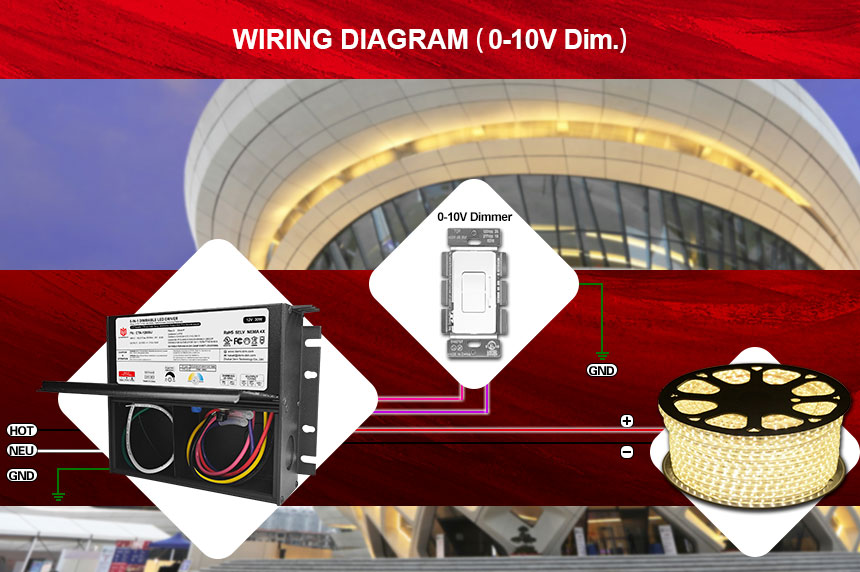

Wiring Diagram
Works with Two channel CCT warm-dim LED strip/tape (3 wires)
· Using Triac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
Tags :
The best-selling product of the CTA series is the 30W CCT & triac/0 10v dimmable led driver integrated with the junction box. The dimmable range is 0.1~100% ultra-deep range. It has strong compatibility and can be used well with Legrand's 30W dimmer. Achieve smooth flicker-free dimming
CTA series 5 in 1 60W dimmable led driver has built-in active PFC function, ultra-low load requirements, and can work perfectly under 10-100% load. Compatible with almost all popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems on the market, such as INSTEON dimmer
UL certified CTA series 80W constant voltage dimmable 12v led driver, 110-277vac input voltage, compatible with popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems, such as BESTTEN 80W dimmer
CTA series 96w 24v constant voltage led driver It is a PWM output mode. Strong compatibility, dimming performance is as good as Inventronics' 96W dimmable led driver, with 5-year warranty
This CTA series constant voltage dimming 120W LED driver has a dimming range of 0.1~100% ultra-deep amplitude and is compatible with most popular dimmers on the market, such as Leviton dimmer
CTA series 150W 5 in 1 dimmable led driver PWM dimming mode, the dimming range is smooth and flicker-free between 100%-0.1%. Strong compatibility,Dimming effect is as good as Magnitude Lighting’s 150W dimmable led driver
200w CCT & triac/0 10v dimmable led driver has a built-in fine-tuning voltage function knob, of which +1V can compensate for light attenuation of the lamp. It has strong compatibility and is compatible with popular front and rear thyristor dimmers and systems on the market, 0-10V Dimmers and systems such as BESTTEN dimmer
CTA series 300W dimmable led driver has constant voltage working mode, can work perfectly under 10-100% load, has short circuit/overload/over-temperature protection function, strong compatibility, and the dimming performance is as good as zhenhuan electronics 300W LED driver
