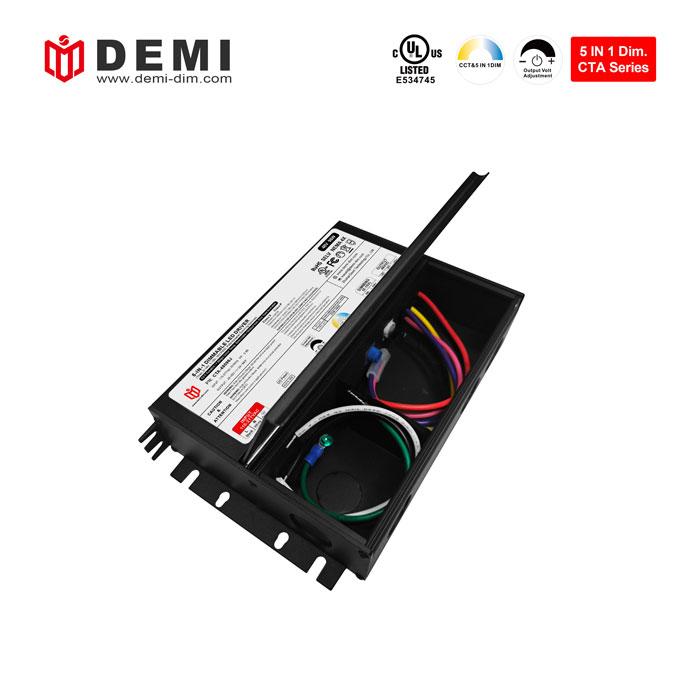

This CTA series 48v 96W dimmable led driver has multi-speed knob switching modes, which can be switched to different modes according to different needs of users. The dimming range is between 0.1-100%, and the dimming effect is as good as Magnitude Lighting’s 96W LED driver
Brand:
DEMIItem no.:
CTA-48096JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
96WOutput Voltage:
24/48VdcShape & Size:
J-box DriverSize:
188*120.5*42mmWeight:
0.9KGCertification:
UL, ROHS, FCCWarranty:
5 years
110-277vac Input voltage 96w 48V triac & 0 10V dimmable constant voltage led driver
PWM output mode CCT & 5 in 1 dimmable led driver has a built-in fine-tuning voltage function knob, which can adjust a certain brightness even when a dimmer is not connected. For example, equipment such as advertising light boxes that do not require frequent dimming can be used with LED advertising lighting modules.
| Model Number | CTA-24096J | CTA-48096J |
| Output Type | ||
| Reted Power | 96W | |
| Reted Voltage | 24V | 48V |
| Reted Current | 4A | 2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 89%@120VAC 90%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 1.02A | |
| Inrush Current(Typ.) | 25A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

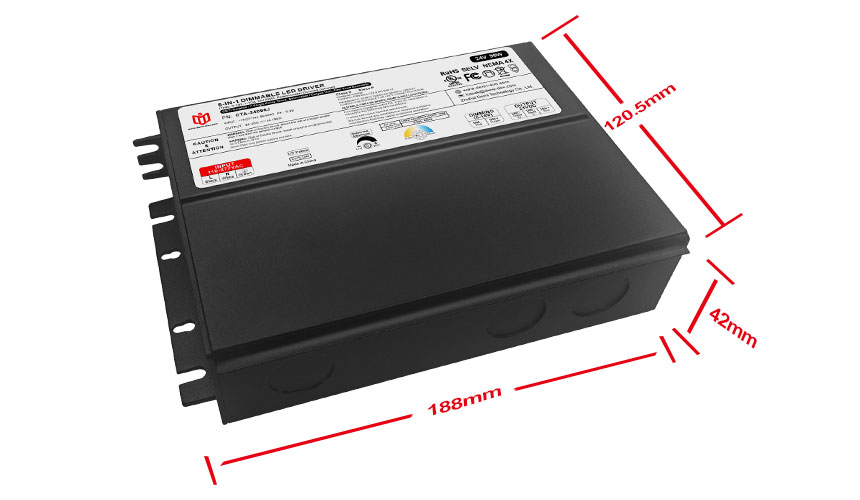

| Dimension | 188x120.5x42mm (L*W*H) | |
| Packing | - | |

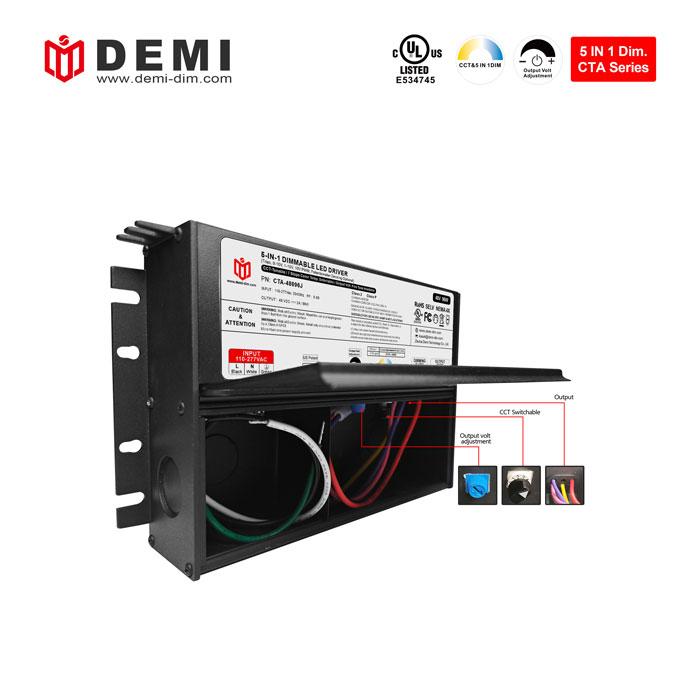

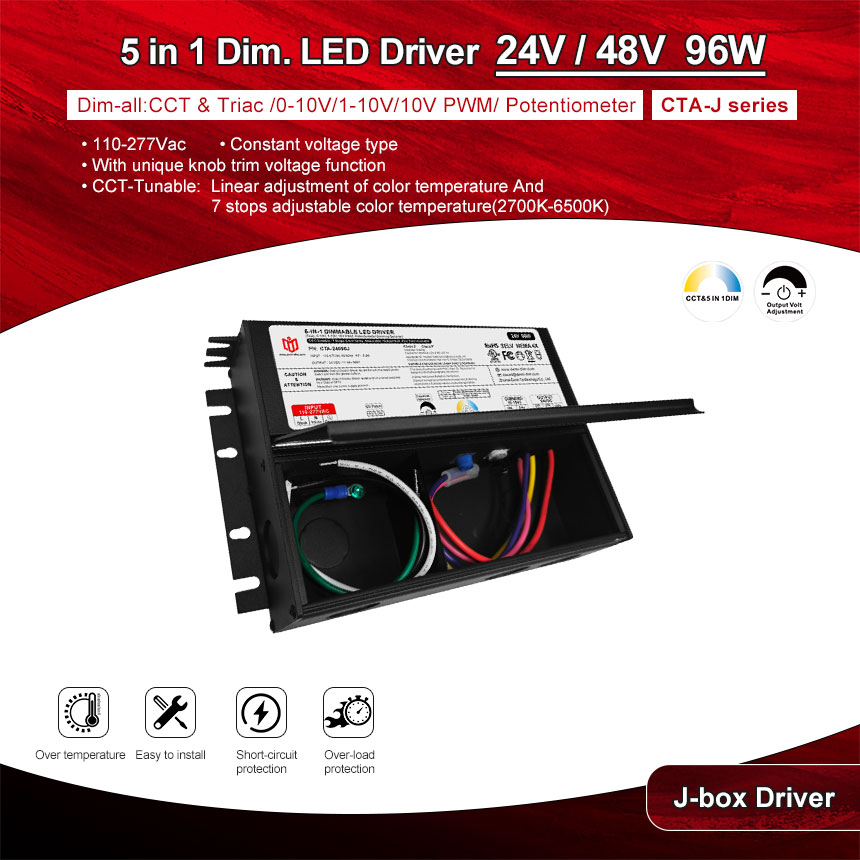

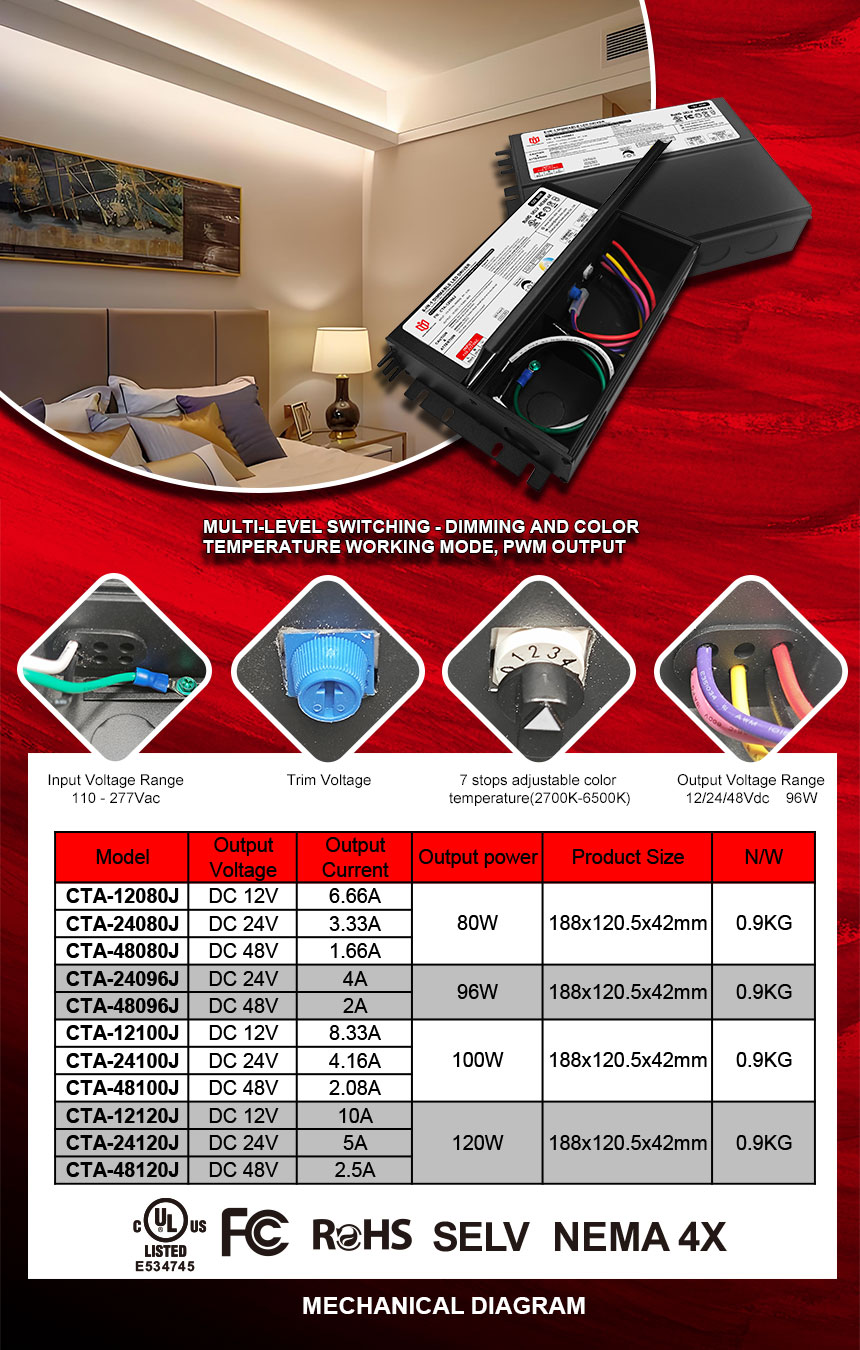

DM new product DM new product CCT & triac/0 10v dimmable led driver constant voltage working mode, junction box and LED power supply integrated design. The aluminum shell has passed the NEMA 4X standard, has good heat dissipation, and has multiple mounting feet to meet the different installation needs of users in different scenarios. constant voltage working mode, junction box and LED power supply integrated design. The aluminum shell has passed the NEMA 4X standard, has good heat dissipation, and has multiple mounting feet to meet the different installation needs of users in different scenarios.
|

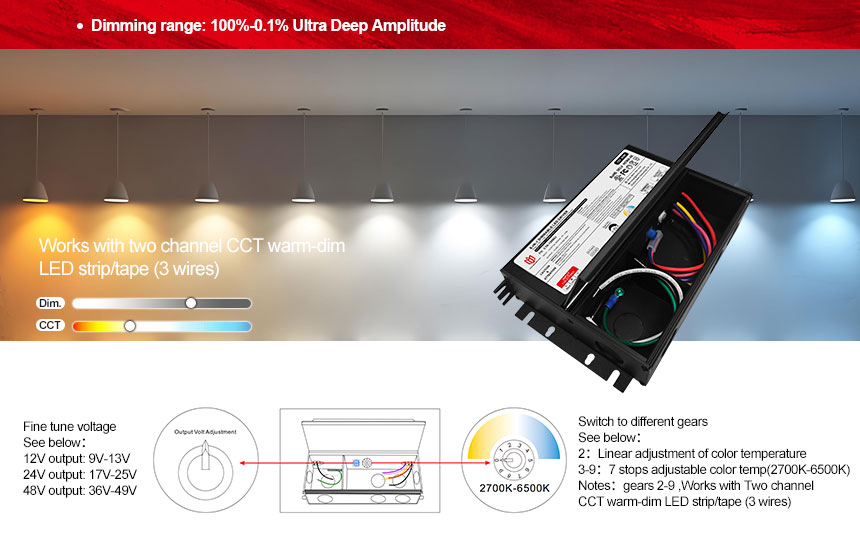

•CCT-Tunable: Linear adjustment of color temperature And 7 stops adjustable color temperature(2700K-6500K) •With unique knob trim voltage function |
•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|
| CTA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 96W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | / | / | / | |

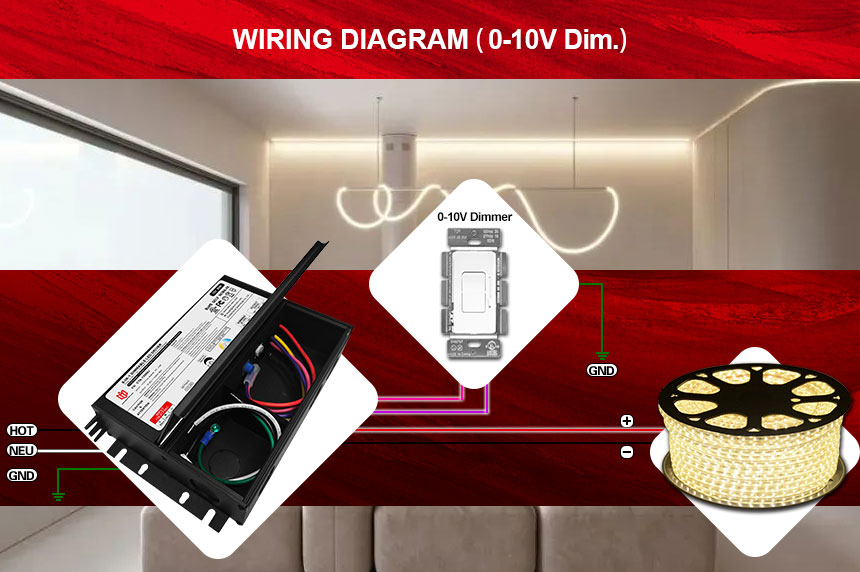

Wiring Diagram
Works with Two channel CCT warm-dim LED strip/tape (3 wires)
· Using Triac/MLV wiring diagram
· Double channel CW color temperature LED strip/tape (3wires)
· Double channel CW color temperature LED strip/tape (3wires)(The driver is independently connected to the input)
Tags :
The best-selling product of the CTA series is the 30W CCT & triac/0 10v dimmable led driver integrated with the junction box. The dimmable range is 0.1~100% ultra-deep range. It has strong compatibility and can be used well with Legrand's 30W dimmer. Achieve smooth flicker-free dimming
CTA series 5 in 1 60W dimmable led driver has built-in active PFC function, ultra-low load requirements, and can work perfectly under 10-100% load. Compatible with almost all popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems on the market, such as INSTEON dimmer
UL certified CTA series 80W constant voltage dimmable 12v led driver, 110-277vac input voltage, compatible with popular front and rear thyristor dimmers and systems, 0-10V dimmers and systems, such as BESTTEN 80W dimmer
CTA series 96w 24v constant voltage led driver It is a PWM output mode. Strong compatibility, dimming performance is as good as Inventronics' 96W dimmable led driver, with 5-year warranty
This CTA series constant voltage dimming 120W LED driver has a dimming range of 0.1~100% ultra-deep amplitude and is compatible with most popular dimmers on the market, such as Leviton dimmer
CTA series 150W 5 in 1 dimmable led driver PWM dimming mode, the dimming range is smooth and flicker-free between 100%-0.1%. Strong compatibility,Dimming effect is as good as Magnitude Lighting’s 150W dimmable led driver
200w CCT & triac/0 10v dimmable led driver has a built-in fine-tuning voltage function knob, of which +1V can compensate for light attenuation of the lamp. It has strong compatibility and is compatible with popular front and rear thyristor dimmers and systems on the market, 0-10V Dimmers and systems such as BESTTEN dimmer
CTA series 300W dimmable led driver has constant voltage working mode, can work perfectly under 10-100% load, has short circuit/overload/over-temperature protection function, strong compatibility, and the dimming performance is as good as zhenhuan electronics 300W LED driver
