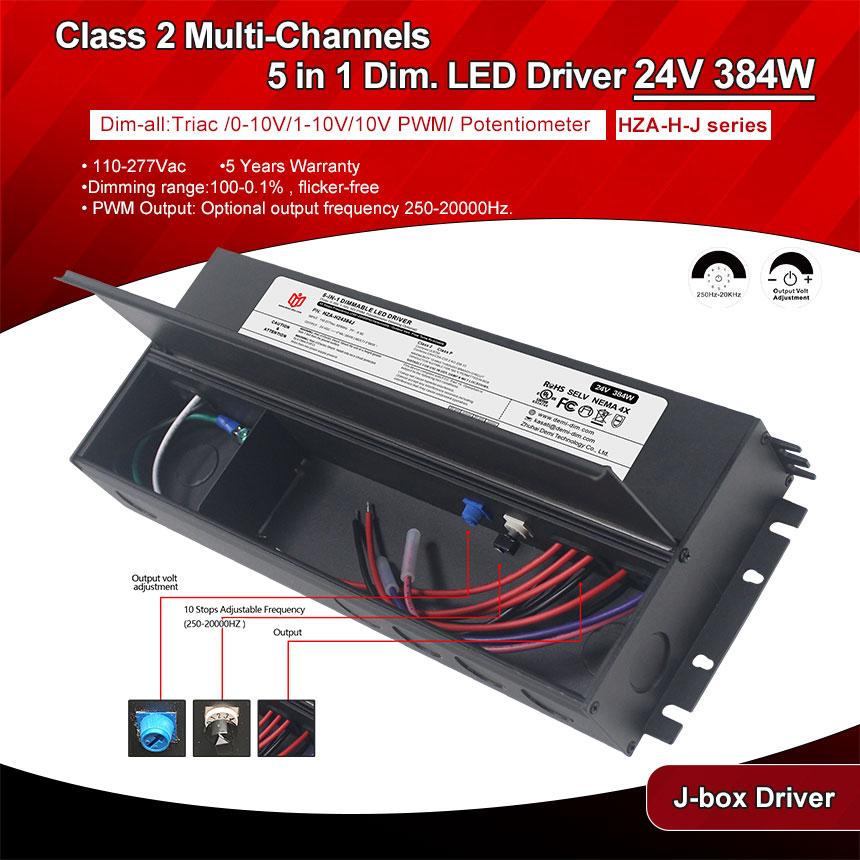

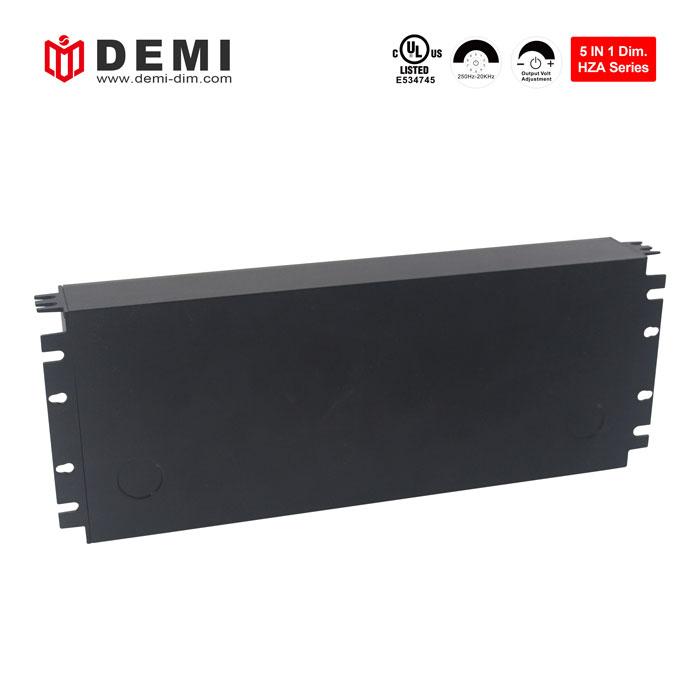

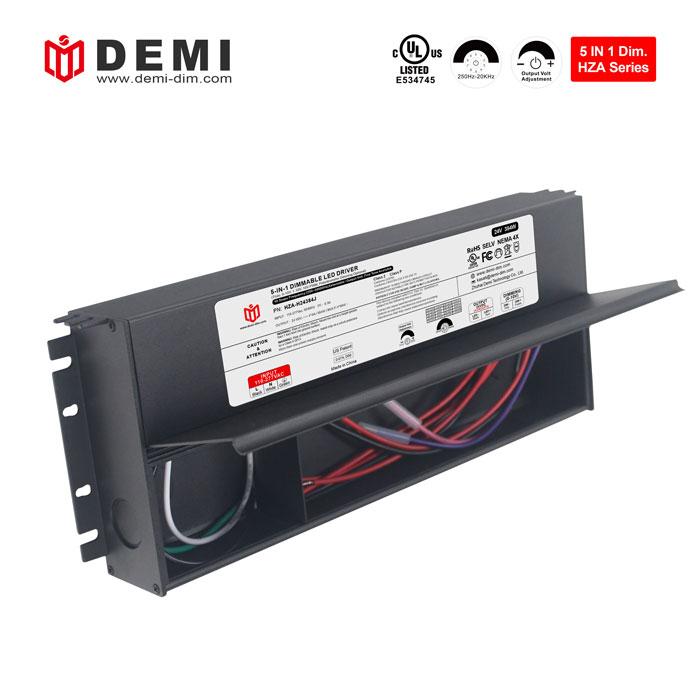

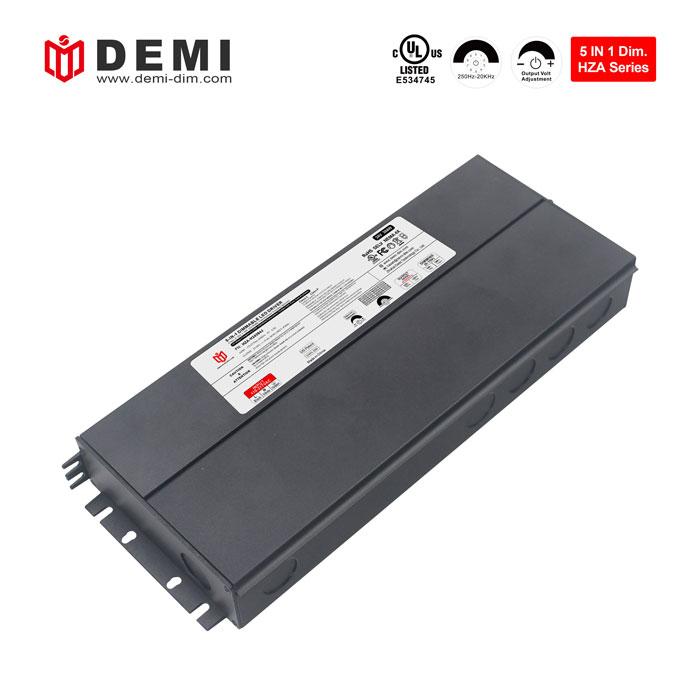

High power 384W 24V dimmable led driver dimmable mode is Triac/0-10V/1-10V/10VPWM/Potentiometer. The dimming range is 0.1%-100% ultra-deep dimming, ultra-low load requirements, and can work perfectly under 10-100% load. Dimming effect is as good as Magnitude Lighting’s dimmable LED driver
Brand:
DEMIItem no.:
HZA-H24384JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
384WOutput Voltage:
24VdcShape & Size:
J-box DriverSize:
316x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 yearstriac & 0 10v dimmable constant voltage led strip light power supply driver 384W 24V
110-277vac 5 in 1 dimmable led driver 384W The output type is PWM output, constant voltage working mode, built-in active PFC function, power factor >0.95. Aluminum shell, good heat dissipation, in compliance with global safety lighting regulations, 5-year warranty
Model Number | HZA-H24384J |
Output Type | |
Reted Power | 384W(4CH*96W) |
Reted Voltage | 24V |
Reted Current | 4CH*4A |
Voltage Tolerance | ±0.5V |
Voltage Regulation | ±0.5% |
Load Regulation | ±1% |
Input Type | |
Voltage Range | 110-277V |
Frequency Range | 47-63HZ |
Efficiency(Typ.) | 92%@120VAC 93%@277VAC |
Total Harmonic Distortion | THD< 15%(@100% load) |
Power Factor(typ.) | 0.99@120VAC 0.98@277VAC |
AC Current(Typ.) | 3.8A |
Inrush Current(Typ.) | 38A |
Leakage Current | <0.5mA |
PROTECTION | |
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed |
Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. |
Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed |
ENVIRONMENT | |
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
Working humidity | 20 ~ 95% RH non-condensing |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
Temp .coefficient | ±0.03%/℃(0~50℃) |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
SAFETY & EMC | |
Safety standards | UL8750, CSAC22.2 No. 250.0-08 |
Withstand voltage | I/P-O/P:1.88KVAC |
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH |
EMC Emission | Compliance to FCC part 15 Subpart B |
OTHERS | |

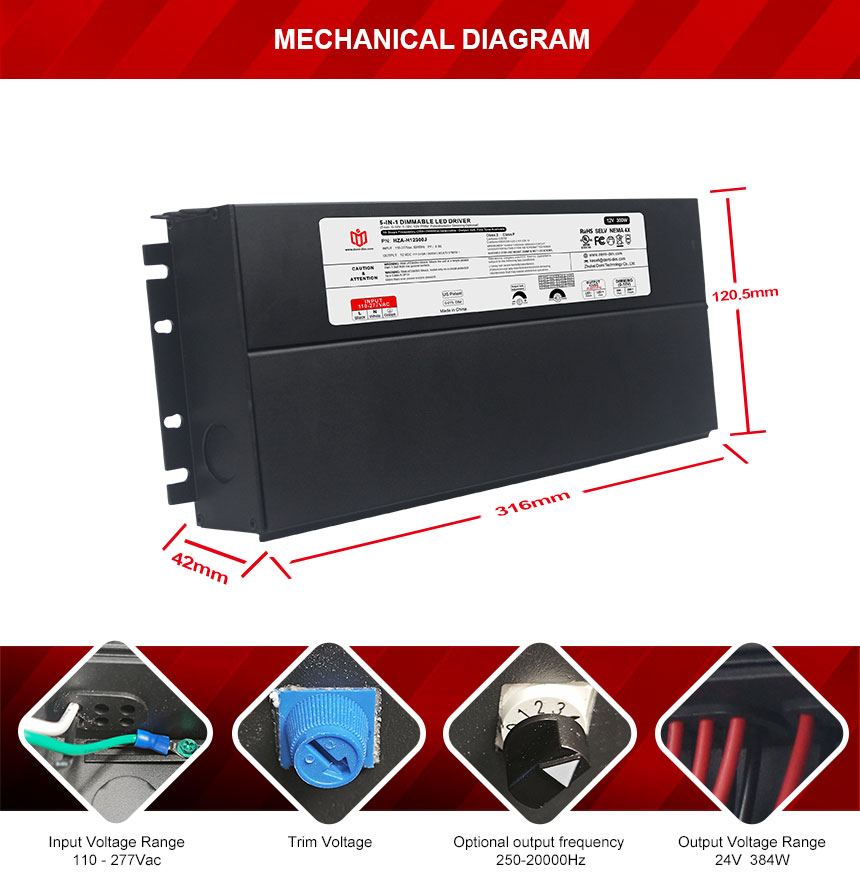

Dimension | 316x120.5x42mm (L*W*H) |
Packing | - |

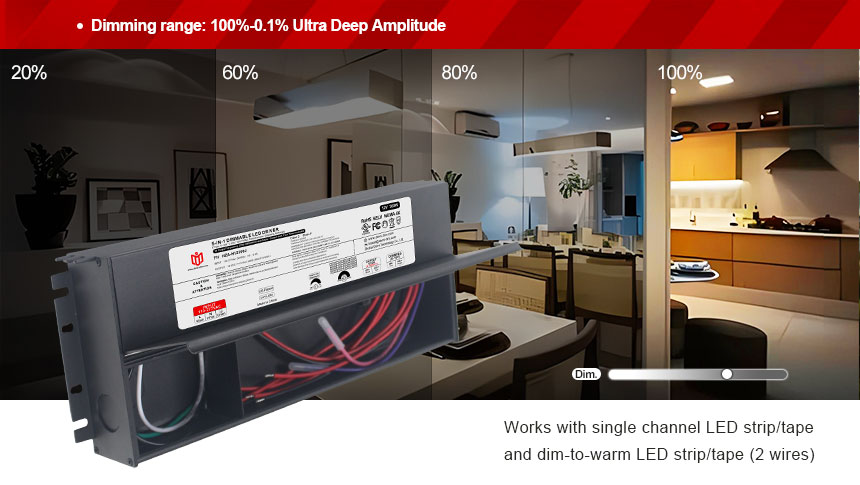

•The entire dimming process does not change frequency or voltage, and maintains the factory-set 4K or 20K from the highest brightness to the lowest brightness.
|
•Strong compatibility: Compatible with almost all popular front and rear thyristor dimmers and systems, and 0-10V dimmers and systems on the market.
|
HZA series is a Class 2 constant voltage dimmable led power supply. This LED driver complies with safety regulations and is suitable for low-voltage applications. The 4-channel output means that it can power multiple LED lamps at the same time. It is suitable for applications that need to drive multiple LEDs at the same time. such as large commercial lighting systems.
HZA-H-J | Input | Output | 0/1-10V Dimming | ||||||
Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
384W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
Ground | Green | 18AWG | / | / | / | / | / | / |

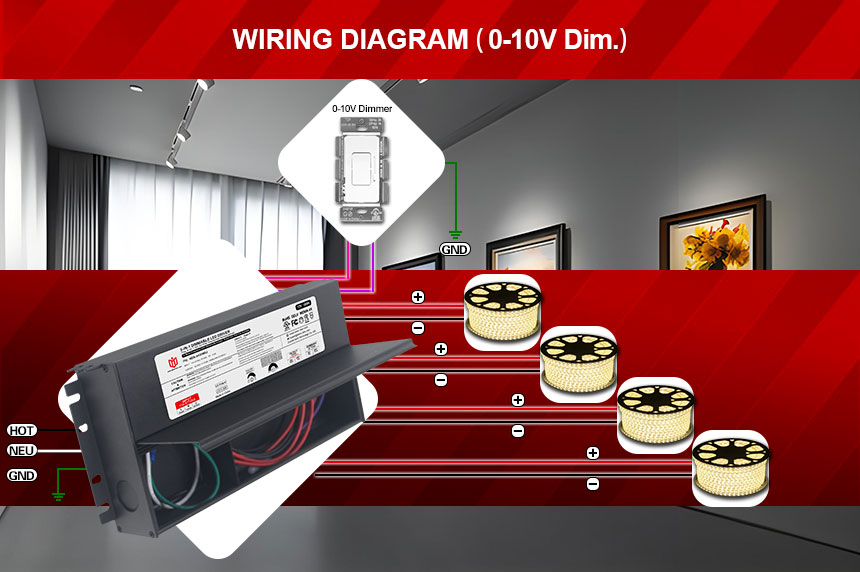

Wiring Diagram
· Using Triac MLV wiring diagram

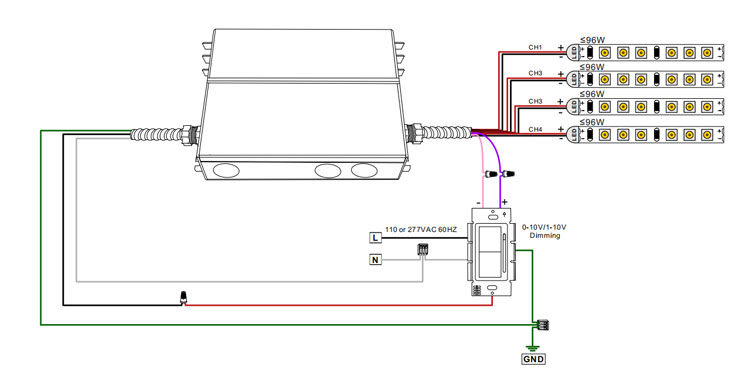

· Using 0-10/1-10V dimming(The driver input is connected to the dimmer)
