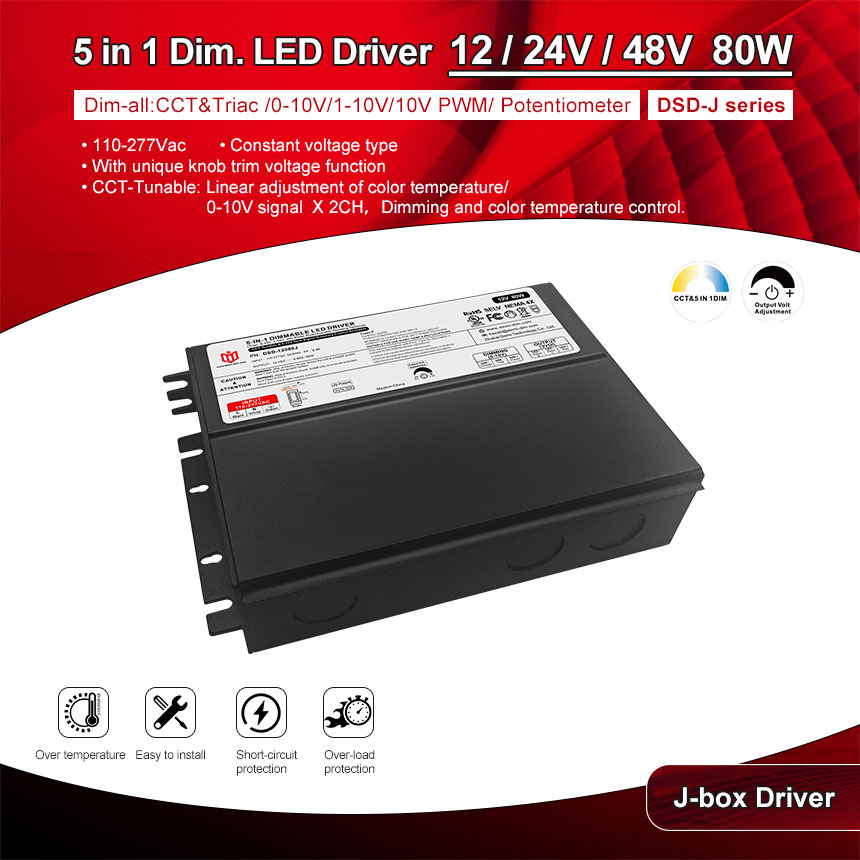

80W triac & 0 10v dimmable led driver constant voltage working mode Built-in fine-tuning voltage function knob. Can solve the voltage drop problem in wiring. Dimming performance is good, as good as Magnitude Lighting 80W 24V dimmable led driver dimming effect.
Brand:
DEMIItem no.:
DSD-24080JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
80WOutput Voltage:
12/24/48VdcShape & Size:
J-box DriverSize:

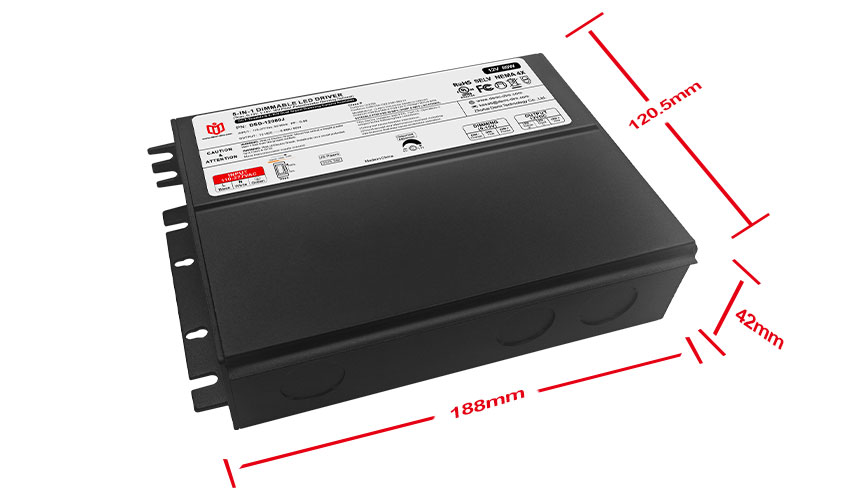

188*120.5*42mmWeight:
0.75KGCertification:
UL, ROHS, FCCWarranty:
5 years
80w CCT & triac/0 10v dimmable 24v led driver strip light power supply junction box
110-277vac universal input voltage range CCT & 5 in 1 dimmable 80W 24V LED power supply adopts PWM dimming mode. The dimming range is between 0.1~100% to achieve smooth and flicker-free. With short circuit/overload/overtemperature protection function
| Model Number | DSD-12080J | DSD-24080J | DSD-48080J |
| Output Type | |||
| Reted Power | 80W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 6.66A | 3.33A | 1.66A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 88%@120VAC 89%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 0.85A | ||
| Inrush Current(Typ.) | 22A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over | ||
| load is removed | |||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||
| Dimension | 188x120.5x42mm (L*W*H) | ||
| Packing | - | ||
|

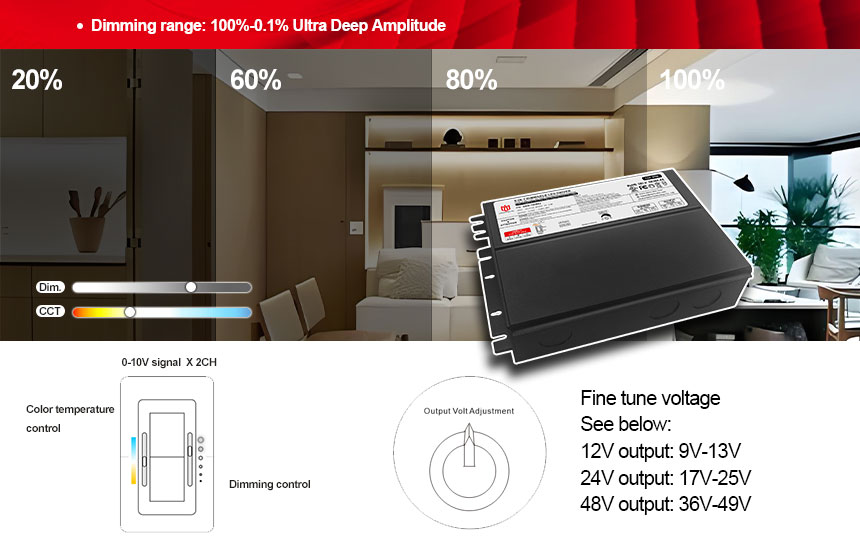

•PWM Output: 4k/HZ Constant frequency (Different frequencies can be customized:250-20000Hz) •CCT-Tunable: Linear adjustment of color temperature/0-10V signal |

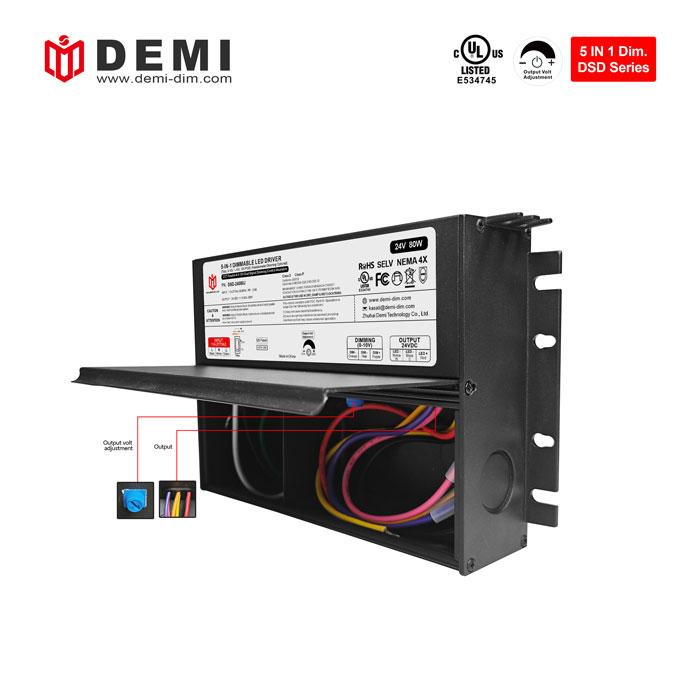

•Exclusive patent design of “Clamshell” junction box（Fixed without screws） •Works with two channel CCT warm-dim LED strip/tape (3 wires)
|
This DSD series dimmable 80W LED driver has a special 0 10V dual signal design, one for dimming and one for color temperature control. The body is made of aluminum shell design, which has good heat dissipation. It is easy and quick to install and complies with global safety lighting regulations. It has multiple mounting feet and can be installed according to user needs. 5-year warranty

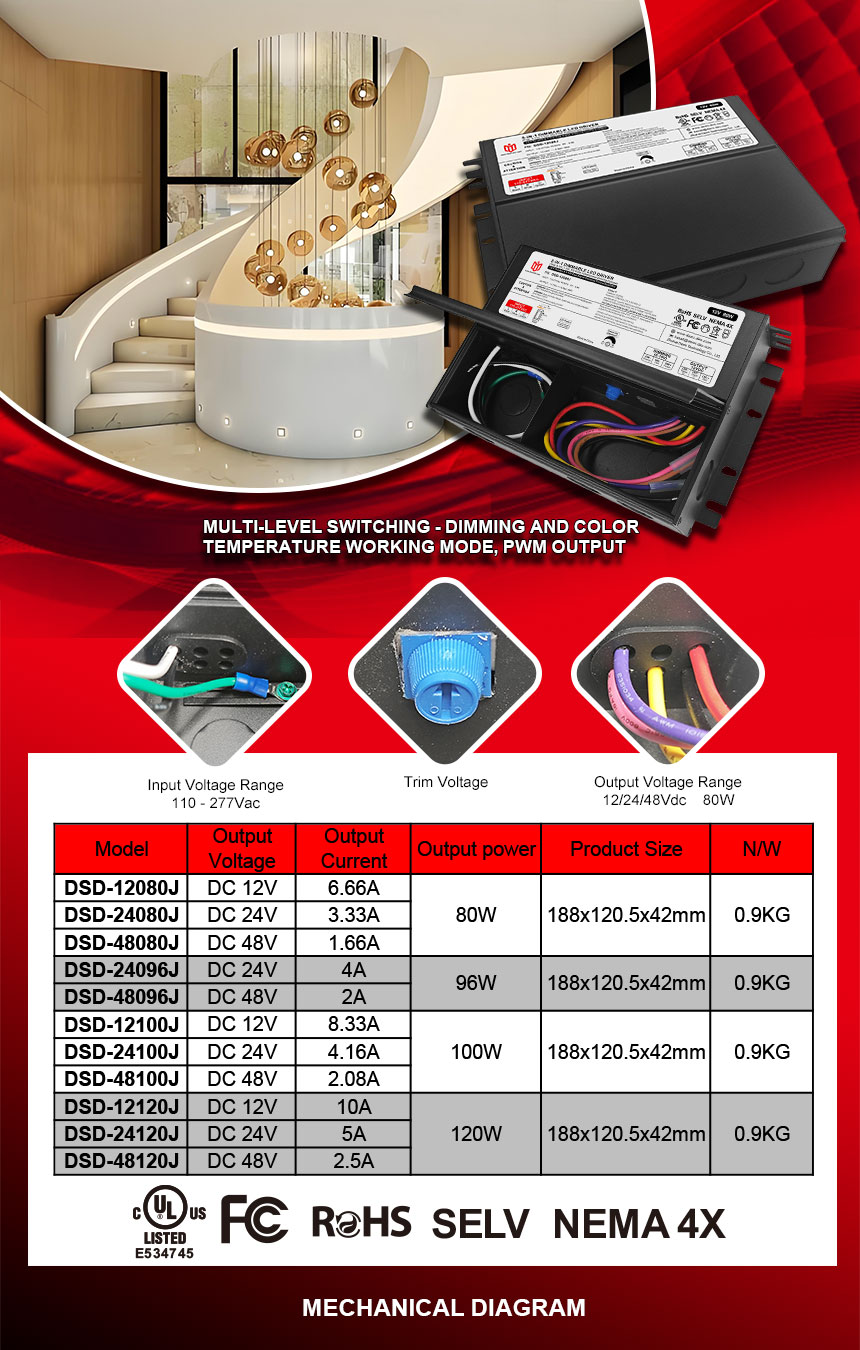

| DSD-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 80W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG | Dim- | Orange | 18AWG | |
Wiring Diagram

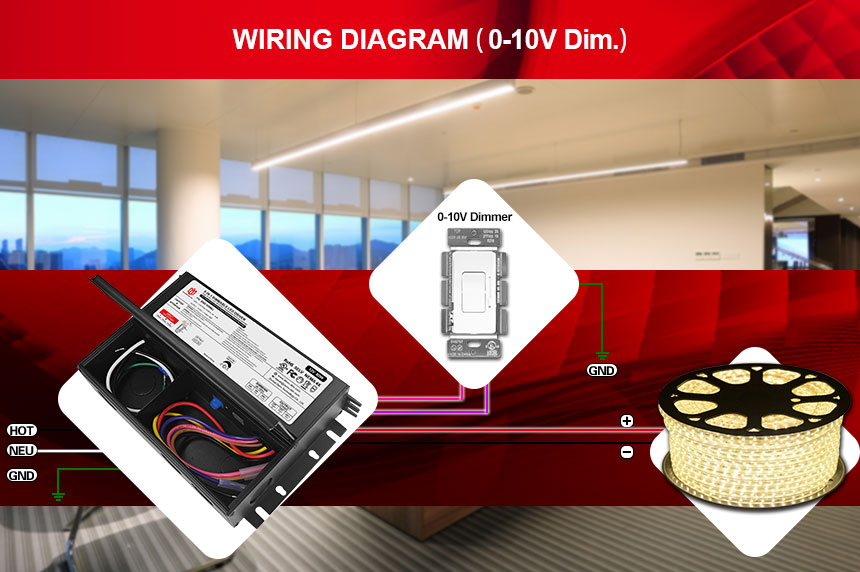

· Using Triac/MLV wiring diagram
· Using 0-10/1-10V dimming
· Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
