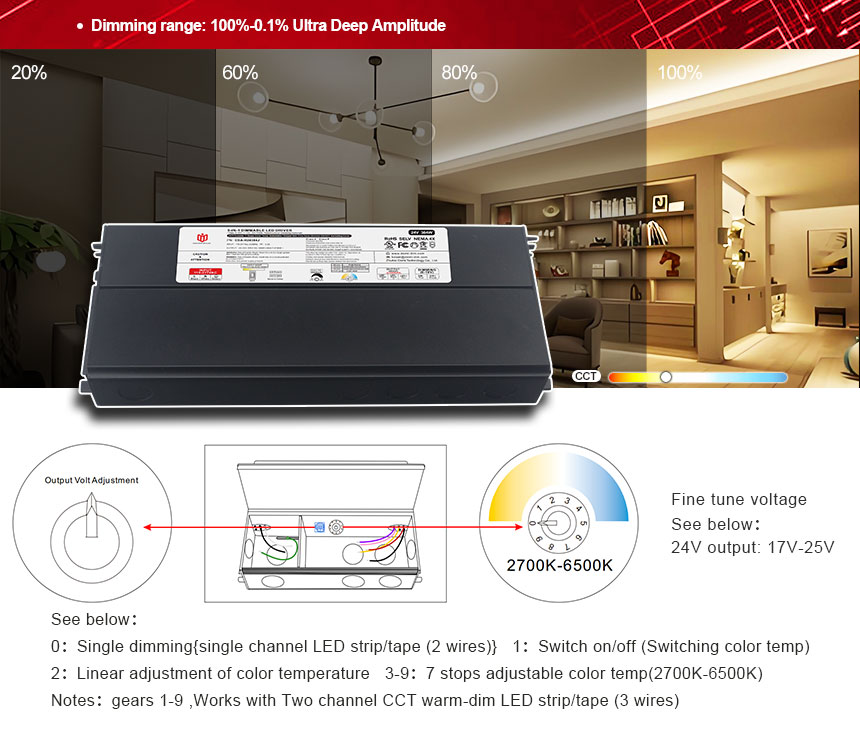

This CSA series 384W dimmable led dirver PWM output mode, 4K/hz constant frequency optional, built-in fine-tuning voltage function knob, can compensate for light attenuation of the lamp. It has strong compatibility and can be compatible with most triac dimmers and 0 10v dimmers on the market to achieve smooth and flicker-free dimming. For example casambi dimmer
Brand:
DEMIItem no.:
CSA-H24384JDimming Mode:
5 in 1 Dim.Working Mode:
Constnat VoltageInput Voltage:
100-277VacOutput Power(Watt):
384WOutput Voltage:
24/48VdcShape & Size:
J-box DriverSize:
316x120.5x42mmWeight:
1.7KGCertification:
UL, ROHS, FCCWarranty:
5 years

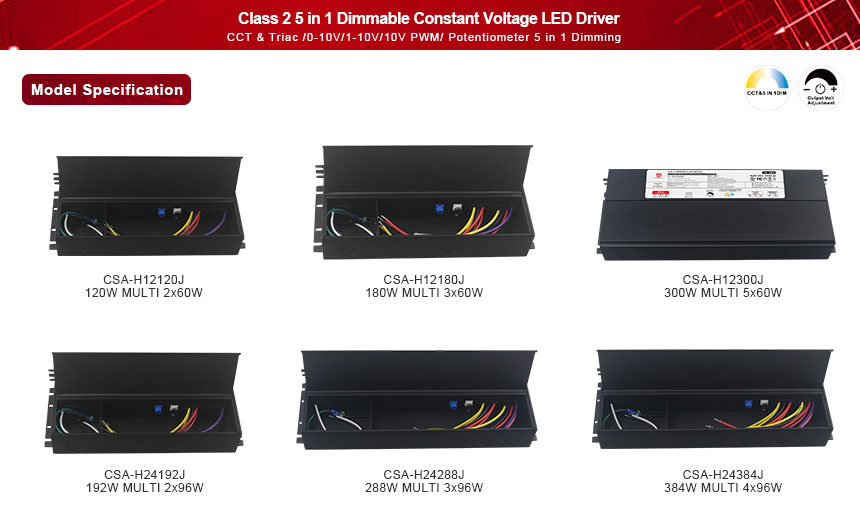

Class 2 CCT & triac/0 10v constant voltage dimmable led driver power supply 384W 24v/48v junction box
110-277vac universal input voltage function CCT & 5 in 1 dimmable led driver has ultra-low load requirements, works perfectly at 10-100% load, constant voltage operating mode. Passed UL certification, mainly sold to North America
| Model Number | CSA-H24384J | CSA-H48384J |
| Output Type | ||
| Reted Power | 384W(MULTI 96W * 4) | |
| Reted Voltage | 24V | 48V |
| Reted Current | 4CH*4A | 4CH*2A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Input Type | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63HZ | |
| Efficiency(Typ.) | 90%@120VAC 91%@277VAC | |
| Total Harmonic Distortion | THD< 15%(@100% load) | |
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | |
| AC Current(Typ.) | 3.8A | |
| Inrush Current(Typ.) | 38A | |
| Leakage Current | <0.5mA | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Load | ≤110% Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

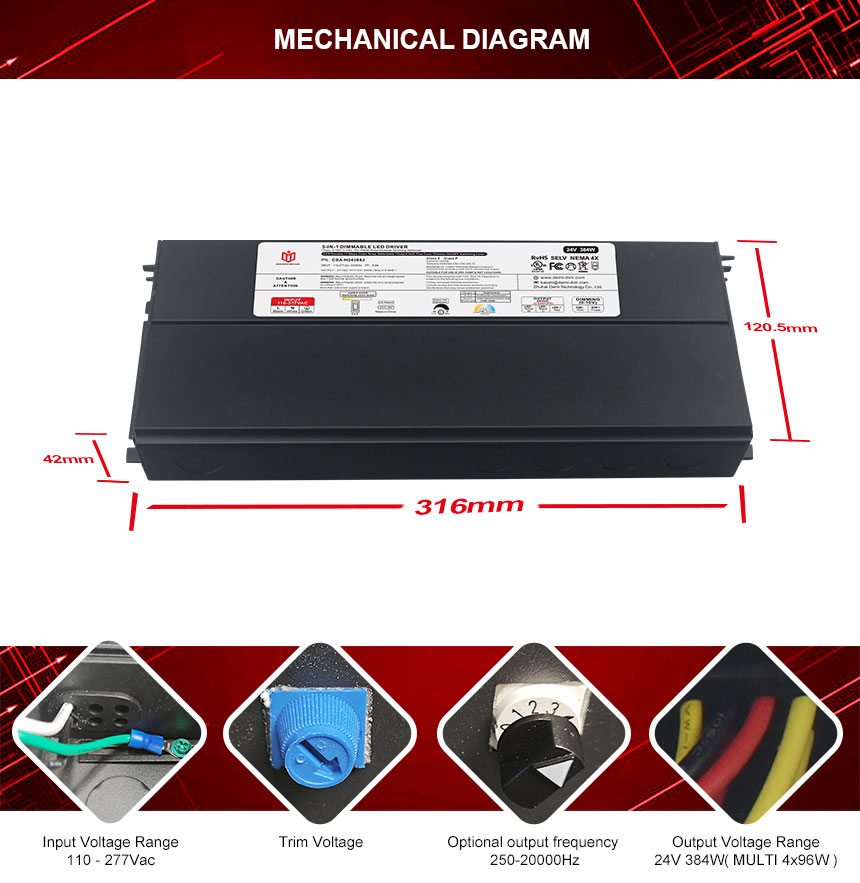

| Dimension | 316x120.5x42mm (L*W*H) | |
| Packing | - | |
|

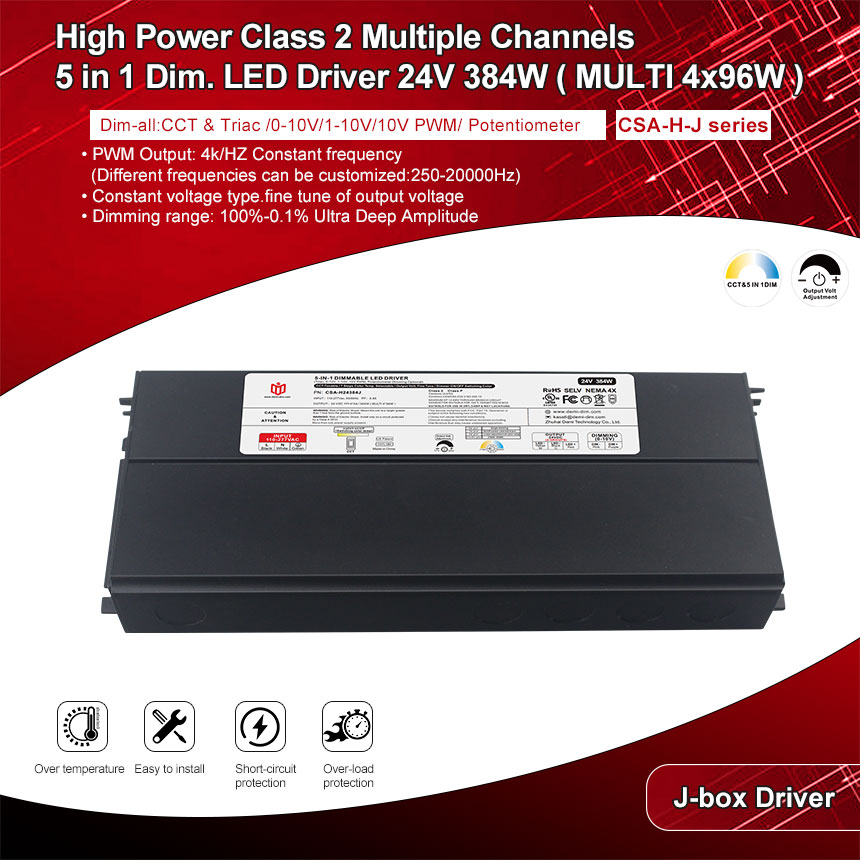

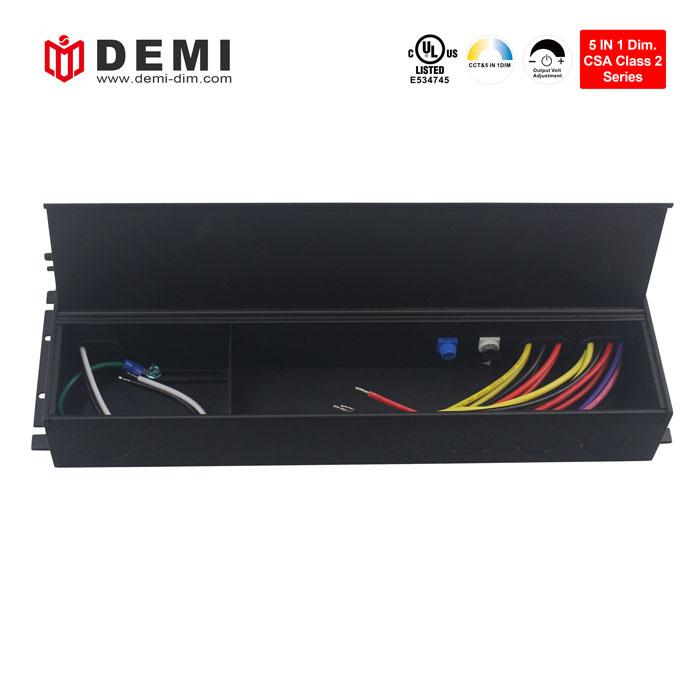

•Exclusive patent design of “Clamshell” junction box •Super low loading request, works perfect at 10-100% load |
•PWM Output: 4k/HZ Constant frequency •Short-circuit, over-temperature, over-load protection
|

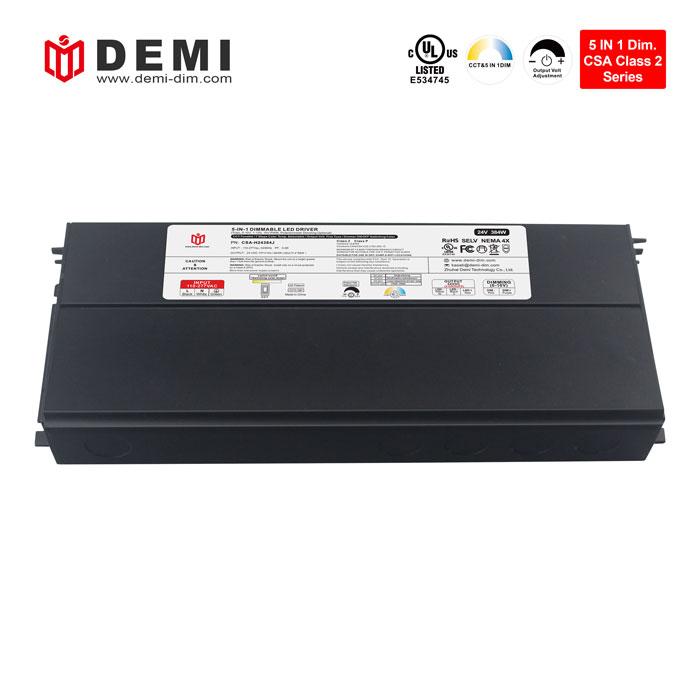

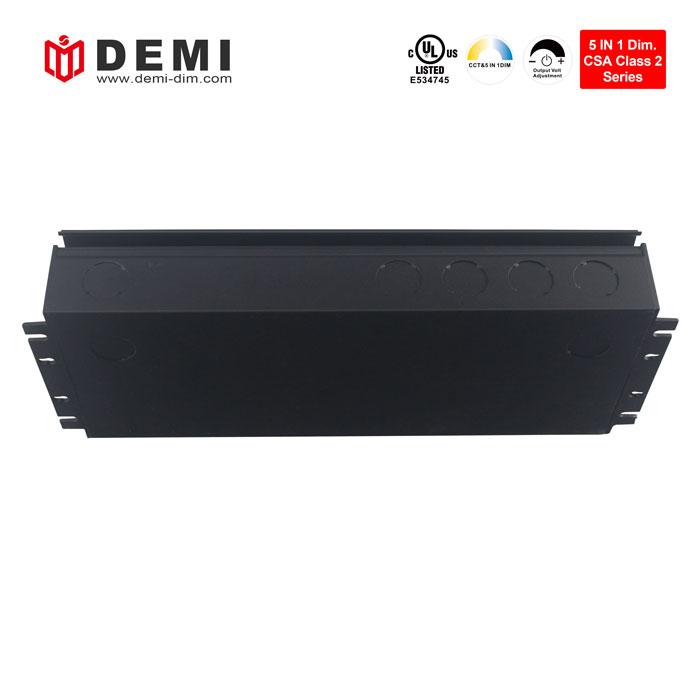

Class 2 standard 24v/48v 384W dimmable led power supply has 4 outputs and can provide stable power protection for multiple lamps at the same time. This LED driver has an aluminum casing, good heat dissipation, and has passed NEMA 4X standards. It needs to be installed in a well-ventilated location. The body has multiple mounting feet to meet customers' installation and use in different scenarios.
| CSA-J | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
|
384W (MULTI 4*96W) |
AC L | Black | 18AWG | DC+ | Red | 18AWG*4 | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG*4 | Dim- | Pink | 18AWG | |
| Ground | Green | 18AWG | CW- | Yellow | 18AWG*4 | / | / | / | |
Wiring Diagram
· Using Triac MLV wiring diagram

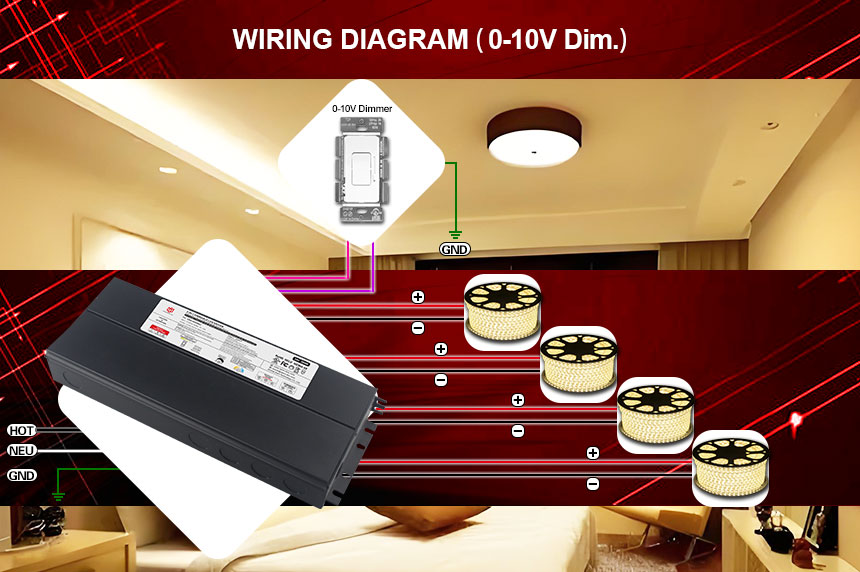

· Using 0-10/1-10V dimming
Double channel CW color temperature LED strip/tape (3wires)(The drive input is connected to the dimmer)
